Jade Range (Middleby)

Titan 36-Inch Heavy Duty Upright Gas Radiant Broiler, Cabinet Base

SKU: JSHBR-36
$18,246.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Broilers Deck Ovens Deck Ovens Jade Range (Middleby) New Arrivals Ovens Restaurant Equipment Upright Broilers

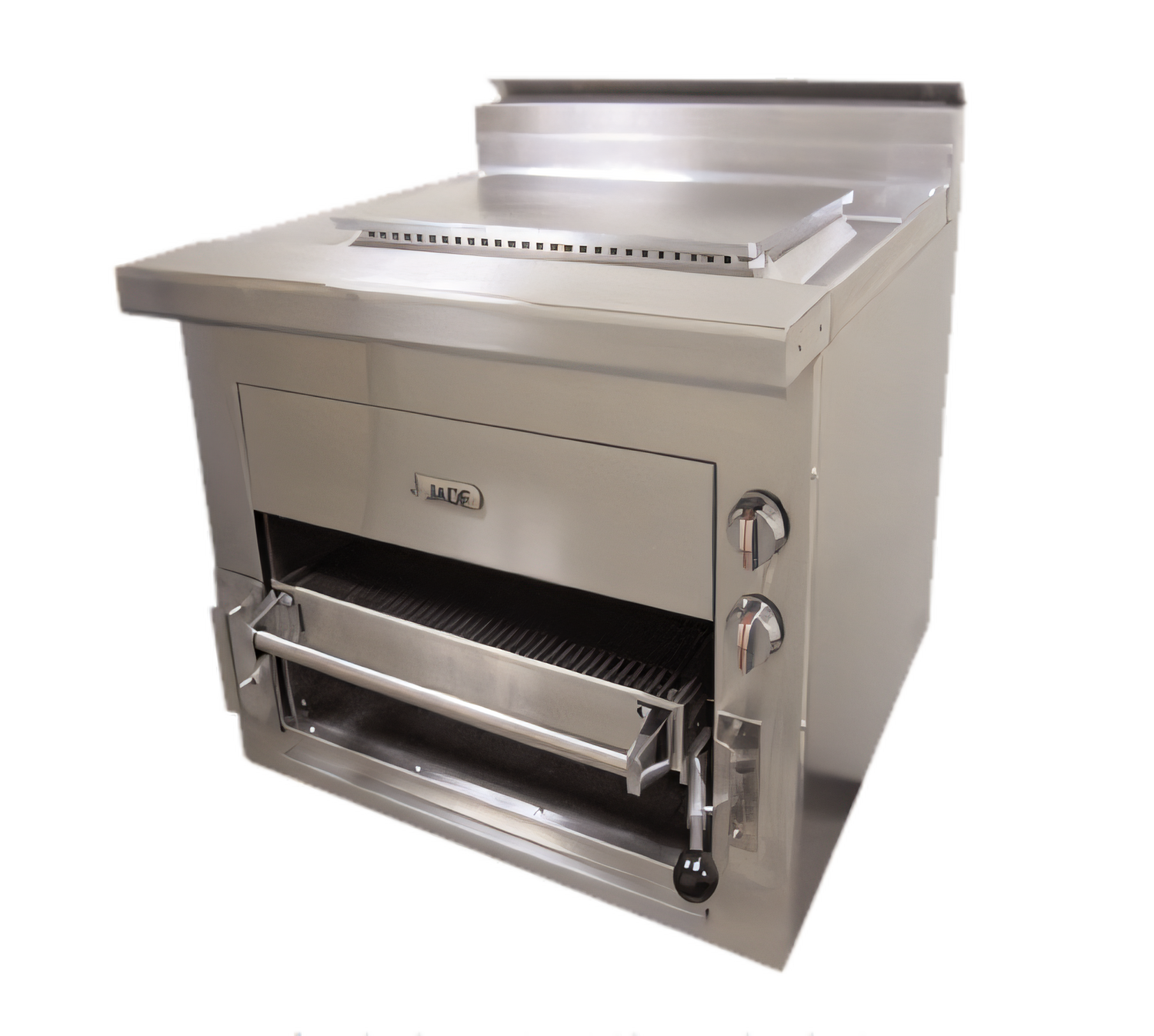

Titan 36-Inch Heavy Duty Upright Gas Radiant Broiler, Cabinet Base

Single-Deck, Ceramic Radiants, 90,000 BTU

Built for high-volume kitchens, this 36-inch upright gas broiler pairs rugged stainless steel construction with ceramic radiants and 90,000 BTU of broiling power.

  • 36-inch heavy-duty upright radiant broiler with cabinet base and single-deck design
  • Six 15,000 BTU/hr stainless steel burners deliver 90,000 BTU total output
  • Ceramic radiants provide intense, even broiling heat across the grid
  • Roll-out grid carriage and lift-out broiler grid help streamline operation and cleanup
  • 14-gauge welded stainless steel construction with 6-inch adjustable legs
  • NSF and CSAus listed for commercial kitchen compliance

Overall Dimensions:

36.0"W x 36.25"D x 64.0"H

Product Weight:

700.0 lb

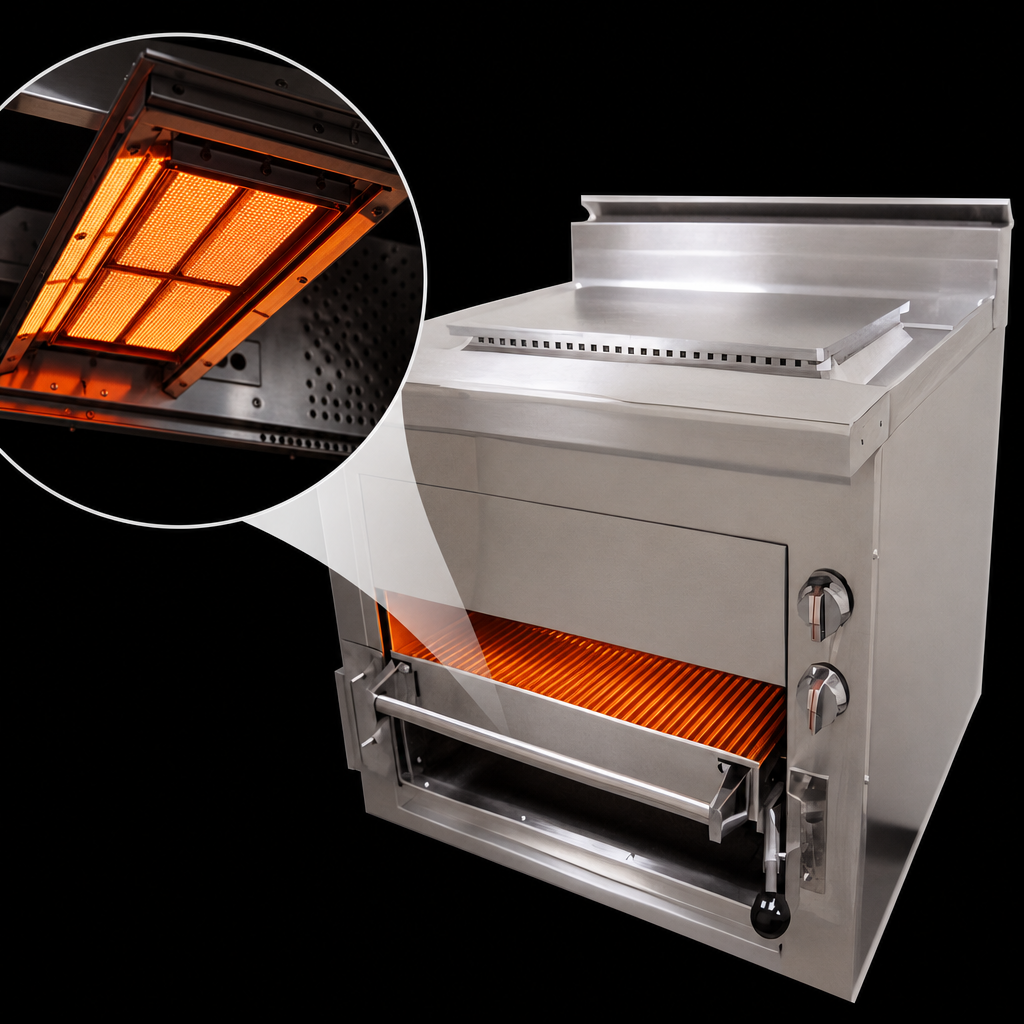

Ceramic Radiants

Radiants work with the burners to produce strong, even radiant heat for broiling.

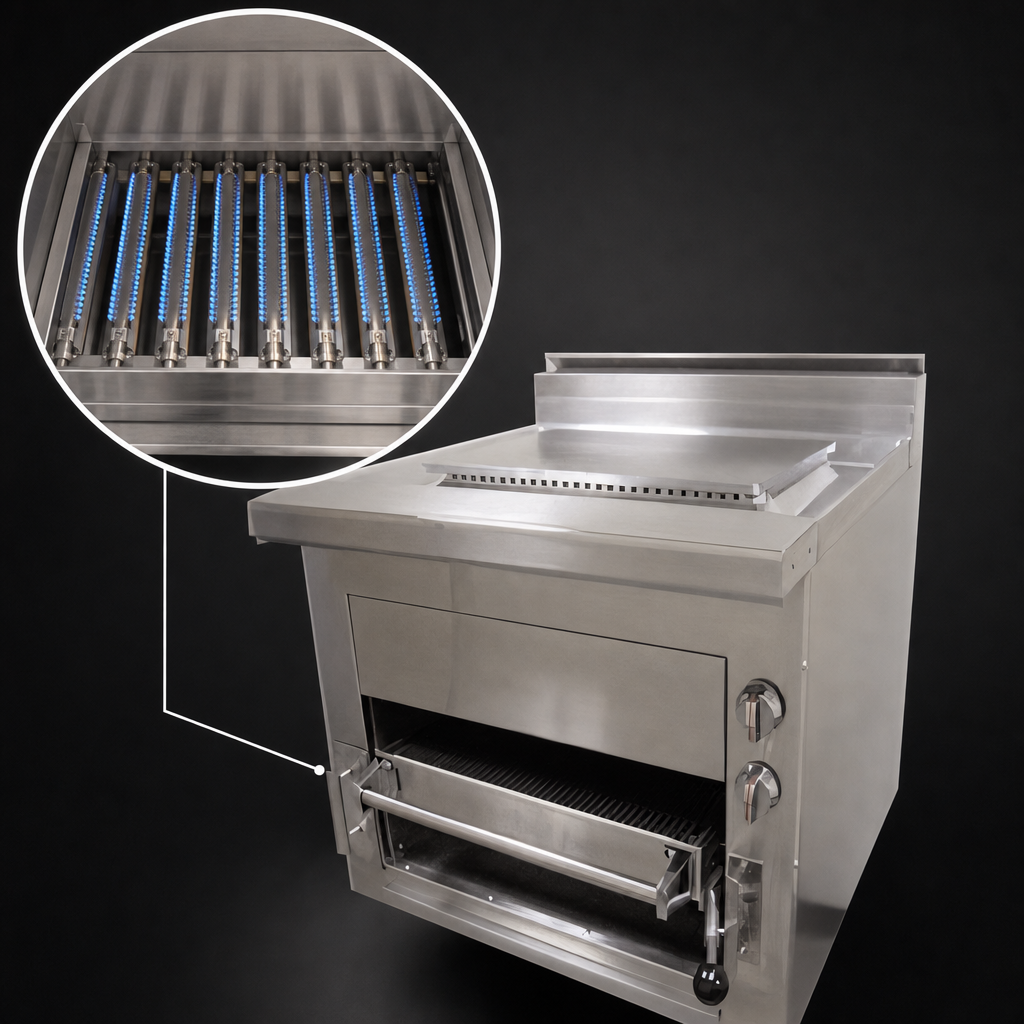

Six Stainless Steel Burners

Six 15,000 BTU/hr burners deliver a combined 90,000 BTU output.

Roll-Out Grid Carriage

The broiler grid carriage glides on roller bearings and uses a counter-balance mechanism for smoother movement.

Lift-Out Broiler Grid

Large 26-1/2 inch x 28-1/4 inch broiler grid lifts out for easier loading and cleaning.

Stainless Steel Construction

All-welded 14-gauge body with stainless steel front, sides, top, gas tubing, and tray bed.

Cabinet Base

Cabinet base model with stainless steel cabinet interior and exterior; optional stainless steel doors are available.

Adjustable Legs

6-inch stainless steel adjustable legs help level the unit on uneven floors.

Flexible Gas Connection

Variable multi-point gas connection with front manifold and capped rear manifold connection.

Type Radiant Broiler
Style Single Deck
Installation Type Freestanding
Material Stainless Steel
BTU 90,000 BTU
Gas Connection Size 1-1/4 Inch Front Manifold; 1 Inch or 3/4 Inch Rear Manifold
Shipping Width 36 Inches
Shipping Depth 37 Inches
Shipping Height 64 Inches
Shipping Weight 700 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It uses six 15,000 BTU/hr stainless steel burners with ceramic radiants for intense broiling heat.
Yes. Model JSHBR-36 is the cabinet base version of the radiant broiler.
Specify natural gas or propane when ordering.
Natural gas requires 5 inches W.C. minimum, propane requires 10 inches W.C. minimum, and maximum inlet pressure is 14 inches W.C.
Available accessories include 6-inch casters, 36-inch or 48-inch flex hoses with quick disconnect, and 1-inch or 1-1/4-inch gas pressure regulators.
The unit measures 36 inches wide, 36.25 inches deep, and 64 inches high, with a shipping weight of 700 lb.
