Jade Range (Middleby)

Titan JSB-36WM 36" Wall Mounted Gas Infrared Salamander Broiler

SKU: JSB-36WM
$7,373.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

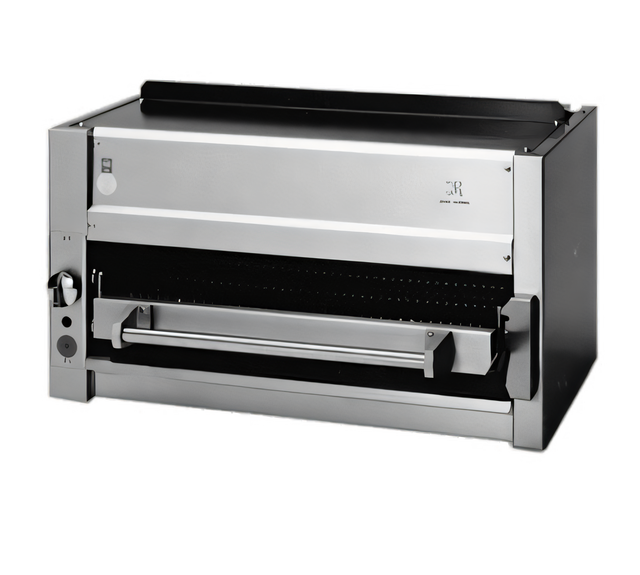

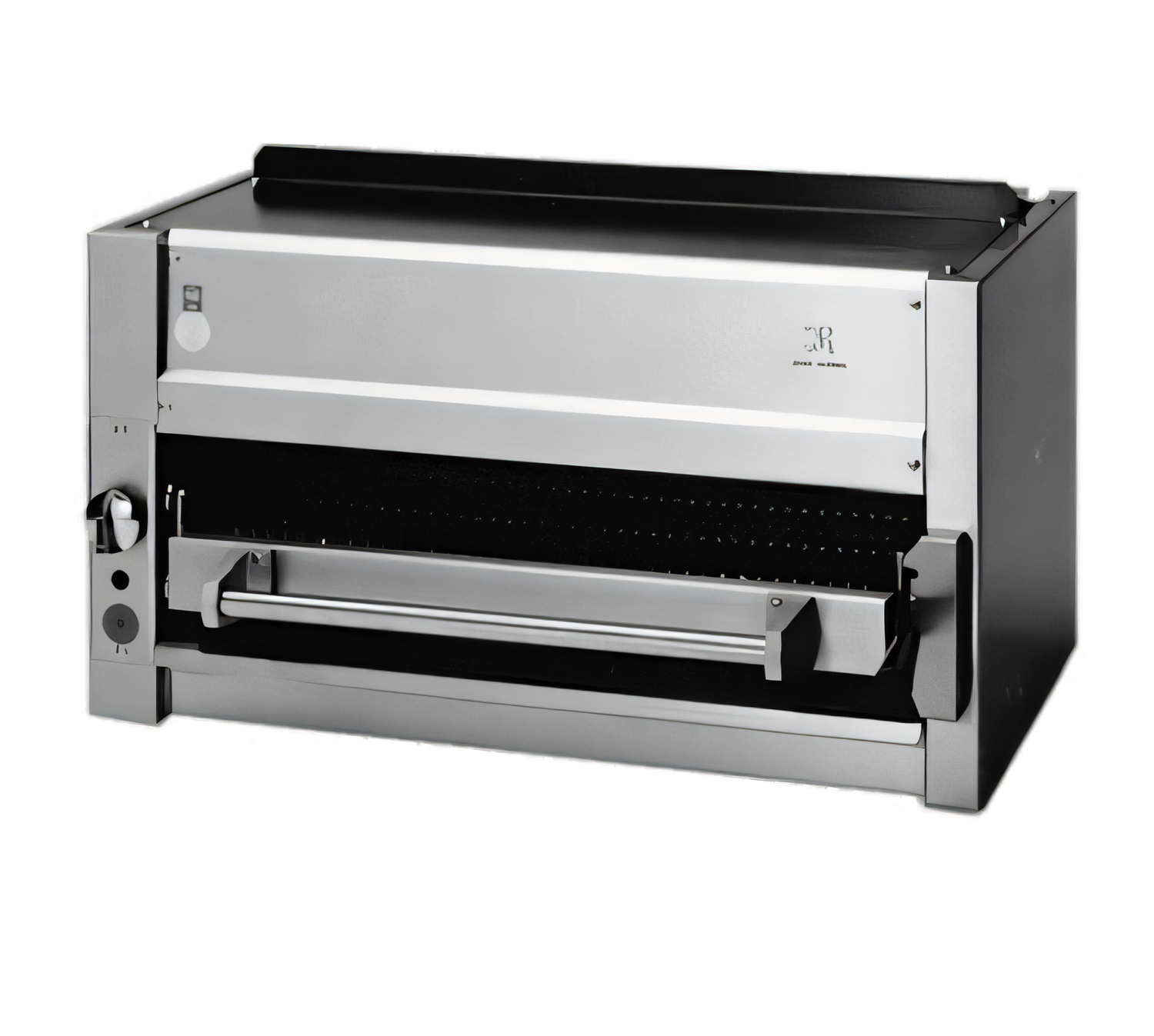

Titan JSB-36WM 36" Wall Mounted Gas Infrared Salamander Broiler

36-Inch Width, Natural Gas or Propane, Infrared Burners

Elevate your kitchen's versatility with the Titan JSB-36WM, a robust 36-inch wall-mounted salamander broiler designed for high-performance finishing and cooking.

  • Powerful 35,000 BTU/hr. ceramic tile infrared burner for quick and even heat distribution.
  • Durable 14 gauge stainless steel construction ensures longevity and easy cleaning.
  • Counter-balanced roll-out grid carriage with four locking positions for precise cooking control.
  • Large 12" x 26-1/2" chrome plated broiler grid accommodates a variety of dishes.
  • Designed specifically for wall mounting, saving valuable counter space in commercial kitchens.
  • Equipped with a grease deflector to guide drippings into a bottom pan for efficient cleanup.

Overall Dimensions:

36.0"W x 20.5"H

Product Weight:

240.0 lb

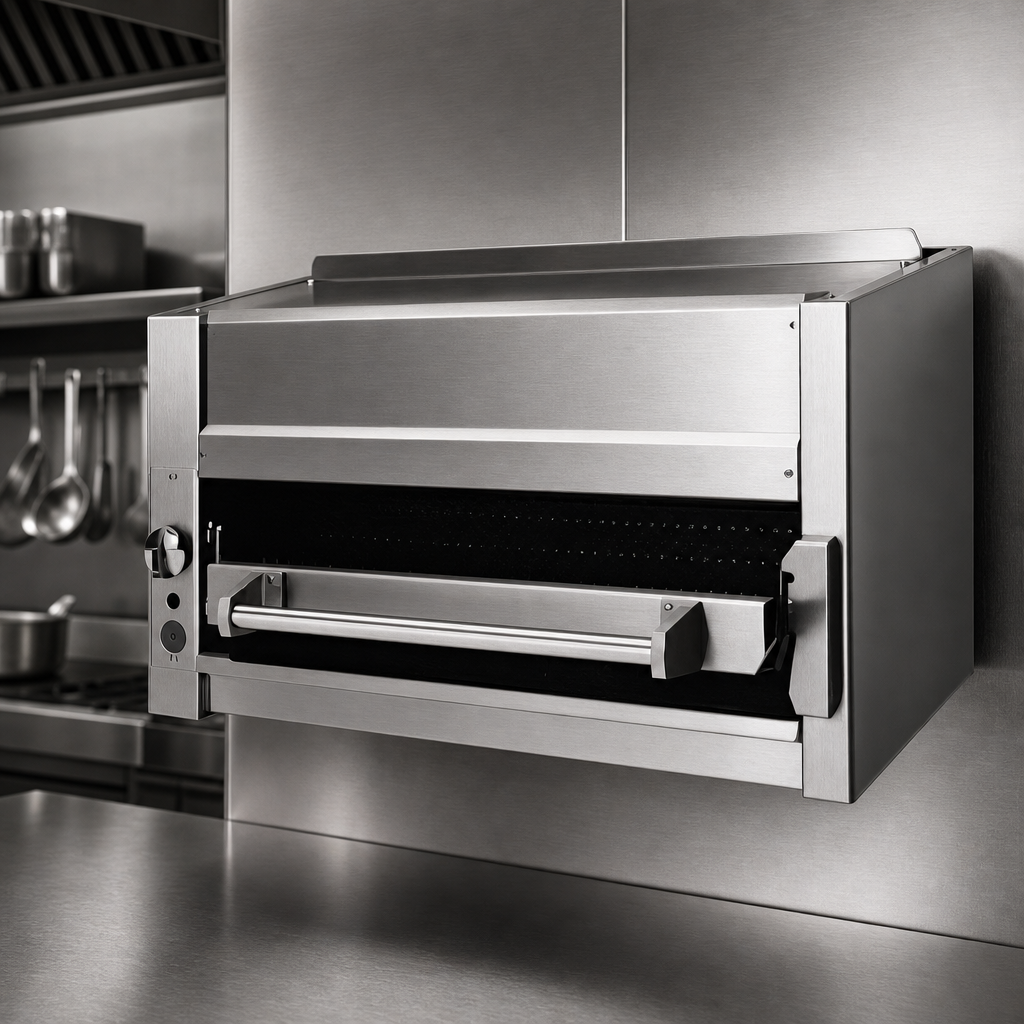

Heavy-Duty Stainless Steel Construction

Constructed from 14 gauge stainless steel for the front, sides, bottom, top, and interior, ensuring exceptional durability and corrosion resistance in a demanding commercial environment.

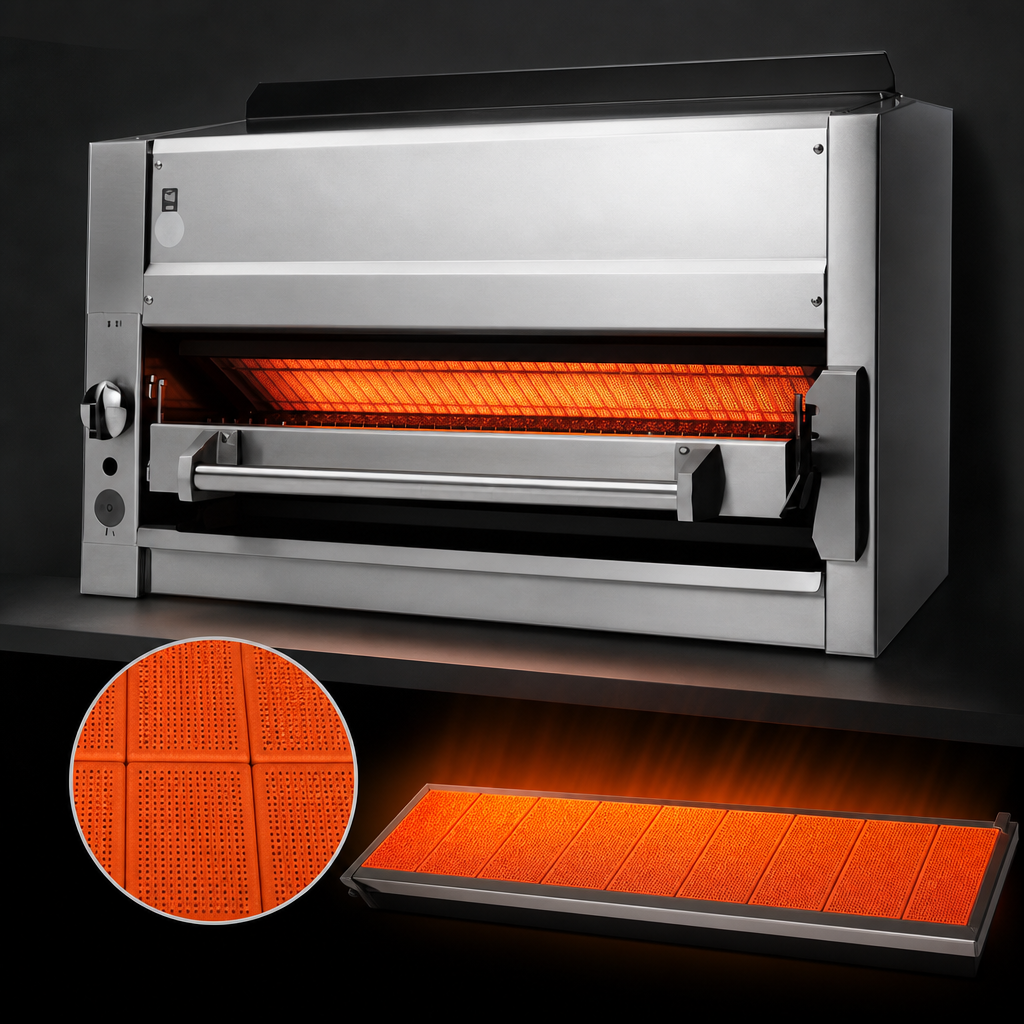

Infrared Ceramic Tile Burner

Features a high-efficiency 35,000 BTU/hr. ceramic tile infrared burner that delivers intense, consistent heat for quick melting, browning, and finishing of dishes.

Counter-Balanced Roll-Out Grid Carriage

The broiler grid is mounted on a counter-balanced carriage that glides smoothly on roller bearings, allowing for effortless adjustment and four secure locking positions to suit different cooking needs.

Large Chrome Plated Broiler Grid

Includes a substantial 12" x 26-1/2" lift-out chrome plated grid, providing ample space for full-size pans and multiple food items.

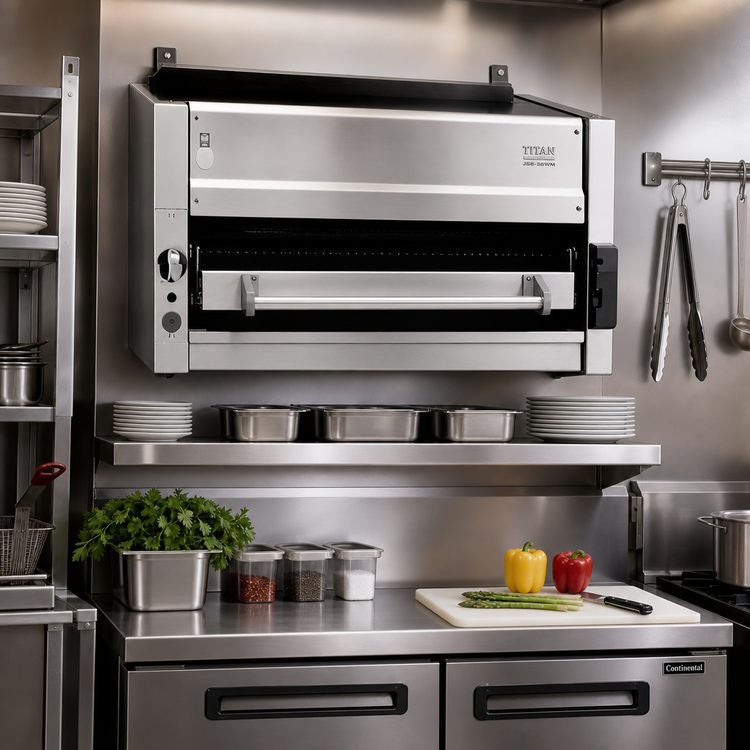

Integrated Wall Mounting Bracket

Designed for wall-mount installation, the JSB-36WM comes standard with a wall mounting bracket to free up valuable counter space.

Efficient Grease Management

A built-in grease deflector efficiently guides grease into collection pans at the bottom of the broiler, simplifying cleanup and maintaining hygiene.

Type Salamander Broiler
Style Infrared
Installation Type Wall Mounted
BTU 35,000 BTU/hr.
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inches
Gas Inlet Pressure Natural Gas 5 Inches W.C. (Min), Propane Gas 10 Inches W.C. (Min)
Material Stainless Steel
Interior Finish Stainless Steel
Cooking Surface Width 26.5 Inches
Cooking Surface Depth 12 Inches
Controls Manual with 4 Locking Positions
Pan Capacity Full-Size Pans
Shipping Width 36 Inches
Shipping Height 21 Inches
Shipping Weight 240 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer's standard warranty

Frequently Asked Questions

The JSB-36WM is designed to operate on either natural gas or propane. Please specify your preferred gas type when ordering to ensure the correct setup.
For natural gas, a minimum operating pressure of 5 inches W.C. is required. For propane gas, a minimum operating pressure of 10 inches W.C. is needed. The maximum operating pressure for both is 14 inches W.C.
The JSB-36WM features a large 12 inch by 26-1/2 inch chrome-plated broiler grid, providing ample space for various cooking tasks.
Yes, the JSB-36WM model specifically includes a wall mounting bracket as a standard feature, making it ready for wall installation upon arrival.
The counter-balanced roll-out grid carriage offers four locking positions, allowing for flexible control over the cooking distance from the burner.
