Jade Range (Middleby)

Titan JSB-36RMT 36-Inch Gas Range Mount Salamander Broiler

SKU: JSB-36RMT
$8,007.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers & Grills Commercial Ranges Jade Range (Middleby) New Arrivals Restaurant Equipment Salamander Broilers Salamander Broilers

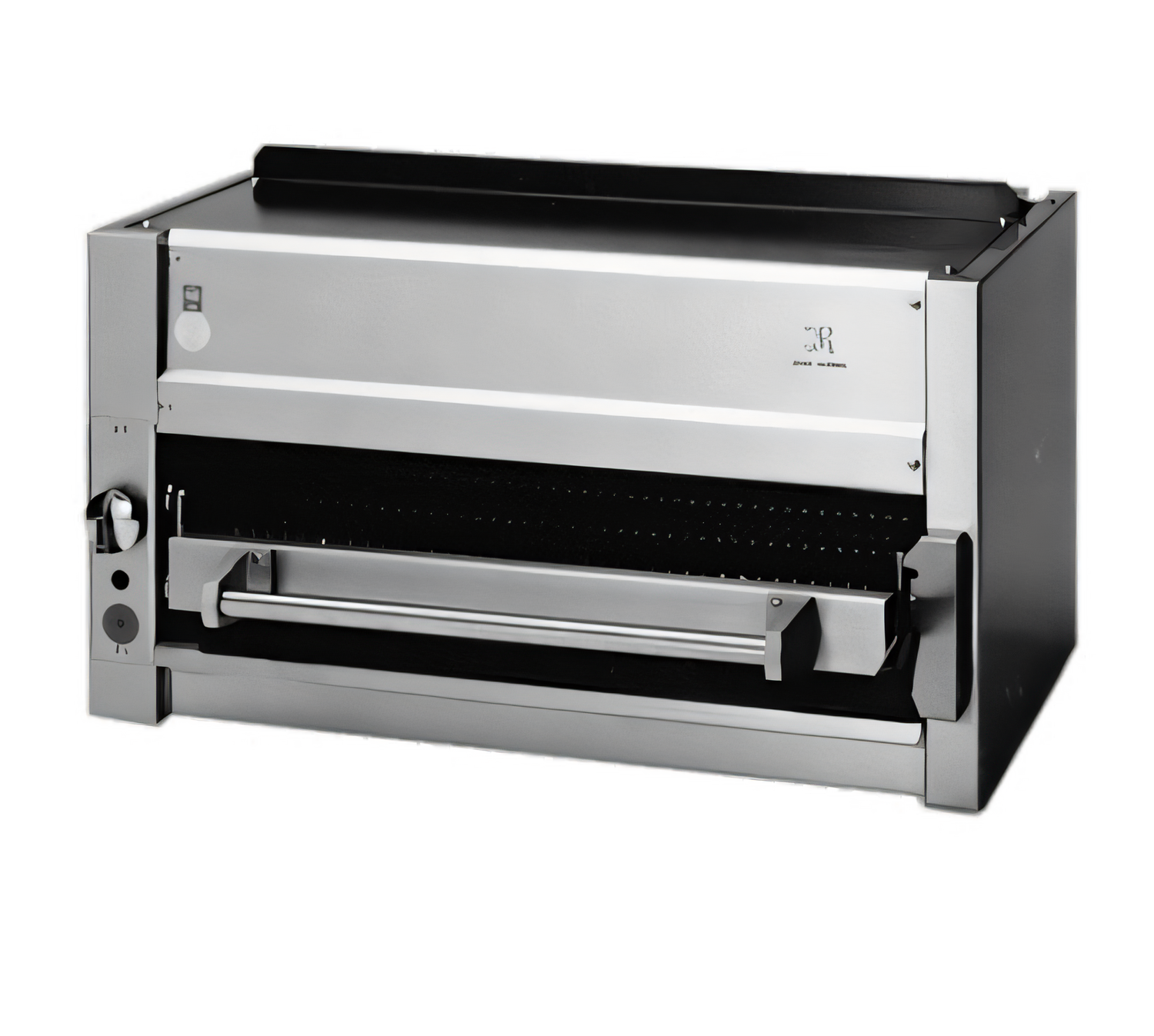

Titan JSB-36RMT 36-Inch Gas Range Mount Salamander Broiler

Infrared Burners, Stainless Steel Riser

Achieve perfect broiling results with the robust Titan JSB-36RMT, designed for efficient and precise heat output in a commercial kitchen.

  • Equipped with a powerful 35,000 BTU/hr. ceramic tile infrared burner for fast and even cooking.
  • Features a counter-balanced roll-out grid carriage with four locking positions for versatile cooking.
  • Constructed from durable 14 gauge stainless steel for longevity and easy cleaning.
  • Designed specifically for range mounting, integrating seamlessly into your cooking line.
  • Includes a stainless steel riser and a 3/4 inch gas pressure regulator for immediate setup.

Overall Dimensions:

36.0"W x 18.0"D x 20.5"H

Product Weight:

310.0 lb

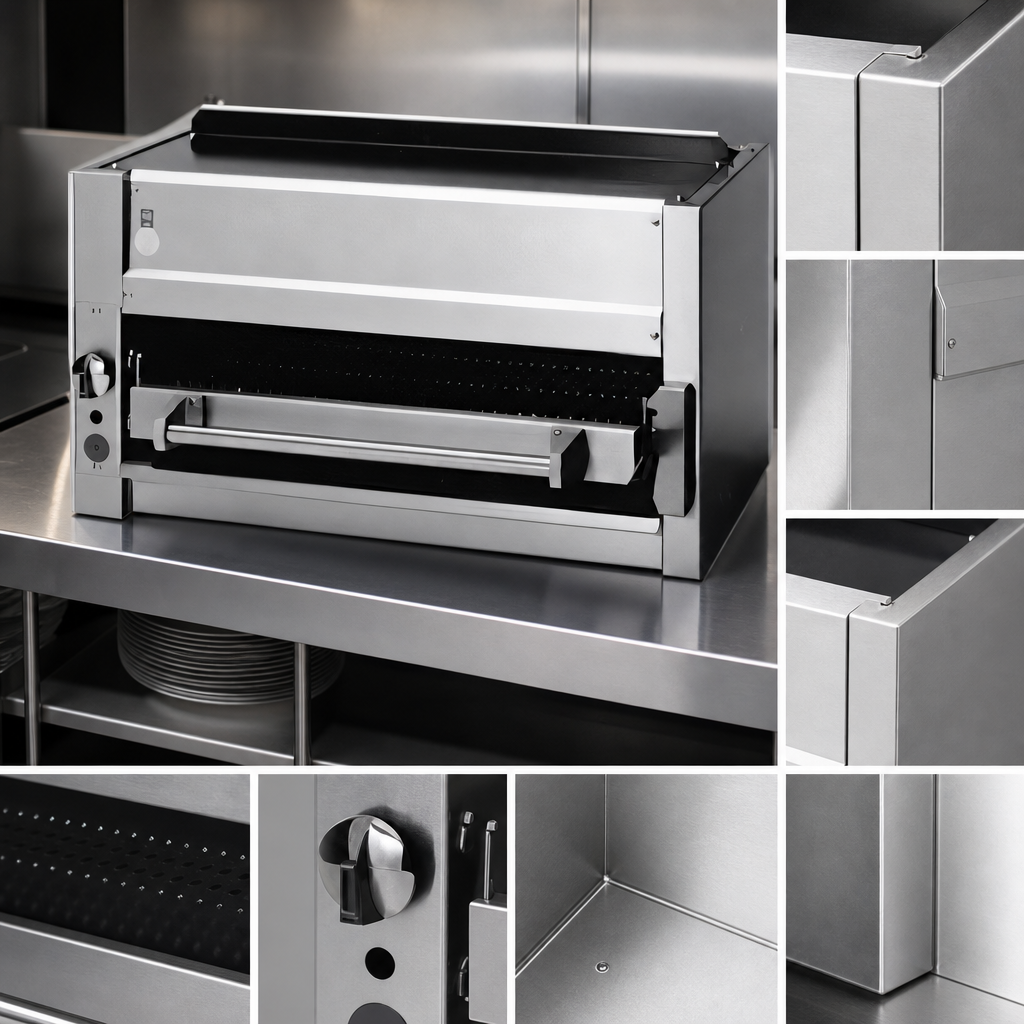

Heavy Duty Construction

Built with 14 gauge stainless steel on the front, sides, interior, bottom, and top for exceptional durability and ease of maintenance.

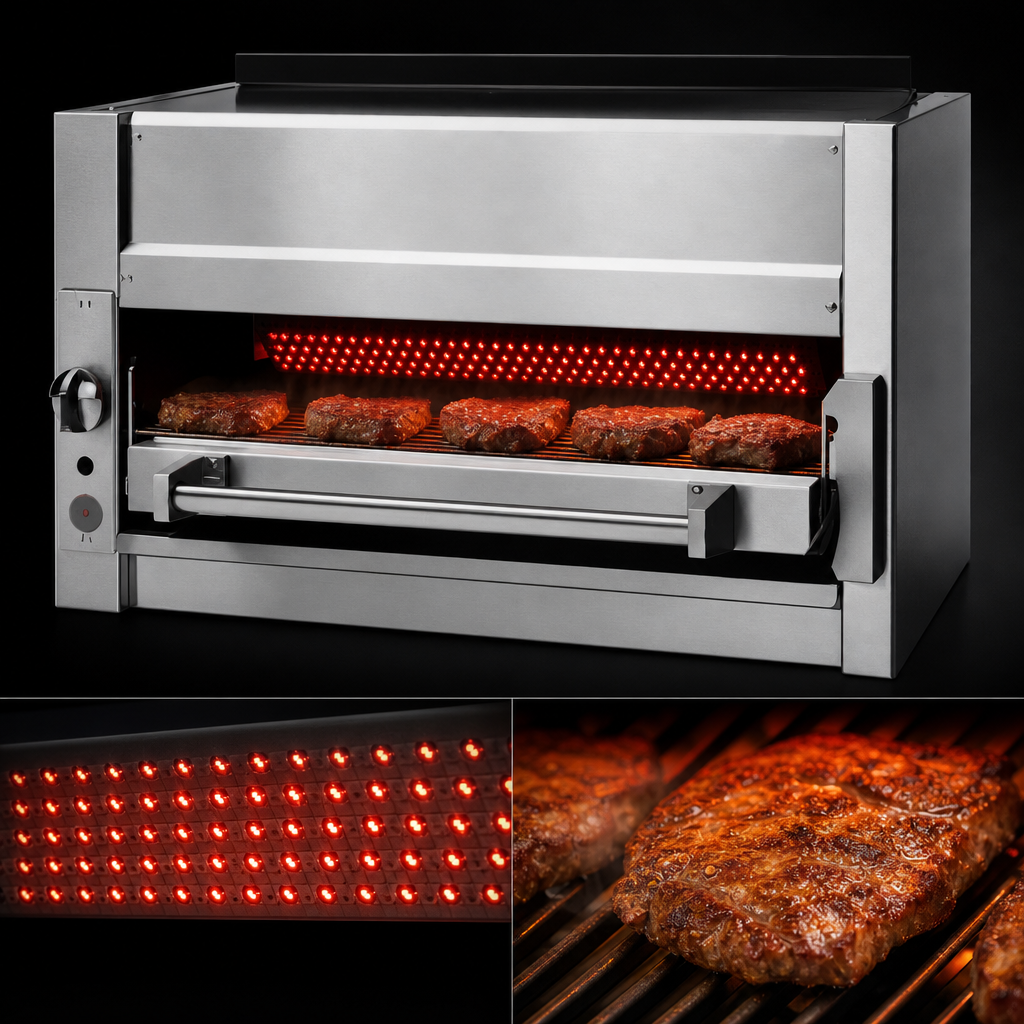

Infrared Burner

Utilizes a 35,000 BTU/hr. ceramic tile infrared burner to deliver intense, consistent heat for quick broiling and browning.

Counter-Balanced Roll Out Grid

Features a counter balance mechanism for smooth operation of the cooking grid, allowing effortless adjustment.

Four Locking Cook Positions

The grid carriage glides on roller bearings and offers four distinct locking positions for precise control over cooking distances and doneness.

Chrome Plated Broiler Grid

Comes with a large 12 inch x 26-1/2 inch lift-out chrome plated broiler grid, providing ample cooking space.

Grease Management

A built-in grease deflector efficiently guides grease into collection pans located at the bottom of the broiler.

Integrated Stainless Steel Riser

Includes a stainless steel riser, essential for its range-mount installation.

Gas Pressure Regulator

Supplied with a 3/4 inch gas pressure regulator for proper gas flow and operation.

Type Salamander Broiler
Style Infrared
Installation Type Range Mount
Material Stainless Steel
Interior Finish Stainless Steel
BTU 35,000 BTU/hr.
Gas Type Natural Gas or Propane (Specify when ordering)
Gas Connection Size 3/4 Inch
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. minimum
Gas Inlet Pressure (Propane) 10 Inches W.C. minimum
Pan Capacity 1 Full-Size Pan
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 18 Inches
Shipping Height 21 Inches
Shipping Weight 310 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer's warranty is standard for Jade Range products.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Titan JSB-36RMT can operate on either natural gas or propane. Please specify your required gas type when placing an order.
The salamander broiler features a large 12 inch x 26-1/2 inch lift-out chrome plated broiler grid, providing ample space for broiling.
The grid carriage is equipped with a counter-balance mechanism and offers four distinct locking positions for precise control over your cooking.
Yes, the Titan JSB-36RMT is supplied with a 3/4 inch gas pressure regulator.
For Natural Gas, a minimum of 5 inches W.C. is required. For Propane Gas, a minimum of 10 inches W.C. is required, with a maximum of 14 inches W.C. for either gas type.
