Jade Range Titan JMSS-04-T-48 48" Gas Sauté Station with 4 Open Burners and Refrigerated Cold Rail

SKU: JMSS-04-T-48
$19,792.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Jade Range Titan JMSS-04-T-48 48" Gas Sauté Station with 4 Open Burners and Refrigerated Cold Rail

4 Open Burners, 6 Quarter-Size Pan Capacity, Modular

The Jade Range Titan Fire & Ice Sauté Station efficiently combines powerful gas cooking with an integrated refrigerated cold rail, optimizing both prep and cook lines in a single unit.

  • Integrates four 30,000 BTU/hr cast iron open burners for high-performance cooking.
  • Features a remote cold rail capable of holding six 1/4 size pans, maintaining NSF-7 standards.
  • Constructed with durable stainless steel front, sides, stub back, and a 6" plate shelf.
  • 100% polyurethane 'Shot-In-Place' foam insulation for superior temperature retention in the cold rail.
  • Designed for modular installation, requiring a compatible Jade Range Titan refrigerated base (sold separately).
  • Includes a stainless steel removable night cover for the refrigerated rail.

Overall Dimensions:

48.0"W x 38.0"D x 30.25"H

Product Weight:

275.0 lb

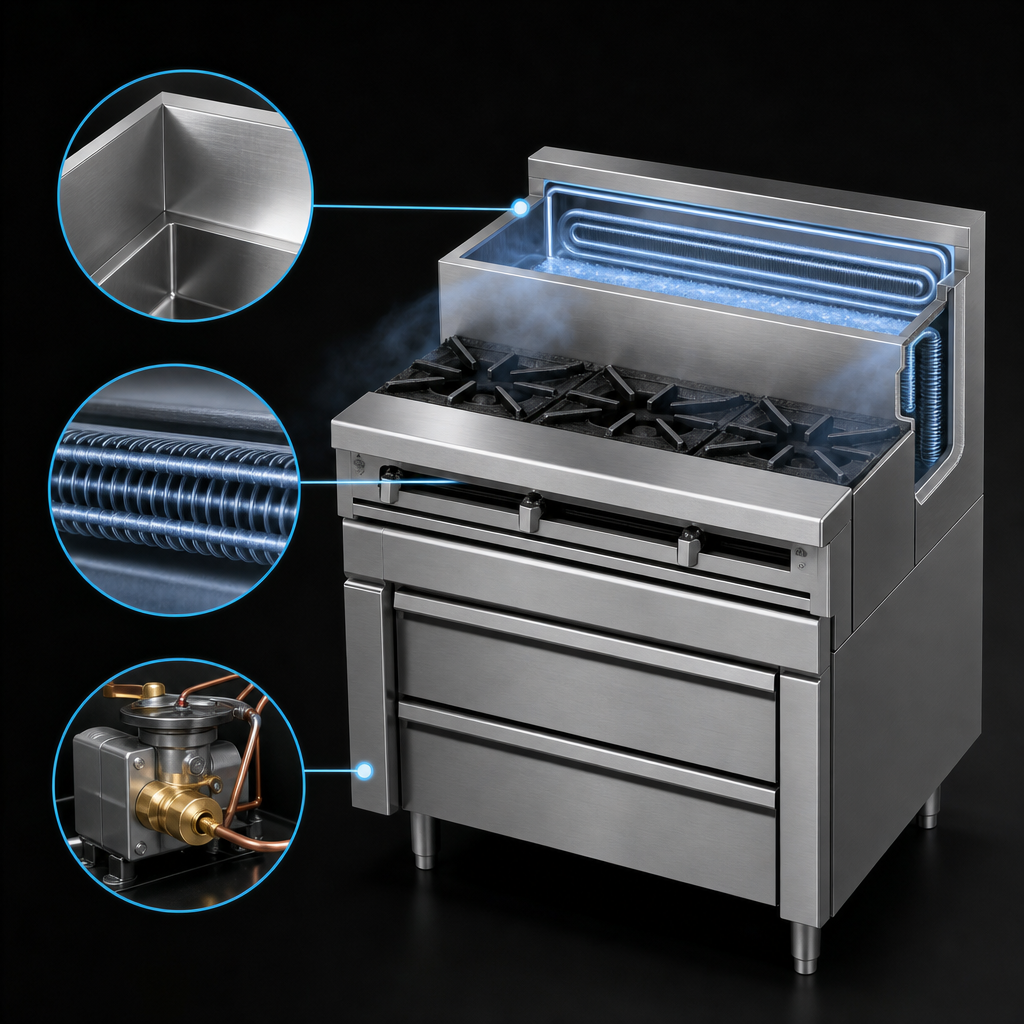

Remote Cold Rail System

The rear refrigerated cold rail is constructed with stainless steel, wrapped with refrigerated coils, and maintains NSF-7 standards for food safety. It is supplied with an R-404 expansion valve and thermostat control for precise temperature management.

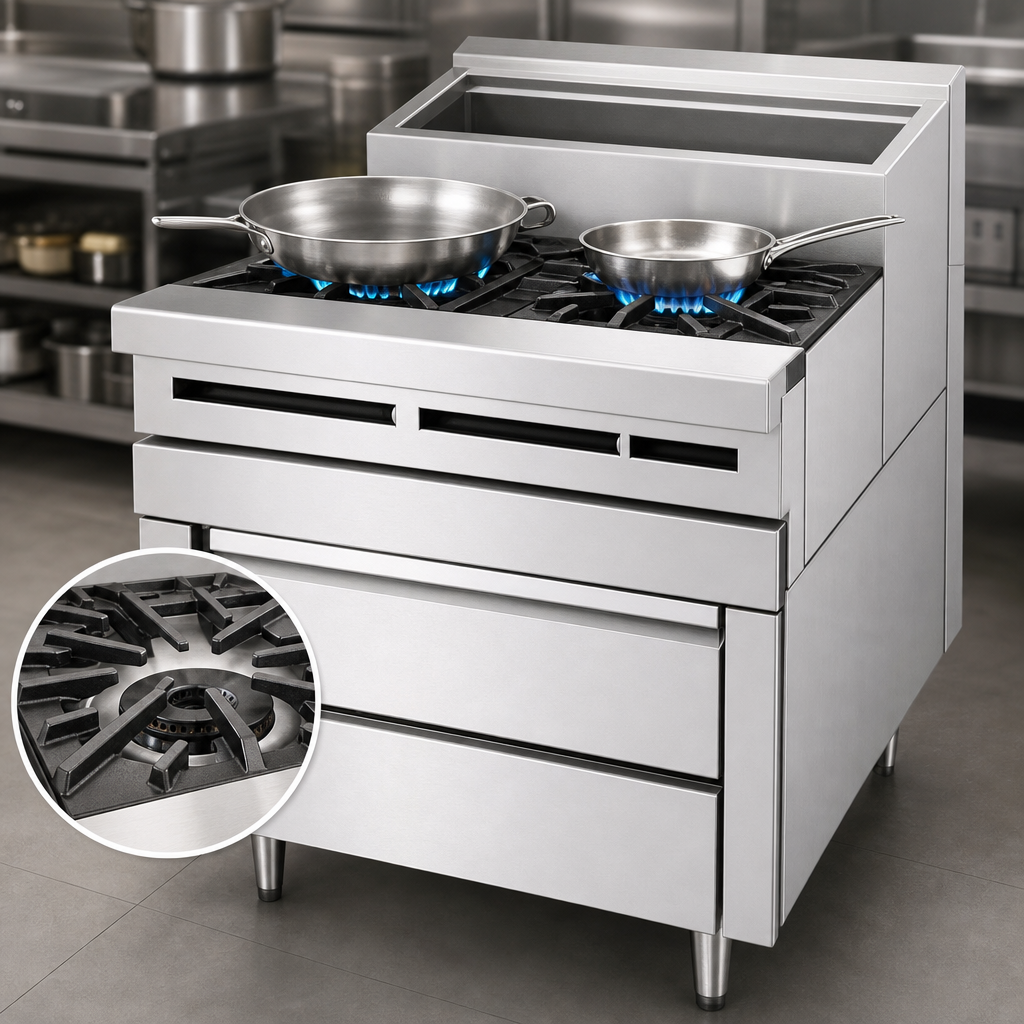

High-Performance Open Burners

Equipped with four robust 30,000 BTU/hr cast iron open burners, providing intense heat for rapid cooking. Each burner features individual polished steel lift-off top grates for easy cleaning and maintenance.

Exceptional Insulation

The raised cold rail is 100% polyurethane 'Shot-In-Place' foam insulated, ensuring optimal temperature retention and energy efficiency for refrigerated contents.

Durable Stainless Steel Construction

The unit boasts a stainless steel front, sides, stub back, and a 6-inch plate shelf, offering commercial-grade durability, resistance to corrosion, and ease of cleaning.

Removable Night Cover

A stainless steel removable night cover is included for the cold rail, protecting stored food items and maintaining sanitation when the unit is not in active use.

Integrated Drain Connection

Each cold rail is supplied with a 1/2" I.P.S. brass drain for convenient and efficient wastewater removal.

Modular & Range Matching Design

This sauté station is designed to perfectly match and integrate with other Jade Range Titan heavy-duty equipment, offering a cohesive and efficient kitchen line setup. It must be mounted on a compatible Jade Range refrigerated base.

Type Sauté Station
Style Heavy Duty Range Top with Cold Rail
Installation Type Modular (Requires Refrigerated Base)
Cooking Surface Width 48 Inches
Open Burners 4
Pan Capacity 6 (1/4 Size Pans)
Compartments 1
Cooking BTU 120,000 BTU
Refrigeration BTU 2,600 BTU
Refrigerant Type R-404
Refrigeration Type Cold Rail (Remote)
Gas Type Natural Gas (Field Convertible to Propane)
Gas Connection Size 1-1/4 Inches (Front Manifold), 1 Inch or 3/4 Inch (Rear Manifold)
Gas Inlet Pressure 5 Inches W.C. (Natural Gas), 10 Inches W.C. (Propane Gas)
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 2 Amps
Watts 230 Watts
Horsepower 1/4 HP
Controls Thermostat Control, Individual Burner Controls
Material Stainless Steel
Interior Finish Stainless Steel
Drain Connection Size 1/2 Inch I.P.S.
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 48 Inches
Shipping Depth 38 Inches
Shipping Height 31 Inches
Shipping Weight 275 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer's warranty for parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JMSS-04-T-48 is a modular unit and must be installed on a Jade Range Titan™ refrigerated base, which is not included and must be ordered separately.
The unit requires a standard 115V/60/1 electrical connection for the refrigerated cold rail, drawing approximately 2 Amps. For gas, it has a 1-1/4" front manifold connection and either a 1" or 3/4" capped rear manifold connection. It is supplied with a 3/4" gas pressure regulator, but 1" or 1-1/4" regulators are available as accessories.
The refrigerated cold rail is designed to accommodate six 1/4 size pans, providing convenient access to ingredients during sautéing.
Each of the four open burners on the JMSS-04-T-48 Sauté Station delivers 30,000 BTU/hr, totaling 120,000 BTU/hr for high-performance cooking.
Yes, the unit includes a stainless steel removable night cover for the cold rail to protect contents and maintain temperature when not in use.
