Titan JMRH-8-A 48 Inch Modular Heavy Duty Gas Open Burner Range with 8 Burners
Titan JMRH-8-A 48 Inch Modular Heavy Duty Gas Open Burner Range with 8 Burners
48" Wide, Natural Gas Ready, 8 Open Burners, Standard Depth, Modular Design
Designed for demanding commercial kitchens, the Titan JMRH-8-A modular gas open burner range delivers powerful and consistent cooking performance with its heavy-duty construction and eight high-BTU burners.
- Equipped with eight 35,000 BTU/hr cast iron open burners for rapid heating and intense cooking.
- Features a robust 14 gauge all-welded stainless steel body, front, sides, and stub back for commercial durability.
- Individual lift-off steel top grates and stainless steel tubing ensure easy cleaning and long-lasting performance.
- Includes a 6-inch stainless steel plate shelf, providing convenient workspace or plating area.
- Modular design allows for flexible kitchen configurations and future expansion.
- Ships with a 3/4" gas pressure regulator for proper and safe operation.

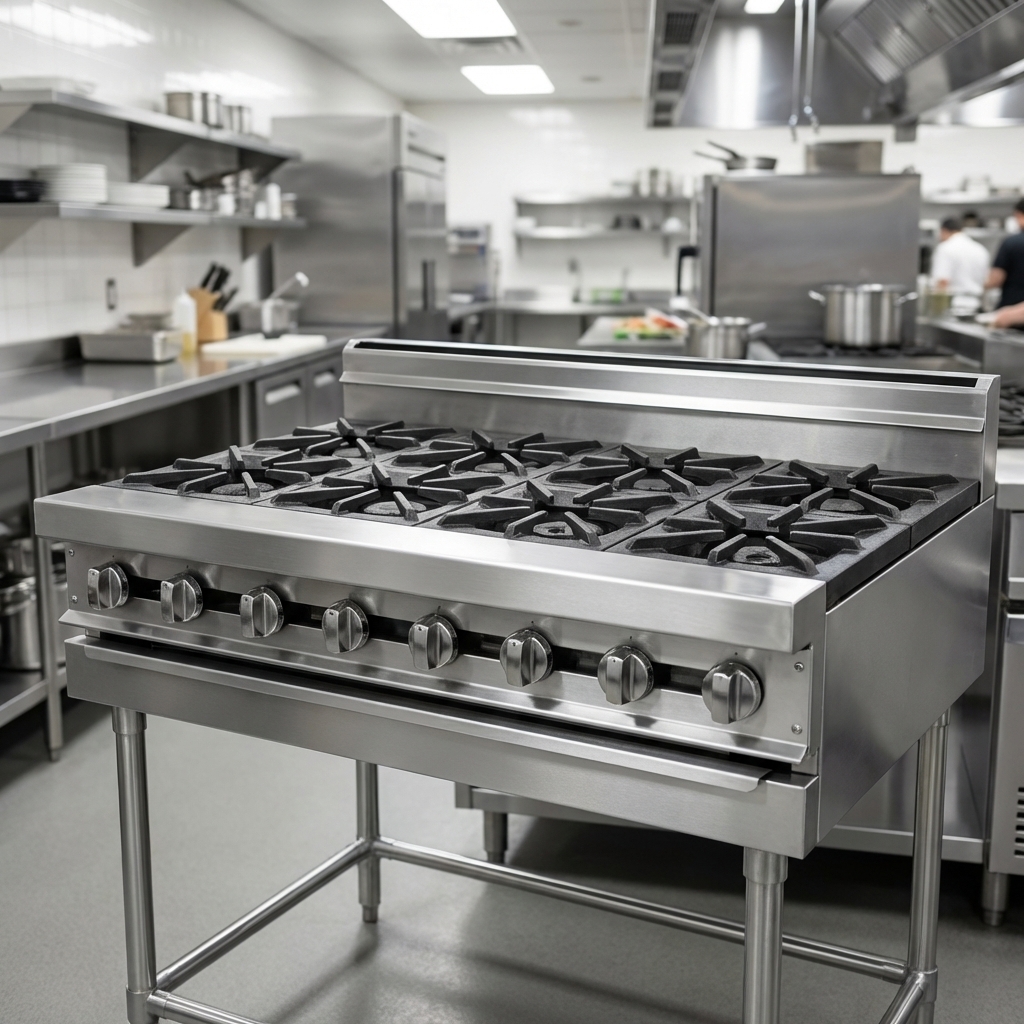

Heavy Duty Construction
Constructed with a 14 gauge all-welded body, stainless steel front, sides, and stub back, designed to withstand the rigors of a commercial kitchen environment.

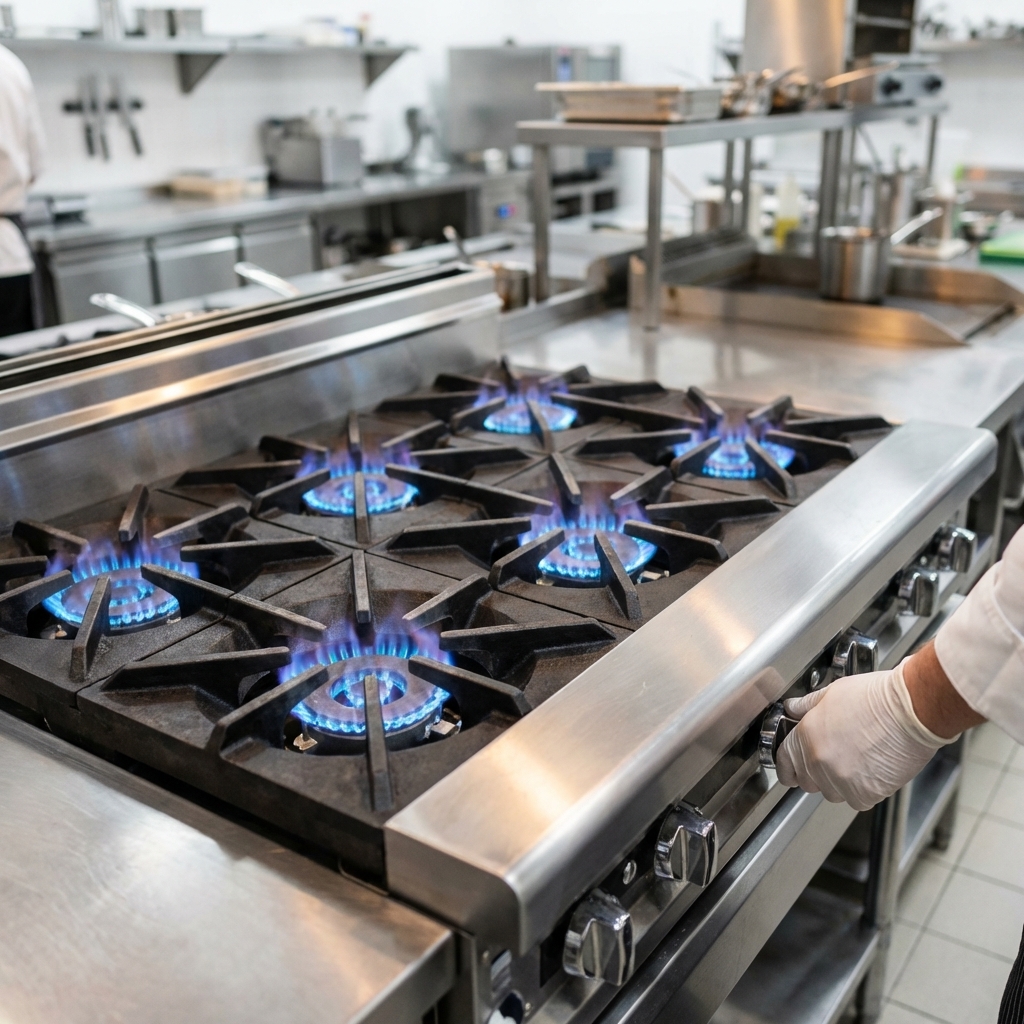

High-Output Open Burners
Features eight powerful 35,000 BTU/hr cast iron open burners, each with individual infinite controls and a dedicated stainless steel pilot for consistent, high-intensity heat.

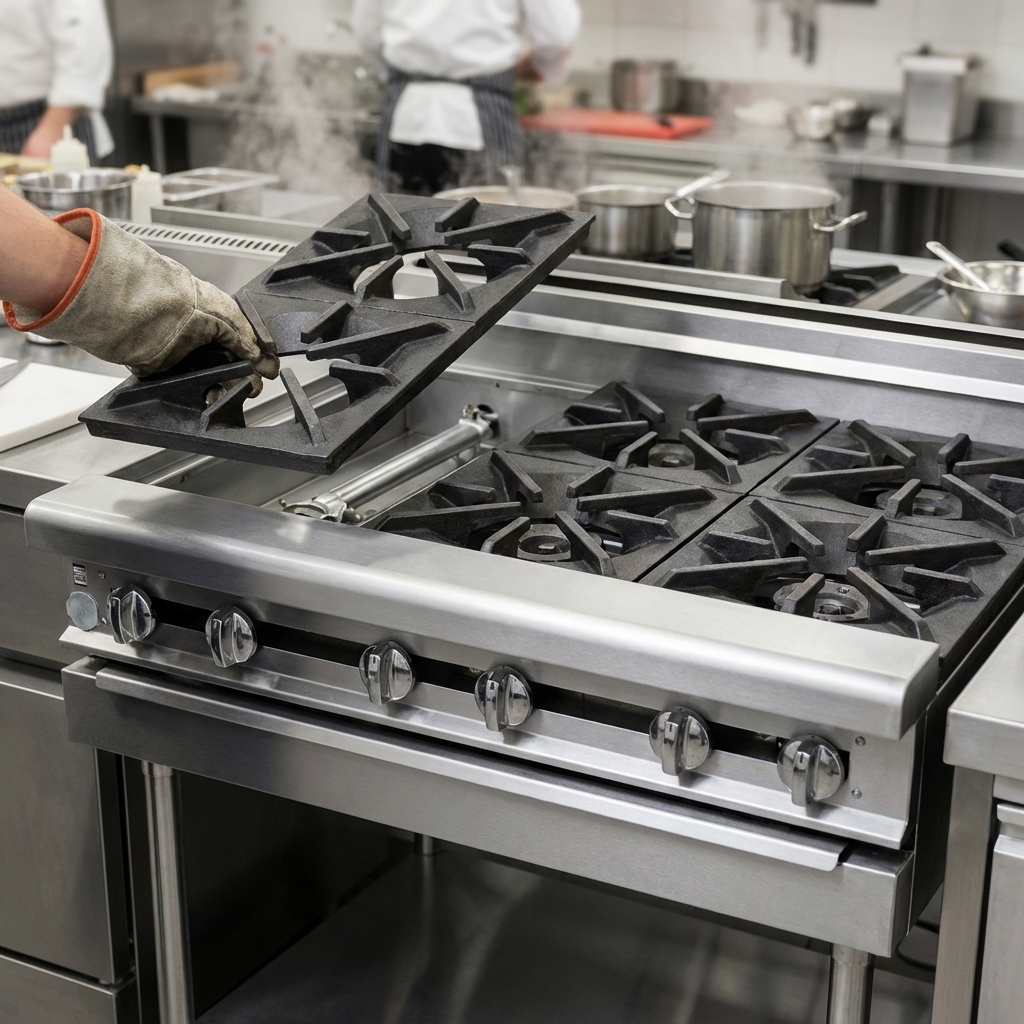

Lift-Off Grates
Individual lift-off steel top grates allow for easy removal and cleaning, simplifying maintenance.
Stainless Steel Plate Shelf
Comes standard with a 6-inch stainless steel plate shelf, providing a convenient space for plating or holding dishes.
Stainless Steel Gas Tubing
Ensures durability and longevity of the gas system with stainless steel gas tubing used throughout the unit.
Variable Gas Connection
Equipped with a 1-1/4" front manifold connection and options for 1" or 3/4" capped rear manifold connections, offering flexibility for gas line installation.
Specifications
| Type | Modular Open Burner Range |
|---|---|
| Style | Heavy Duty |
| Installation Type | Floor Model (Open Legs with Crossrails) |
| Gas Type | Natural Gas |
| BTU | 280,000 BTU |
| Open Burners | 8 |
| BTU Per Burner | 35,000 BTU |
| Controls | Infinite |
| Material | Stainless Steel |
| Exterior Finish | Stainless Steel |
| Gas Connection Size | 1-1/4" Front, 1" or 3/4" Rear Manifold |
| Gas Inlet Pressure (Natural Gas) | 5 Inches W.C. minimum |
| Gas Inlet Pressure (Propane) | 10 Inches W.C. minimum |
| Maximum Gas Inlet Pressure | 14 Inches W.C. |
| Shipping Width | 48 Inches |
| Shipping Depth | 37 Inches |
| Shipping Height | 37 Inches |
| Shipping Weight | 590 lb. |
| Selling Unit | Each |
| Units Per Case | 1 |
Overall Dimensions:
48.0"W x 36.25"D x 36.5"HProduct Weight:
590.0 lbCertifications & Compliance
