Jade Range Titan JMRH-72GT 72-Inch Heavy Duty Modular Gas Griddle Top Range with Thermostatic Controls

SKU: JMRH-72GT
$20,456.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Jade Range Titan JMRH-72GT 72-Inch Heavy Duty Modular Gas Griddle Top Range with Thermostatic Controls

72" Width, Thermostatic Controls, 1" Polished Steel Griddle Plate

Designed for high-volume commercial kitchens, the Jade Range Titan JMRH-72GT offers precise temperature control and robust construction for consistent griddle cooking.

  • Spacious 72-inch griddle top with a 1" thick polished steel plate for superior heat retention and even cooking.
  • Equipped with individual thermostatic controls for precise temperature management across each griddle zone.
  • Heavy-duty stainless steel construction ensures durability and easy cleaning in demanding commercial environments.
  • Features an integrated 6" plate shelf and full splashguards to enhance usability and maintain cleanliness.
  • Modular design allows for flexible kitchen configurations and seamless integration with other Titan series equipment.
  • Includes a 3/4" gas pressure regulator for safe and efficient operation with either natural gas or propane.

Overall Dimensions:

72.0"W x 36.25"D x 36.5"H

Product Weight:

1060.0 lb

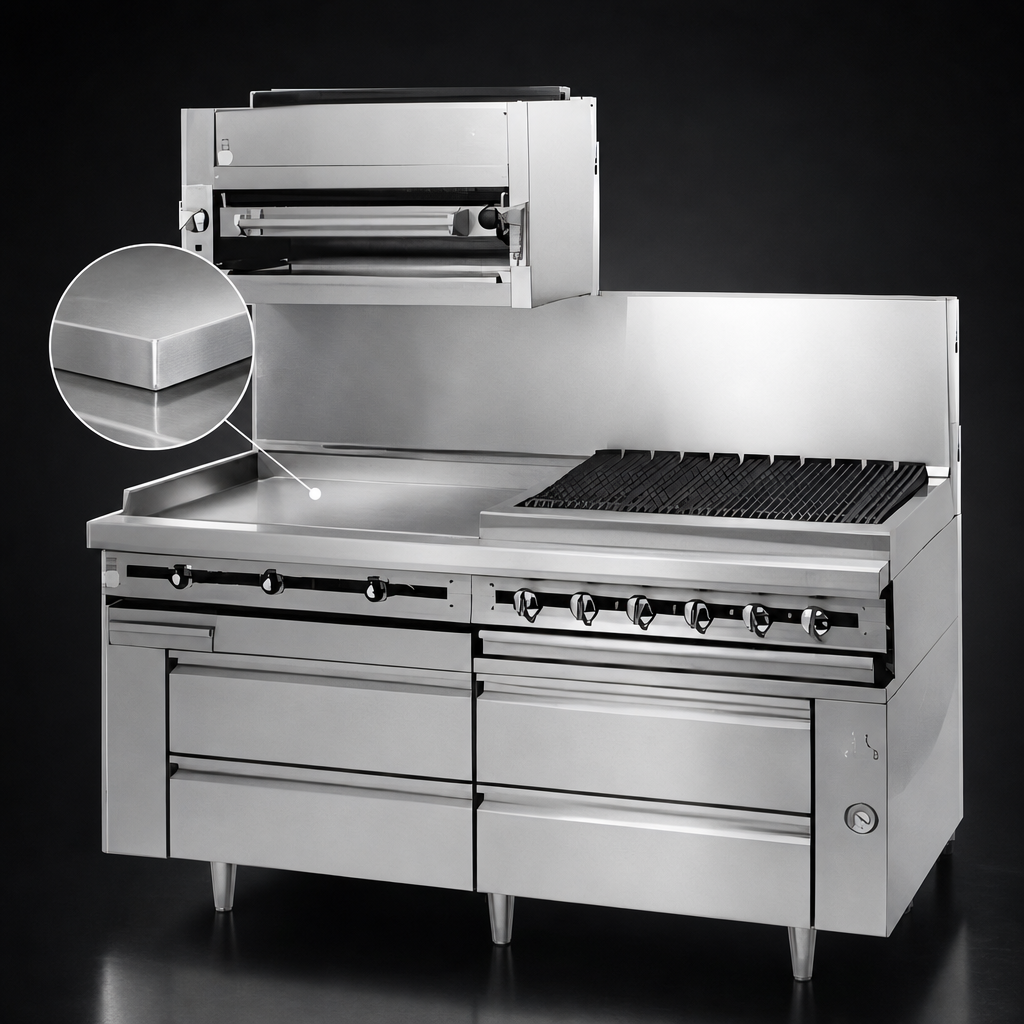

Polished Steel Griddle Plate

Features a 1" thick polished steel griddle plate, reinforced for superior heat retention, even cooking, and consistent results.

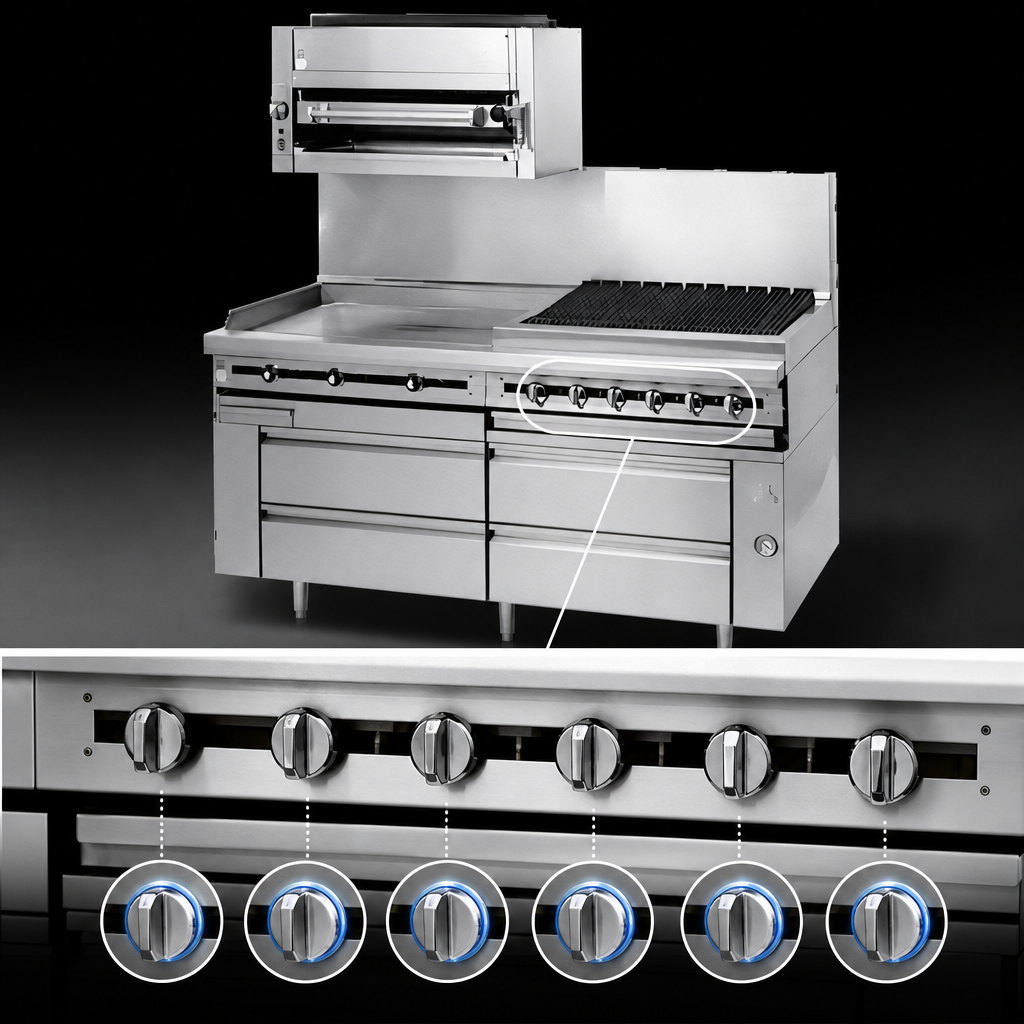

Thermostatic Controls

Individual thermostatic controls for each griddle section (JMRH-72GT model) provide precise and adjustable temperature management.

Heavy Duty Stainless Steel Construction

Constructed with a 14 gauge all-welded stainless steel body, front, sides, and stub back, ensuring maximum durability and longevity in a commercial setting.

Integrated Grease Management

Includes a 14 gauge stainless steel grease trough and stainless steel side and rear splashguards for effective grease collection and easy cleaning.

6" Stainless Steel Plate Shelf

A convenient 6" stainless steel plate shelf is integrated, providing ample space for staging plates or holding essential cooking tools.

Modular Design

This heavy-duty modular griddle top range is designed for flexible installation and integration into various kitchen layouts.

Adjustable Legs

The unit comes standard with 6" stainless steel adjustable legs, allowing for proper leveling and stability on uneven surfaces.

Type Griddle Top Range
Style Modular
Installation Type Floor Model (With 6" Legs)
Width 72.0 Inches
Depth 36.25 Inches
Height 36.5 Inches
Weight 1060.0 lb.
Shipping Width 72 Inches
Shipping Depth 37 Inches
Shipping Height 37 Inches
Shipping Weight 1060.0 lb.
Material Stainless Steel
Interior Finish Stainless Steel
Griddle Plate Thickness 1 Inch
Cooking Surface Width 72 Inches
Cooking Surface Depth 30.38 Inches
Controls Thermostatic
BTU 180,000 BTU
Gas Type Natural Gas / Propane
Gas Connection Size 3/4 Inch
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. (Minimum)
Gas Inlet Pressure (Propane) 10 Inches W.C. (Minimum)
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JMRH-72GT is a gas-powered griddle top range with a total BTU output of 180,000 BTU. It can operate on either natural gas or propane, which must be specified when ordering.
This model features a 1" thick polished steel griddle plate. It offers a cooking surface width of 72 inches and a cooking surface depth of approximately 30.38 inches.
Yes, the JMRH-72GT model (indicated by 'GT' in the model number) is equipped with individual thermostatic controls for precise temperature management across its griddle sections.
The range is supplied with a 3/4" gas pressure regulator, and the unit must be connected with this regulator. It features a 1-1/4" front manifold connection and a 1" or 3/4" capped rear manifold connection. Minimum operating pressures are 5" W.C. for natural gas and 10" W.C. for propane.
The JMRH-72GT comes standard with 6" stainless steel adjustable legs. Floor-length legs are available as an optional configuration.
The griddle range features heavy-duty construction with a 14 gauge all-welded stainless steel body, including the front, sides, and stub back, along with a stainless steel grease trough and splashguards.
