Jade Range (Middleby)

Titan JMRH-72B 72" Modular Heavy Duty Gas Charbroiler

SKU: JMRH-72B
$17,168.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Titan JMRH-72B 72" Modular Heavy Duty Gas Charbroiler

Floor Model with Cast Iron Grates & Radiants

Experience superior grilling performance and precise temperature control with the Titan JMRH-72B 72" Modular Heavy Duty Gas Charbroiler, designed for demanding commercial kitchens.

  • Heavy-duty 14 gauge all-welded body construction ensures lasting durability.
  • Equipped with one 15,000 BTU/hr burner for every 6" section, totaling 180,000 BTU.
  • Features heavy-duty cast iron top grates with built-in grease guides to reduce flare-ups.
  • Infinite control manual gas valves at each burner allow for precise heat management.
  • Includes two separate 14 gauge steel drip pans for easy grease management and flare-up control.
  • Modular design allows for versatile kitchen configurations.
  • Standard 6" stainless steel plate shelf provides convenient plating space.

Heavy Duty Construction

Constructed with a 14 gauge all-welded body and 12 gauge firebox, ensuring robust durability for continuous commercial use.

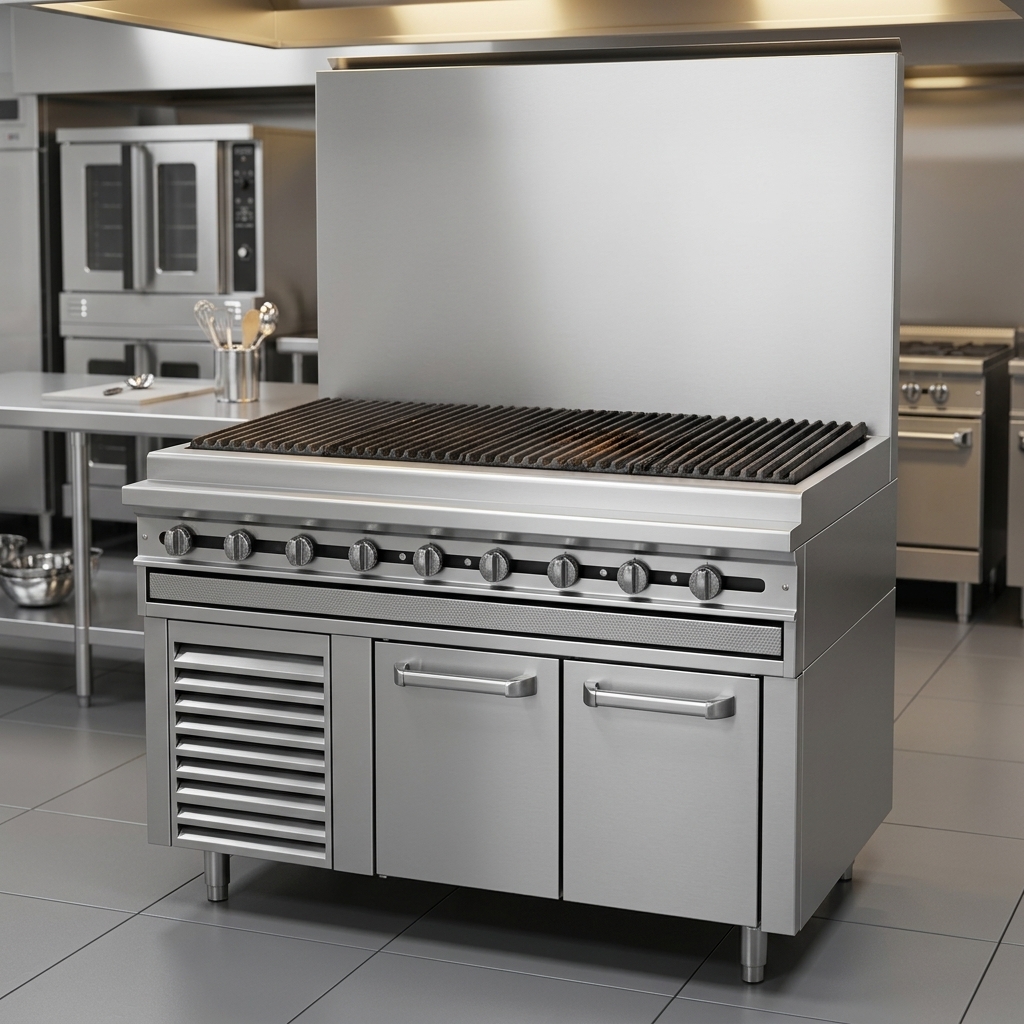

This image highlights the charbroiler's robust, heavy-duty construction, designed for lasting durability in demanding commercial kitchens.

Stainless Steel Exterior

Features a stainless steel front, top, sides, and stub back for enhanced hygiene, corrosion resistance, and a professional appearance.

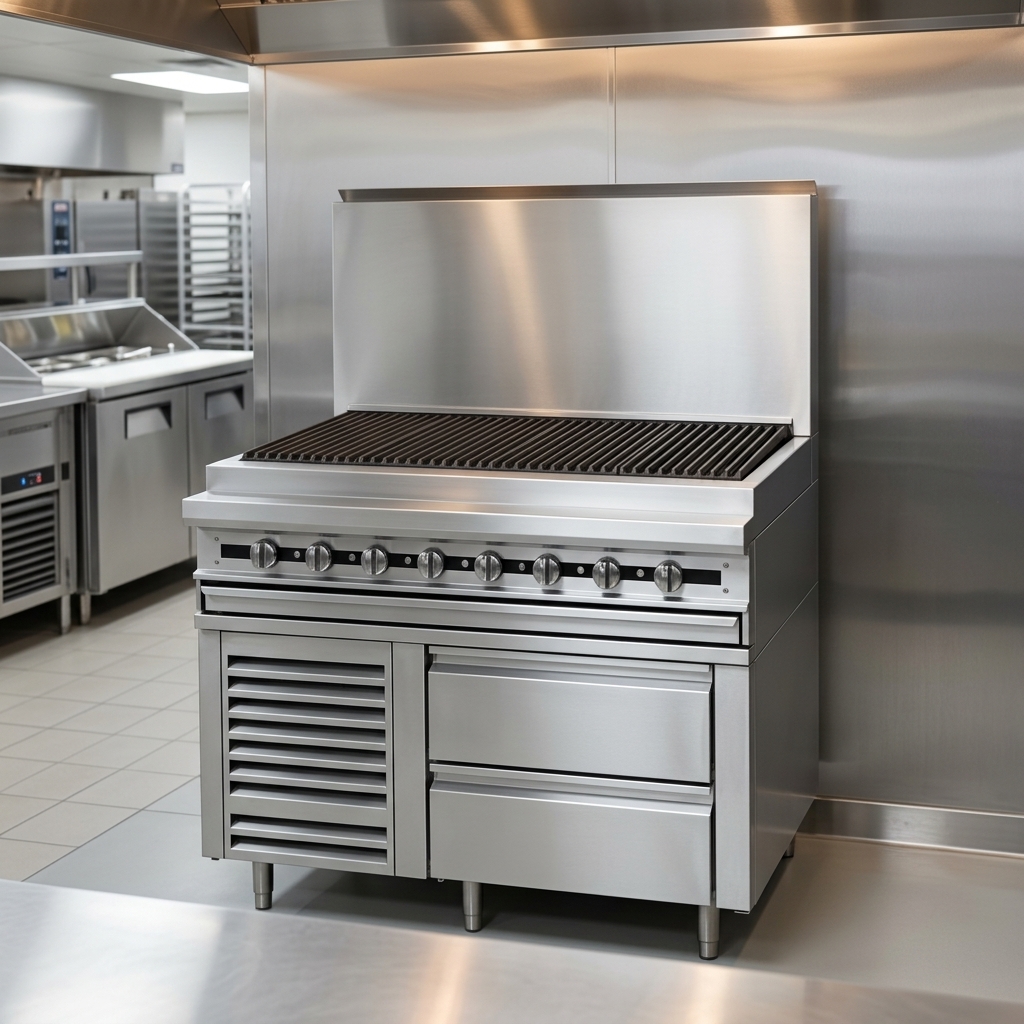

Observe the Titan JMRH-72B charbroiler's impressive stainless steel exterior, designed for ultimate hygiene and a professional, durable finish in any commercial kitchen.

High Performance Burners

Equipped with individually controlled 15,000 BTU/hr burners every 6 inches, providing powerful and consistent heat across the 72-inch cooking surface.

Experience powerful and consistent heat across the entire cooking surface with individually controlled, high-performance burners.

Cast Iron Grates and Radiants

Heavy-duty cast iron top grates include built-in grease guides to channel away excess fat and minimize flare-ups. Cast iron burner radiants ensure even heat distribution.

Infinite Manual Controls

Each burner features an infinite control manual gas valve, offering precise temperature adjustments for versatile cooking.

Dual Drip Pans

Comes with two separate 14 gauge steel drip pans designed to effectively collect grease and help control flare-ups, simplifying cleaning.

Integrated Plate Shelf

A 6" stainless steel plate shelf is included, providing a convenient space for holding plates or utensils during cooking.

Gas Connection Flexibility

Supplied with a 1-1/4" front manifold connection and a 1" or 3/4" capped rear manifold connection for flexible installation options. A 3/4" gas pressure regulator is shipped loose.

Specifications

Type Charbroiler
Style Modular
Installation Type Floor Model (With 6" Legs)
BTU 180,000 BTU
Controls Infinite Manual
Pan Capacity 72" Cooking Surface
Material Stainless Steel, Cast Iron
Exterior Finish Stainless Steel Front, Top, Sides
Interior Finish 12 Gauge All Welded Firebox
Gas Connection Size 3/4 Inch NPT (regulator supplied)
Gas Inlet Pressure Natural Gas 5 Inches W.C. min, Propane Gas 10 Inches W.C. min, 14 Inches W.C. max
Shipping Width 72 Inches
Shipping Depth 37 Inches
Shipping Height 37 Inches
Shipping Weight 500 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Overall Dimensions:

72.0"W x 36.25"D x 36.5"H

Product Weight:

500.0 lb
Manufacturer Jade Range (Middleby)
Brand name Titan
Certifications ["NSF", "CSAus"]
Height 36.5in
Width 72.0in
Depth 36.25in
Shipping Weight 500.0lbs
Base open legs with crossrails
Exterior Finish all stainless steel exterior
Top (1) charbroiler
Specifications Titan™ Heavy Duty Range, gas, 72", modular, charbroiler, cast iron radiants & grate, infinite manual controls, (2) drip trays, stainless steel 6" plate shelf, front, sides, stub back & tray bed, 180,000 BTU, CSAus, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer's warranty is standard, details can be obtained from Jade Range.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JMRH-72B charbroiler is designed to operate with either Natural Gas or Propane. The specific gas type must be specified when ordering to ensure proper setup.
For Natural Gas, a minimum of 5 inches W.C. operating pressure is required. For Propane Gas, a minimum of 10 inches W.C. operating pressure is required. The maximum operating pressure for both is 14 inches W.C.
Yes, a 3/4 inch gas pressure regulator is supplied loose with the unit and must be installed for proper operation.
The 72-inch cooking surface features heavy-duty cast iron top grates with built-in grease guides and heavy-duty cast iron burner radiants for even heat distribution and reduced flare-ups. It has one 15,000 BTU/hr burner for every 6 inches.
Yes, but you must specify the altitude when ordering if it is above 2,000 feet to ensure proper calibration and operation.
