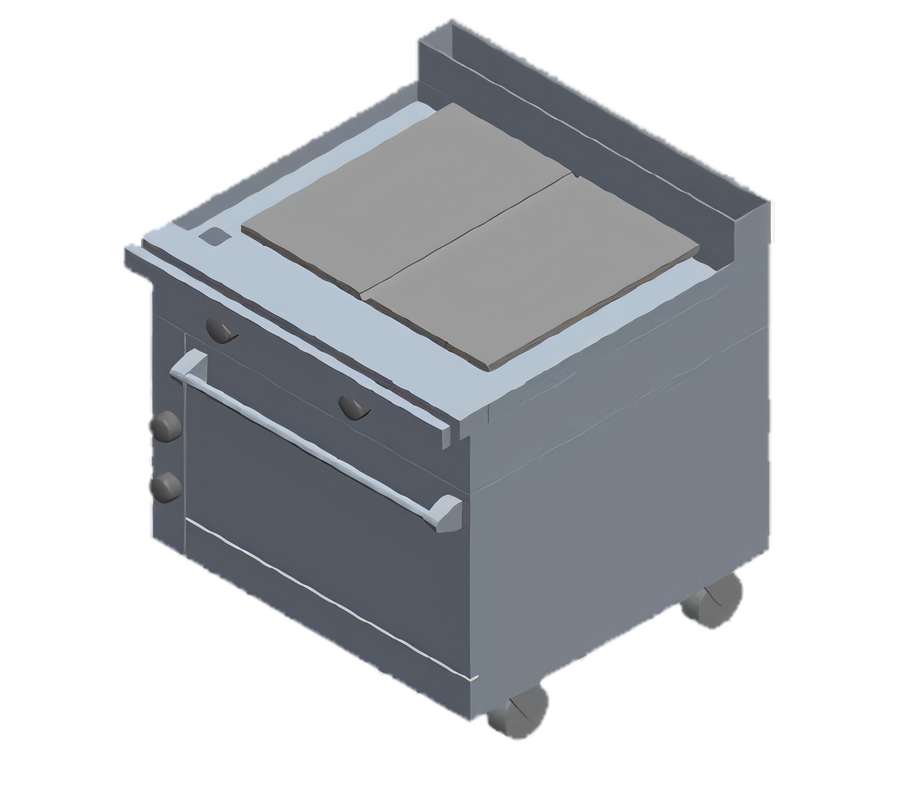

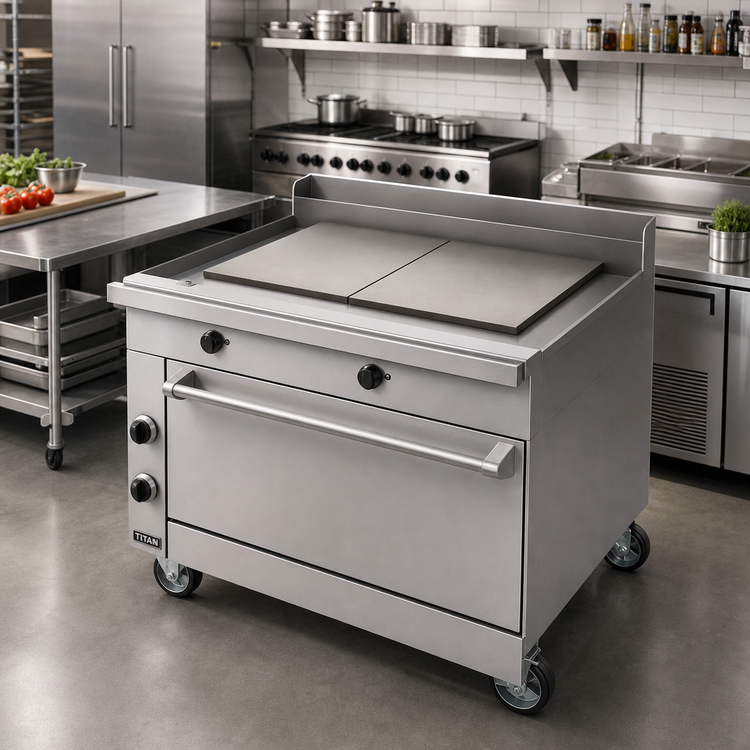

Titan JMRH-60IP 60" Modular Gas Plancha Range

Heavy Duty, 5/8" Thick Steel Plancha Plate

The Titan JMRH-60IP modular gas plancha range delivers exceptional performance and durability for high-volume commercial kitchens, featuring a robust 5/8" thick steel plate.

  • Heavy-duty 60" modular gas plancha range for versatile cooking.
  • Features a polished 5/8" thick steel plancha plate for even heat and excellent searing.
  • Constructed with a durable stainless steel exterior for corrosion resistance and easy cleaning.
  • Includes a 14 gauge stainless steel grease trough for efficient grease management.
  • Equipped with a practical 6" plate shelf for convenient plating and holding.
  • CSAUs and NSF certified, ensuring compliance with commercial safety and sanitation standards.

Overall Dimensions:

60.0"W x 38.0"D x 36.5"H

Product Weight:

690.0 lb

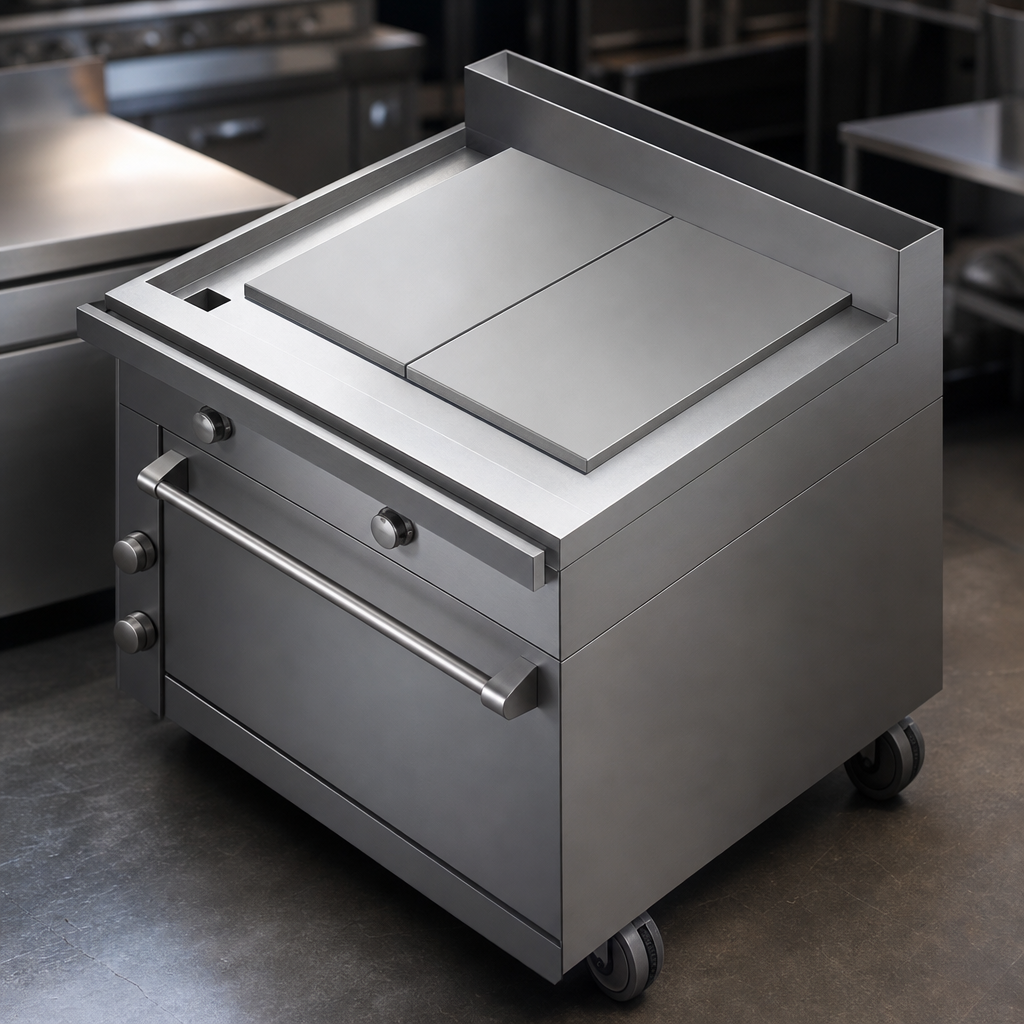

Polished 5/8" Thick Steel Plancha Plate

Ensures excellent heat retention and even distribution for high-performance searing and cooking, built to withstand demanding commercial use.

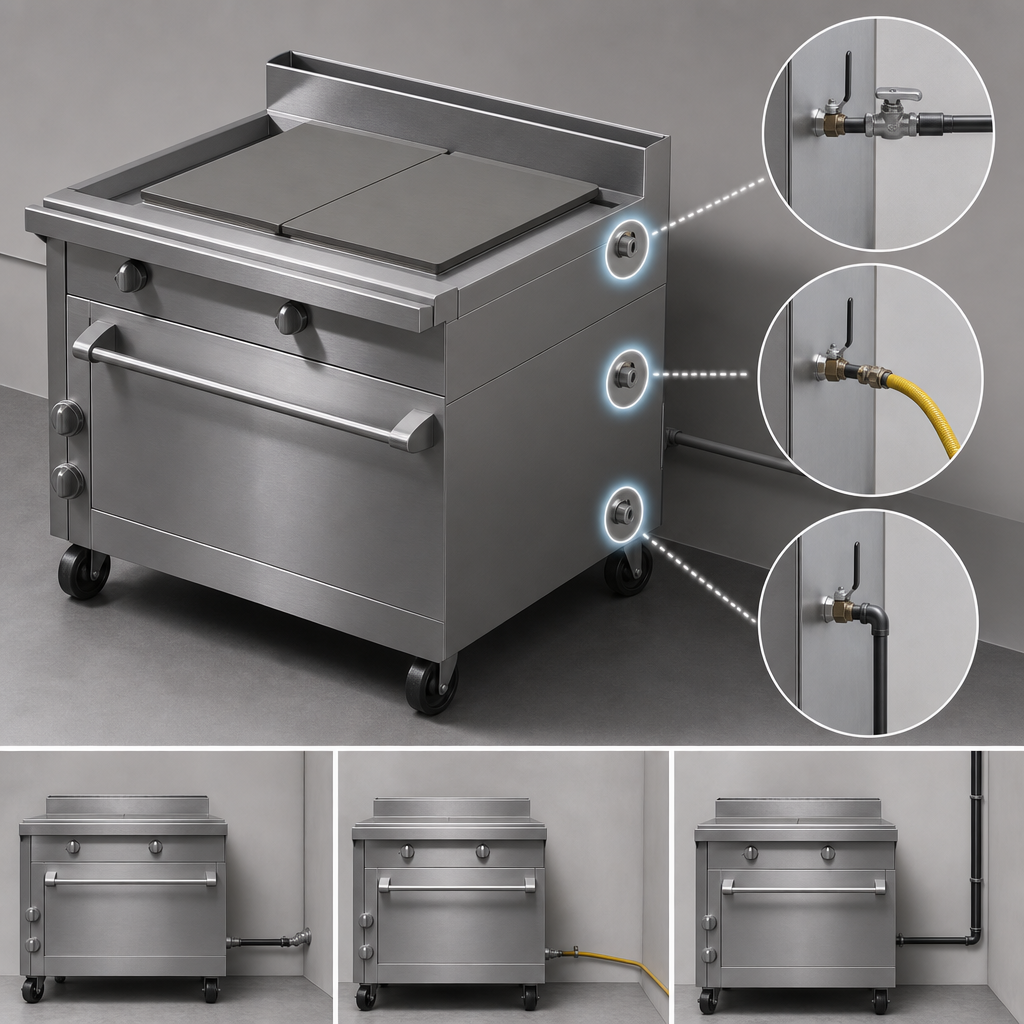

Variable Size Multi-Point Gas Connection

Offers flexibility for gas utility hookups, accommodating various kitchen layouts and requirements.

14 Gauge Stainless Steel Grease Trough

Designed for efficient collection and removal of cooking grease, helping to maintain a clean and safe cooking environment.

Stainless Steel Construction

The front, sides, and stub back are made of durable stainless steel, providing exceptional resistance to corrosion and simplifying cleaning procedures.

6" Plate Shelf

Provides a convenient and accessible surface for holding plates, utensils, or prepared ingredients during busy service periods.

Adjustable 6" Legs

Allows for precise leveling and stability on uneven kitchen floors, ensuring a secure and safe cooking platform.

3/4" Gas Pressure Regulator Included

A 3/4" gas pressure regulator is supplied loose and must be installed to ensure proper and safe gas operation for the unit.

Type Modular Plancha Range
Style Plancha
Installation Type Floor Model (With 6" Adjustable Legs)
Controls Infinite
Plate Thickness 5/8 Inch
BTU 70,000 BTU
Gas Type Natural Gas or Propane (Specify)
Gas Connection Size 1-1/4 Inches (Front Manifold), 1 Inch or 3/4 Inch (Rear Manifold)
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. Minimum
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. Minimum
Gas Inlet Pressure (Maximum) 14 Inches W.C.
Material Stainless Steel (Exterior), Steel (Plancha Plate)
Finish Stainless Steel, Polished Steel
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 690 lb.
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer's warranty not specified in provided documents.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JMRH-60IP can be configured for either Natural Gas or Propane. It is crucial to specify the required gas type when placing your order.
The plancha plate on the JMRH-60IP is made of polished 5/8" thick steel, designed for durability and optimal heat performance.
Yes, a 3/4" gas pressure regulator is supplied loose with the range. It must be installed for proper operation. Other regulator sizes (1" or 1-1/4") are available as accessories.
For Natural Gas, a minimum of 5" W.C. is required. For Propane Gas, a minimum of 10" W.C. is required. The maximum operating pressure for both gas types is 14" W.C.
The JMRH-60IP features an all stainless steel exterior, including the front, sides, and stub back, ensuring durability and ease of cleaning in a commercial kitchen setting.
