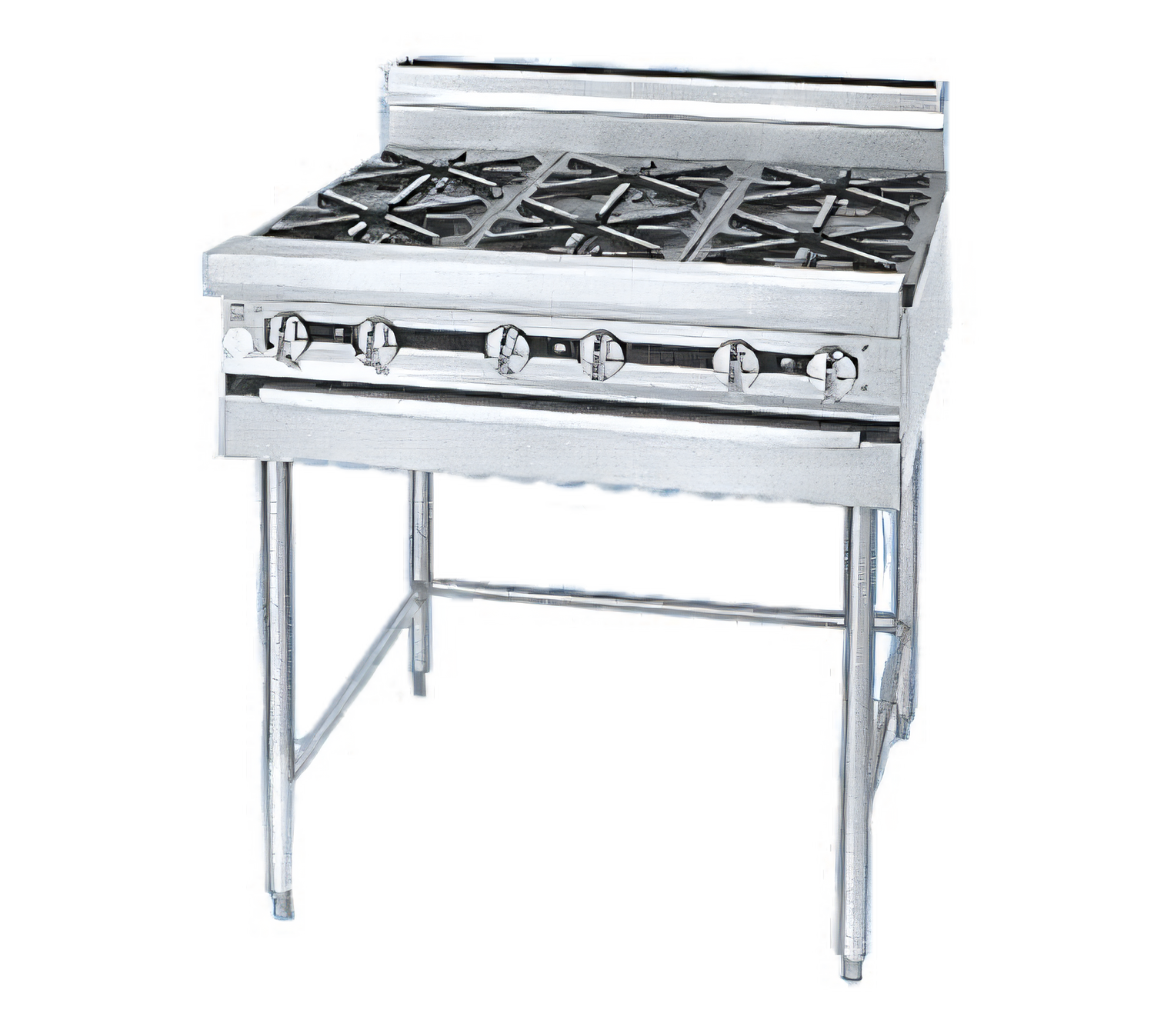

Jade Range Titan JMRH-6 36" Modular Heavy Duty Gas Open Burner Range

SKU: JMRH-6
$9,301.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Jade Range Titan JMRH-6 36" Modular Heavy Duty Gas Open Burner Range

6 Open Burners, Stainless Steel, Floor Model

Built for demanding commercial kitchens, the Jade Range Titan JMRH-6 provides powerful and consistent cooking performance with its heavy-duty gas open burners.

  • Features six powerful 35,000 BTU/hr. cast iron open burners for high-output cooking.
  • Durable 14 gauge all-welded body construction with stainless steel exterior ensures long-lasting commercial use.
  • Equipped with a 6" stainless steel plate shelf for convenient plating and holding.
  • Modular design allows for flexible kitchen configurations.
  • Infinite gas valves provide precise temperature control for each burner.
  • Includes 6" stainless steel adjustable legs for easy leveling and cleaning underneath.

Overall Dimensions:

36.0"W x 38.25"D x 36.5"H

Product Weight:

450.0 lb

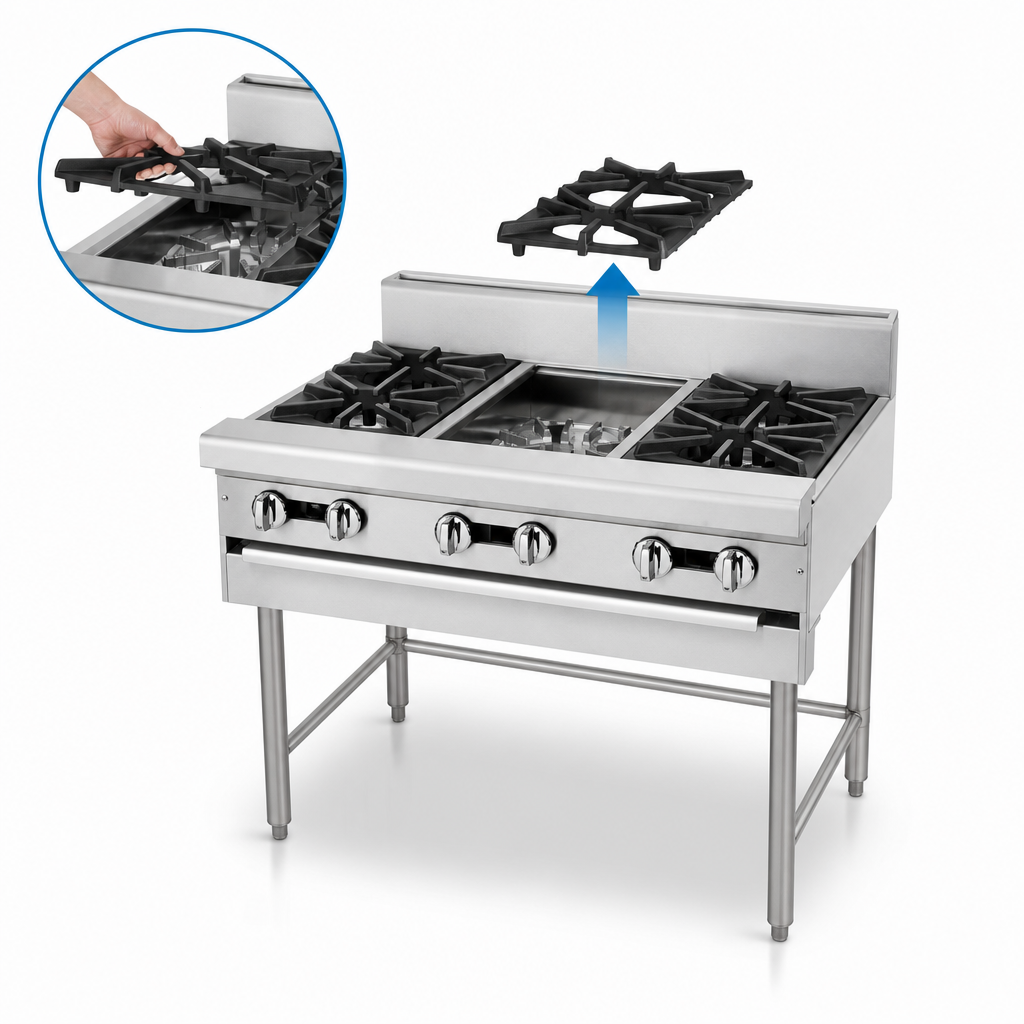

Individual Lift-Off Steel Top Grates

Allows for easy cleaning and maintenance of the cooking surface.

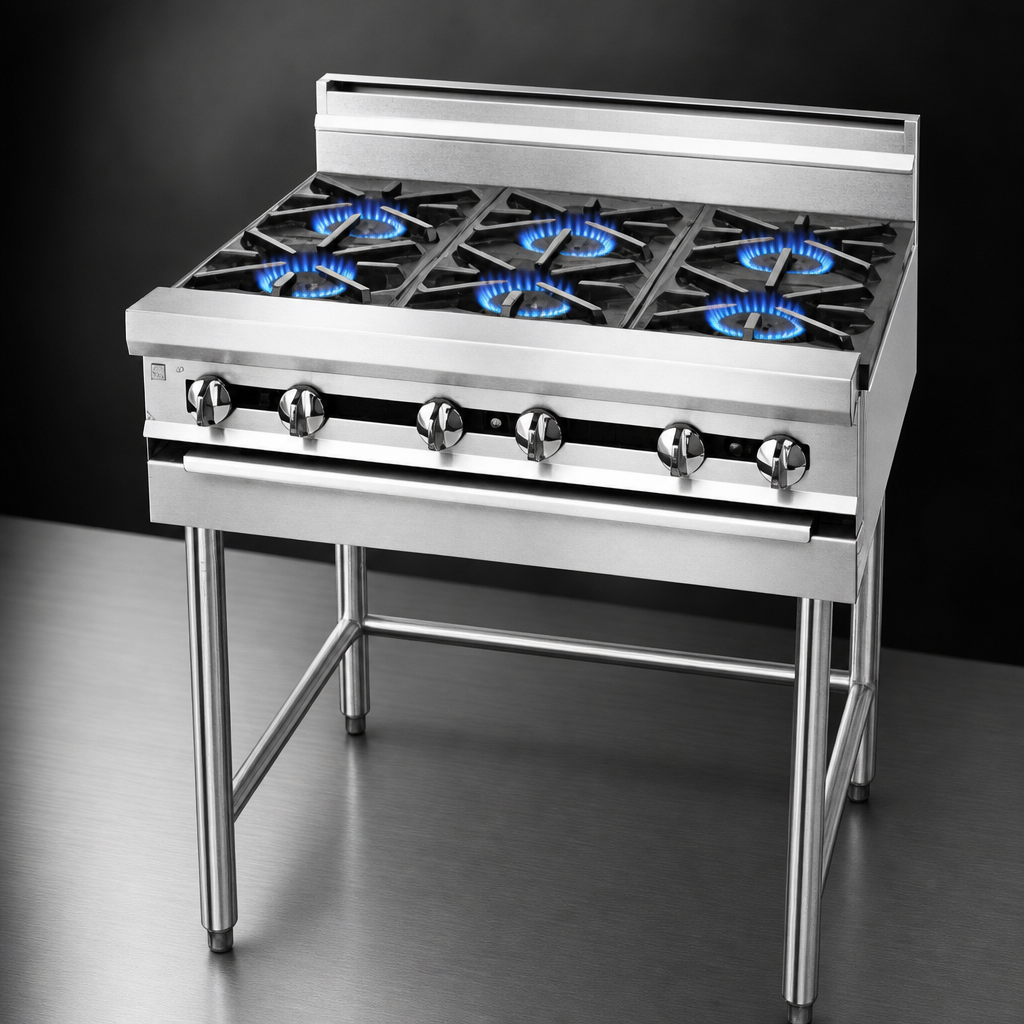

35,000 BTU/hr Cast Iron Open Burners

Provides high heat output for rapid and efficient cooking.

Stainless Steel Pilot Per Burner

Ensures reliable ignition for each open burner.

14 Gauge All Welded Body Construction

Offers superior durability and structural integrity for heavy-duty commercial use.

Stainless Steel Gas Tubing Throughout

Enhances longevity and prevents corrosion of internal gas components.

Stainless Steel Front, Sides, and Stub Back

Provides a professional appearance and simplifies cleaning.

6" Stainless Steel Plate Shelf

Offers a convenient storage and staging area for plated dishes.

Infinite Gas Valves

Allows for precise and independent temperature control of each burner.

6" Stainless Steel Adjustable Legs

Provides stability, allows for easy leveling, and facilitates cleaning under the unit.

Heavy Duty Modular Design

Built in 12-inch sections for robust performance and flexible kitchen layouts.

Type Open Burner Range
Style Modular
Installation Type Floor Model (With Adjustable Legs)
Pan Capacity 6 Open Burners
BTU 210,000 BTU
BTU Per Burner 35,000 BTU/hr
Controls Infinite
Gas Type Natural Gas
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. Minimum
Gas Inlet Pressure (Propane) 10 Inches W.C. Minimum
Gas Inlet Pressure (Maximum) 14 Inches W.C. Maximum
Material Stainless Steel
Exterior Finish Stainless Steel
Shipping Width 36 Inches
Shipping Depth 39 Inches
Shipping Height 37 Inches
Shipping Weight 450 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JMRH-6 range can be ordered for either Natural Gas or Propane. It is supplied with a 3/4" gas pressure regulator, which must be installed for proper operation.
Each of the six open burners on the JMRH-6 provides a powerful 35,000 BTU/hr, offering robust heating for various cooking tasks.
The JMRH-6 range features a durable 14 gauge all-welded body construction with a stainless steel front, sides, and stub back. All internal gas tubing is also stainless steel.
Yes, the JMRH-6 is supplied with a 3/4" gas pressure regulator. Optional 1" or 1-1/4" regulators are available as accessories for different gas supply needs.
Yes, when ordering, you should specify if the unit will be installed above 2,000 feet so that it can be properly configured for high-altitude operation.
