Jade Range Titan JMRH-5ST 60" Heavy Duty Modular Gas Range with 5 Open Burners and 5 Hot Tops

Full-Size, Natural Gas or Propane, Standard Depth

Engineered for rigorous commercial use, the Jade Range Titan JMRH-5ST offers a versatile split top cooking surface with high-power open burners and hot tops.

  • Robust 14-gauge stainless steel construction ensures long-lasting durability.
  • Features five powerful 35,000 BTU open burners for rapid heating and high-volume cooking.
  • Includes five 15,000 BTU polished hot top sections for consistent simmering and holding.
  • Modular 60-inch design provides expansive cooking area for demanding kitchens.
  • Equipped with infinite controls for precise temperature management across all cooking zones.
  • Certified by NSF and CSAus for safety and sanitation standards.

Overall Dimensions:

60.0"W x 36.25"D x 36.5"H

Product Weight:

695.0 lb

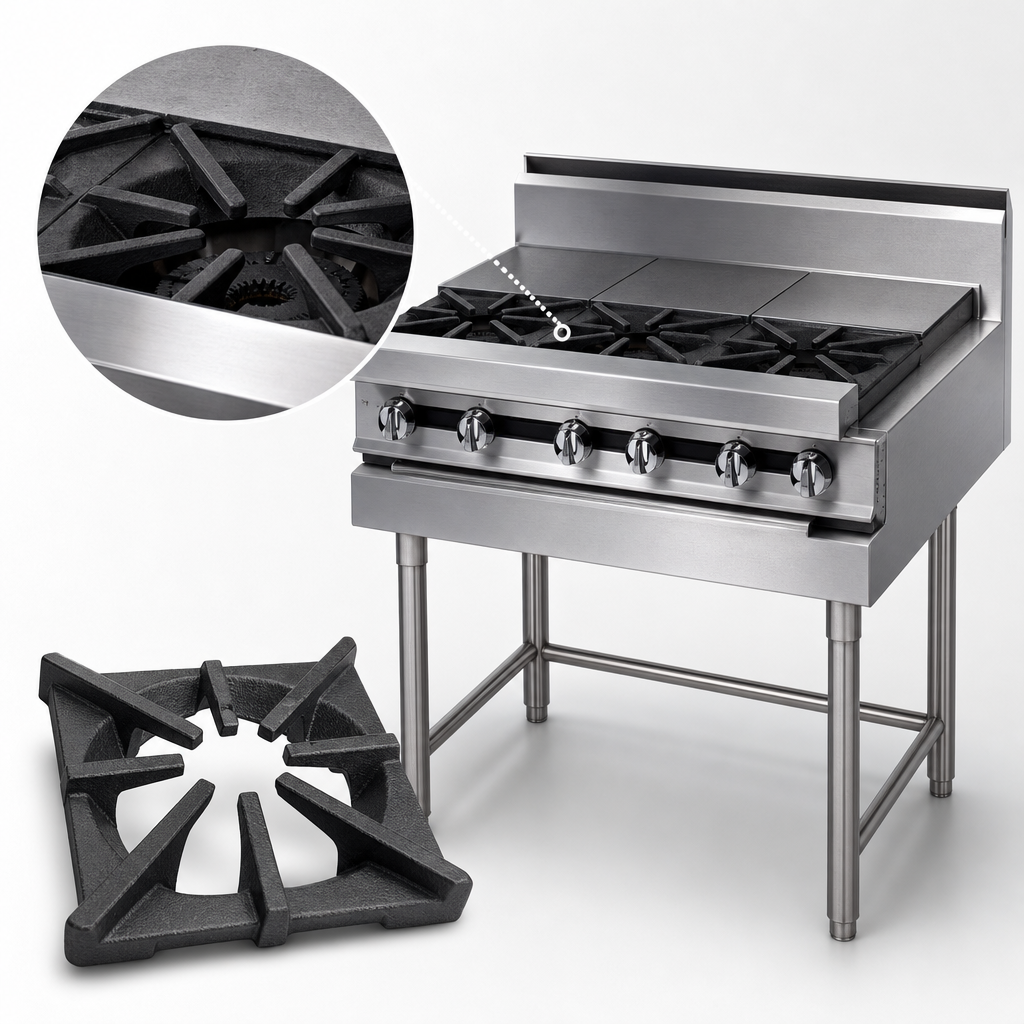

Individual Cast Iron Top Grates

Durable cast iron top grates provide even heat distribution and support for cookware over the open burner sections.

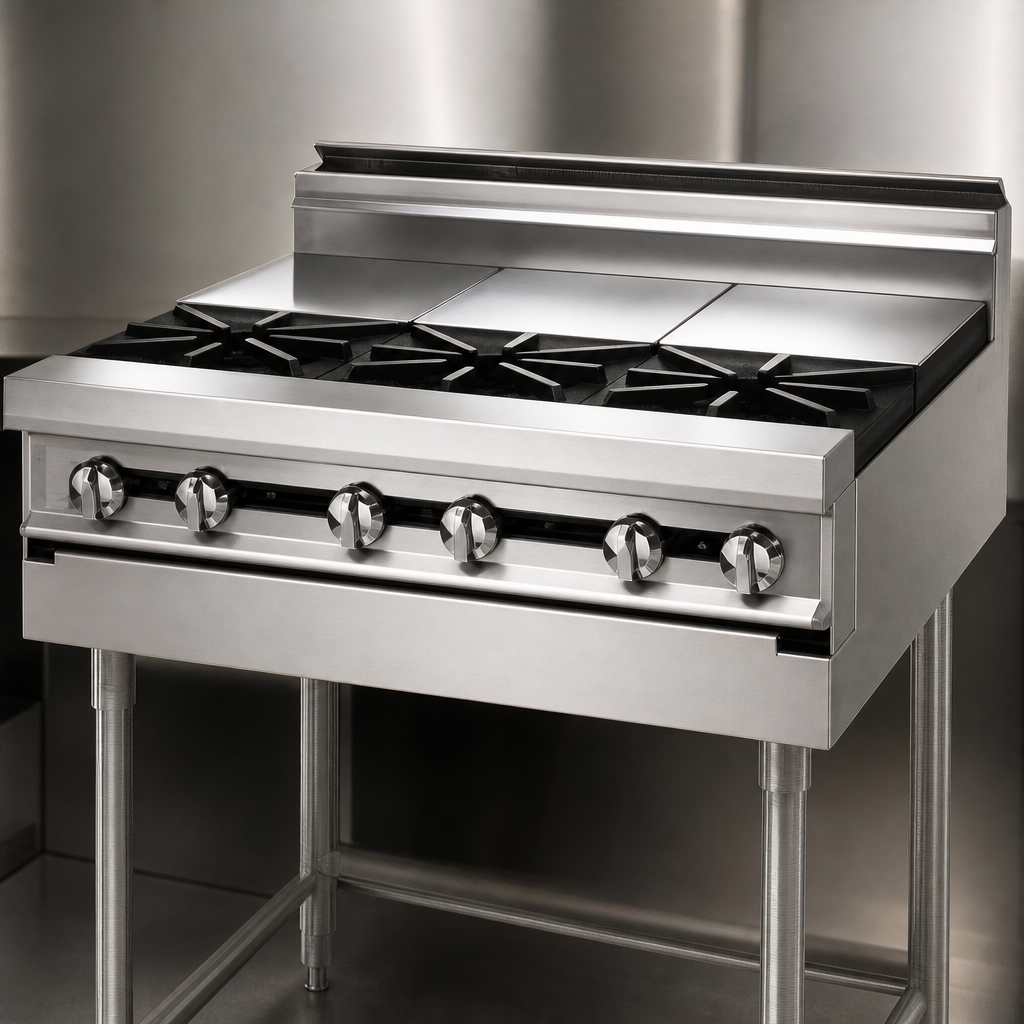

Polished Hot Top Rear Sections

Smooth, polished hot top sections are ideal for simmering, holding, and cooking dishes requiring continuous, gentle heat.

Heavy Duty Construction

Built with a 14-gauge stainless steel all-welded body for exceptional strength, stability, and longevity in demanding commercial kitchen environments.

Stainless Steel Components

Features stainless steel front, sides, tray bed, stub back, and internal gas tubing for superior corrosion resistance and ease of cleaning.

6" Stainless Steel Plate Shelf

A convenient 6-inch deep stainless steel plate shelf provides immediate storage space for plates, utensils, or ready-to-serve items.

Infinite Controls

Each burner and hot top section is equipped with infinite controls, allowing for precise and continuous adjustment of flame intensity and temperature.

Modular Design

The modular construction allows for flexible kitchen layouts and seamless integration with other Titan series equipment.

Type Heavy Duty Modular Split Top Range
Installation Type Floor Model (With 6" Adjustable Legs)
BTU 250,000 BTU
BTU Per Open Burner 35,000 BTU
BTU Per Hot Top Section 15,000 BTU
Open Burners 5
Hot Top Sections 5
Cooking Surface Width 60 Inches
Cooking Surface Depth 38 Inches
Controls Infinite
Material Stainless Steel
Gas Type Natural Gas or Propane (Specify when ordering)
Gas Connection Size 1-1/4 Inches (Front Manifold), 1 Inch or 3/4 Inch (Rear Manifold)
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. (Minimum)
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. (Minimum)
Maximum Gas Inlet Pressure 14 Inches W.C.
Plate Shelf 6 Inches (Stainless Steel)
Shipping Width 60 Inches
Shipping Depth 37 Inches
Shipping Height 37 Inches
Shipping Weight 695 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JMRH-5ST range can operate on either Natural Gas or Propane. Please specify the required gas type when placing your order.
The range is supplied with a 1-1/4" front manifold connection. It also features a capped rear manifold connection that can be configured for either 1" or 3/4" supply. A 3/4" gas pressure regulator is supplied, but 1" or 1-1/4" regulators are available as accessories.
Each of the five open burners provides 35,000 BTU/hr, and each of the five hot top sections provides 15,000 BTU/hr, for a total BTU output of 250,000 BTU.
Yes, the JMRH-5ST is supplied with 6" stainless steel adjustable legs as a standard feature. Floor length legs are available as an optional configuration.
This unit must be connected with the gas appliance regulator supplied. Additionally, if the range will be installed at an altitude above 2,000 feet, this information should be specified when ordering for proper calibration.
