Jade Range (Middleby)

Titan JMRH-4ST 48 Inch Heavy Duty Modular Gas Range with 4 Open Burners and 4 Hot Tops

SKU: JMRH-4ST
$11,206.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

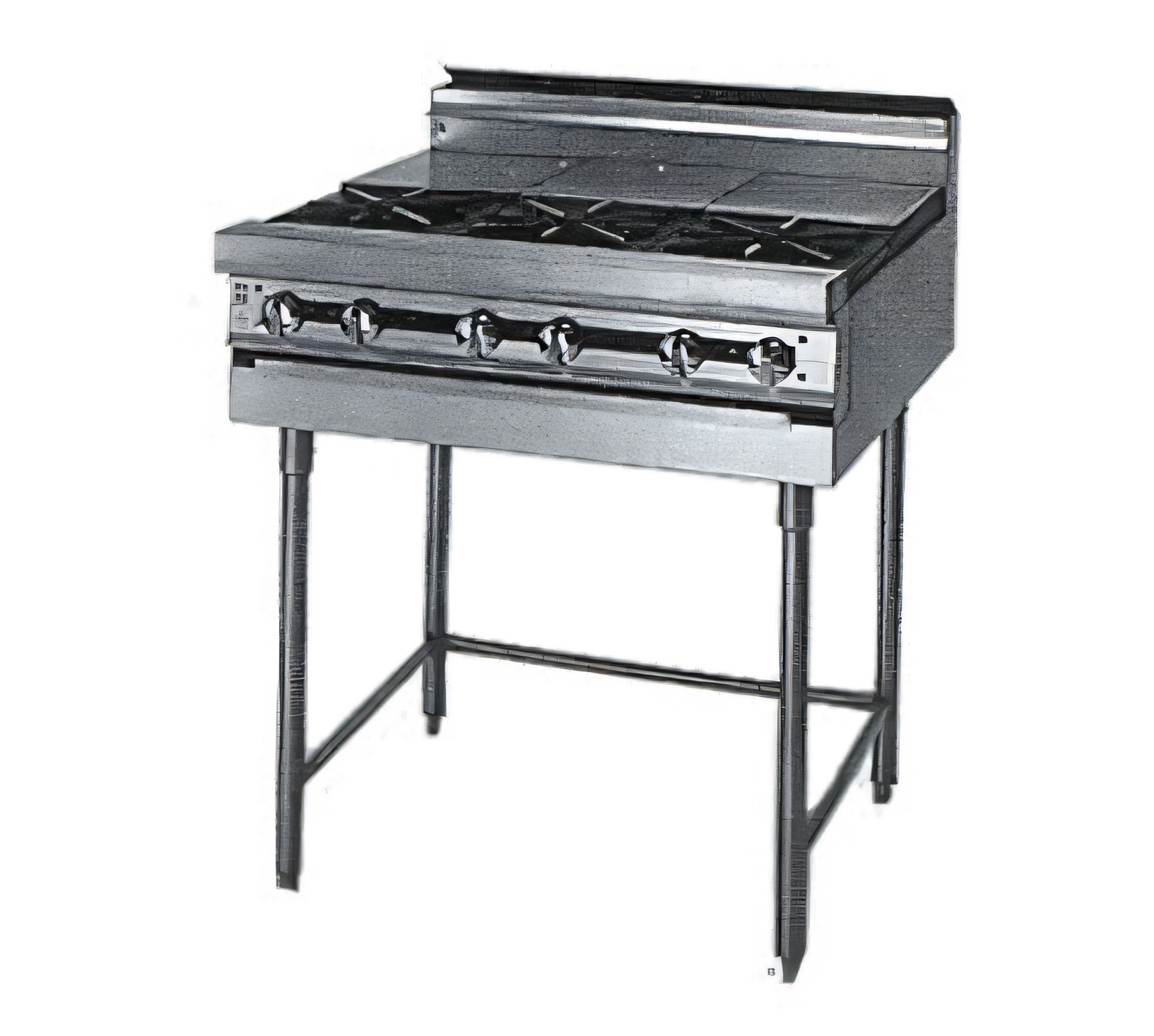

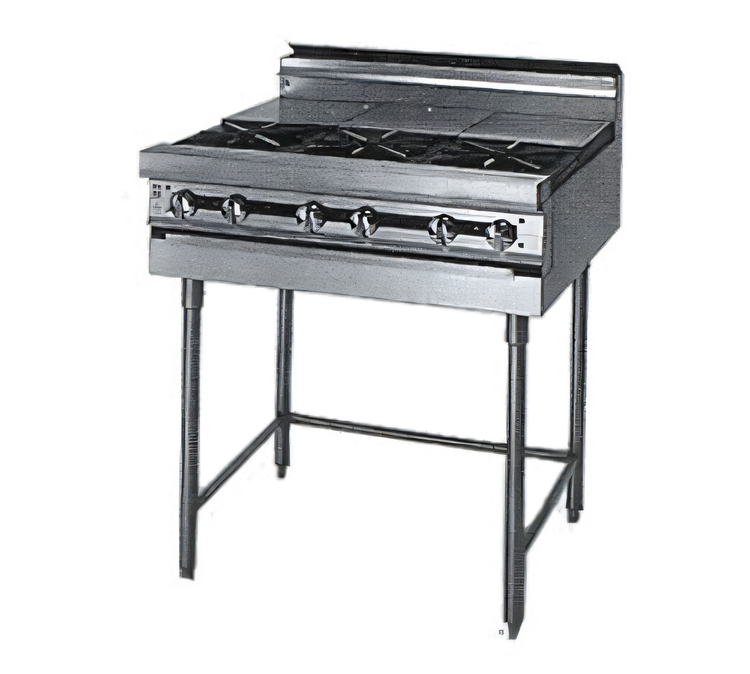

Titan JMRH-4ST 48 Inch Heavy Duty Modular Gas Range with 4 Open Burners and 4 Hot Tops

48 Inches Wide, Natural Gas, Floor Model

Designed for high-volume commercial kitchens, the Titan JMRH-4ST modular range offers versatile cooking with a combination of powerful open burners and consistent hot tops, all in a robust stainless steel construction.

  • Heavy-duty 48-inch modular split top range built for demanding commercial environments.
  • Equipped with four 35,000 BTU open front burners for intense, direct heat cooking.
  • Features four 15,000 BTU rear hot tops providing even, sustained heat for simmering and holding.
  • Total heating power of 200,000 BTU for comprehensive cooking versatility.
  • Constructed with a durable 14 gauge all-welded stainless steel body, front, sides, and stub back.
  • Includes a convenient 6-inch stainless steel plate shelf for easy access to tools and ingredients.
  • Comes with a 3/4 inch gas pressure regulator for proper operation and variable gas connection options.

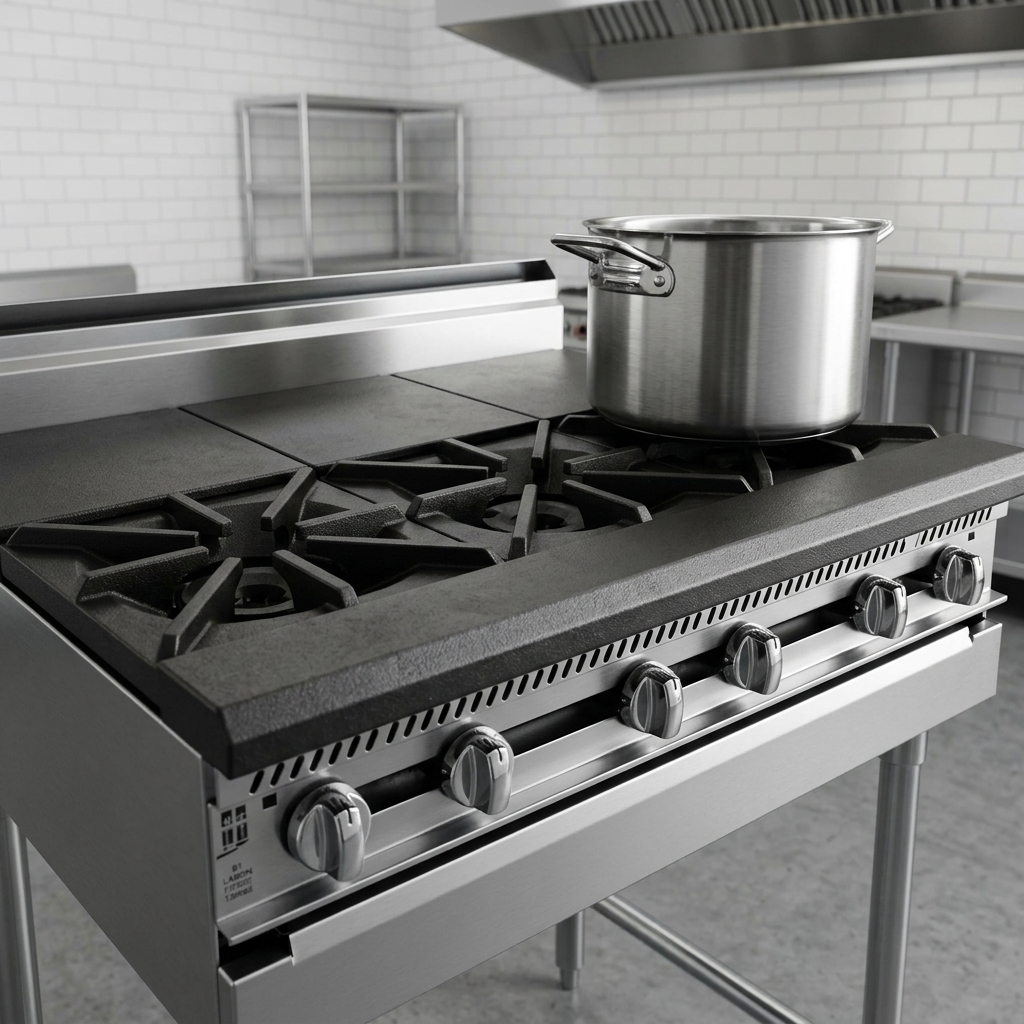

Individual Cast Iron Top Grates

Each burner and hot top section is fitted with individual cast iron grates for robust support and heat retention.

Experience robust support and superior heat retention with the individually designed, heavy-duty cast iron top grates on this gas range.

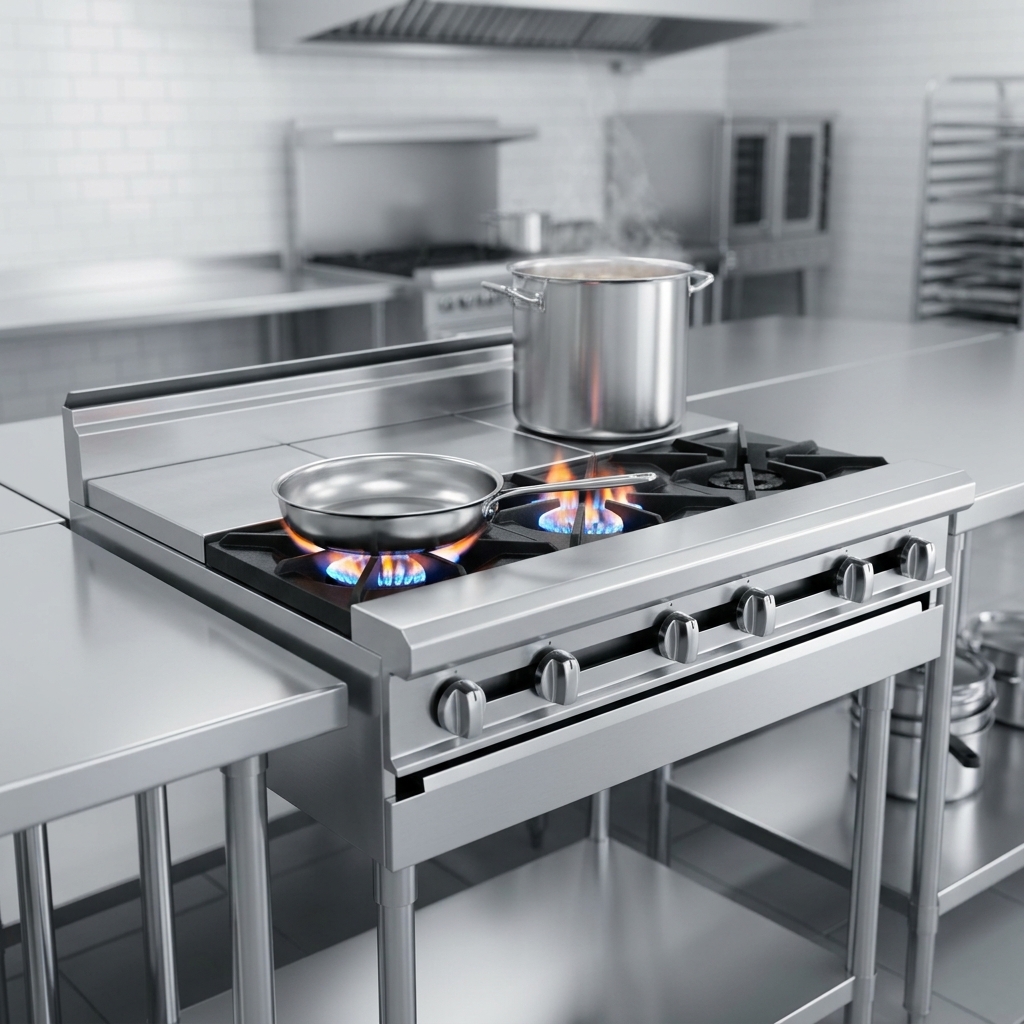

Open Top Front & Polished Hot Top Rear

The range design offers open front burners for direct flame cooking and polished rear hot tops for indirect, even heat.

Experience the ultimate cooking versatility with open front burners for direct flame cooking and polished rear hot tops for indirect, even heat.

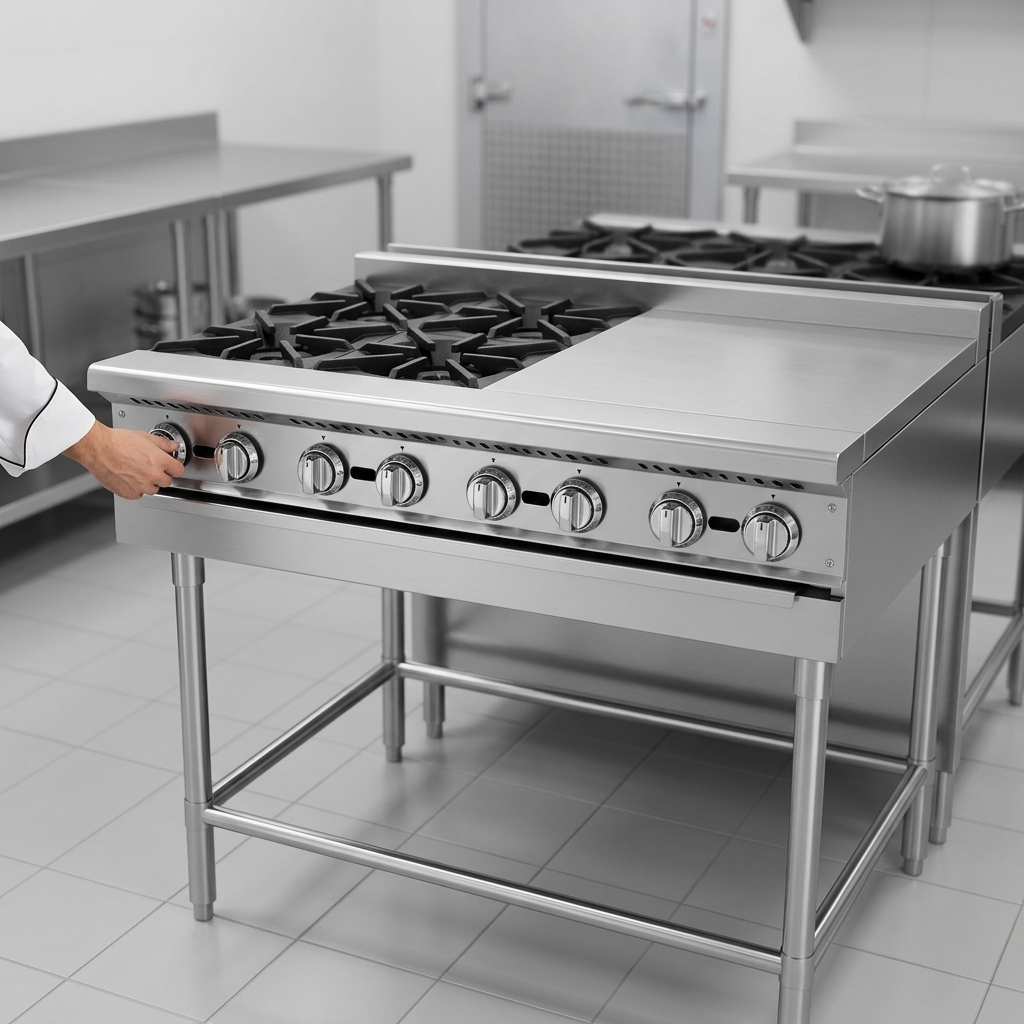

Infinite Gas Valves

Each burner and hot top section is controlled by infinite gas valves, allowing precise temperature adjustment.

Experience ultimate culinary control with infinite gas valves, providing precise temperature adjustments for each open burner and hot top.

Heavy-Duty Stainless Steel Construction

Built with 14 gauge stainless steel for an all-welded body, featuring stainless steel front, sides, tray bed, and stub back for extreme durability and easy cleaning.

Stainless Steel Gas Tubing

All internal gas tubing is constructed from stainless steel for enhanced longevity and reliability.

Integrated Plate Shelf

A 6-inch stainless steel plate shelf is standard, providing a practical storage or plating area.

Adjustable Legs

Standard 6-inch stainless steel adjustable legs ensure proper height and stability.

Specifications

Type Modular Split Top Range
Style Heavy Duty
Installation Type Floor Model
Pan Capacity 4 Open Burners, 4 Hot Tops
BTU 200,000 BTU
Open Burner BTU 35,000 BTU Per Burner
Hot Top BTU 15,000 BTU Per Hot Top
Controls Infinite
Material Stainless Steel
Finish Stainless Steel
Gas Connection Size 1-1/4 Inches Front Manifold, 1 Inch or 3/4 Inch Capped Rear Manifold
Gas Inlet Pressure 5 Inches W.C. (Natural Gas), 10 Inches W.C. (Propane)
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 48 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 580 lb.

Overall Dimensions:

48.0"W x 36.25"D x 36.5"H

Product Weight:

580.0 lb
Manufacturer Jade Range (Middleby)
Brand name Titan
Certifications ["NSF", "CSAus"]
Height 36.5in
Width 48.0in
Depth 36.25in
Shipping Weight 580.0lbs
Top (4) open burners, (4) 12" hot tops
Exterior Finish all stainless steel exterior
Base open legs with crossrails
Specifications Titan™ Heavy Duty Range, gas, 48", modular, (4) 35,000 BTU open front burners, (4) 15,000 BTU rear hot tops, infinite controls, stainless steel 6" plate shelf, front, sides, stub back & tray bed, 200,000 BTU, CSAus, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JMRH-4ST range features a total of 200,000 BTU. It is configured with four 35,000 BTU open front burners and four 15,000 BTU rear hot tops.
This range can operate on either Natural Gas or Propane, which must be specified when ordering. The required operating pressure is 5 Inches W.C. minimum for Natural Gas and 10 Inches W.C. minimum for Propane Gas, with a maximum of 14 Inches W.C. for both.
Yes, the unit is supplied with a 3/4 inch gas pressure regulator, which must be properly installed for safe and efficient operation.
The JMRH-4ST range comes with a 1-1/4 inch front manifold connection and a 1 inch or 3/4 inch capped rear manifold connection. The cap can be removed for rear manifold use.
The range features a heavy-duty 14 gauge all-welded stainless steel body construction, including the front, sides, tray bed, stub back, and all internal gas tubing for durability and ease of cleaning.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.

Talk to a Specialist
or call (888) 307-5030
