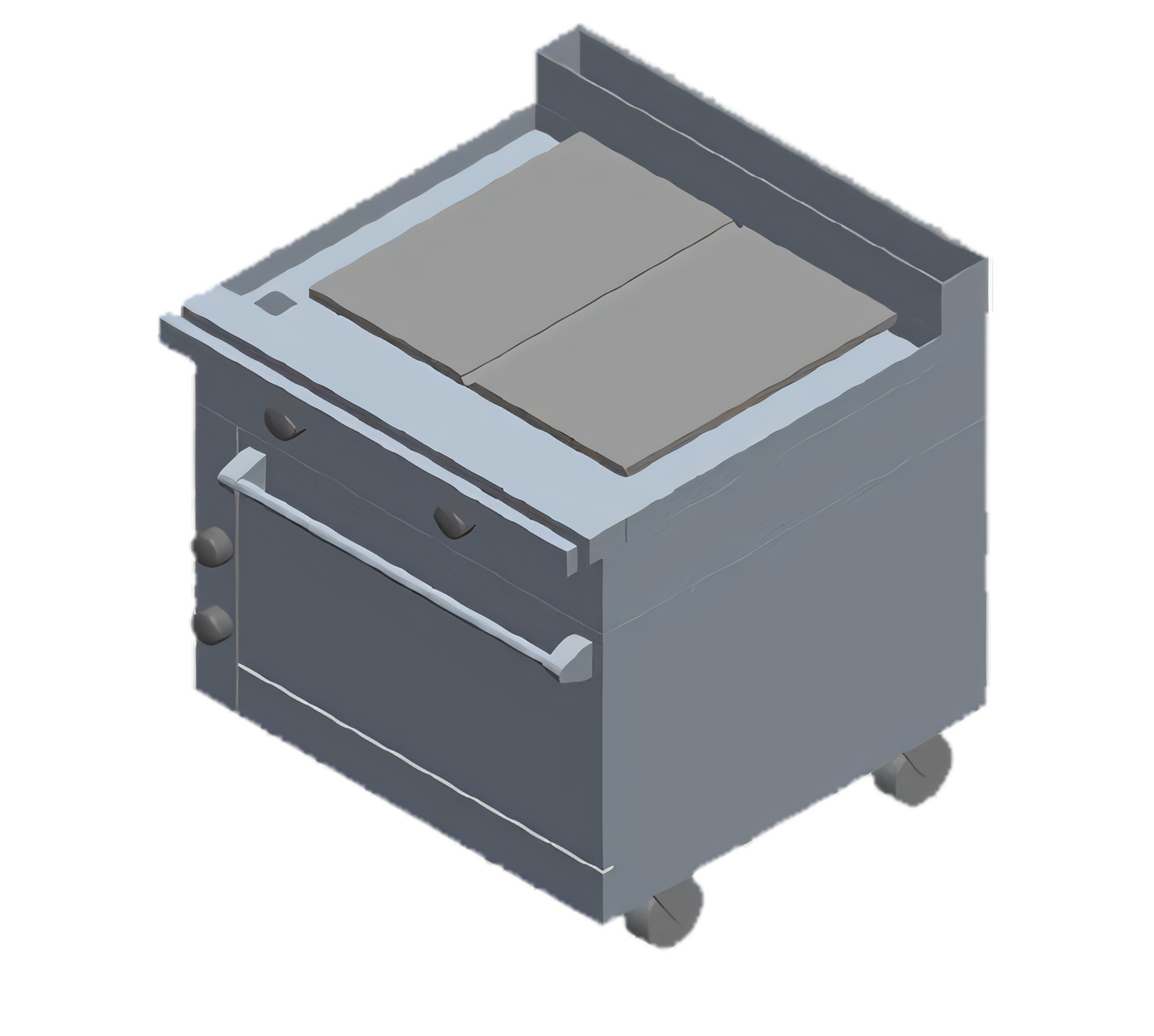

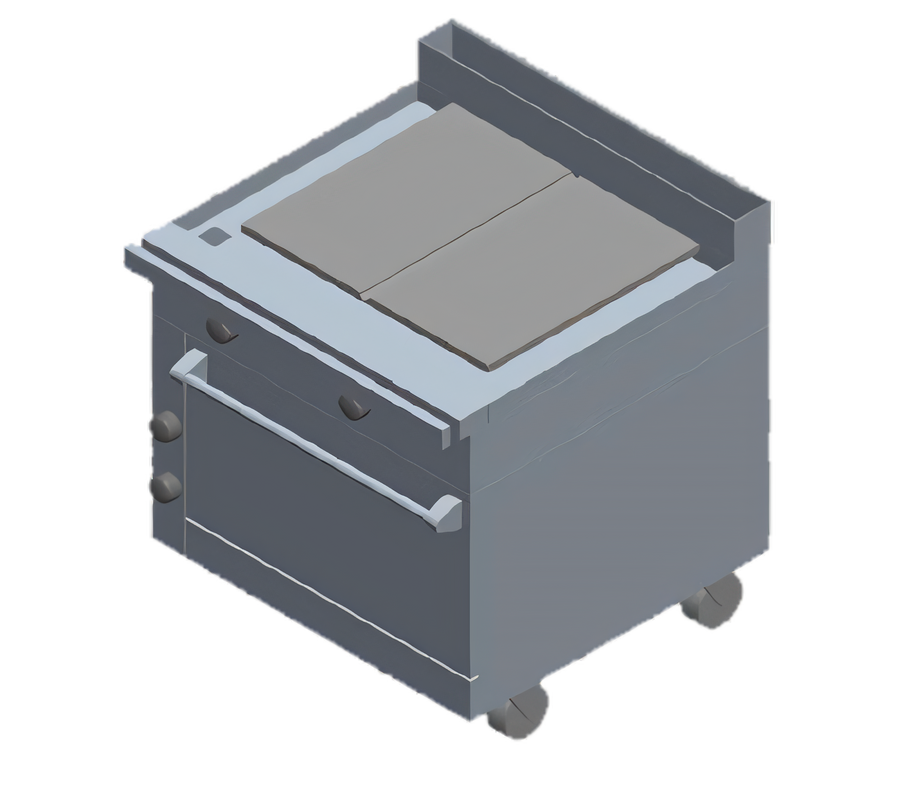

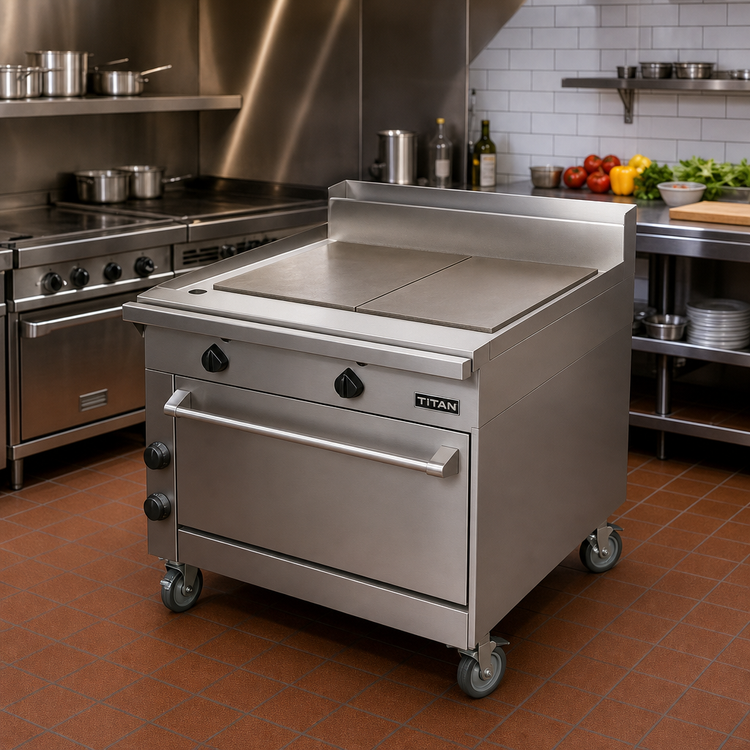

Titan JMRH-48IP 48-Inch Modular Gas Plancha Range with 5/8" Thick Plate

Full-Size, Modular, Natural Gas or Propane, Standard Depth

Experience versatile, high-performance cooking with the Titan JMRH-48IP 48-inch modular gas plancha range, engineered for heavy-duty commercial kitchen demands.

  • Features a durable 5/8" thick polished steel plancha plate for even and consistent cooking.
  • Robust 14-gauge stainless steel grease trough simplifies cleaning and maintenance.
  • Constructed with a heavy-duty stainless steel front, sides, and stub back for commercial durability.
  • Integrated 6-inch stainless steel plate shelf provides convenient plating space.
  • Modular design allows for flexible integration into existing or new kitchen layouts.
  • Delivers powerful heating with 42,500 BTU, suitable for high-volume operations.

Overall Dimensions:

48.0"W x 38.0"D x 36.5"H

Product Weight:

610.0 lb

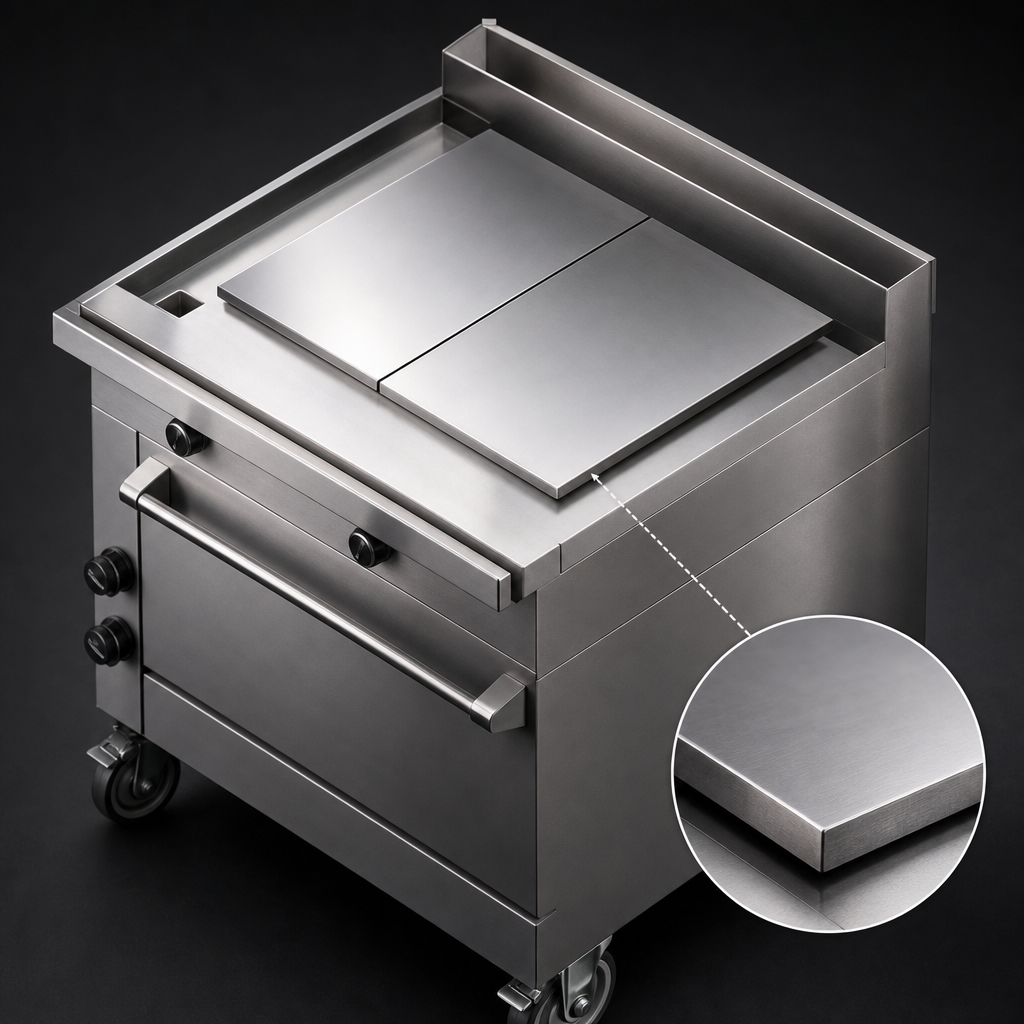

Polished Steel Plancha Plate

Equipped with a polished 5/8" thick steel plancha plate for superior heat retention and even cooking.

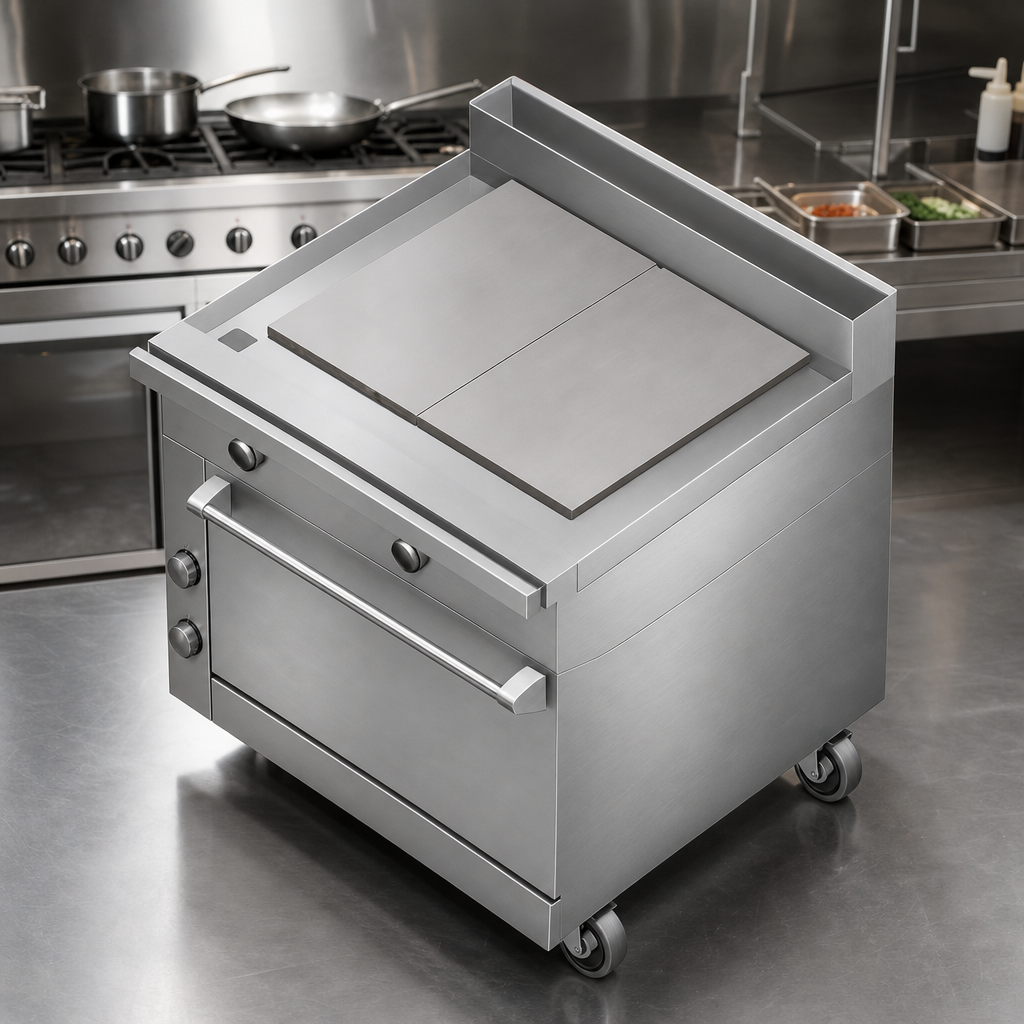

Stainless Steel Construction

Features a durable stainless steel front, sides, and stub back, ensuring longevity and ease of cleaning in a commercial environment.

14-Gauge Grease Trough

Includes a 14-gauge stainless steel grease trough for efficient grease collection and simplified cleaning.

6-Inch Plate Shelf

A 6-inch stainless steel plate shelf provides convenient space for plating or holding items.

Multi-Point Gas Connection

Designed with a variable size multi-point gas connection for versatile installation options.

Adjustable Legs

Comes standard with 6-inch adjustable stainless steel legs for leveling and stability.

Type Plancha Range
Style Modular
Installation Type Floor Model (With Adjustable Legs)
Cooking Surface Width 48 Inches
Cooking Surface Depth 38 Inches
Plate Thickness 5/8 Inch
BTU 42,500 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inches (Front Manifold)
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. (minimum)
Gas Inlet Pressure (Propane) 10 Inches W.C. (minimum)
Material Stainless Steel
Interior Finish Polished Steel
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 610 lb.
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JMRH-48IP features a polished steel plancha plate that is 5/8 inches thick, designed for excellent heat distribution and retention.
For Natural Gas, a minimum operating pressure of 5 inches W.C. is required. For Propane Gas, a minimum of 10 inches W.C. is required. The maximum operating pressure for both is 14 inches W.C.
Yes, the unit is supplied with a 3/4 inch gas pressure regulator, which must be installed for proper operation. Larger regulators (1 inch or 1-1/4 inch) are available as accessories.
Yes, the JMRH-48IP is designed to operate with either Natural Gas or Propane, but the gas type must be specified when ordering.
The exterior features a durable stainless steel front, sides, and stub back, ensuring commercial-grade strength and easy maintenance.
