Titan JMRH-48GT 48" Modular Heavy Duty Gas Griddle Top Range with Thermostatic Controls

SKU: JMRH-48GT
$13,426.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Titan JMRH-48GT 48" Modular Heavy Duty Gas Griddle Top Range with Thermostatic Controls

Full-Size, Natural Gas or Propane Ready, Standard Depth

Power your kitchen operations with the Titan JMRH-48GT, a heavy-duty modular gas griddle top range designed for high-volume commercial cooking.

  • Features a 48" wide, 1" thick polished steel griddle plate for excellent heat distribution and durability.
  • Equipped with precise thermostatic controls for consistent temperature management across the griddle surface.
  • Constructed with a robust 14 gauge stainless steel body, front, sides, and stub back for commercial longevity.
  • Includes a 14 gauge stainless steel grease trough and integrated splashguards for easy cleaning and hygiene.
  • Designed for modular installation, allowing for flexible kitchen layouts.
  • Delivers up to 140,000 BTU for rapid heating and recovery, suitable for busy commercial kitchens.

Polished 1" Thick Steel Griddle Plates

Provides superior heat retention and even cooking across the entire 48-inch surface, built to withstand heavy use.

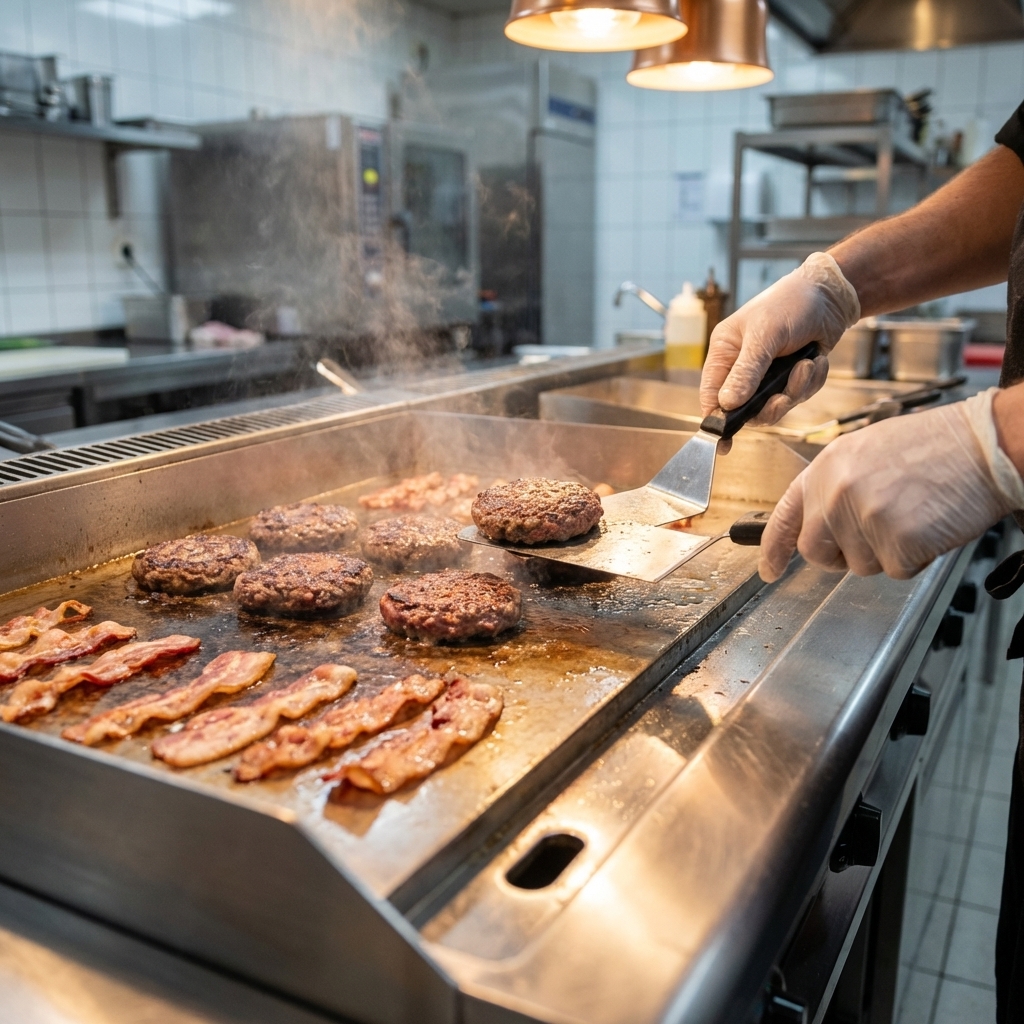

Showcasing exceptional heat retention and durability, this image highlights the polished 1-inch thick steel griddle plates delivering perfectly even cooking results.

Thermostatic Controls

Ensures precise and consistent temperature management for optimal cooking results on the griddle.

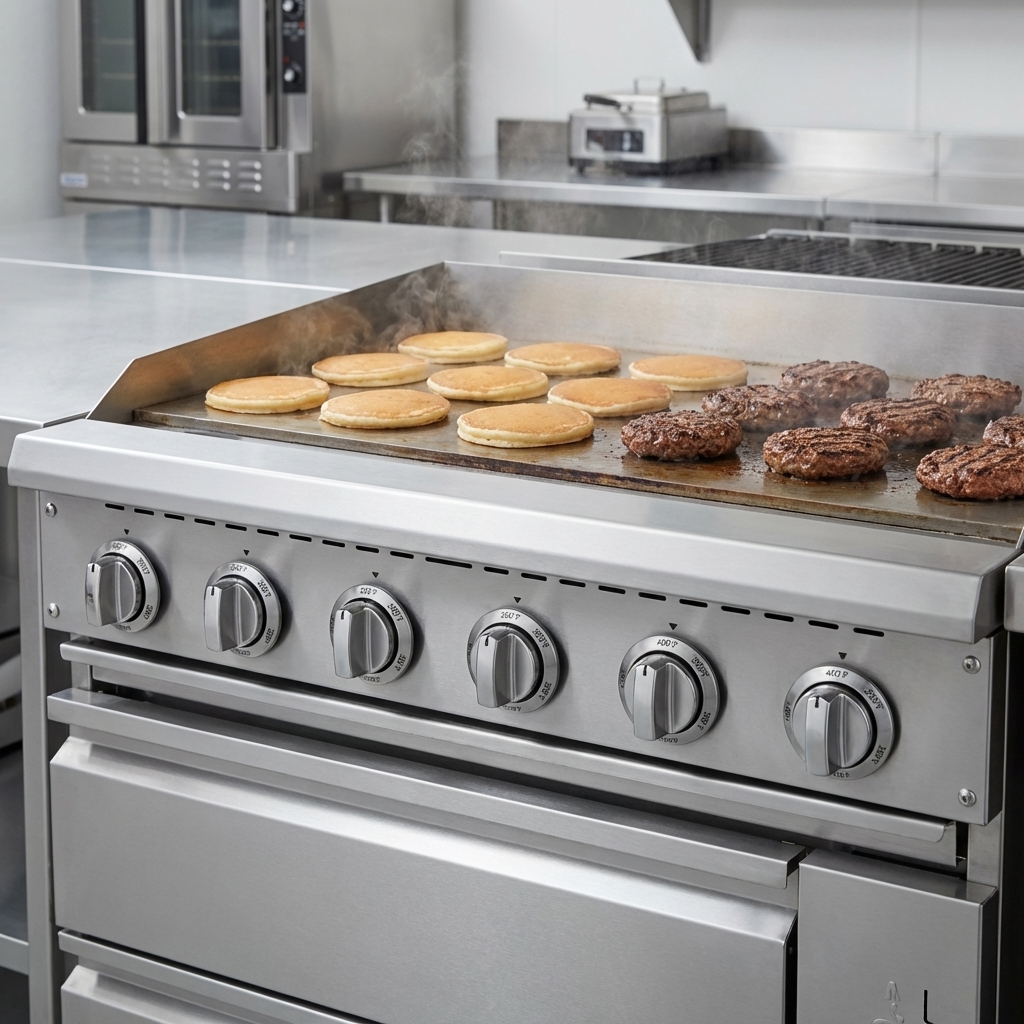

Experience precise and consistent temperature management for optimal cooking results with the intuitive thermostatic controls on this heavy-duty gas griddle.

14 Gauge Stainless Steel Grease Trough

Durable and easy to clean, aiding in maintaining a hygienic cooking environment and efficient grease management.

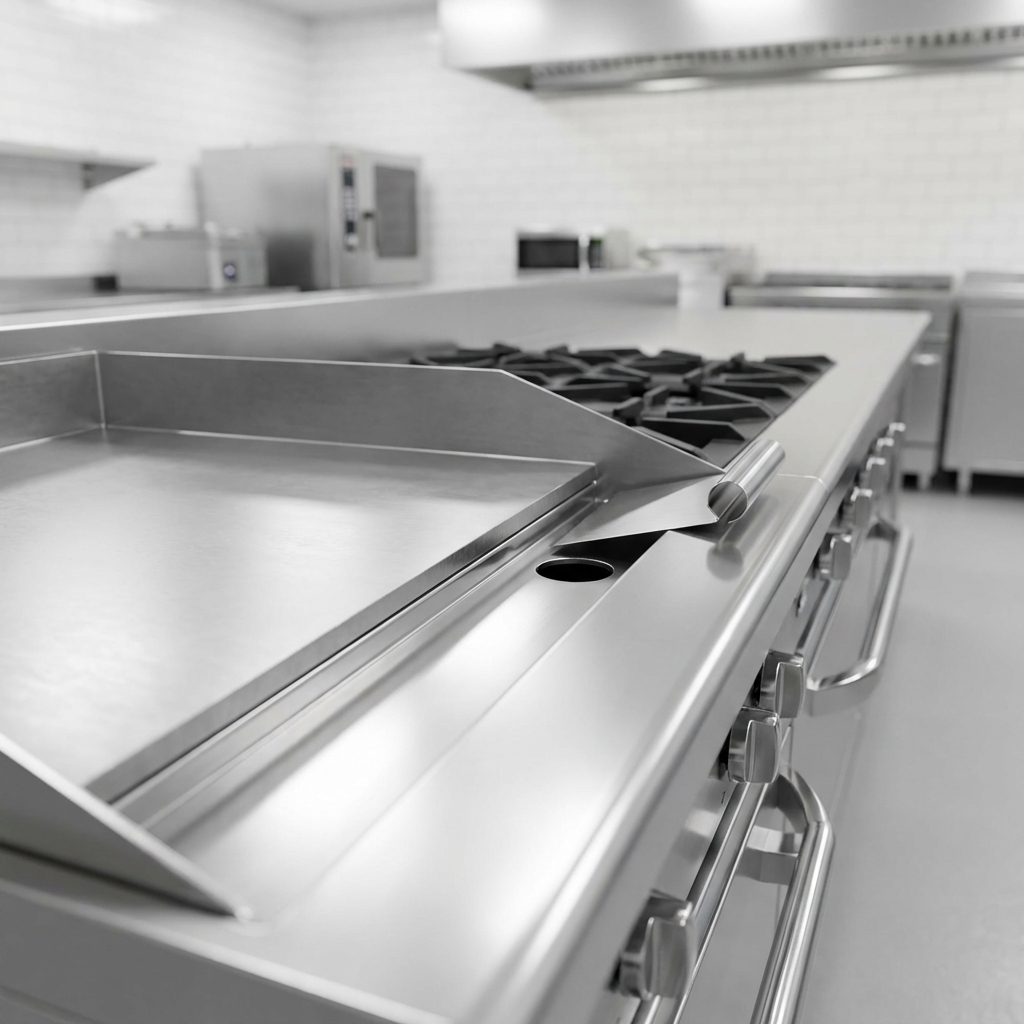

Observe the robust 14 gauge stainless steel grease trough, designed for effortless cleaning and efficient grease management on this heavy-duty griddle.

14 Gauge Stainless Side and Rear Splashguards

Integrated splashguards prevent splashes and spills, keeping surrounding areas clean and safe.

Stainless Steel Front, Sides and Stub Back

Offers superior durability, corrosion resistance, and a professional appearance, ensuring long-lasting performance.

Stainless Steel 6" Plate Shelf

Provides convenient storage or staging space for plates, utensils, or ingredients, enhancing workflow efficiency.

Variable Size Multi-Point Gas Connection

Offers flexibility in connecting to the gas supply with options for 1-1/4" front and 1" or 3/4" capped rear manifold connections.

3/4" Gas Pressure Regulator

A 3/4" gas pressure regulator is supplied loose and must be installed for proper and safe operation.

Specifications

Type Modular Griddle Top Range
Style Heavy Duty
Installation Type Floor Model (With 6" Adjustable Legs)
Cooking Surface Width 48 Inches
Plate Thickness 1 Inch
Controls Thermostatic
BTU 140,000 BTU (Natural Gas), 120,000 BTU (Propane)
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. minimum
Gas Inlet Pressure (Propane) 10 Inches W.C. minimum
Material Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 37 Inches
Shipping Height 37 Inches
Shipping Weight 705 lb.

Overall Dimensions:

48.0"W x 36.25"D x 36.5"H

Product Weight:

705.0 lb
Manufacturer Jade Range (Middleby)
Brand name Titan
Certifications ["NSF", "CSAus"]
Height 36.5in
Width 48.0in
Depth 36.25in
Shipping Weight 705.0lbs
Top (1) griddle with thermostat
Exterior Finish all stainless steel exterior
Plate Thickness 1.000" = 1"
Base open legs with crossrails
Specifications Titan™ Heavy Duty Range, gas, 48", modular, griddle, 1" thick polished steel plate, thermostatic controls, stainless steel grease trough, splashguards, 6" plate shelf, front, sides & stub back, 120,000 BTU, CSAus, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer reserves the right to change materials and specifications without notice.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JMRH-48GT is equipped with thermostatic controls, allowing for precise and consistent temperature regulation across the griddle surface.
This model features a polished 1" thick steel griddle plate, designed for excellent heat retention and durability under heavy use.
The range requires a minimum operating pressure of 5" W.C. for Natural Gas and 10" W.C. for Propane Gas. It is supplied with a 3/4" gas pressure regulator that must be installed.
Yes, a 3/4" gas pressure regulator is supplied loose with the unit and must be installed for proper operation.
The JMRH-48GT is constructed with a 14 gauge all-welded body, featuring a stainless steel front, sides, and stub back, along with stainless steel gas tubing throughout for durability.
Yes, ranges are supplied with a 1-1/4" front manifold connection and a 1" or 3/4" capped rear manifold connection for flexible installation.
