Jade Range (Middleby)

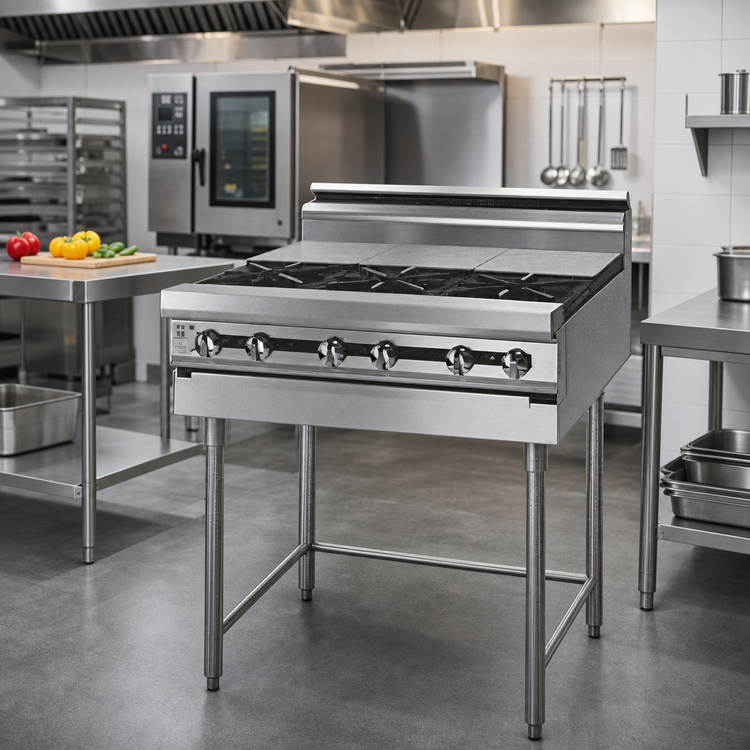

Titan JMRH-3ST 36 Inch Modular Heavy Duty Gas Range with Open Burners and Hot Tops

SKU: JMRH-3ST
$9,033.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Titan JMRH-3ST 36 Inch Modular Heavy Duty Gas Range with Open Burners and Hot Tops

Modular, 3 Open Burners & 3 Hot Tops

The Titan JMRH-3ST modular heavy-duty gas range offers versatile cooking capabilities with its combination of high-power open burners and efficient hot tops, perfect for demanding commercial kitchens.

  • Heavy-duty 14 gauge stainless steel construction ensures exceptional durability for commercial use.
  • Features three 35,000 BTU open front burners for intense heat and rapid cooking.
  • Includes three 15,000 BTU polished hot top sections for consistent, even heat distribution.
  • Modular design allows for flexible integration into various kitchen configurations.
  • Equipped with a 6-inch stainless steel plate shelf for convenient plating and food preparation.
  • Comes with a 3/4 inch gas pressure regulator for immediate setup (must be installed).

Overall Dimensions:

36.0"W x 38.25"D x 36.5"H

Product Weight:

430.0 lb

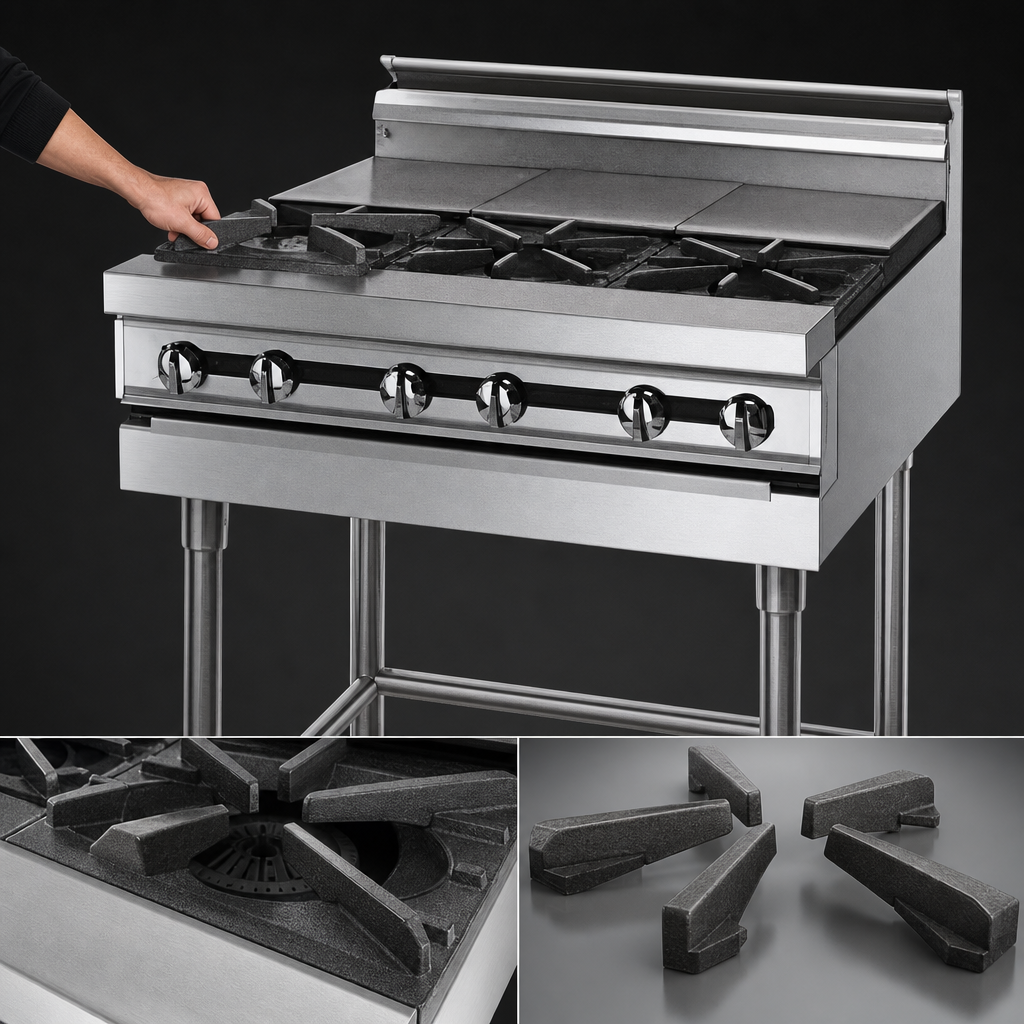

Individual Cast Iron Top Grates

Durable cast iron grates designed for heavy commercial use, providing sturdy support for cookware.

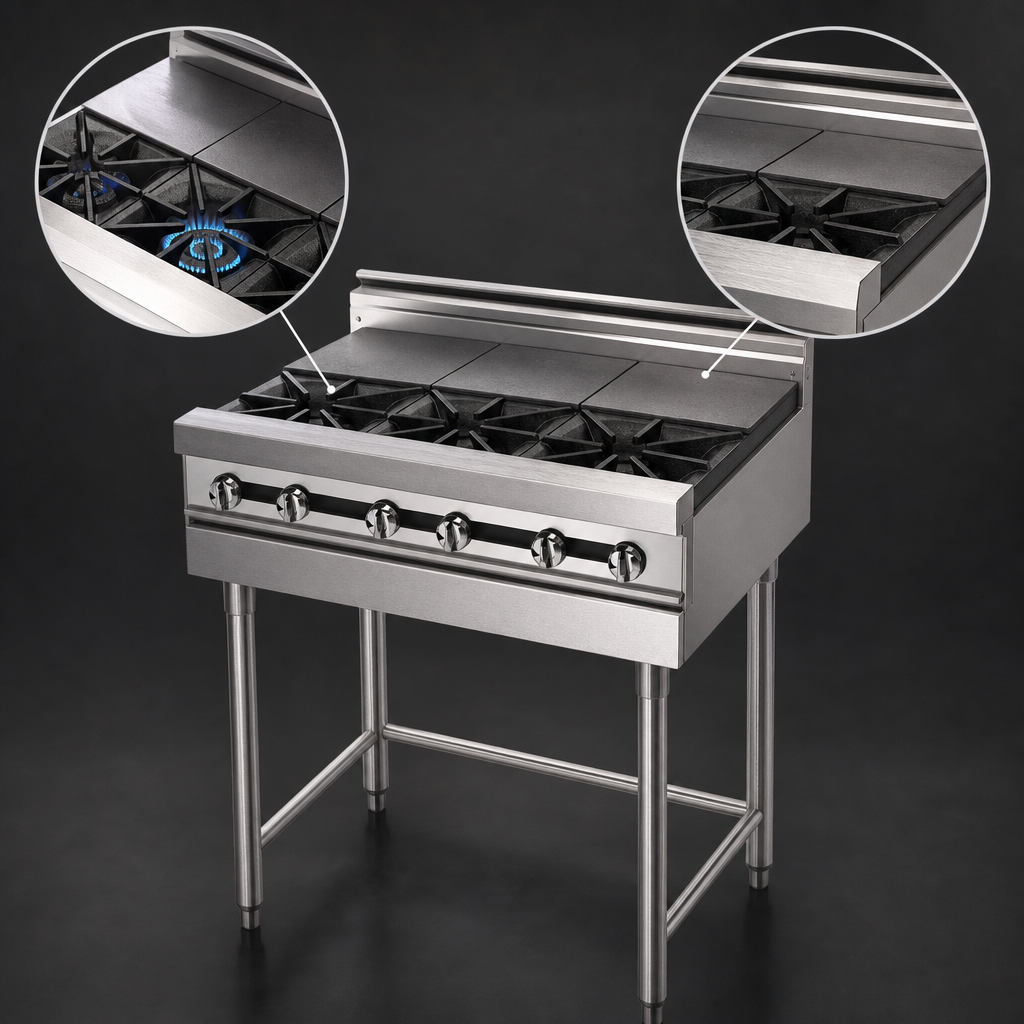

Split Top Configuration

Combines open top front burners for direct flame cooking and polished hot top rear sections for radiant, even heat.

Infinite Controls

Each burner and hot top section is controlled by infinite gas valves, offering precise temperature management.

Heavy-Duty Construction

Features a 14 gauge stainless steel all-welded body for robust durability in demanding kitchen environments.

Stainless Steel Exterior

Constructed with stainless steel front, sides, tray bed, and stub back, ensuring easy cleaning and a professional appearance.

Stainless Steel Gas Tubing

All gas tubing throughout the unit is made of stainless steel for enhanced longevity and reliability.

Integrated Plate Shelf

Includes a built-in 6-inch stainless steel plate shelf for convenient staging and plating.

Gas Pressure Regulator Included

A 3/4 inch gas pressure regulator is shipped loose and must be installed for proper operation.

Type Modular Split Top Range
Style Heavy Duty Range
Installation Type Floor Model (With Adjustable Legs)
BTU 150,000 BTU
Burner BTU 35,000 BTU per Open Burner
Hot Top BTU 15,000 BTU per Hot Top Section
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inches Front, 1 or 3/4 Inches Rear
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. minimum, 14 Inches W.C. maximum
Gas Inlet Pressure (Propane) 10 Inches W.C. minimum, 14 Inches W.C. maximum
Controls Infinite Gas Valves
Material 14 Gauge Stainless Steel
Finish Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 39 Inches
Shipping Height 37 Inches
Shipping Weight 430.0 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Titan JMRH-3ST range can be configured to use either Natural Gas or Propane. Please specify the required gas type when ordering.
Yes, a 3/4 inch gas pressure regulator is supplied loose with the range and must be installed for proper operation.
For Natural Gas, the minimum operating pressure is 5 inches W.C., and for Propane Gas, it's 10 inches W.C. The maximum operating pressure for both is 14 inches W.C.
The range is supplied with a 1-1/4 inch front manifold connection and either a 1 inch or 3/4 inch capped rear manifold connection. The cap should be removed if using the rear connection.
Yes, if operating above 2,000 feet, you must specify the altitude when ordering to ensure proper calibration and performance.
