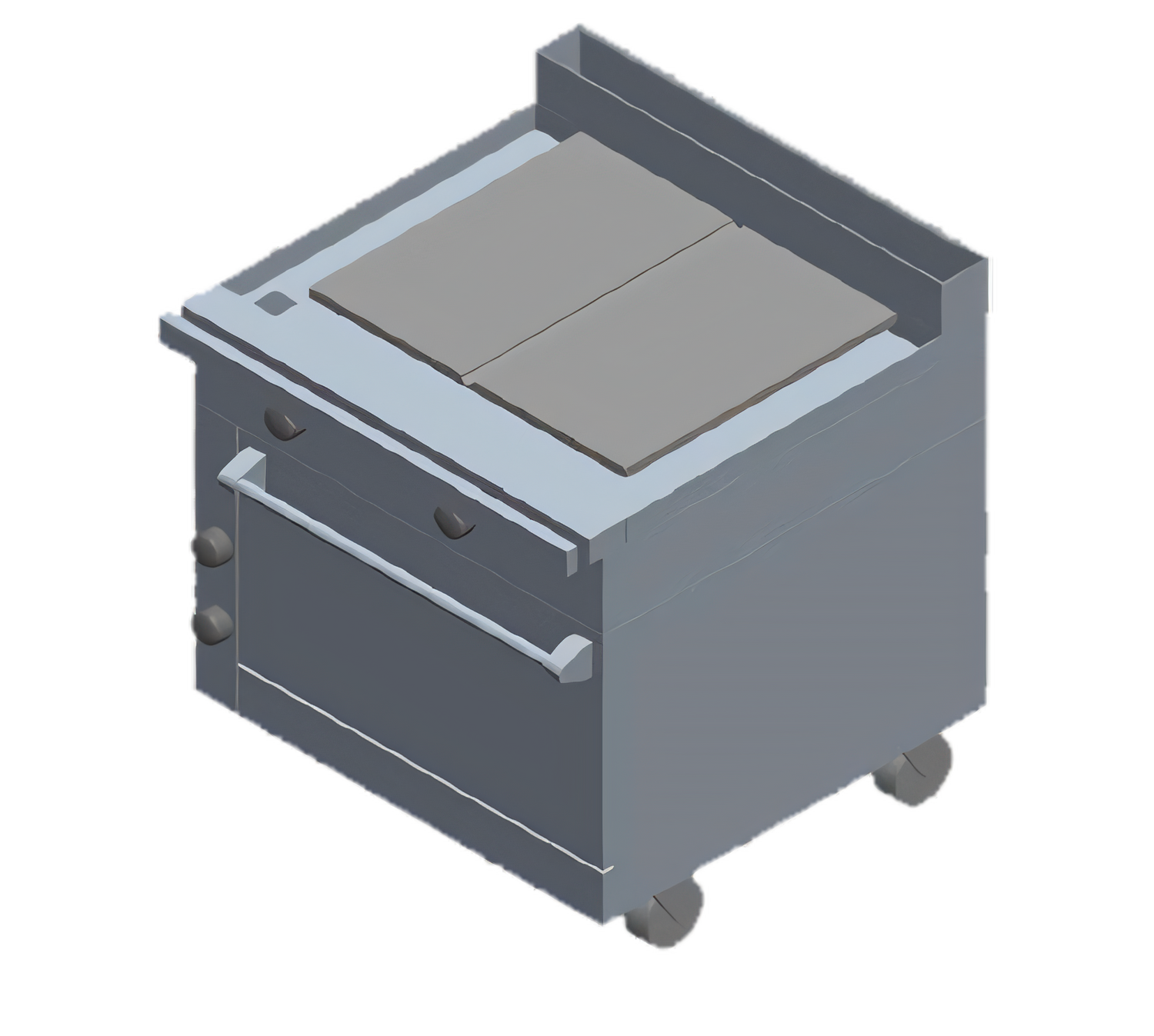

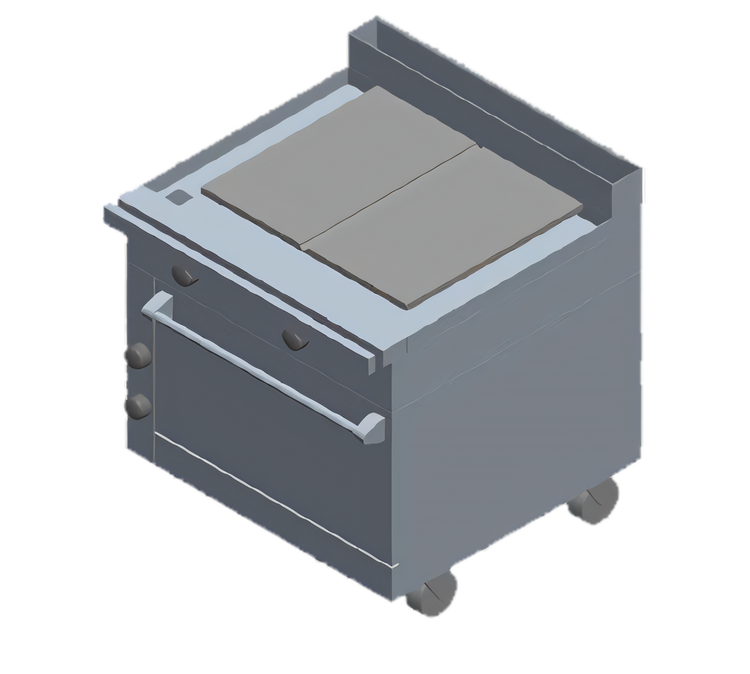

Titan JMRH-36IP 36-Inch Modular Gas Plancha Range
Full-Size, Natural Gas or Propane, Standard Depth
Experience versatile and powerful cooking with the Titan JMRH-36IP modular gas plancha range, featuring a thick steel plate and robust stainless steel construction for demanding commercial kitchens.
- 36-inch wide modular design for flexible kitchen layouts.
- Equipped with a polished 5/8" thick steel plancha plate for superior heat retention and even cooking.
- Powerful 35,000 BTU burner ensures rapid heating and recovery.
- Durable 14 gauge stainless steel grease trough for easy cleanup.
- Constructed with stainless steel front, sides, and stub back for commercial durability.
- Includes a 6-inch stainless steel plate shelf for convenient plating and holding.

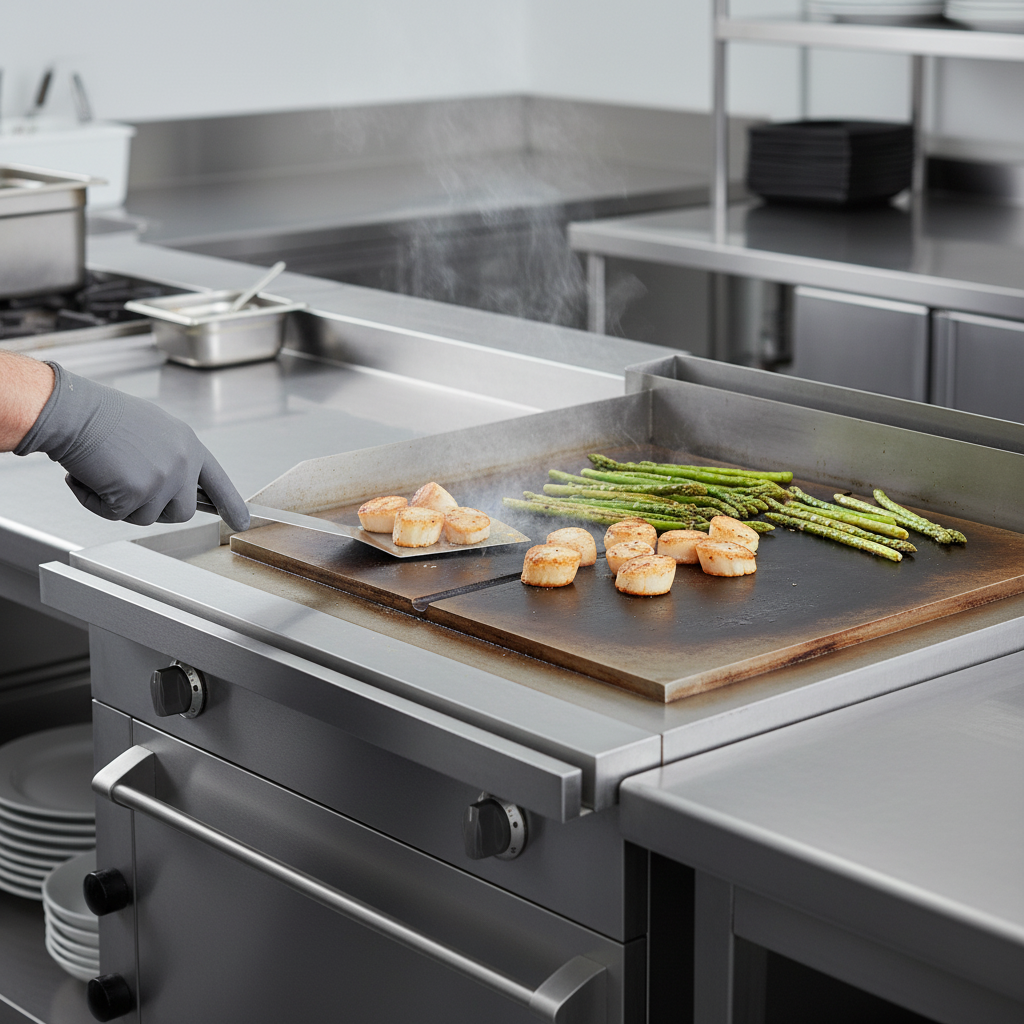

Polished 5/8" Thick Steel Plancha Plate
Provides excellent heat distribution and retention across the cooking surface for consistent results.

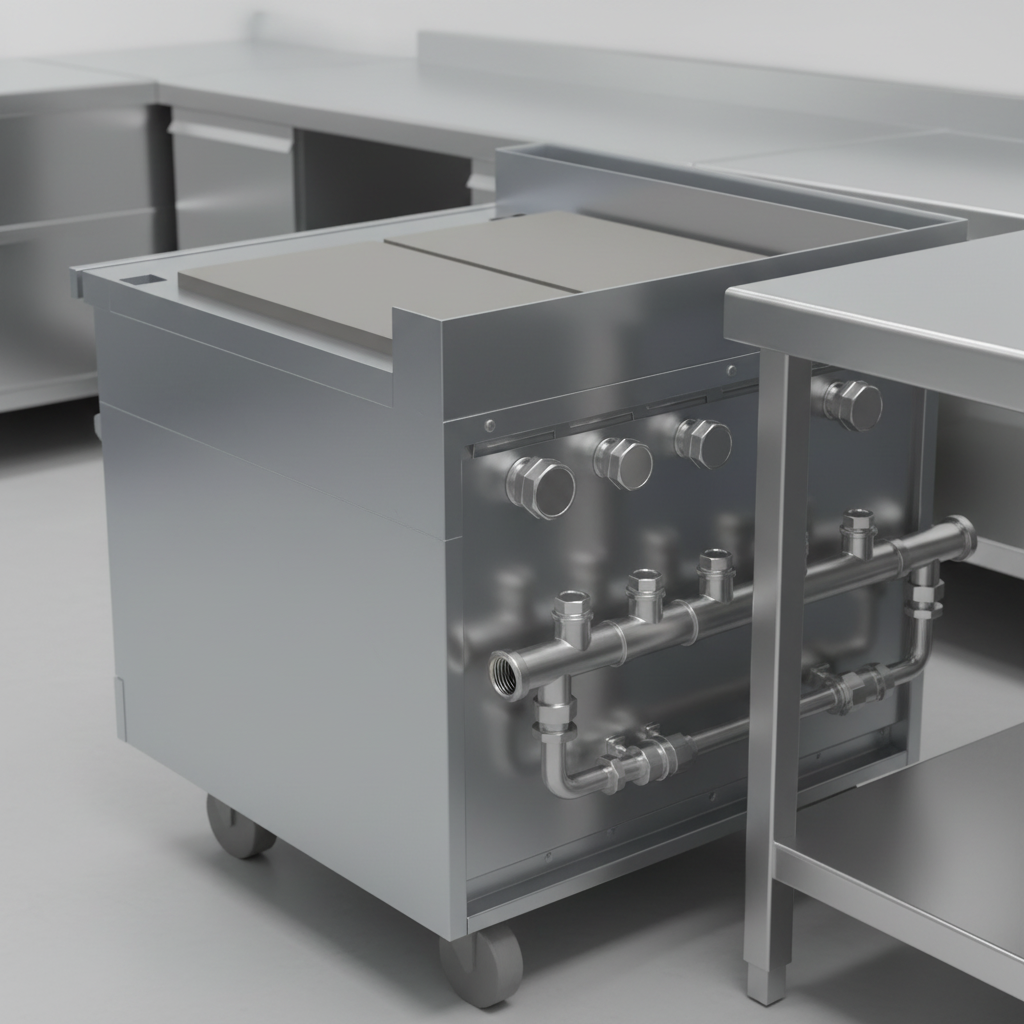

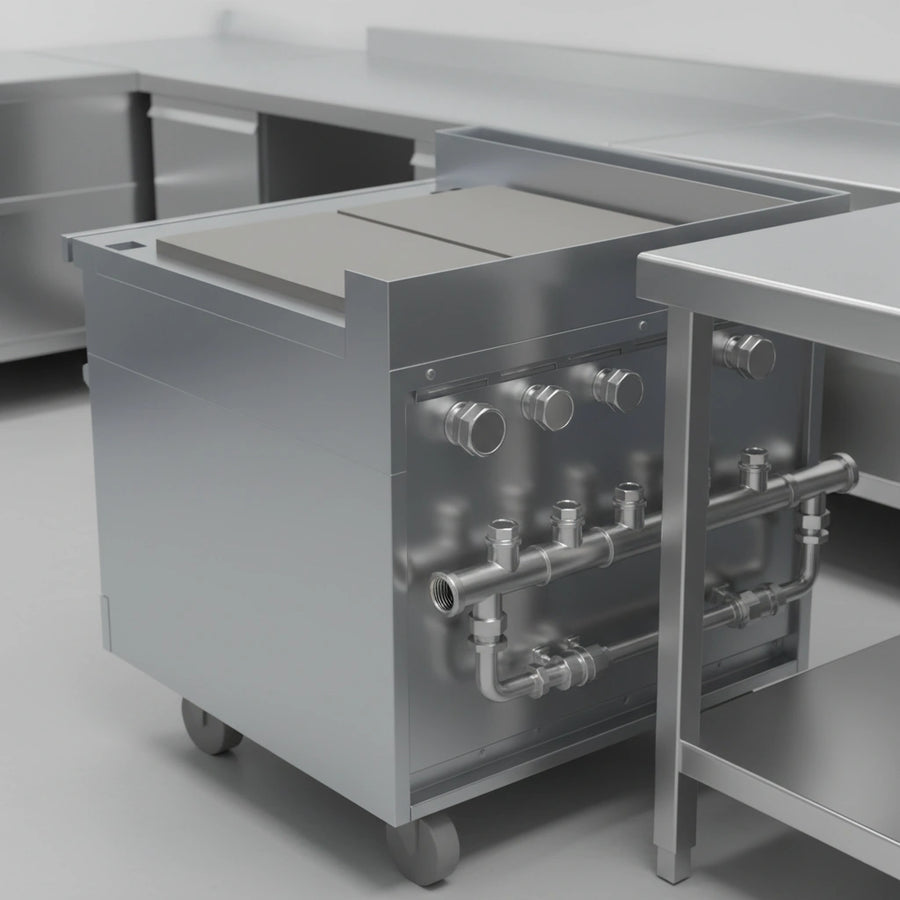

Variable Size Multi-Point Gas Connection
Offers flexibility in gas hookup with a 1-1/4" front manifold connection and options for 1" or 3/4" capped rear manifold connections.

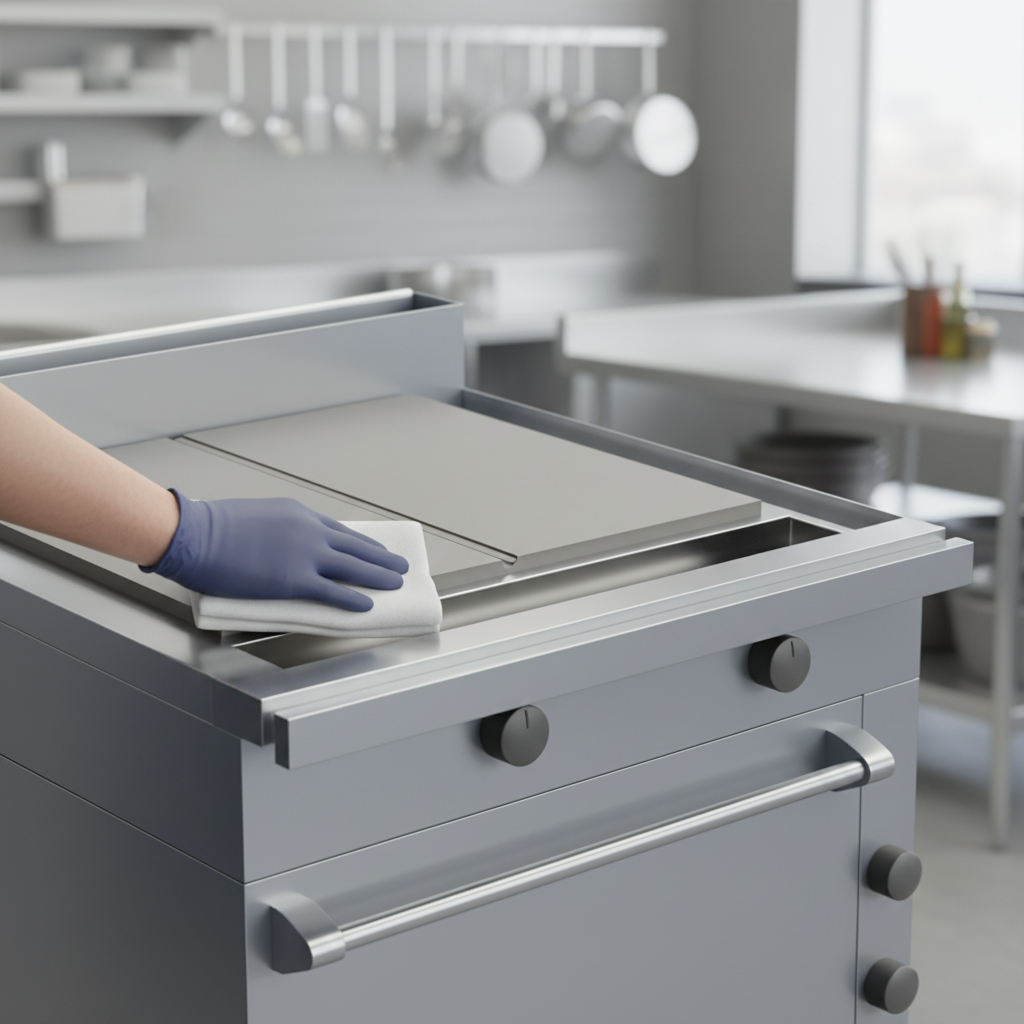

14 Gauge Stainless Steel Grease Trough
Durable and easy to clean, designed to efficiently collect and manage cooking byproducts.
Stainless Steel Construction
Features a stainless steel front, sides, and stub back, ensuring lasting durability, corrosion resistance, and a professional appearance.
6" Stainless Steel Plate Shelf
Provides a convenient and hygienic surface for temporary plate storage, ingredient staging, or holding.
3/4" Gas Regulator Included
A gas pressure regulator is shipped loose with the unit and must be installed for proper and safe operation.
Adjustable 6" Legs
Allows for proper leveling and facilitates easy cleaning underneath the unit, enhancing hygiene and stability.
Infinite Controls
Individual controls provide precise temperature adjustment across the plancha surface.
Specifications
| Type | Modular Plancha Range |
|---|---|
| Style | Plancha |
| Installation Type | Floor Model (With Adjustable 6" Legs) |
| Plate Thickness | 5/8 Inches |
| BTU | 35,000 BTU |
| Gas Type | Natural Gas or Propane |
| Controls | Infinite |
| Gas Connection Size | 1-1/4 Inches (Manifold) |
| Gas Inlet Pressure (Natural Gas) | 5 Inches W.C. minimum |
| Gas Inlet Pressure (Propane Gas) | 10 Inches W.C. minimum |
| Material | Stainless Steel |
| Interior Finish | Polished Steel |
| Selling Unit | Each |
| Units Per Case | 1 |
| Shipping Width | 36 Inches |
| Shipping Depth | 38 Inches |
| Shipping Height | 37 Inches |
| Shipping Weight | 530 lb. |
Overall Dimensions:
36.0"W x 38.0"D x 36.5"HProduct Weight:
530.0 lbCertifications & Compliance
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
