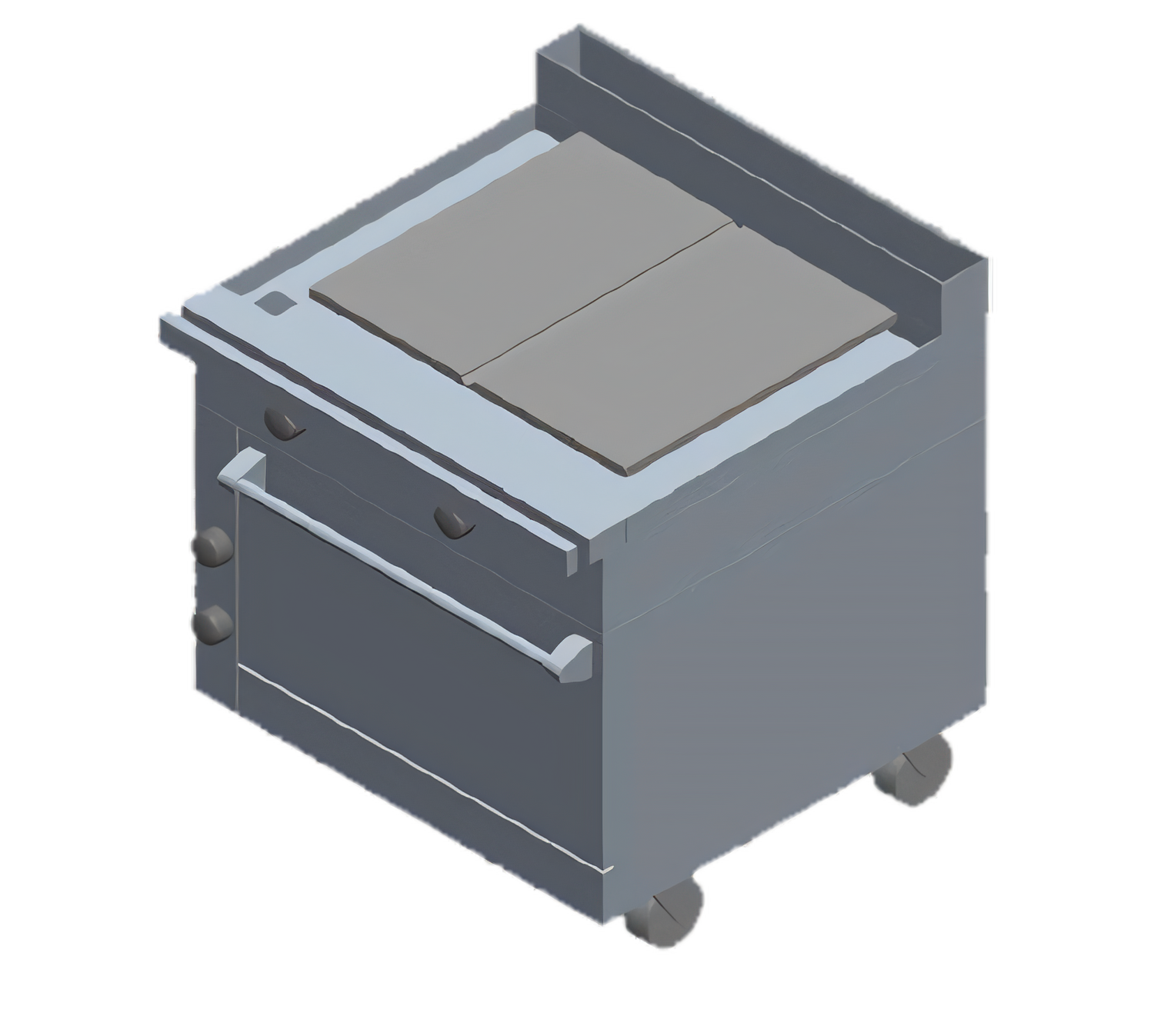

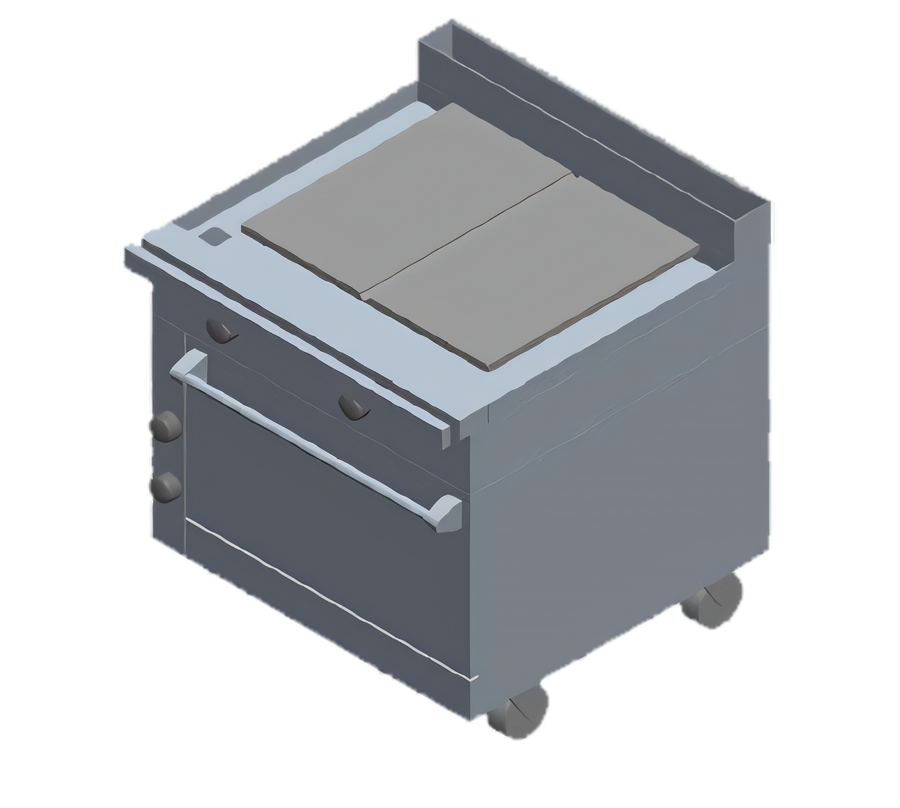

Titan JMRH-30IP 30-Inch Modular Gas Plancha Range

5/8" Thick Polished Steel Plate, Standard Depth

Built for heavy-duty commercial kitchens, the Titan JMRH-30IP modular gas plancha range delivers consistent, high-performance flat-top cooking.

  • Durable 5/8" thick polished steel plancha plate for superior heat retention and even cooking.
  • Heavy-duty stainless steel front, sides, and stub back ensure longevity and easy cleaning.
  • Modular design allows for flexible kitchen layout and seamless integration with other equipment.
  • Equipped with a 6" stainless steel plate shelf for convenient plating and holding.
  • Delivers 17,500 BTU for efficient and powerful cooking performance.
  • Features infinite controls for precise temperature management across the cooking surface.

Overall Dimensions:

30.0"W x 38.0"D x 36.5"H

Product Weight:

450.0 lb

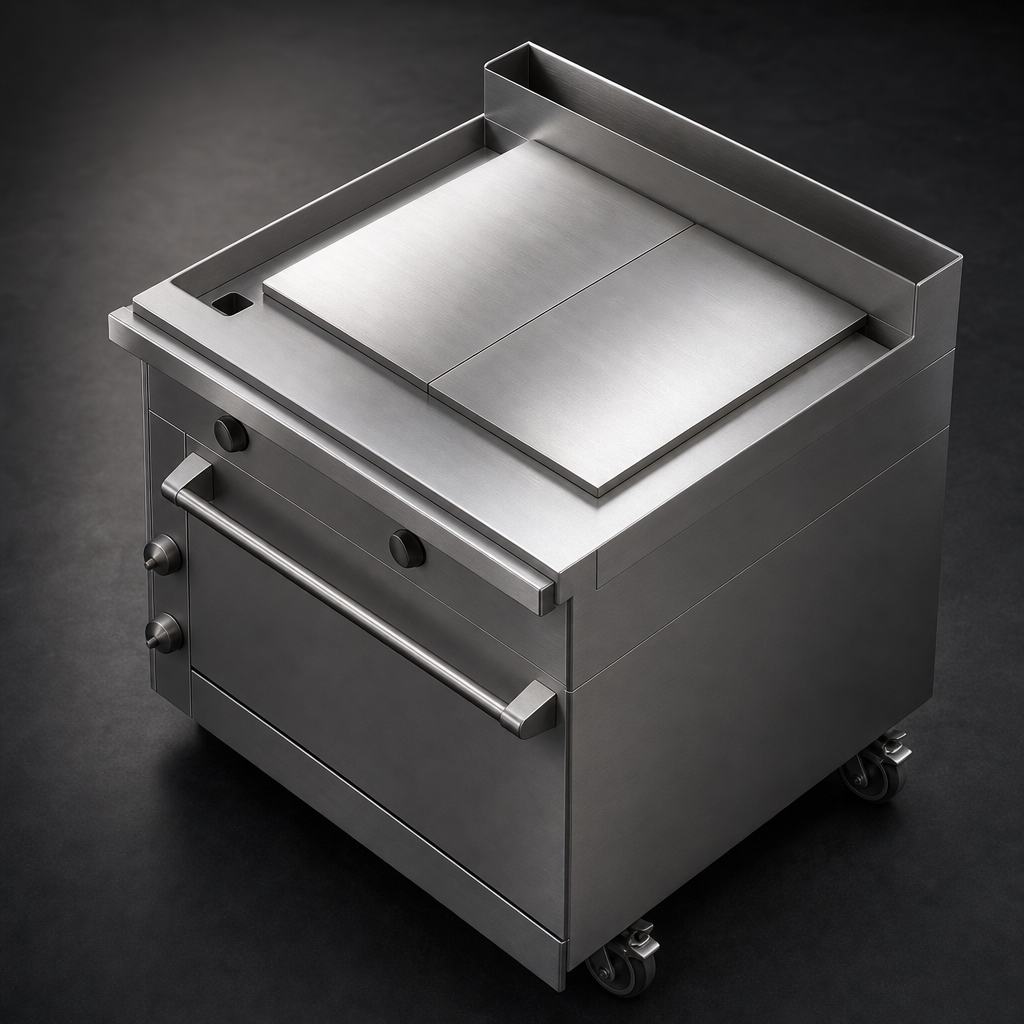

Polished Plancha Plate

Features a 5/8" thick polished steel plancha plate, engineered for excellent heat distribution and retention.

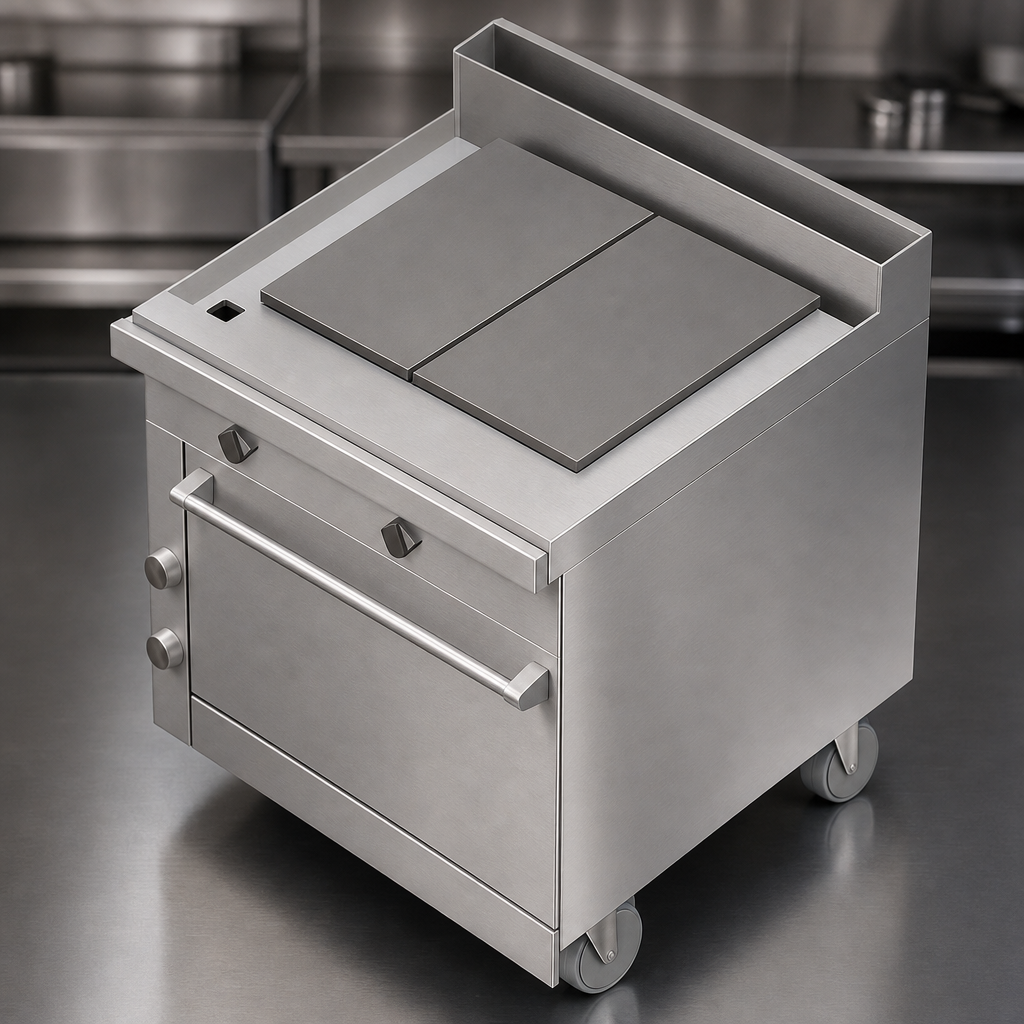

Stainless Steel Construction

Constructed with a stainless steel front, sides, and stub back, providing durability and a professional appearance.

Grease Trough

Includes a 14 gauge stainless steel grease trough for efficient grease collection and easy cleanup.

Plate Shelf

Comes standard with a 6" stainless steel plate shelf for convenient access to prepared dishes or ingredients.

Gas Connection Flexibility

Equipped with variable size multi-point gas connections, including a 1-1/4" front manifold and a 1" or 3/4" capped rear manifold for versatile installation.

Adjustable Legs

Furnished with 6" adjustable stainless steel legs for leveling and easy under-unit cleaning.

Type Plancha Range
Style Modular
Installation Type Floor Model (With Adjustable Legs)
BTU 17,500 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inches
Gas Inlet Pressure Natural Gas: 5 Inches W.C. (Min), Propane Gas: 10 Inches W.C. (Min), 14 Inches W.C. (Max)
Controls Infinite
Material Stainless Steel
Finish Stainless Steel
Cooking Surface Width 30 Inches
Cooking Surface Depth 38 Inches
Plate Thickness 5/8 Inches
Shipping Width 30 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 450 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The range can operate on either Natural Gas or Propane. Please specify the gas type when ordering.
For Natural Gas, a minimum of 5 inches W.C. is required. For Propane Gas, a minimum of 10 inches W.C. is required. The maximum operating pressure for both gas types is 14 inches W.C.
Yes, the unit is supplied with a 3/4" gas pressure regulator, which must be installed for proper operation.
The overall dimensions are 30 inches wide by 38 inches deep. The polished steel plancha plate is 5/8 inches thick.
Yes, it is important to specify your altitude when ordering if it is above 2,000 feet, as the unit may require specific adjustments for proper performance.
The range features a heavy-duty stainless steel front, sides, and stub back, ensuring durability and ease of maintenance.
