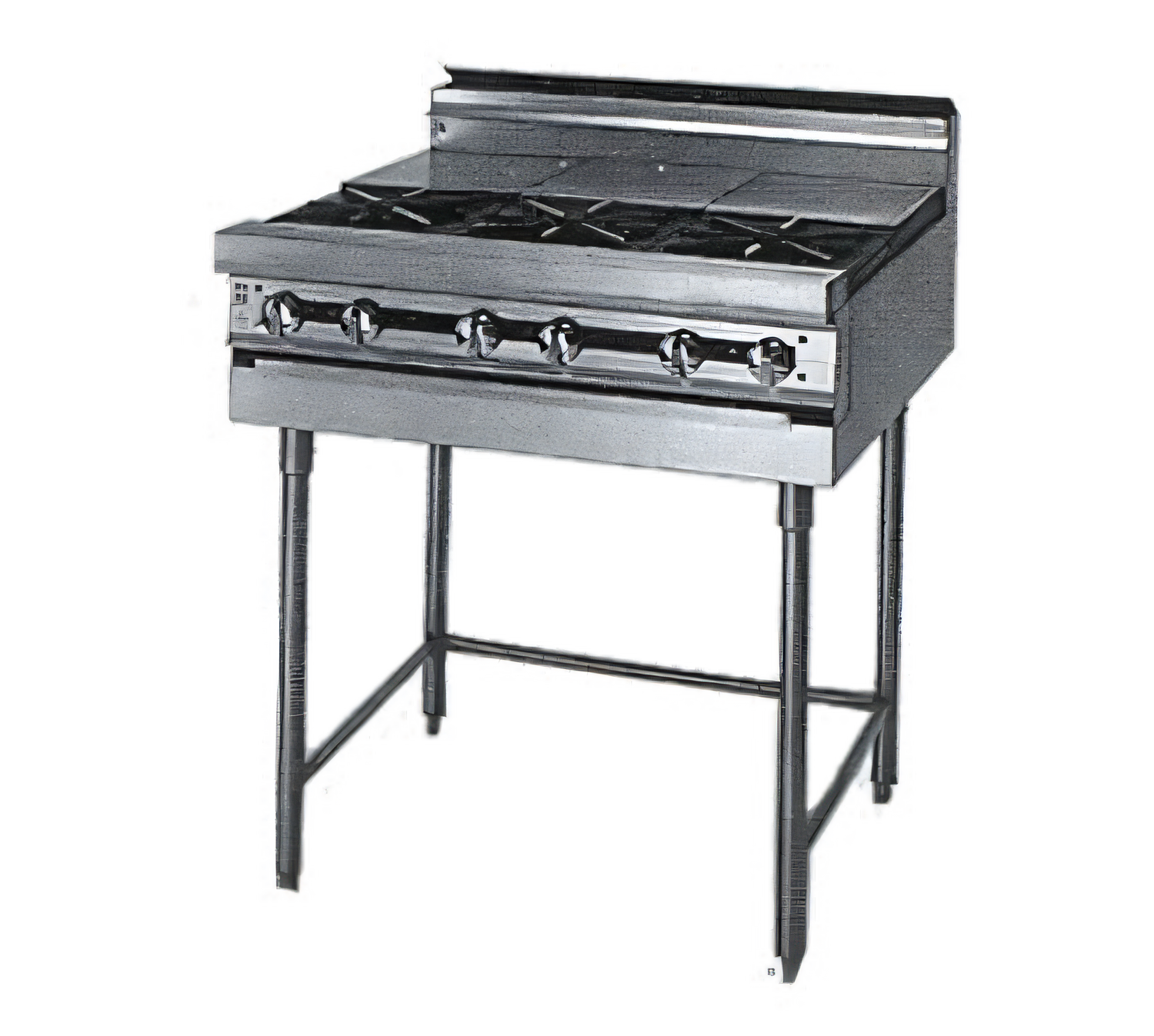

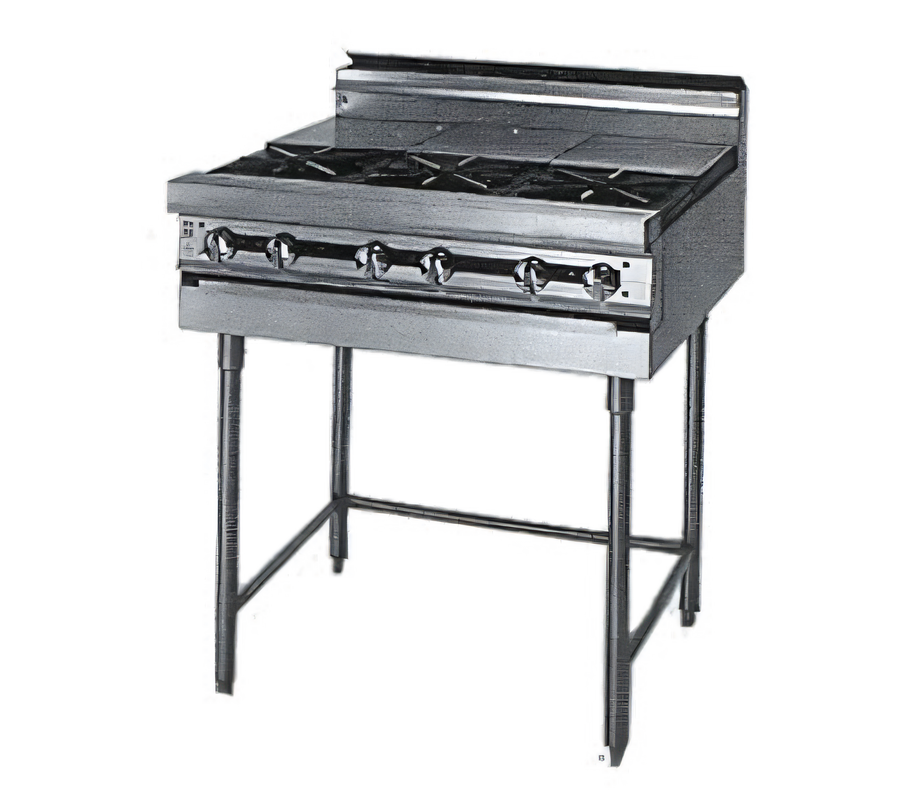

Titan JMRH-2ST 24" Modular Heavy-Duty Gas Range with 2 Open Burners & 2 Hot Tops

Modular, Natural Gas or Propane, Stainless Steel Exterior

Experience versatile high-volume cooking with the Titan JMRH-2ST, a heavy-duty modular gas range designed for demanding commercial kitchens.

  • Equipped with two 35,000 BTU open front burners and two 15,000 BTU rear hot tops for diverse cooking needs.
  • Durable 14 gauge stainless steel all-welded body construction ensures longevity in a commercial environment.
  • Features infinite controls for precise temperature management across all cooking sections.
  • Comes standard with a 6" stainless steel plate shelf and 6" adjustable stainless steel legs.
  • Designed for modular integration, offering flexibility in kitchen layout.
  • NSF and CSAus certified for safety and sanitation standards.

Overall Dimensions:

24.0"W x 36.25"D x 36.5"H

Product Weight:

265.0 lb

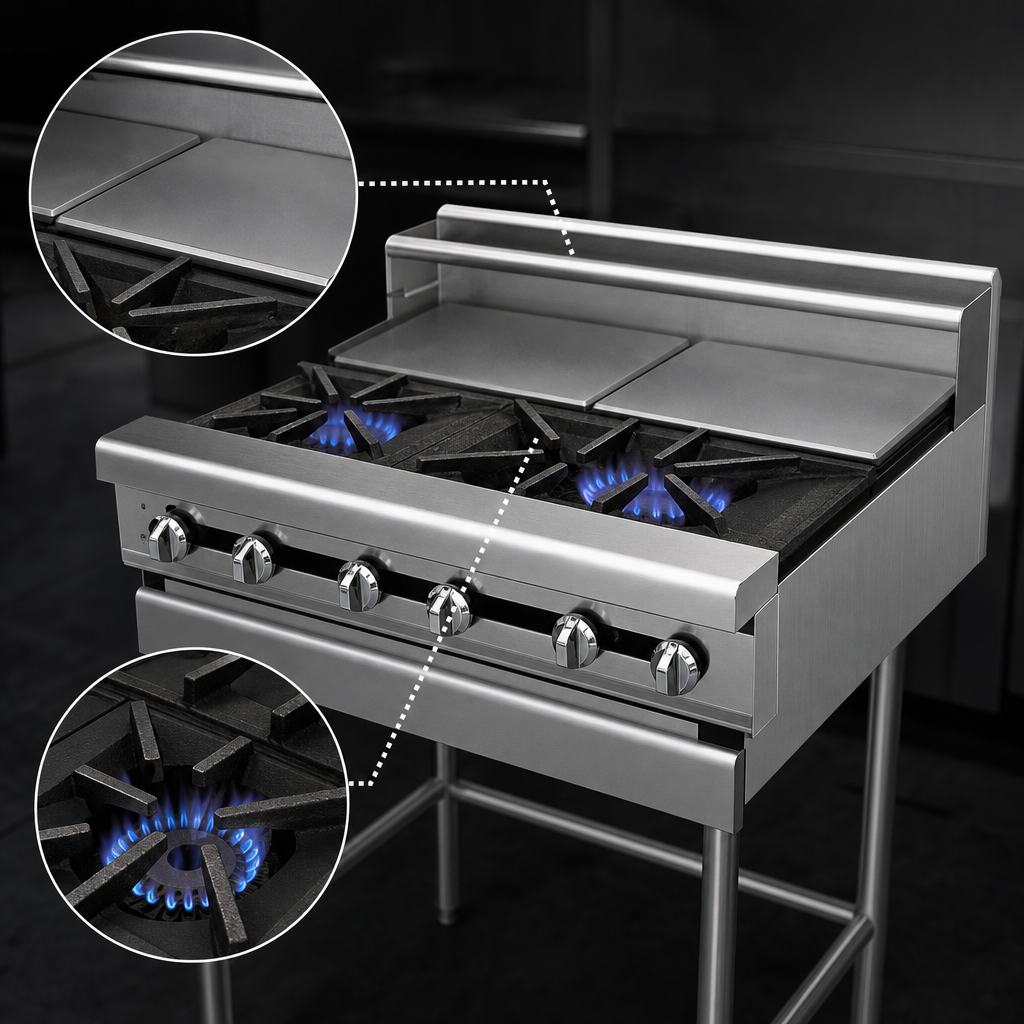

Split Top Design

Features individual cast iron top grates with open top front sections and polished hot top rear sections for flexible cooking zones.

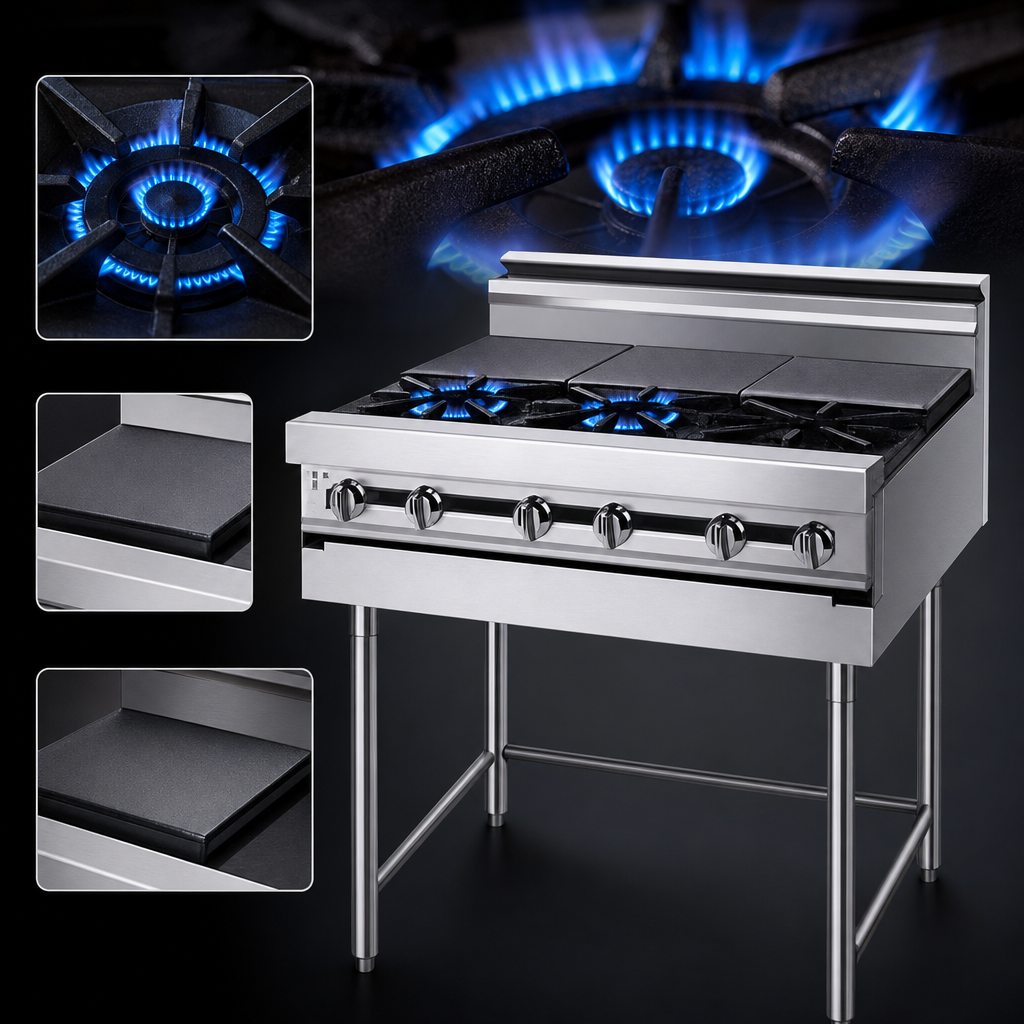

High-Performance Burners

Includes two 35,000 BTU/hr open burner sections and two 15,000 BTU/hr hot top sections for powerful and even heating.

Robust Construction

Constructed with 14 gauge stainless steel all-welded body, ensuring exceptional durability and resistance to wear.

Stainless Steel Exterior

Boasts a stainless steel front, sides, tray bed, and stub back, along with stainless steel gas tubing throughout for enhanced hygiene and longevity.

Infinite Controls

Each burner and hot top section is controlled by infinite gas valves, allowing for precise adjustment of heat levels.

Integrated Plate Shelf

Comes standard with a 6" stainless steel plate shelf, providing convenient staging area.

Adjustable Legs

Equipped with 6" stainless steel adjustable legs for proper height and leveling.

Gas Regulator Included

Supplied with a 3/4" gas pressure regulator (shipped loose, requires installation) to ensure proper gas flow.

Type Modular Split Top Range
Style Heavy Duty
Installation Type Floor Model
Top (2) Open Burners, (2) Hot Tops
BTU 100,000 BTU
Open Burner BTU 35,000 BTU Per Section
Hot Top BTU 15,000 BTU Per Section
Gas Type Natural Gas or Propane
Controls Infinite Gas Valves
Material Stainless Steel, Cast Iron
Exterior Finish Stainless Steel
Gas Connection Size 1-1/4" Front Manifold, 1" or 3/4" Rear Manifold
Natural Gas Inlet Pressure 5 Inches W.C. Minimum
Propane Gas Inlet Pressure 10 Inches W.C. Minimum
Maximum Gas Inlet Pressure 14 Inches W.C.
Plate Shelf Size 6 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 37 Inches
Shipping Height 37 Inches
Shipping Weight 265 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JMRH-2ST features a split top design with two 35,000 BTU open front burners and two 15,000 BTU polished hot top rear sections, providing versatility for various cooking tasks.
This range is designed to operate with either Natural Gas or Propane. Please specify the required gas type when ordering.
Yes, the JMRH-2ST is supplied with a 3/4" gas pressure regulator, which is shipped loose and must be installed for proper operation.
The required minimum operating pressure is 5" W.C. for Natural Gas and 10" W.C. for Propane Gas. The maximum allowable pressure is 14" W.C. for both.
The range features a 14 gauge all-welded stainless steel body construction with a stainless steel front, sides, tray bed, and stub back. The top grates are made from cast iron.
