Jade Range (Middleby)

Titan JMRH-24IP 24-Inch Modular Gas Plancha Range with 5/8" Thick Plate

SKU: JMRH-24IP
$8,084.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

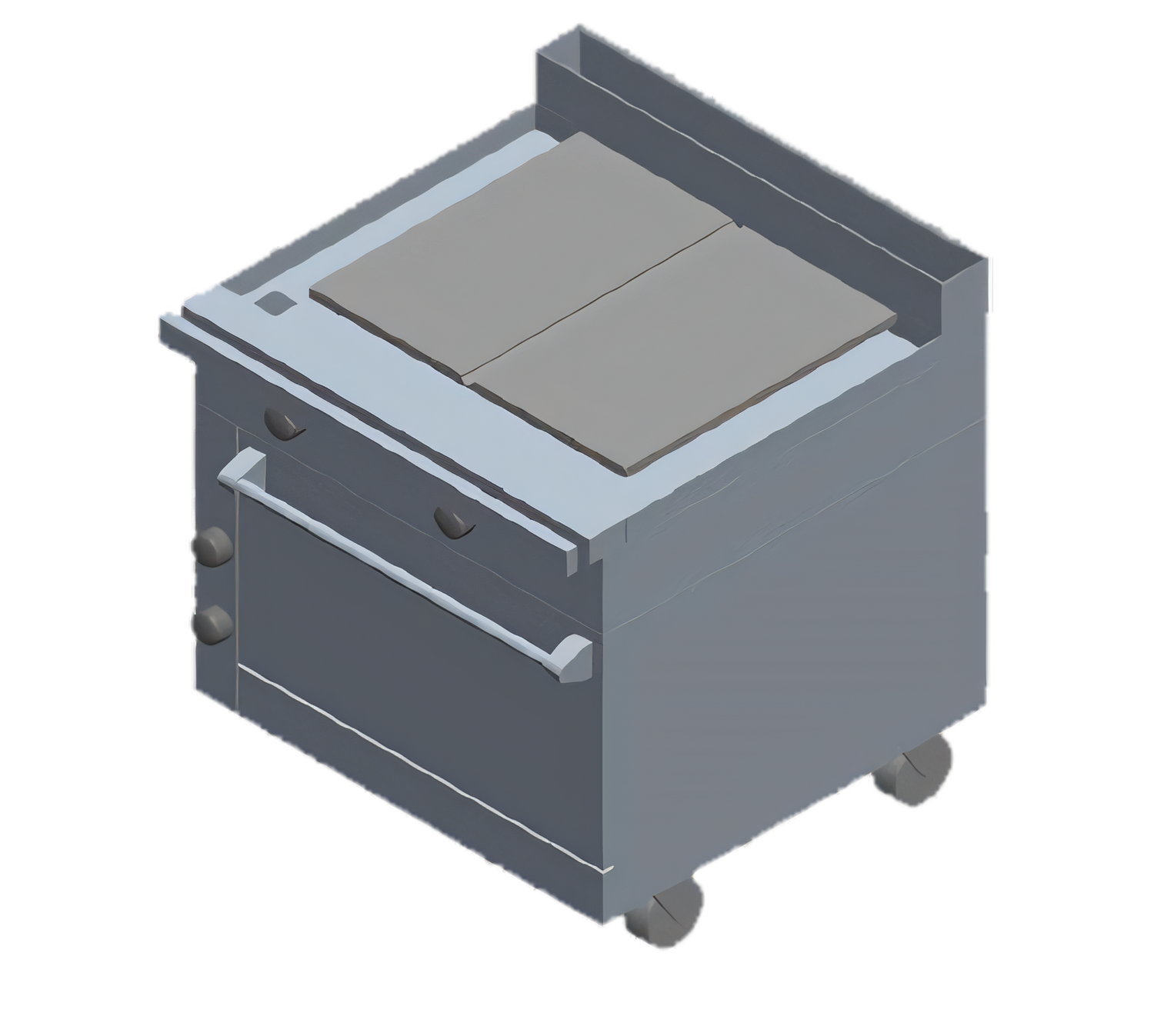

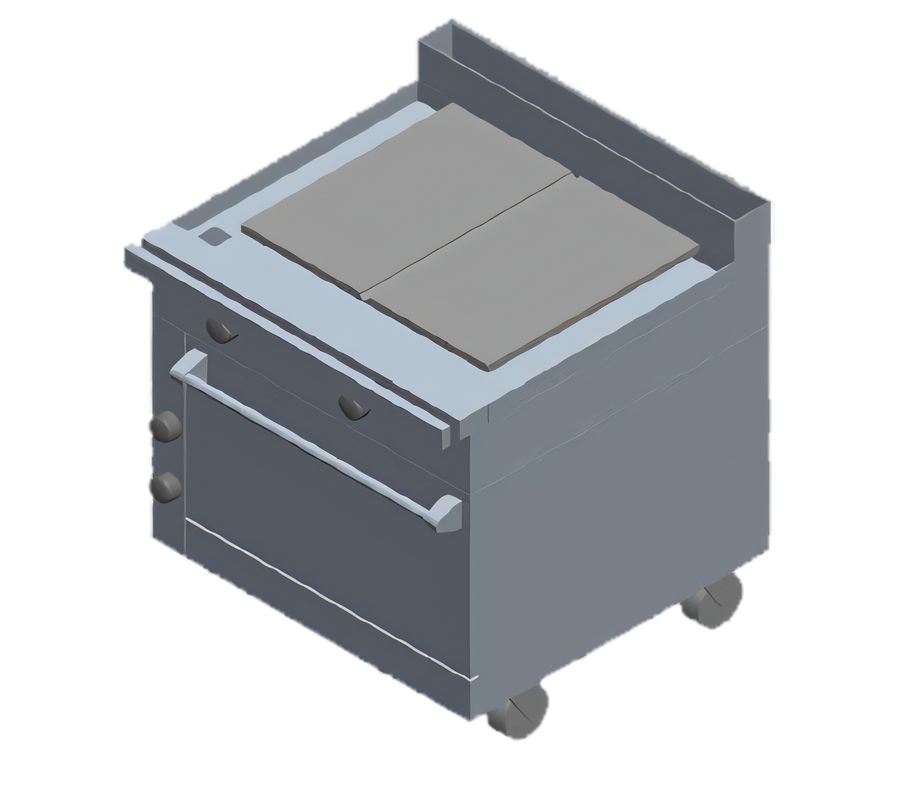

Titan JMRH-24IP 24-Inch Modular Gas Plancha Range with 5/8" Thick Plate

24-Inch, Modular, Plancha Top, Heavy-Duty

Experience robust performance and versatile cooking with the Titan JMRH-24IP modular gas plancha range, featuring a thick steel plate for even heat distribution.

  • Equipped with a polished 5/8" thick steel plancha plate for superior heat retention and cooking consistency.
  • Heavy-duty, modular design allows for flexible kitchen configurations and professional use.
  • Constructed with a stainless steel front, sides, and stub back for exceptional durability and easy cleaning.
  • Features a 17,500 BTU burner for powerful and efficient heating of the plancha surface.
  • Includes a convenient 6" stainless steel plate shelf for added workspace or holding.
  • Designed with infinite controls for precise temperature management across the cooking surface.

Overall Dimensions:

24.0"W x 38.0"D x 36.5"H

Product Weight:

300.0 lb

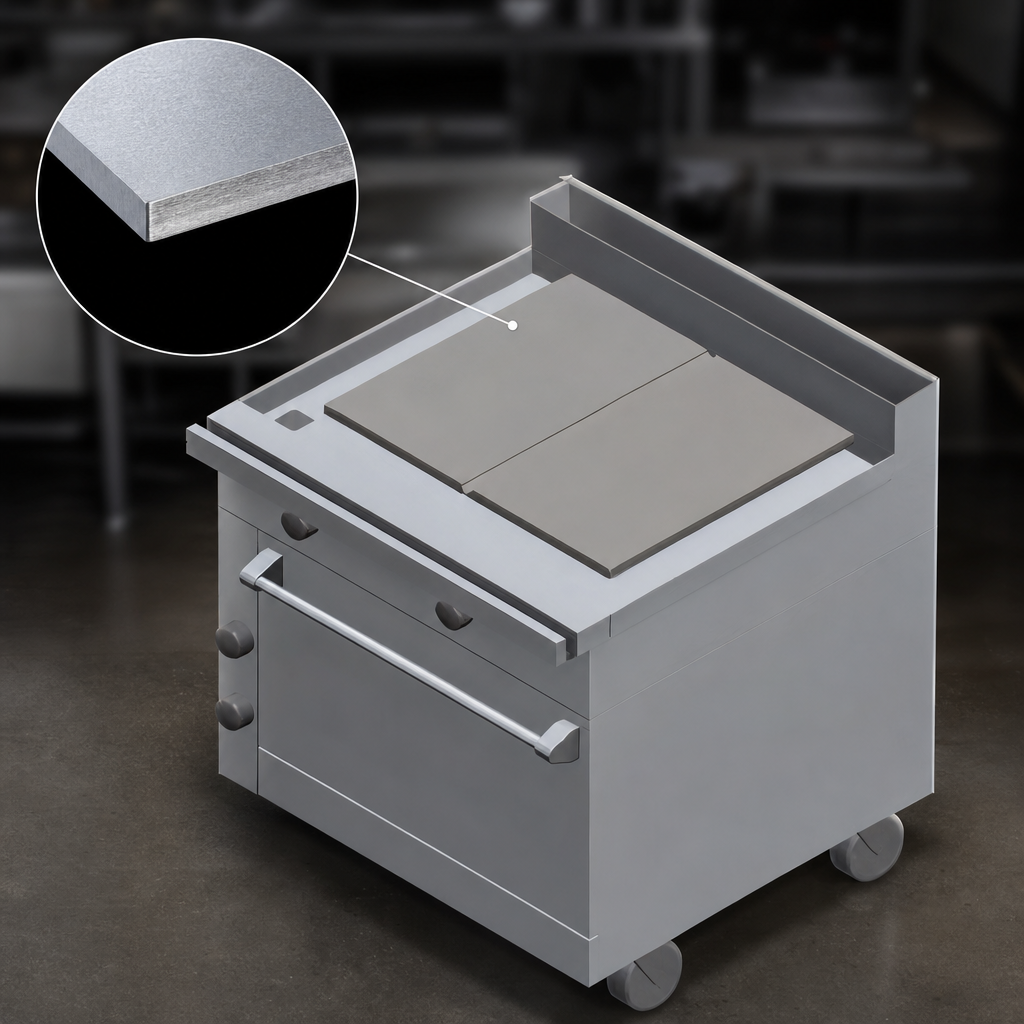

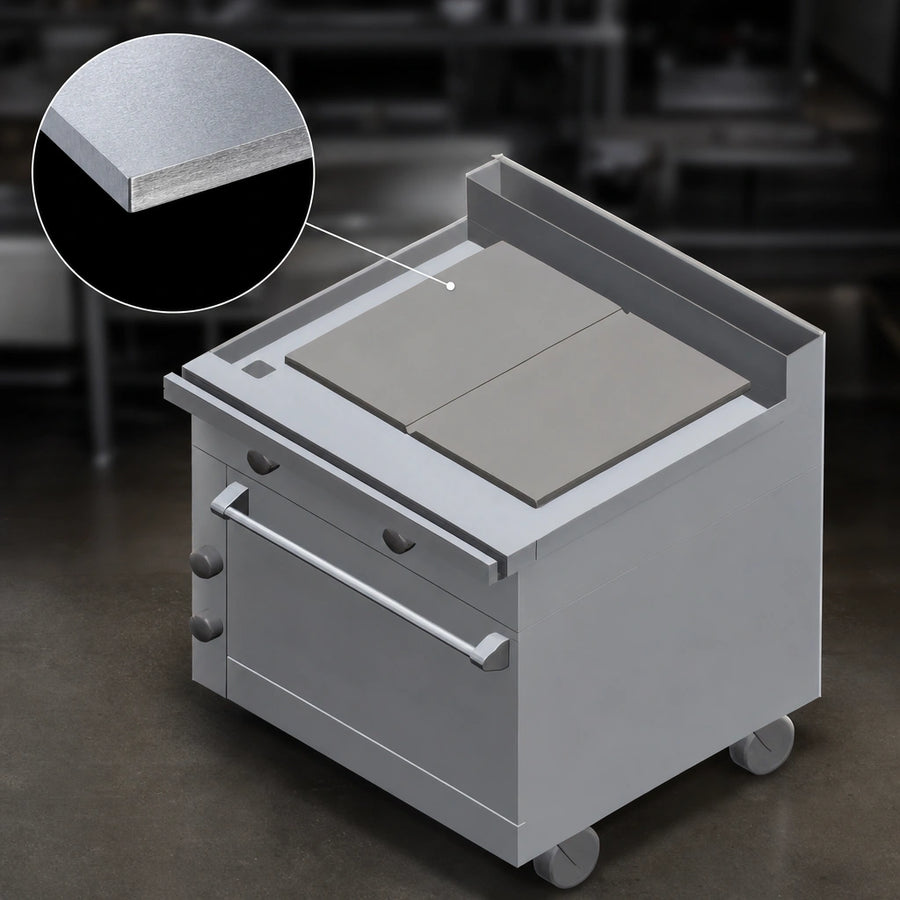

Polished 5/8" Thick Steel Plancha Plate

Provides excellent heat retention and even heat distribution across the cooking surface for consistent results.

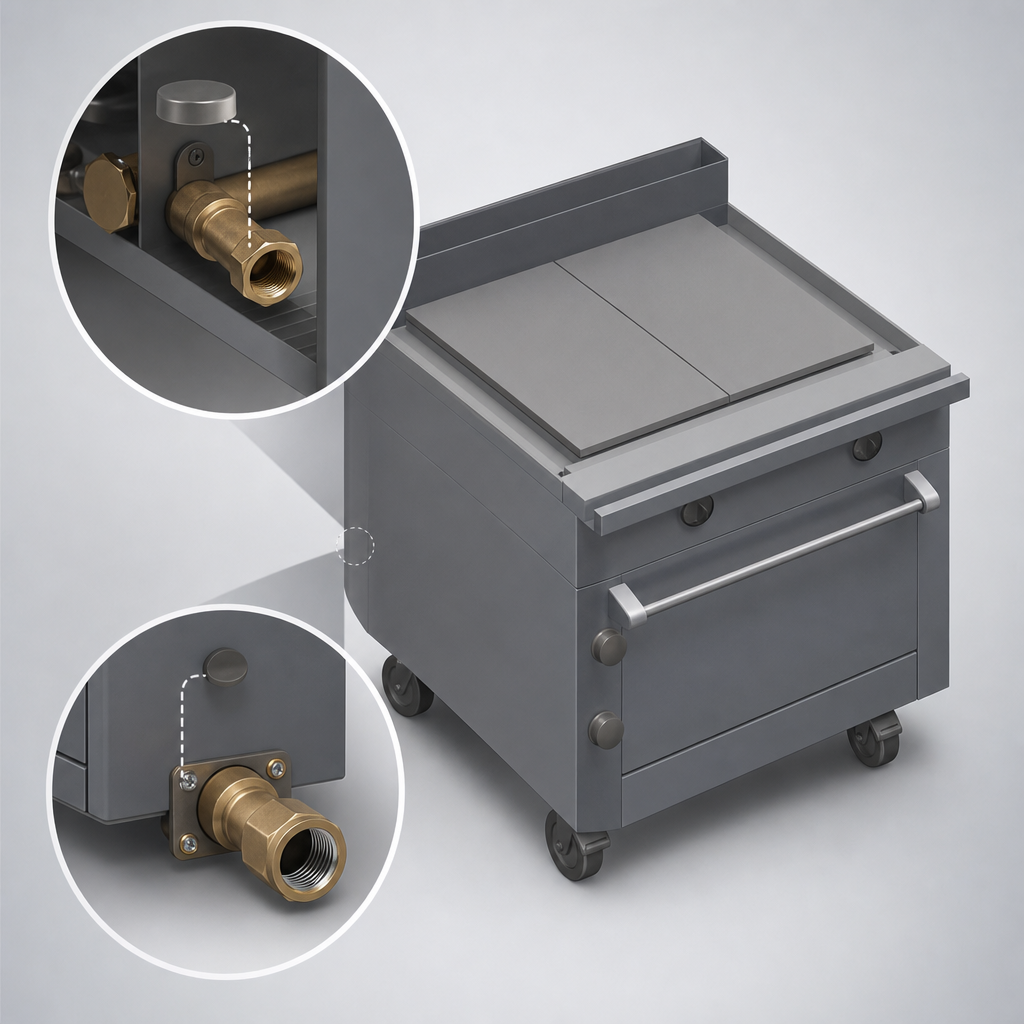

Variable Size Multi-Point Gas Connection

Offers flexibility in gas line connection, with 1-1/4" front and a capped 1" or 3/4" rear manifold connection options.

14 Gauge Stainless Steel Grease Trough

Collects grease and drippings efficiently, simplifying cleanup and maintaining a tidy cooking area.

Stainless Steel Construction

Durable stainless steel front, sides, and stub back ensure longevity, resistance to corrosion, and a professional appearance.

6" Stainless Steel Plate Shelf

Offers a practical surface for holding plates, utensils, or ingredients, enhancing workflow efficiency.

Adjustable 6" Legs

Standard adjustable legs allow for proper leveling and easy cleaning underneath the unit.

Infinite Controls

Enables precise and customizable temperature settings for different cooking requirements on the plancha.

Type Modular Plancha Range
Style Plancha Top
Installation Type Floor Model
Cooking Surface Plancha
Plancha Plate Thickness 5/8 Inches
BTU 17,500 BTU
Gas Type Natural Gas, Propane
Gas Connection Size 1-1/4 Inches NPT (Front), 3/4 Inch NPT (Rear)
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. Minimum
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. Minimum
Max Gas Inlet Pressure 14 Inches W.C.
Material Stainless Steel
Controls Infinite Controls
Shipping Width 24 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 300 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Titan JMRH-24IP modular plancha range features a polished 5/8" thick steel plancha plate, designed for excellent heat retention and even cooking.
This range can be configured for either Natural Gas (5" W.C. minimum operating pressure) or Propane Gas (10" W.C. minimum operating pressure). The maximum operating pressure for both gas types is 14" W.C. The type of gas must be specified when ordering.
The JMRH-24IP is supplied with a 1-1/4" front manifold connection and a capped 1" or 3/4" rear manifold connection. A 3/4" gas pressure regulator is supplied, but 1" or 1-1/4" regulators are available as accessories.
Yes, the range includes a 14 gauge stainless steel grease trough for easy collection and disposal of cooking byproducts. The stainless steel construction of the front, sides, and stub back also facilitates simple cleaning.
The JMRH-24IP modular plancha range is equipped with infinite controls, allowing chefs to precisely adjust the heat intensity for various cooking tasks.
