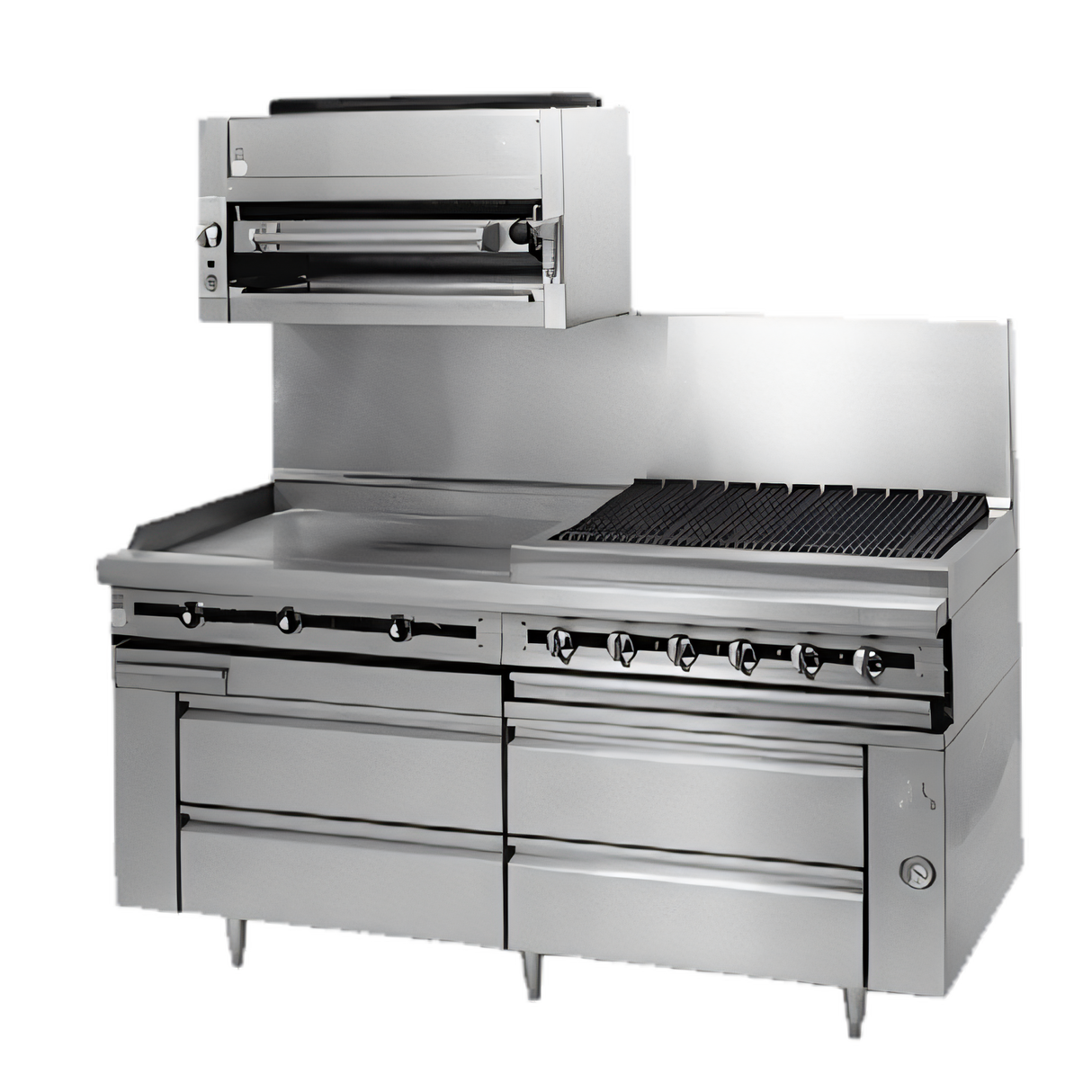

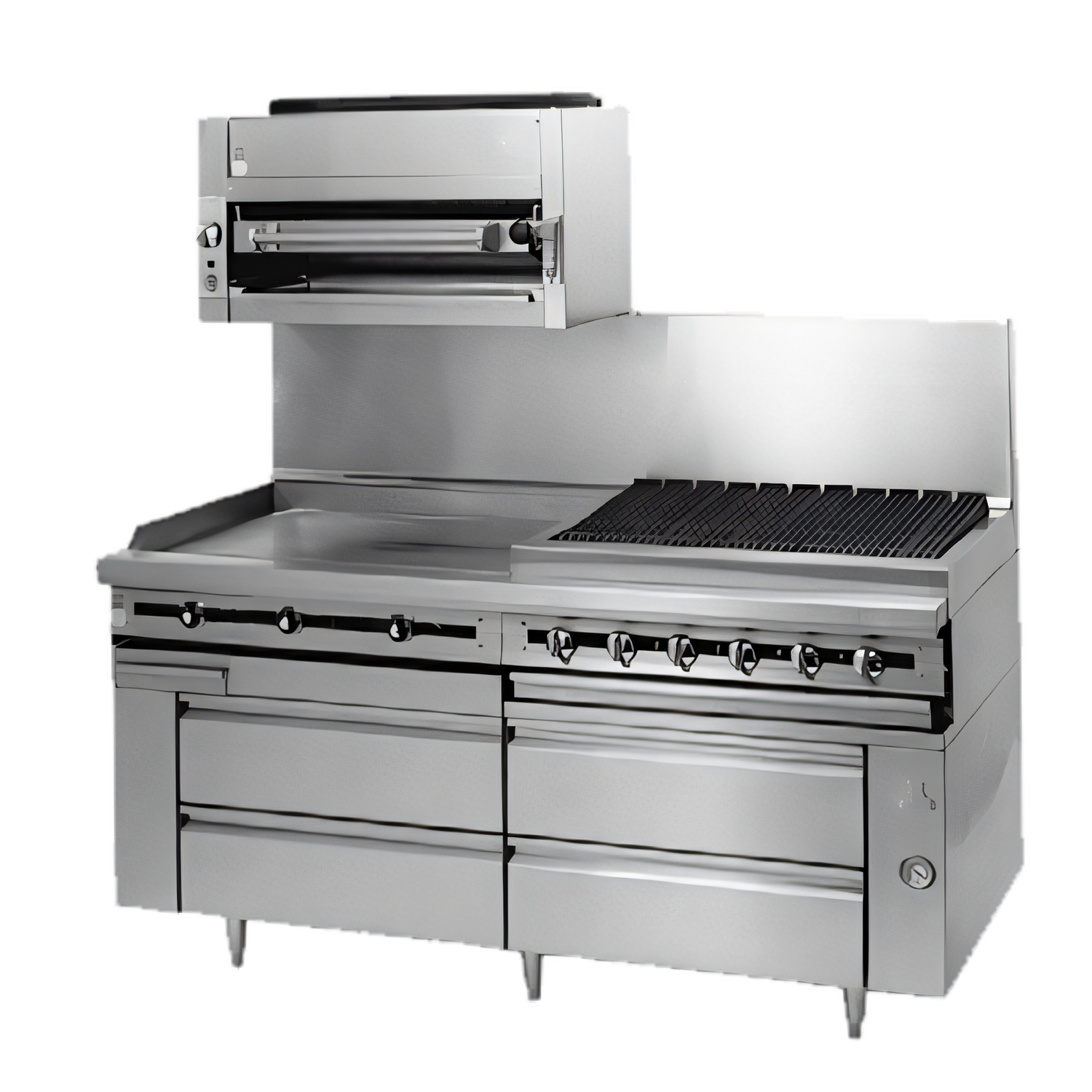

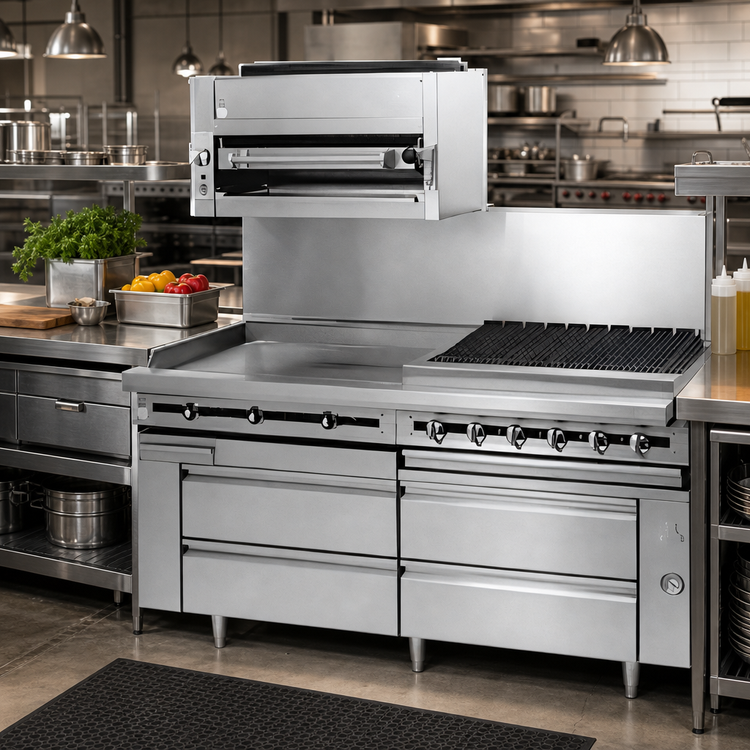

Titan JMRH-24G 24 Inch Modular Griddle Top Gas Range with Manual Controls

Heavy Duty, Full-Size, Natural Gas or Propane, 1 Inch Polished Steel Griddle

Built for heavy-duty commercial kitchens, the Titan JMRH-24G delivers reliable griddle cooking performance with robust construction and manual heat control.

  • Equipped with a 1-inch thick polished steel griddle plate for even heat distribution and durability.
  • Features manual controls, offering precise heat adjustment for a variety of cooking needs without thermostat limitations.
  • Constructed with a heavy-duty 14-gauge stainless steel front, sides, and stub back for commercial resilience and easy cleaning.
  • Includes a 14-gauge stainless steel grease trough and high splashguards for a cleaner cooking environment.
  • Comes standard with a 6-inch stainless steel plate shelf for convenient plating and holding.
  • Modular design allows for versatile installation in custom cooking line-ups.

Overall Dimensions:

24.0"W x 36.25"D x 36.5"H

Product Weight:

300.0 lb

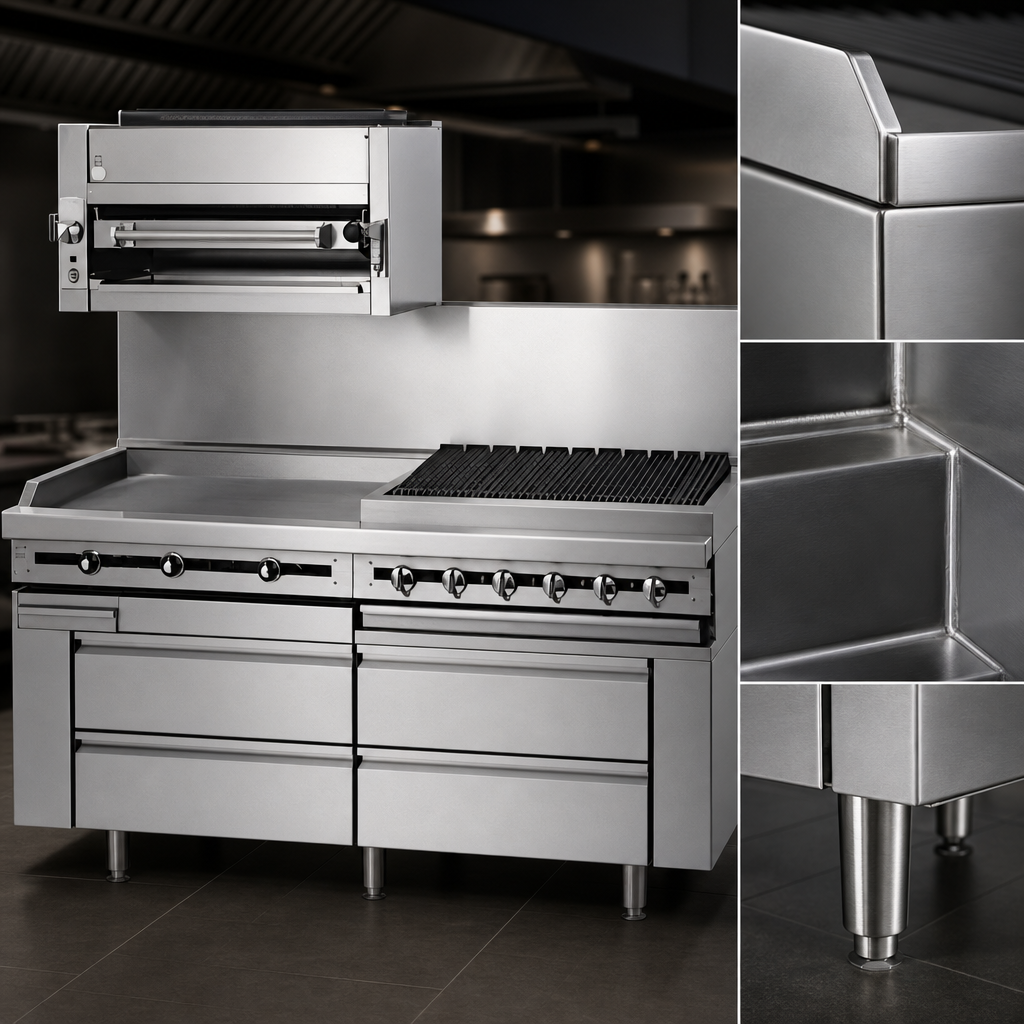

Heavy Duty Construction

Features a 14 gauge all welded body with stainless steel front, sides, and stub back, designed to withstand rigorous commercial kitchen use.

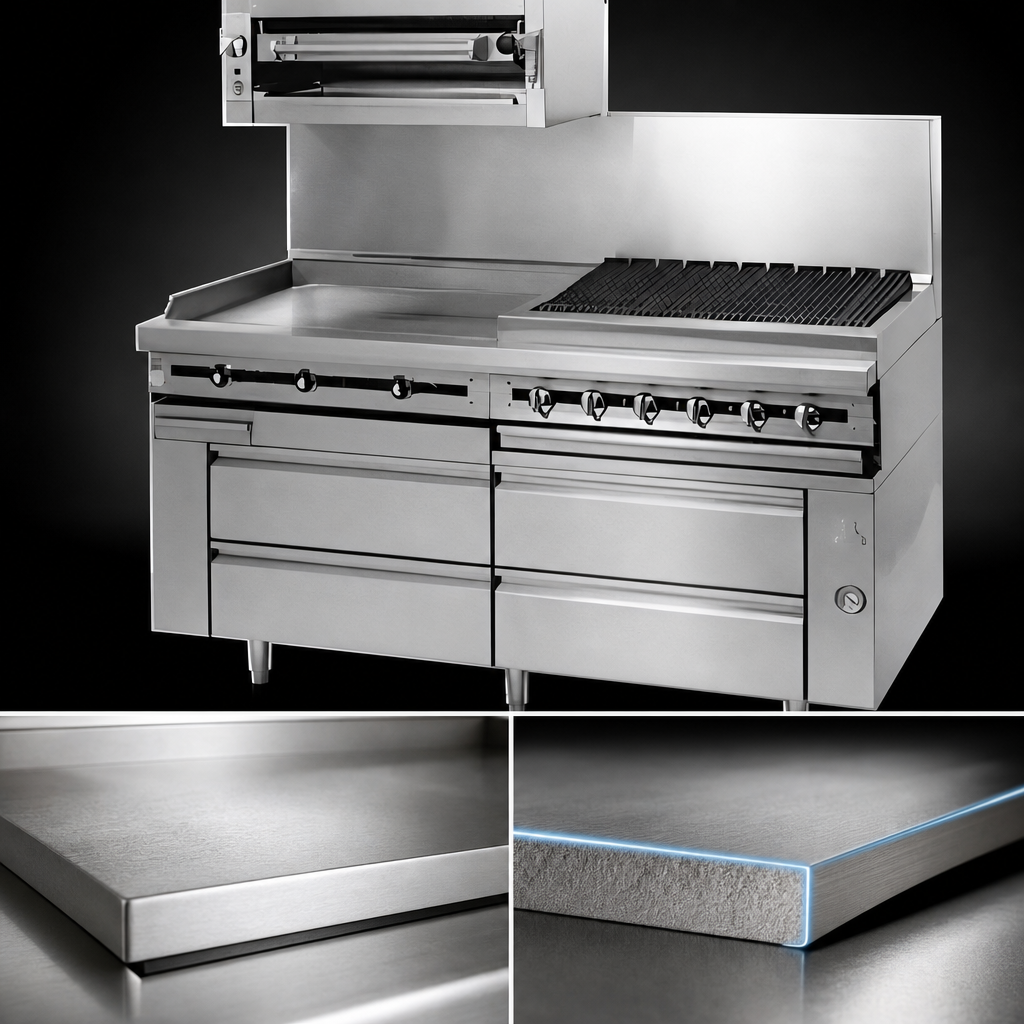

1 Inch Polished Steel Griddle Plate

Equipped with a 1-inch thick, reinforced polished steel griddle plate that provides superior heat retention and even cooking across the surface.

Manual Controls

Each burner section is controlled by infinite gas valves, allowing chefs to precisely manage cooking temperatures without a thermostat.

Integrated Grease Management

Includes a 14 gauge stainless steel grease trough and stainless steel side and rear splashguards to help maintain a clean and safe workspace.

Convenient Plate Shelf

A 6-inch stainless steel plate shelf is standard, offering a practical area for holding plates or utensils during service.

Flexible Gas Connection

Features variable size multi-point gas connections, including a 1-1/4 inch front manifold connection and options for 1 inch or 3/4 inch capped rear manifold connection.

Gas Pressure Regulator Included

A 3/4 inch gas pressure regulator is shipped loose and must be installed for proper operation.

Type Griddle Top Range
Style Modular
Installation Type Floor Model (Open Legs with Crossrails)
Griddle Plate Thickness 1 Inch
Cooking Surface Width 24 Inches
Controls Manual
BTU 70,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. Minimum
Gas Inlet Pressure (Propane) 10 Inches W.C. Minimum
Material Stainless Steel
Shipping Width 24 Inches
Shipping Depth 37 Inches
Shipping Height 37 Inches
Shipping Weight 300 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JMRH-24G model features manual controls for its griddle burners, allowing for direct adjustment of gas flow, whereas the JMRH-24GT model would typically include thermostat controls for temperature regulation.
The Jade Titan JMRH-24G is designed to operate on either Natural Gas or Propane. It is crucial to specify the required gas type when ordering.
The range is supplied with a 1-1/4 inch front manifold connection and can also utilize a 1 inch or 3/4 inch capped rear manifold connection. A 3/4 inch gas pressure regulator is included and must be installed for proper operation.
For Natural Gas, a minimum of 5 inches W.C. is required. For Propane Gas, a minimum of 10 inches W.C. is needed. The maximum operating pressure for both gas types is 14 inches W.C.
Yes, the Titan JMRH-24G is a heavy-duty modular griddle top range, built with a 14 gauge all-welded stainless steel body and a 1 inch thick polished steel griddle plate, making it ideal for demanding commercial kitchen environments.
