Titan Heavy Duty 12-Inch Modular Gas Open Burner Range with 2 Burners

All Stainless Steel Exterior, 70,000 BTU Total Output

Built for compact commercial cooking, this 12-inch modular open burner range delivers 70,000 BTU in a rugged stainless steel design with precise infinite controls.

  • Compact 12-inch modular section with two 35,000 BTU open burners.
  • 70,000 BTU total output for fast, high-heat cooking performance.
  • 14-gauge all-welded stainless steel body with stainless front, sides, stub back, and gas tubing.
  • Individual lift-off steel grates and a stainless steel 6-inch plate shelf support easy service and cleanup.
  • 6-inch adjustable legs and a multi-point gas connection help simplify installation.
  • Specify natural gas or propane when ordering.

Overall Dimensions:

12.0"W x 36.25"D x 36.5"H

Product Weight:

140.0 lb

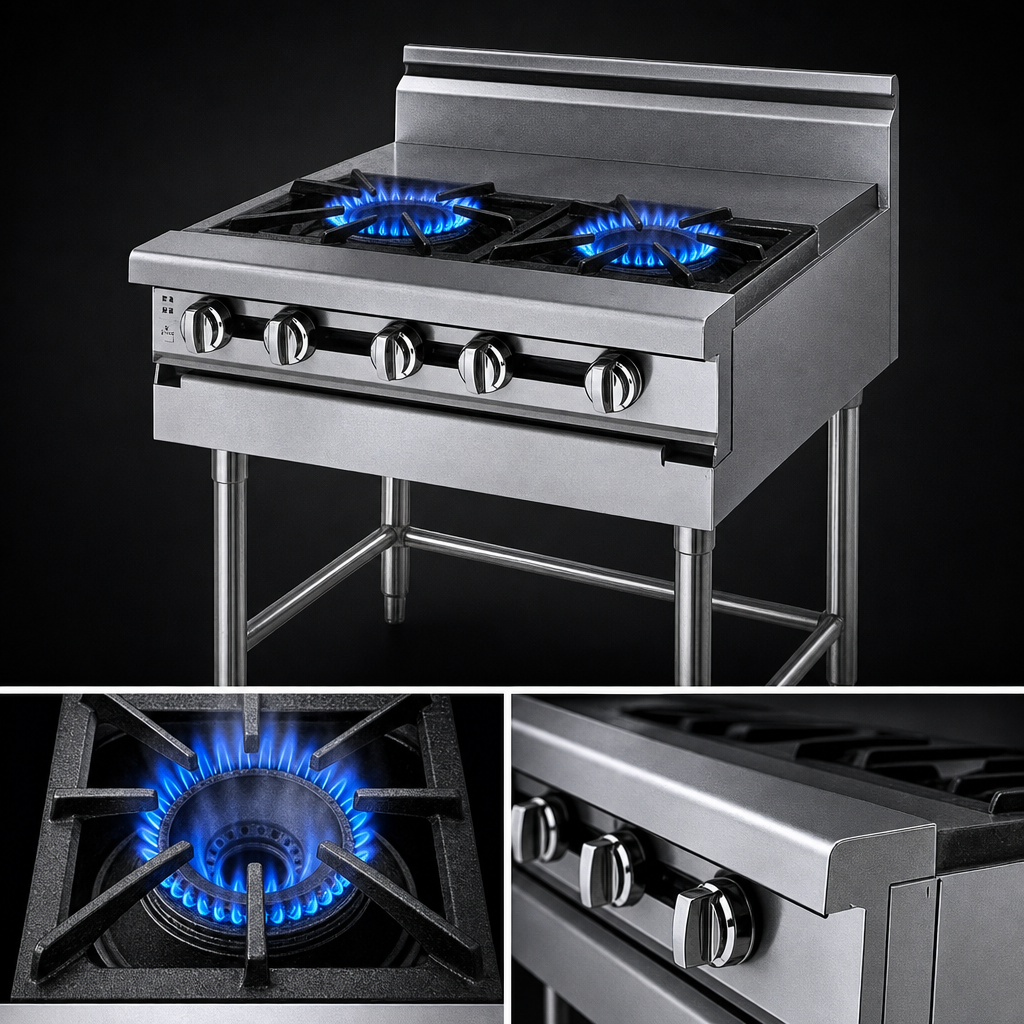

Two 35,000 BTU Open Burners

Each cast iron burner is rated at 35,000 BTU/hr for a total output of 70,000 BTU.

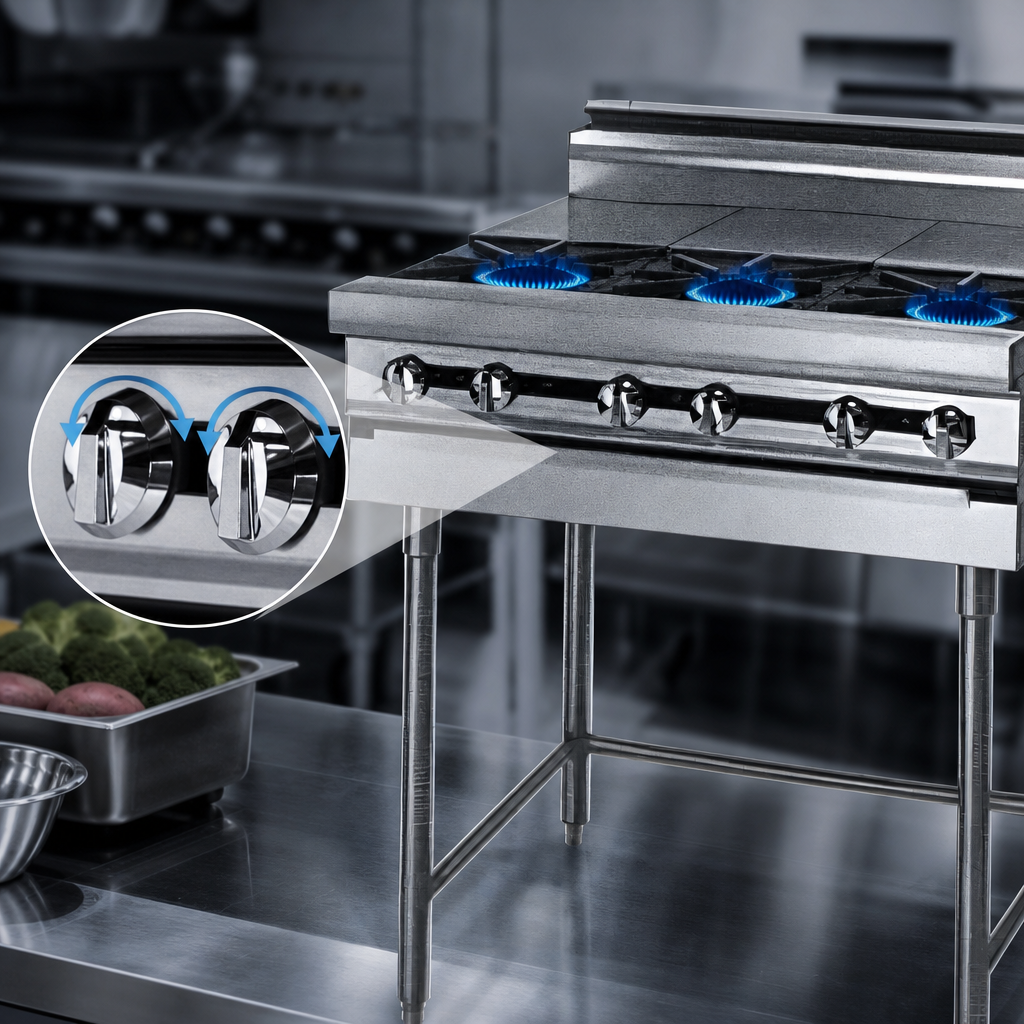

Infinite Gas Controls

Infinite gas valves provide precise flame adjustment across a wide heat range.

Lift-Off Steel Top Grates

Individual top grates lift off for quicker cleaning and maintenance access.

All-Welded Stainless Steel Construction

Built with a 14-gauge welded body and stainless steel front, sides, stub back, and gas tubing throughout.

6-Inch Stainless Steel Plate Shelf

Adds a convenient front landing area and helps support the modular setup.

Adjustable 6-Inch Legs

Helps level the unit during installation.

Multi-Point Gas Connection

Supports utility hookup flexibility; gas type must be specified when ordering.

Loose Gas Regulator Included

Supplied with a 3/4-inch gas pressure regulator that must be installed for proper operation.

Type Open Burner Range
Style Modular
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
BTU 70,000 BTU
Controls Infinite
Gas Connection Size 1-1/4 Inch Front Manifold; 1 Inch or 3/4 Inch Rear Manifold
Selling Unit Each
Units Per Case 1
Shipping Width 12 Inches
Shipping Depth 37 Inches
Shipping Height 37 Inches
Shipping Weight 140 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has two open burners, each rated at 35,000 BTU/hr.
The documentation says to specify the gas type when ordering, and it lists operating pressures for both natural gas and propane.
It is supplied with a 1-1/4-inch front manifold connection and a capped rear manifold connection available in 1-inch or 3/4-inch sizes.
Yes. A 3/4-inch gas pressure regulator is supplied loose and must be installed for proper operation.
The unit features a 14-gauge all-welded body with stainless steel front, sides, stub back, gas tubing, and a stainless steel 6-inch plate shelf.
