Titan Heavy Duty 12-Inch Modular Split Top Gas Range Section with 1 Open Burner and 1 Hot Top, Stainless Steel

50,000 BTU Total, Infinite Controls, Adjustable Legs

This compact modular split top section delivers a high-output burner and hot top in a rugged all-stainless build for flexible commercial line cooking.

  • Compact 12-inch modular split top section designed for space-saving commercial kitchens.
  • Combines a 35,000 BTU open front burner with a 15,000 BTU rear hot top for versatile cooking.
  • Infinite controls provide precise heat adjustment across the section.
  • Heavy-duty 14-gauge all-welded stainless steel construction supports demanding daily use.
  • Includes a stainless steel 6-inch plate shelf and 6-inch adjustable legs.
  • Supplied with multi-point gas connections and a loose 3/4-inch gas regulator.

Overall Dimensions:

12.0"W x 36.25"D x 36.5"H

Product Weight:

150.0 lb

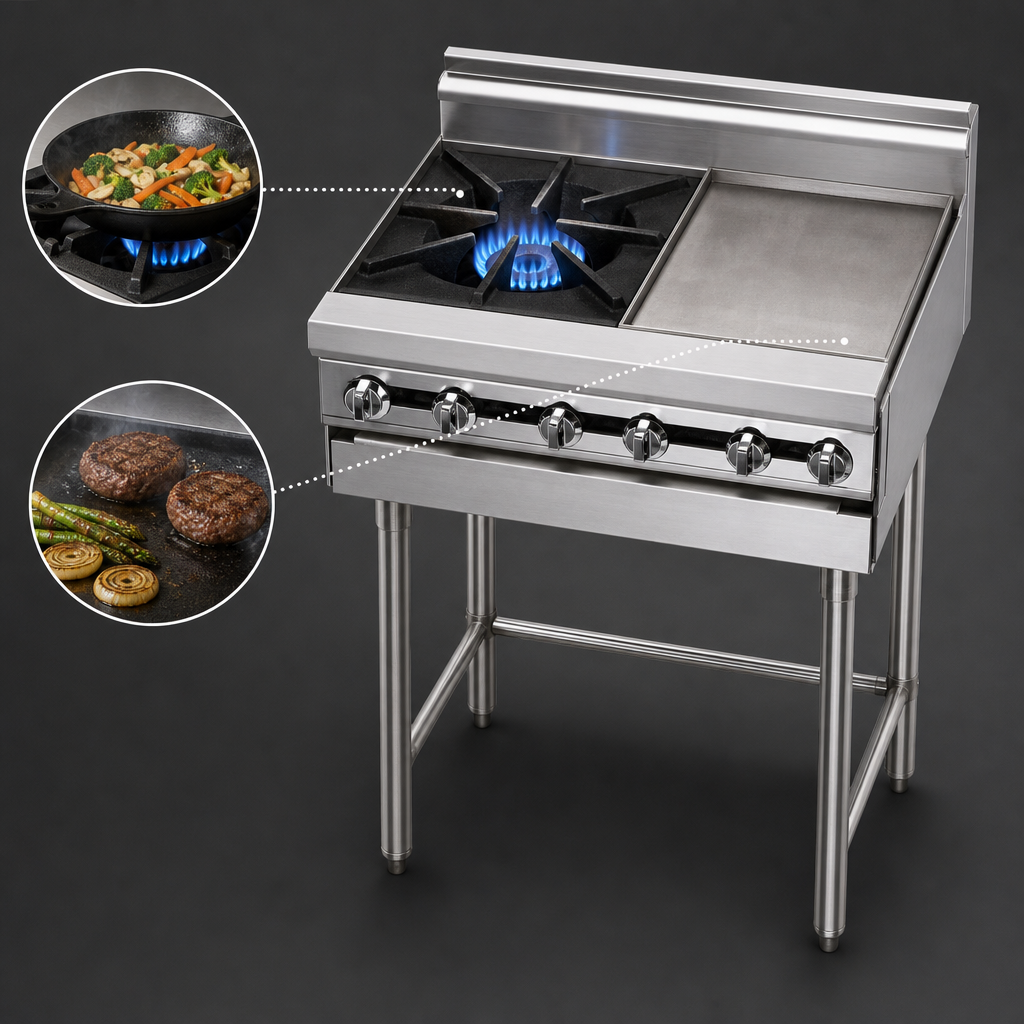

Split Top Cooking Surface

One open front burner and one polished rear hot top provide flexible cooking options in a compact section.

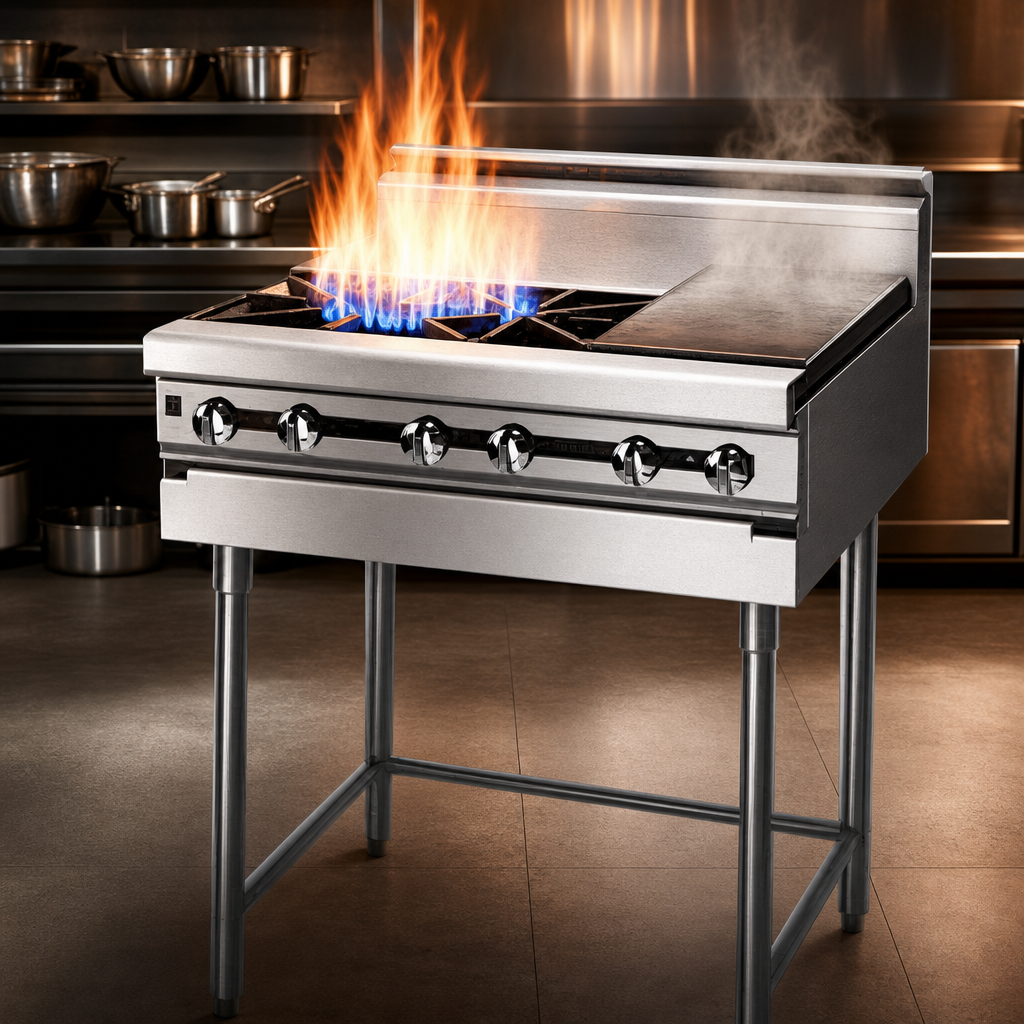

High Heat Output

Rated at 50,000 BTU total, with 35,000 BTU for the open burner section and 15,000 BTU for the hot top section.

Infinite Gas Controls

Infinite valves allow operators to fine-tune flame output for more precise cooking control.

Heavy-Duty Stainless Construction

Built with a 14-gauge all-welded body and stainless steel front, sides, tray bed, stub back, and gas tubing.

Cast Iron Top Grates

Individual cast iron top grates support durable everyday use and even placement over the cooking surface.

Stainless Steel Plate Shelf

A 6-inch stainless steel plate shelf adds a convenient landing area at the front of the unit.

Adjustable Legs

6-inch stainless steel adjustable legs help set the section at working height.

Gas Utility Setup

Supplied with a 1-1/4-inch front manifold connection, capped rear manifold connection, and a 3/4-inch gas regulator shipped loose.

Type Split Top Range Section
Style Modular
Installation Type Floor Model
Controls Infinite
BTU 50,000 BTU
Material Stainless Steel
Finish Stainless Steel
Gas Connection Size 1-1/4 Inch Front Manifold; 1 Inch or 3/4 Inch Rear Manifold
Shipping Width 12 Inches
Shipping Depth 37 Inches
Shipping Height 37 Inches
Shipping Weight 150 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes one 35,000 BTU open front burner and one 15,000 BTU rear hot top.
The unit uses infinite gas controls for precise heat adjustment.
It has a 14-gauge all-welded stainless steel body with stainless steel front, sides, tray bed, stub back, and gas tubing.
The unit is supplied with a 1-1/4-inch front manifold connection and a capped rear manifold connection sized for 1 inch or 3/4 inch, depending on setup.
Available accessories include casters, flex hoses with quick disconnects, and alternate gas pressure regulators.
