Jade Range (Middleby)

Titan JMRH-1FHT 18" Modular Gas French Top Range

SKU: JMRH-1FHT
$5,937.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

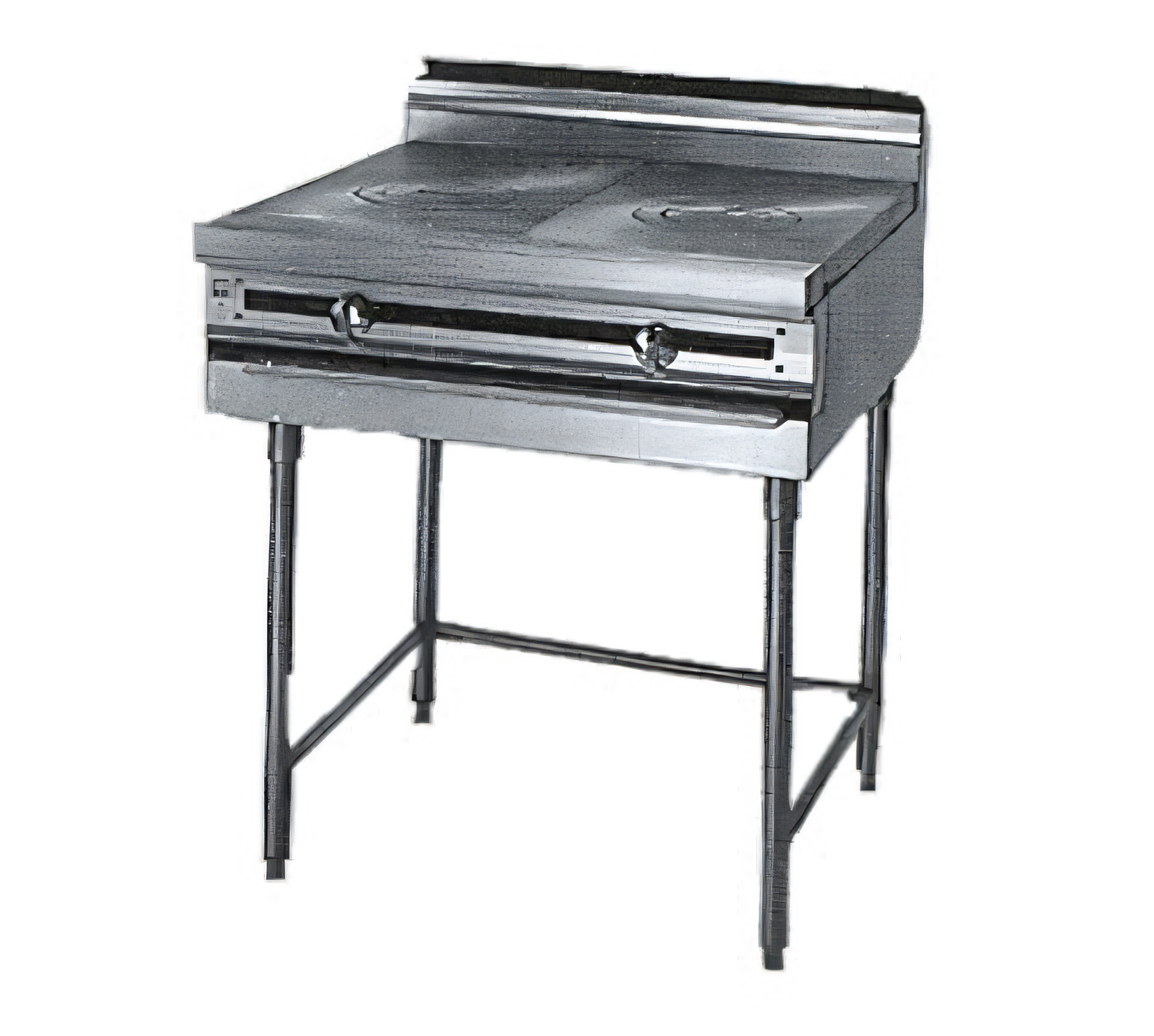

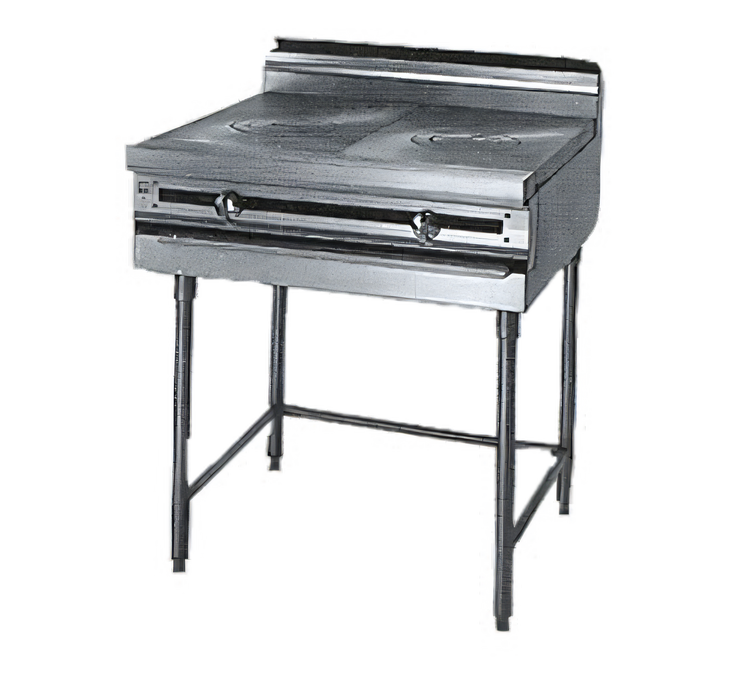

Titan JMRH-1FHT 18" Modular Gas French Top Range

Modular, Heavy Duty, One French Top Section

Designed for demanding commercial kitchens, the Titan JMRH-1FHT delivers precise heat control and robust performance for professional cooking applications.

  • Heavy-duty modular design featuring an 18-inch French top section.
  • Equipped with a powerful 30,000 BTU/hr burner for efficient, controlled cooking.
  • Features highly polished reinforced cast iron French top plates for even heat distribution.
  • Constructed with a durable 14 gauge all-welded stainless steel body, front, and sides.
  • Offers infinite controls for precise temperature management of the cooking surface.
  • Includes 6" stainless steel adjustable legs for versatile installation.

Overall Dimensions:

18.0"W x 38.0"D x 36.5"H

Product Weight:

225.0 lb

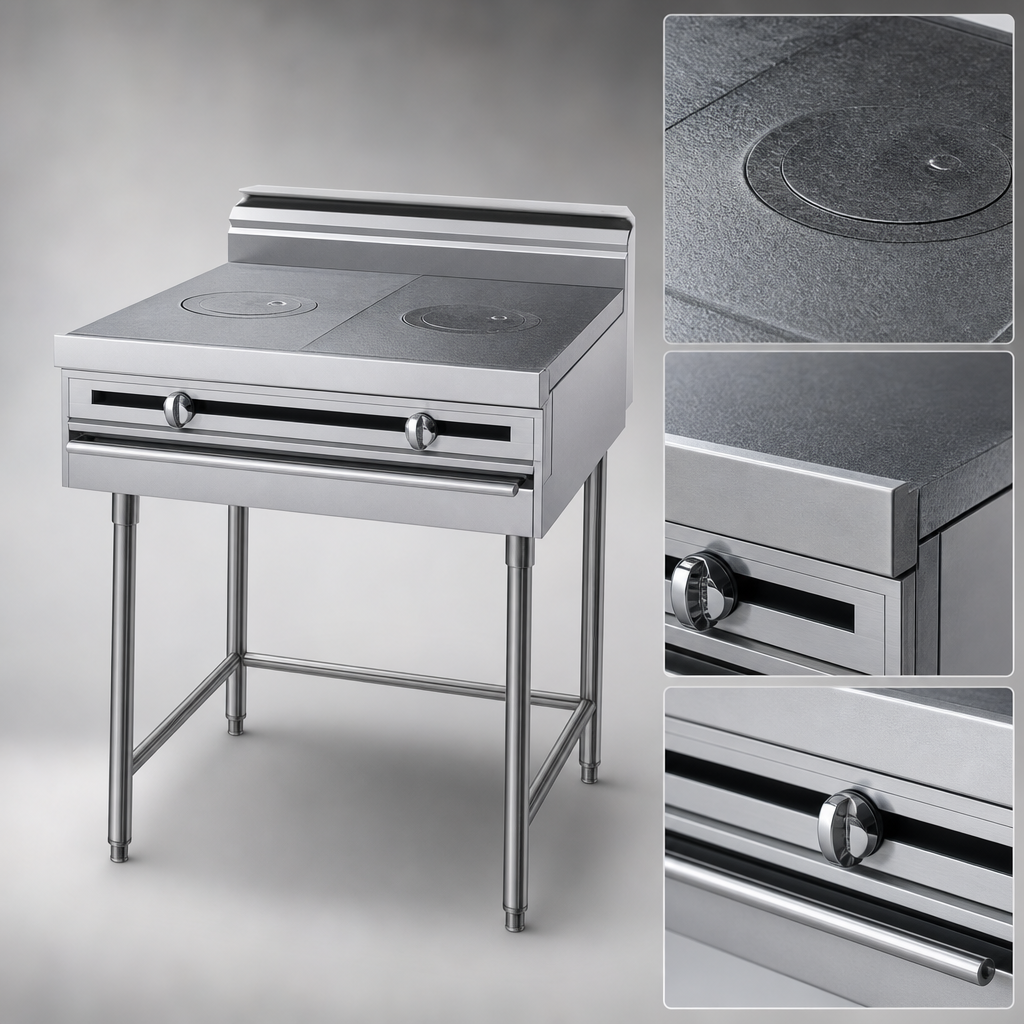

Highly Polished Reinforced Cast Iron French Top

Provides superior heat retention and even heat distribution across the cooking surface for consistent results.

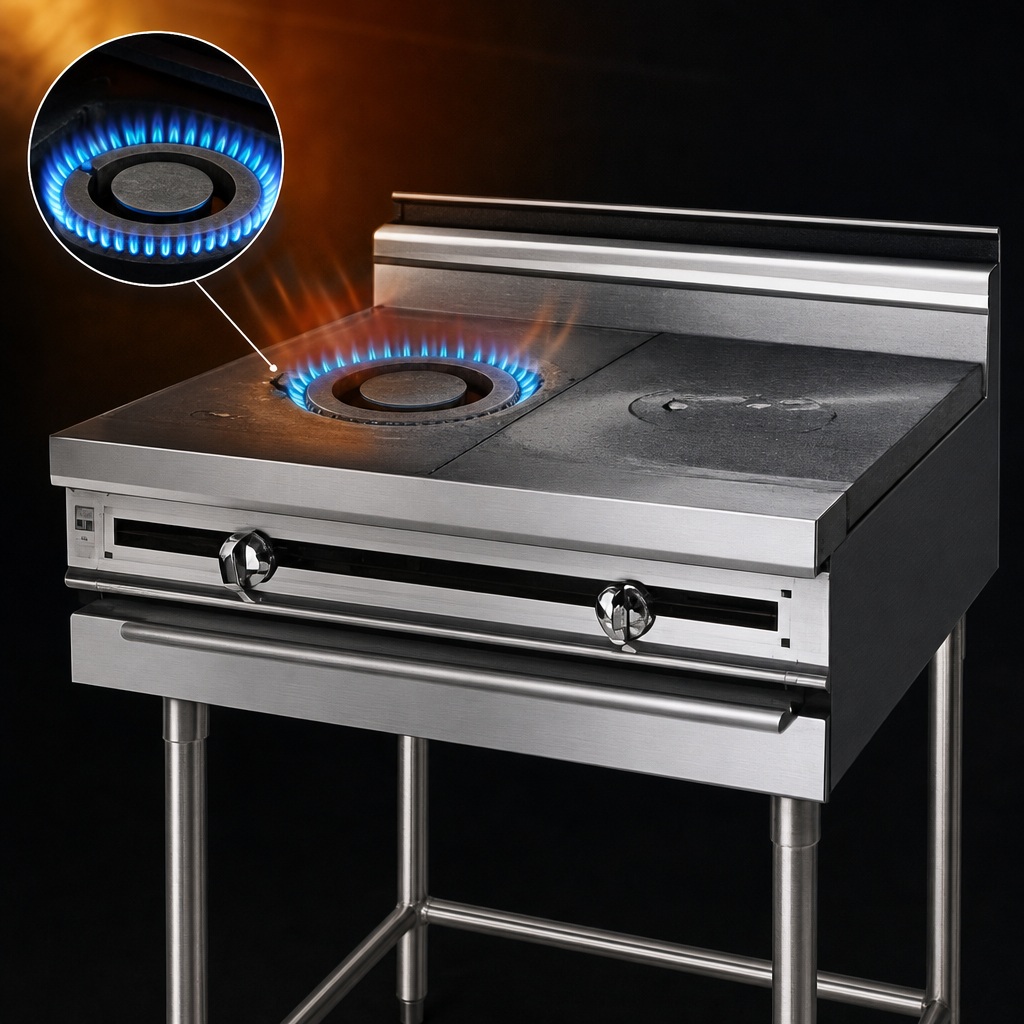

Powerful Gas Burner

One 30,000 BTU/hr burner ensures rapid heating and strong performance for various cooking tasks.

Infinite Controls

Allows for precise and flexible temperature adjustments to meet diverse cooking requirements.

Heavy-Duty Construction

Features a 14 gauge all-welded body with stainless steel front, sides, and stub back for enhanced durability and longevity in commercial environments.

Stainless Steel Components

Includes stainless steel gas tubing throughout and a 6" stainless steel plate shelf, ensuring hygiene and corrosion resistance.

Modular Design

Allows for flexible integration and configuration with other Titan modular equipment to create a customized cooking line.

Adjustable Legs Included

Comes standard with 6" stainless steel adjustable legs for easy leveling and adaptable installation.

BTU 30,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure Natural Gas: 5-14 Inches W.C.; Propane: 10-14 Inches W.C.
Controls Infinite
Material Stainless Steel, Cast Iron
Exterior Finish Stainless Steel
Compartments 1
Type French Top Range
Style Modular
Installation Type Freestanding
Shipping Width 18 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 225 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Titan JMRH-1FHT is designed for use with either Natural Gas or Propane. Please specify the gas type when ordering.
For Natural Gas, a minimum operating pressure of 5 inches W.C. and a maximum of 14 inches W.C. is required. For Propane, a minimum of 10 inches W.C. and a maximum of 14 inches W.C. is required.
Yes, a 3/4 inch gas pressure regulator is supplied loose with the unit and must be installed for proper operation.
The JMRH-1FHT features one French top section with a 30,000 BTU/hr burner.
Yes, it is supplied with 6 inch stainless steel adjustable legs as a standard feature.
