Jade Range (Middleby)

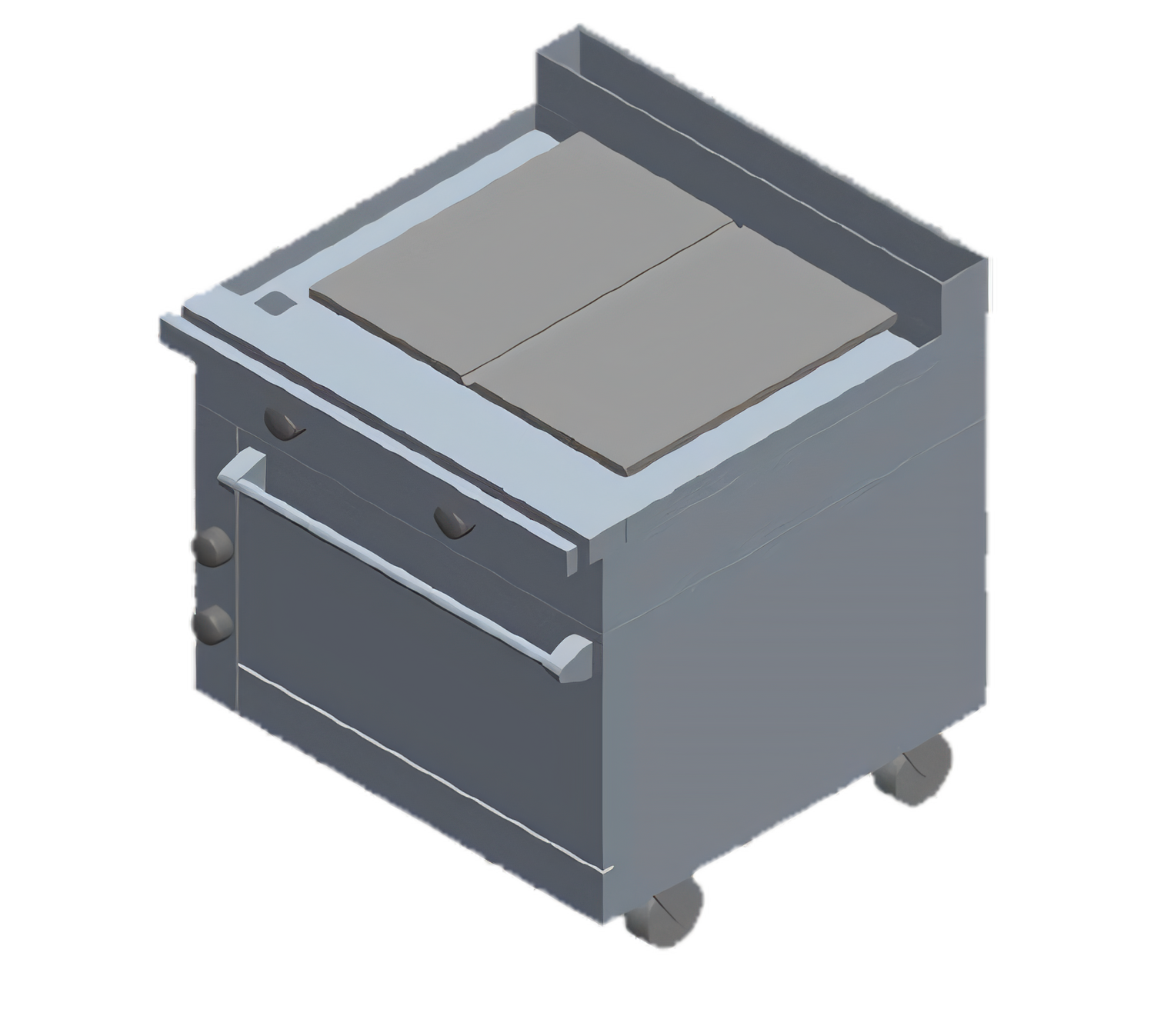

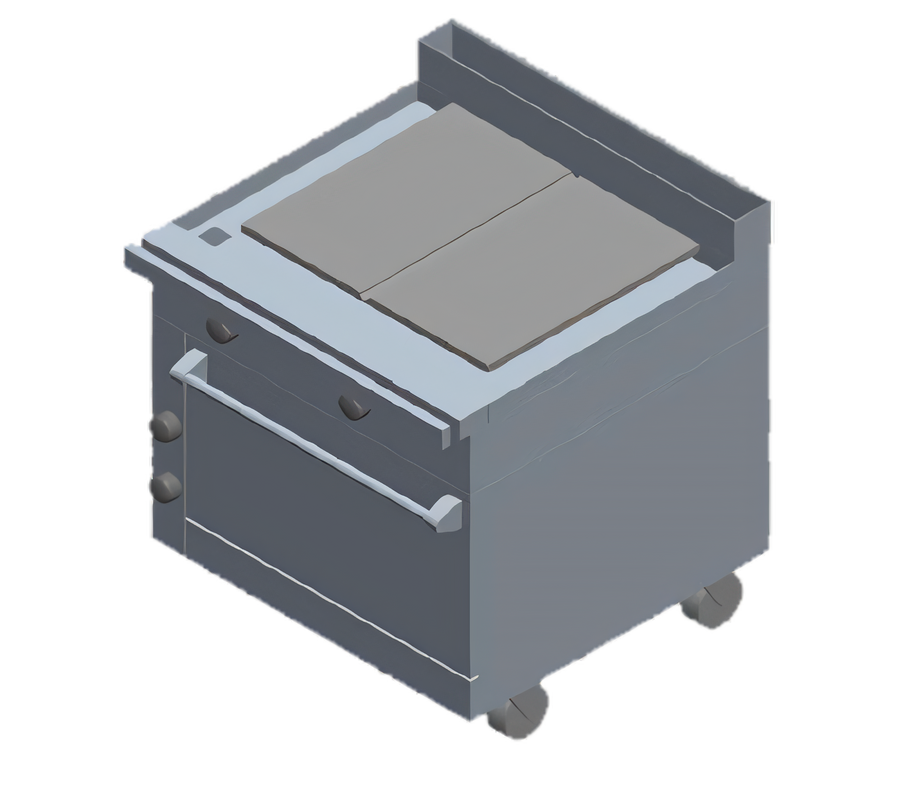

Titan JMRH-18IP 18-Inch Modular Gas Plancha Range

SKU: JMRH-18IP
$6,794.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Titan JMRH-18IP 18-Inch Modular Gas Plancha Range

18-Inch Wide, 5/8" Thick Steel Plancha, Natural Gas or Propane

Designed for heavy-duty commercial kitchens, the Titan JMRH-18IP modular gas plancha delivers precise, consistent cooking power in a compact 18-inch footprint.

  • Equipped with a polished 5/8-inch thick steel plancha plate for superior heat retention and even cooking.
  • Heavy-duty construction with stainless steel front, sides, and stub back ensures durability and easy cleaning.
  • Modular design allows for versatile kitchen configurations, integrating seamlessly with other Titan equipment.
  • Features a 14-gauge stainless steel grease trough for efficient waste management and hygiene.
  • Includes a convenient 6-inch stainless steel plate shelf, enhancing workspace and efficiency.
  • Boasts 17,500 BTU for powerful and reliable performance in demanding commercial environments.

Overall Dimensions:

18.0"W x 38.0"D x 36.5"H

Product Weight:

250.0 lb

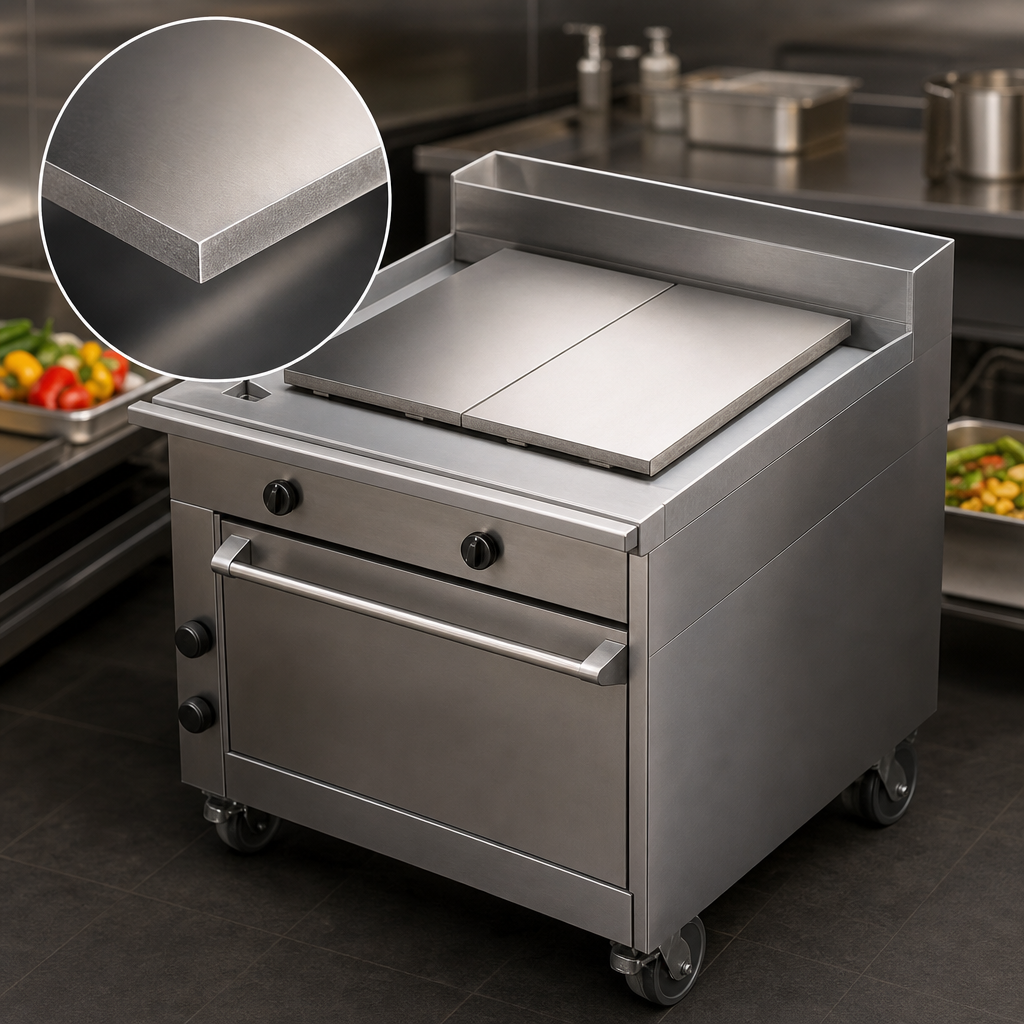

Polished Steel Plancha Plate

A robust 5/8-inch thick polished steel plancha plate provides excellent heat distribution and retention for consistent cooking results.

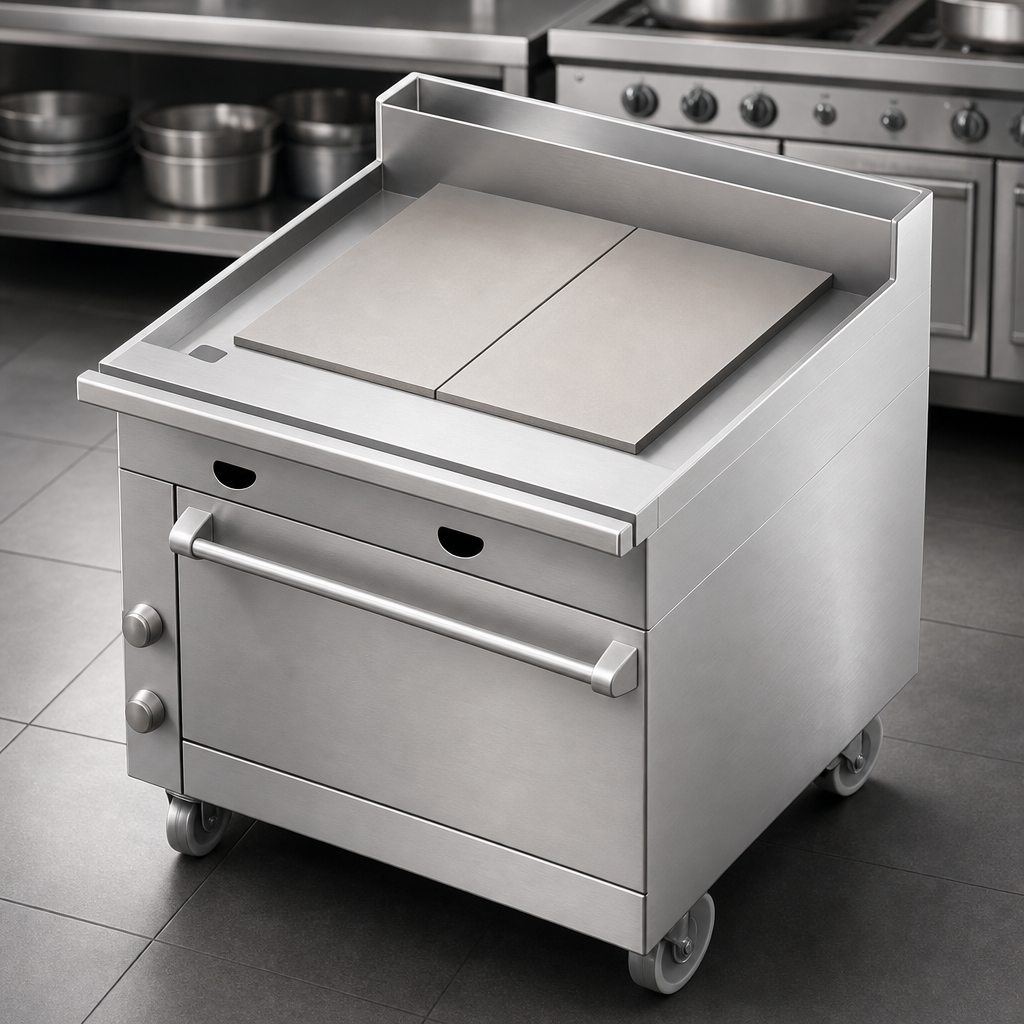

Stainless Steel Construction

Constructed with a stainless steel front, sides, and stub back, offering durability, resistance to corrosion, and easy maintenance for long-lasting use.

Integrated Grease Trough

Features a 14-gauge stainless steel grease trough to efficiently collect cooking byproducts, simplifying cleanup and maintaining a hygienic cooking surface.

BTU 17,500 BTU
Pan Capacity Plancha
Cooking Surface Width 18 Inches
Cooking Surface Depth 38 Inches
Material Stainless Steel
Finish Stainless Steel
Plate Thickness 5/8 Inch
Installation Type Floor Model (With Adjustable 6" Legs)
Style Modular
Type Plancha Range
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inches Front Manifold, 1 Inch or 3/4 Inch Rear Manifold
Gas Inlet Pressure 5 Inches W.C. (Natural Gas), 10 Inches W.C. (Propane)
Shipping Width 18 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 250 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer's standard warranty applies.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JMRH-18IP can operate on either Natural Gas or Propane. It is important to specify the gas type when ordering to ensure proper configuration.
For Natural Gas, a minimum operating pressure of 5 Inches W.C. is required. For Propane Gas, a minimum of 10 Inches W.C. is needed. The maximum operating pressure for both gas types is 14 Inches W.C.
Yes, the JMRH-18IP is supplied with a 3/4 inch gas pressure regulator, which is shipped loose and must be installed for proper operation. Optional 1 inch or 1-1/4 inch regulators are available as accessories.
The JMRH-18IP features a polished steel plancha plate that is 5/8 inches thick, designed for excellent heat retention and even cooking.
The range is supplied with a 1-1/4 inch front manifold connection and a 1 inch or 3/4 inch capped rear manifold connection. The cap can be removed for rear manifold use.
