Titan JMRH-18G 18" Modular Gas Griddle Top Range with Manual Controls

18-Inch, Full-Size, Standard Depth, Natural Gas or Propane

Achieve precise, consistent griddle cooking in any commercial kitchen with the heavy-duty Titan JMRH-18G modular gas griddle, built for demanding use.

  • Features a robust 1" thick polished steel griddle plate for excellent heat retention and even cooking.
  • Equipped with intuitive manual controls for straightforward operation without a thermostat.
  • Heavy-duty 14 gauge stainless steel construction ensures durability and easy cleaning.
  • Integrated 14 gauge stainless steel grease trough and splashguards simplify cleanup.
  • Designed as a modular unit, offering flexible installation options for various kitchen layouts.
  • Includes a 6" stainless steel plate shelf for convenient plating and ingredient staging.

Overall Dimensions:

18.0"W x 36.25"D x 36.5"H

Product Weight:

250.0 lb

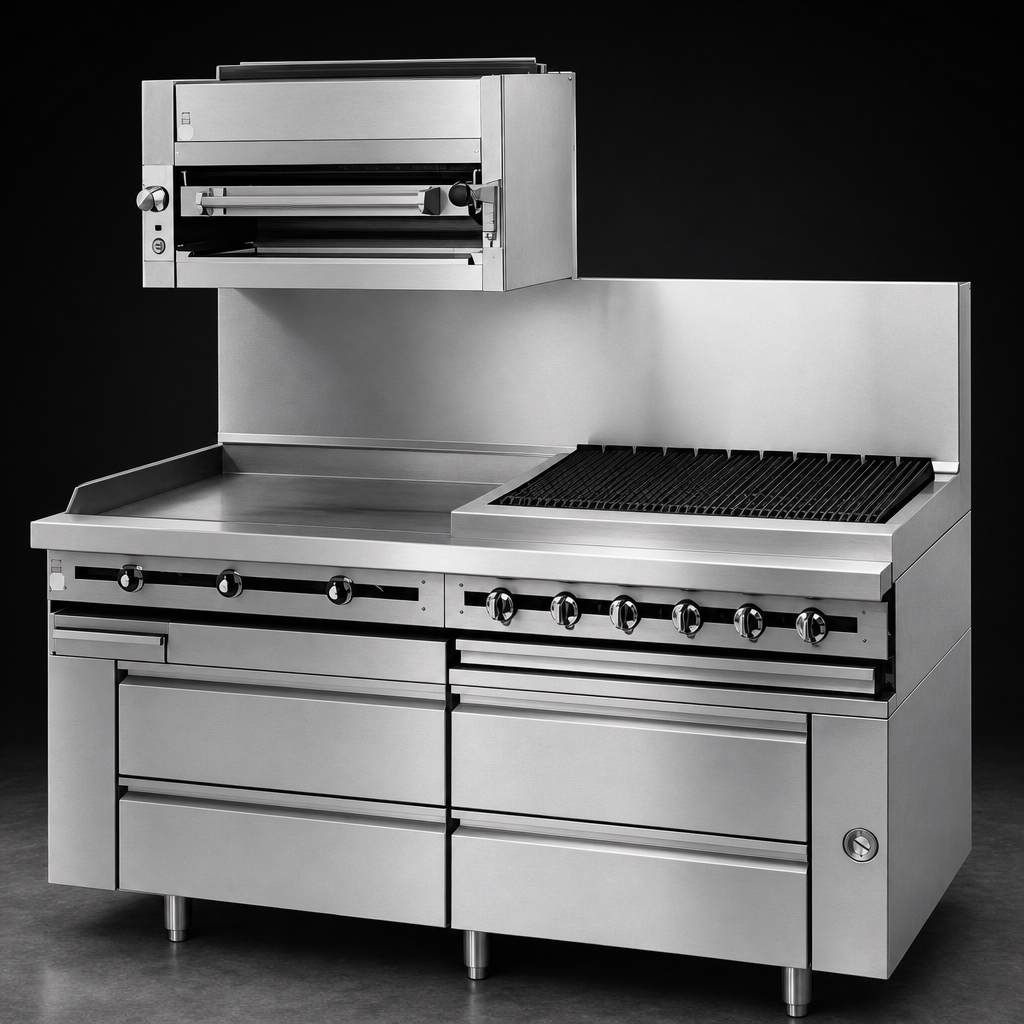

Heavy-Duty Construction

Constructed with a 14 gauge all-welded body, stainless steel front, sides, and stub back for commercial durability and longevity.

Heavy-Duty Construction

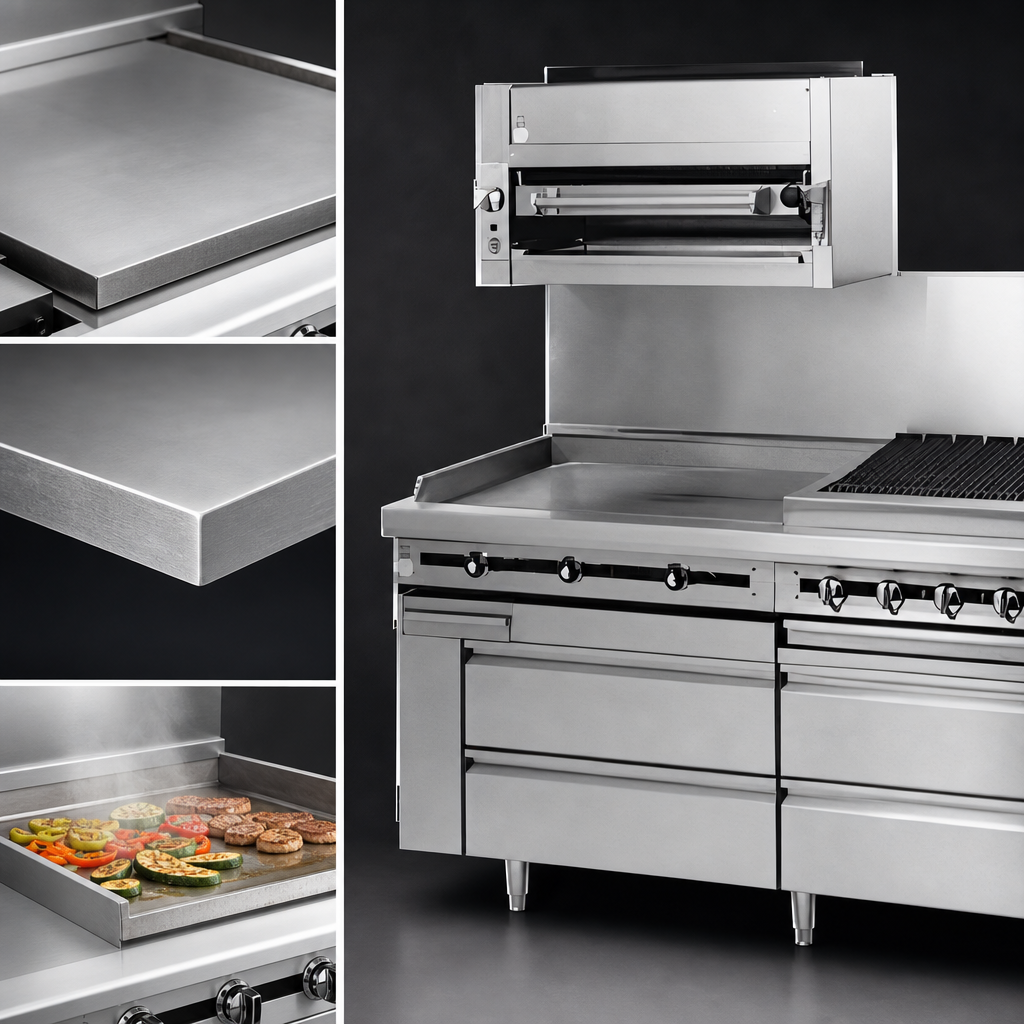

Thick Polished Steel Griddle Plate

Features a 1" thick polished steel griddle plate for superior heat distribution, retention, and consistent cooking results.

Thick Polished Steel Griddle Plate

Manual Controls

Equipped with infinite manual gas valves, allowing precise flame adjustment for optimal cooking without a temperature thermostat.

Integrated Grease Management

Includes a 14 gauge stainless steel grease trough and stainless steel side and rear splashguards to contain splatter and simplify cleaning.

Stainless Steel Plate Shelf

Comes standard with a 6" stainless steel plate shelf, providing convenient workspace for plating or holding ingredients.

Modular Design

Designed as a modular griddle top range, offering versatility for countertop placement or integration into a custom cooking line.

Variable Gas Connection

Supplied with a 3/4" gas pressure regulator and variable size multi-point gas connection options (1-1/4" front manifold, 1" or 3/4" capped rear manifold) for flexible utility hook-up.

Type Modular Griddle Top Range
Style Griddle
Installation Type Countertop
Controls Manual
Cooking Surface Width 18 Inches
Plate Thickness 1 Inch
Material Stainless Steel
Interior Finish Polished Steel Griddle Plate
Exterior Finish Stainless Steel
BTU 35,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inches
Gas Inlet Pressure 5 Inches W.C. (Natural Gas), 10 Inches W.C. (Propane)
Shipping Width 18 Inches
Shipping Depth 37 Inches
Shipping Height 37 Inches
Shipping Weight 250 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer's warranty is included.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JMRH-18G is designed to operate with either Natural Gas or Propane. Please specify the required gas type when ordering.
No, the JMRH-18G features manual controls with infinite gas valves, which allow for flame adjustment but do not include a temperature thermostat.
The griddle plate is made from 1" thick polished steel, engineered for excellent heat retention and even cooking.
The range is supplied with a 3/4" gas pressure regulator. It has a 1-1/4" front manifold connection and either a 1" or 3/4" capped rear manifold connection. Required operating pressure is 5" W.C. for Natural Gas and 10" W.C. for Propane, with a maximum of 14" W.C.
Yes, optional accessories include 6" casters (front two locking), 36" or 48" flex hoses with quick disconnects (3/4" connection), and 1" or 1-1/4" gas pressure regulators (specify gas type).
