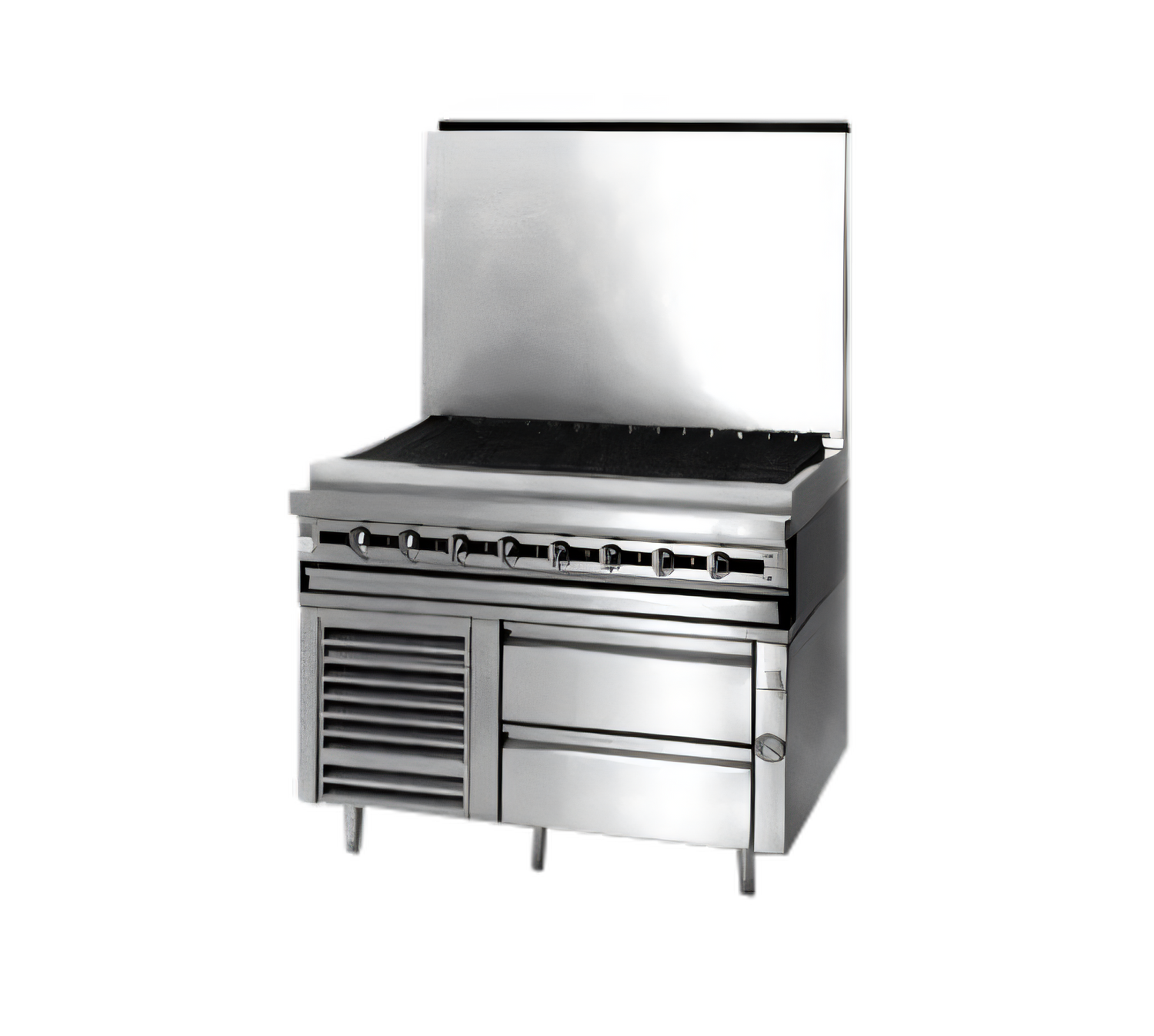

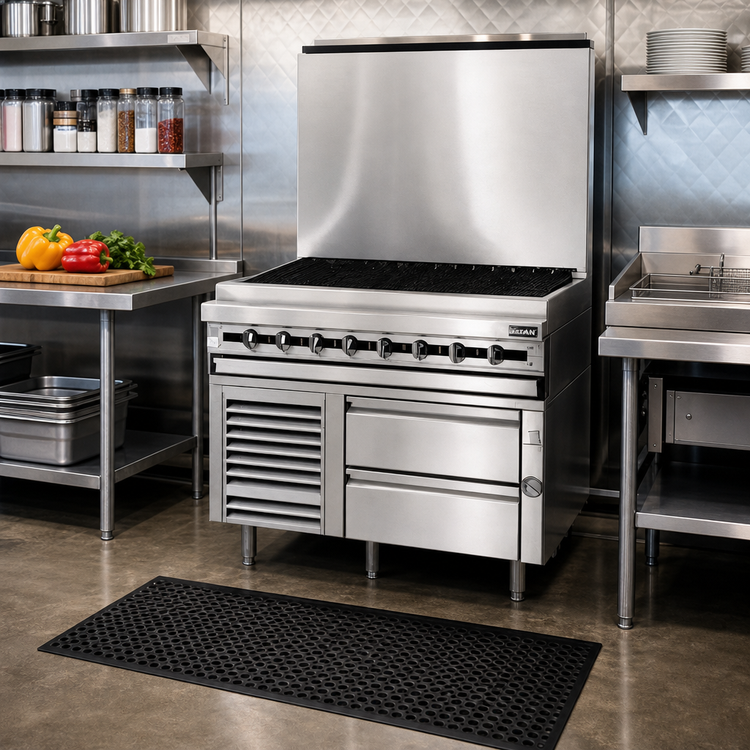

Titan JMRH-18B 18" Modular Gas Charbroiler

Heavy Duty, Cast Iron Grates, 45,000 BTU

Built for demanding commercial kitchens, the Titan JMRH-18B modular charbroiler delivers consistent, high-performance grilling in a compact 18-inch footprint.

  • Durable 14 gauge all-welded body construction with stainless steel front, top, and sides.
  • Equipped with heavy-duty cast iron top grates featuring built-in grease guides to channel away excess fat and reduce flare-ups.
  • Provides precise heat control with infinite manual gas valves for each of its three 15,000 BTU/hr. burners.
  • Two separate 14 gauge steel drip pans ensure effective flare-up control and easy cleaning.
  • Modular design allows for flexible integration into existing cooking lines or for standalone countertop use.
  • Total 45,000 BTU/hr. heat output for efficient and powerful charbroiling.
  • Includes a convenient 6-inch stainless steel plate shelf for added workspace.

Overall Dimensions:

18.0"W x 36.25"D x 36.5"H

Product Weight:

200.0 lb

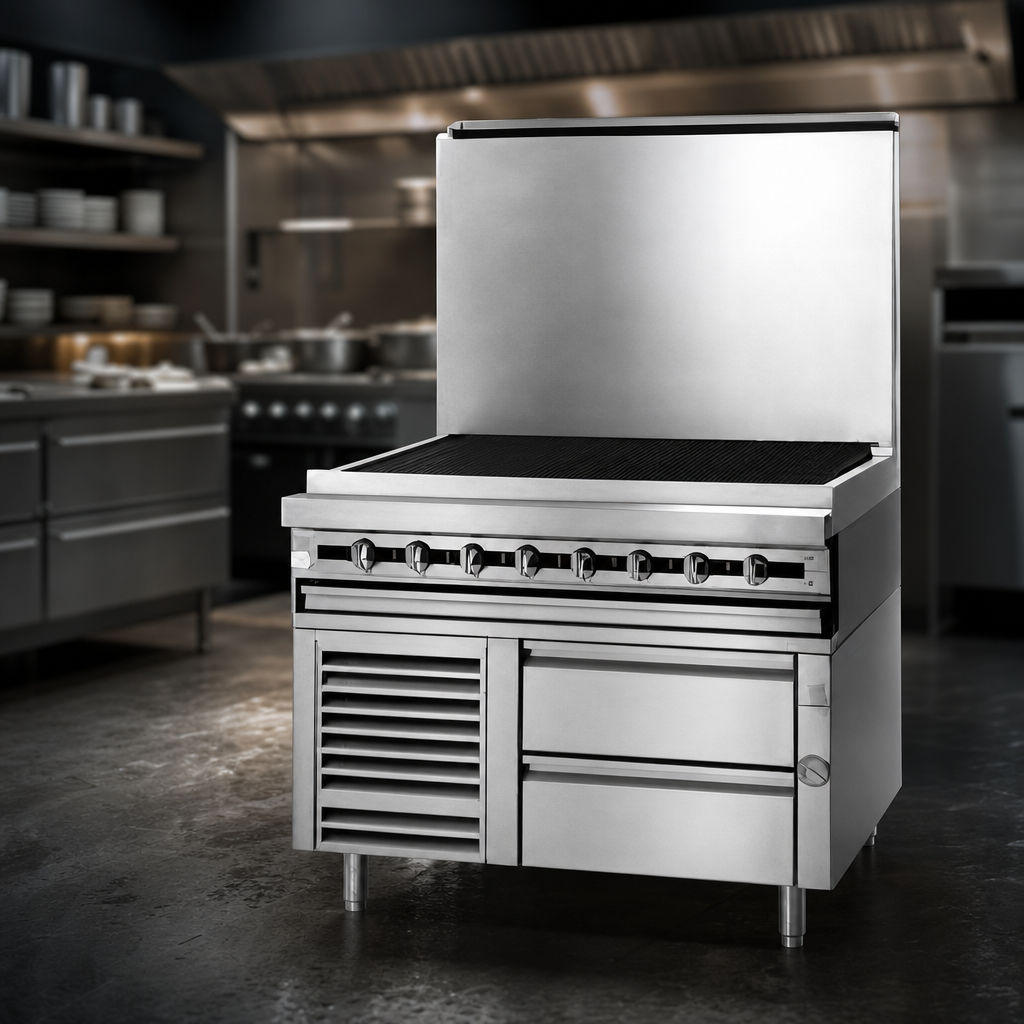

Heavy Duty Construction

Features 14 gauge all-welded body construction and a 12 gauge all-welded firebox for exceptional durability and longevity in a commercial kitchen environment.

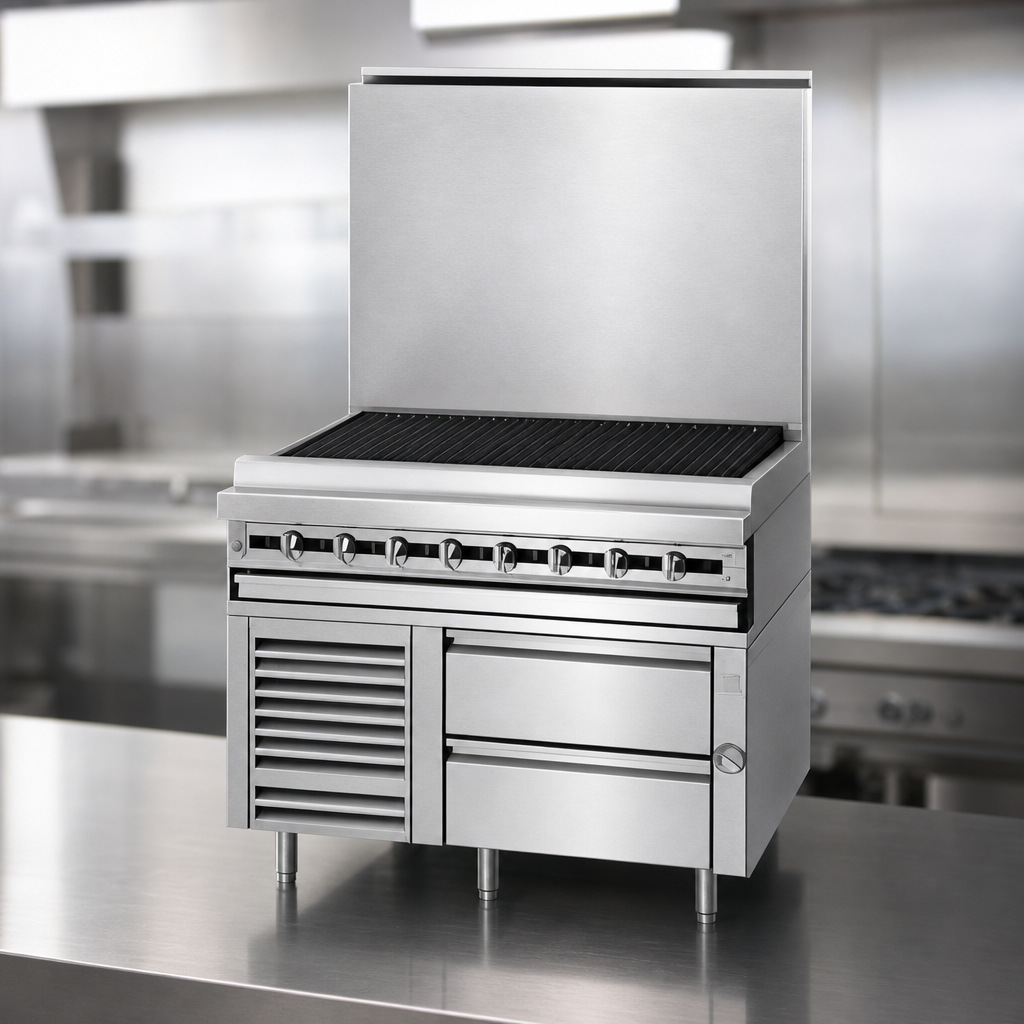

Stainless Steel Exterior

Front, top, sides, stub back, and tray bed are constructed from stainless steel for a professional appearance, easy cleaning, and resistance to corrosion.

Cast Iron Top Grates with Grease Guides

Heavy-duty cast iron top grates are designed with built-in grease guides that effectively channel away excess fat, significantly reducing flare-ups and enhancing food quality.

Cast Iron Burner Radiants

Heavy-duty cast iron burner radiants ensure even heat distribution across the entire cooking surface for consistent grilling results.

Individual Burner Control

Equipped with one 15,000 BTU/hr. burner for every 6 inches of broiler width, each with an infinite control manual gas valve for precise and independent temperature management.

Dual Drip Pans

Two separate 14 gauge steel drip pans are provided to effectively control flare-ups and simplify the cleaning process by collecting grease and debris.

Integrated Plate Shelf

A 6-inch stainless steel plate shelf is included, offering a convenient surface for holding plates or utensils during cooking and plating.

Stainless Steel Gas Tubing

Ensures the longevity and reliability of the internal gas system.

Gas Regulator Included

A 3/4" gas pressure regulator is shipped loose with the unit and must be installed for proper and safe operation.

Type Charbroiler
Style Modular
Installation Type Countertop
BTU 45,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4" Front Manifold, 1" or 3/4" Rear Manifold
Gas Inlet Pressure 5 Inches W.C. Minimum (Natural Gas), 10 Inches W.C. Minimum (Propane)
Controls Infinite Manual
Capacity 3 x 6 Inch Broiler Sections
Compartments 1
Material Stainless Steel, Cast Iron
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 18 Inches
Shipping Depth 37 Inches
Shipping Height 37 Inches
Shipping Weight 200 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Titan JMRH-18B charbroiler has a width of 18 inches, a depth of 36.25 inches, and a height of 36.5 inches, with an approximate shipping weight of 200 lbs.
This charbroiler can operate on either Natural Gas or Propane. It requires a minimum operating pressure of 5 inches W.C. for Natural Gas and 10 inches W.C. for Propane, with a maximum pressure of 14 inches W.C. for both.
Yes, a 3/4 inch gas pressure regulator is supplied loose with the unit and must be installed for proper operation. Larger regulators (1 inch or 1-1/4 inch) are available as accessories.
The charbroiler is equipped with heavy-duty cast iron top grates that have built-in grease guides to channel away excess fat, and it features two separate 14 gauge steel drip pans to control flare-ups effectively.
Yes, but you must specify the altitude when ordering if it is above 2,000 feet to ensure proper configuration.
