Jade Titan JMRH-10 60-Inch Modular Heavy Duty Gas Range with 10 Open Burners

Full-Size, Natural Gas or Propane, Floor Model

Experience robust and precise cooking performance with the Jade Titan JMRH-10, a heavy-duty modular gas range designed for demanding commercial kitchens.

  • Equipped with ten powerful 35,000 BTU/hr cast iron open burners for high-volume cooking.
  • Durable 14 gauge all-welded body construction with stainless steel front and sides ensures longevity.
  • Modular design allows for flexible kitchen configurations and future expansion.
  • Features a 6-inch stainless steel plate shelf for convenient plating and holding.
  • Individual lift-off grates and stainless steel pilots simplify cleaning and maintenance.
  • Comes with a 3/4 inch gas pressure regulator for optimal operation.

Overall Dimensions:

60.0"W x 36.25"D x 36.5"H

Product Weight:

675.0 lb

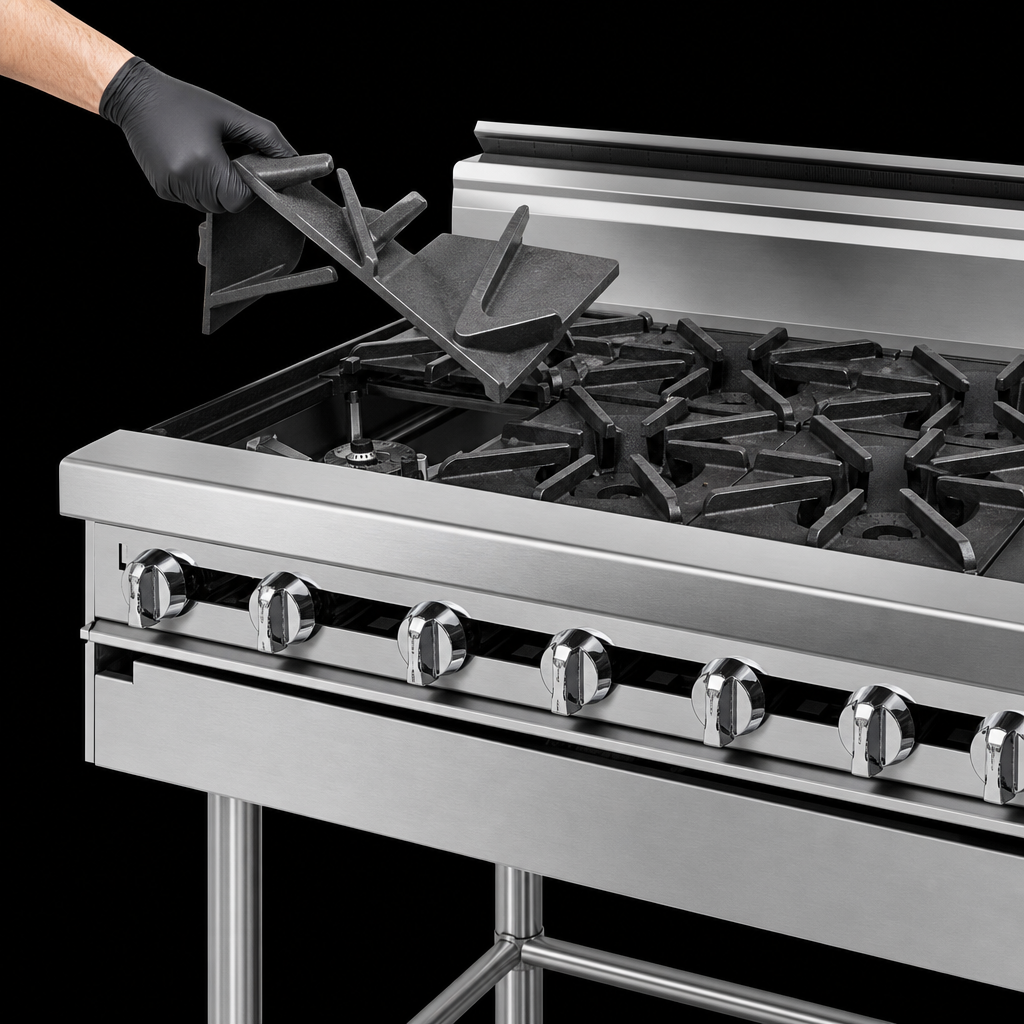

Individual Lift-Off Steel Top Grates

Designed for easy removal and cleaning, ensuring a hygienic cooking surface.

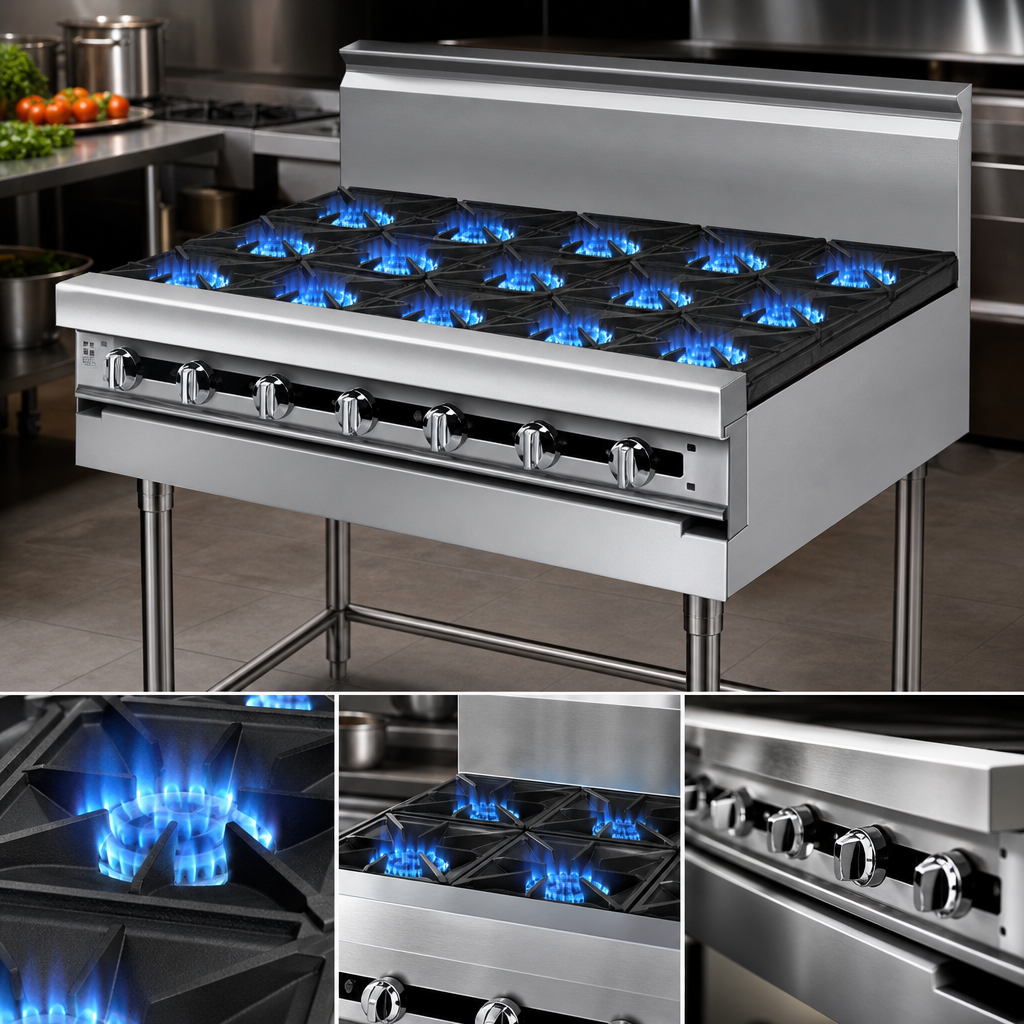

35,000 BTU/hr Cast Iron Open Burners

Each burner delivers powerful and consistent heat, ideal for a wide range of cooking applications.

Stainless Steel Pilot per Burner

Ensures reliable and efficient ignition for each burner.

14 Gauge All-Welded Body Construction

Provides exceptional durability and structural integrity, built to withstand rigorous commercial use.

Stainless Steel Front, Sides, and Stub Back

Offers a professional, sleek appearance and is easy to clean, maintaining sanitary standards.

Stainless Steel Gas Tubing Throughout

Enhances longevity and safety by resisting corrosion and wear.

6-Inch Stainless Steel Plate Shelf

Provides a convenient and accessible surface for staging plates, holding ingredients, or resting utensils.

Infinite Gas Valves

Allow for precise and independent control over the flame intensity of each burner.

Type Modular Open Burner Range
Style Heavy Duty Range
Installation Type Floor Model (With 6" Adjustable Legs)
Pan Capacity 10 Open Burners
Cooking Surface Width 60 Inches
BTU 350,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch NPT (regulator supplied)
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. (minimum)
Gas Inlet Pressure (Propane) 10 Inches W.C. (minimum)
Material Stainless Steel
Interior Finish Stainless Steel
Controls Infinite Gas Valves
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 37 Inches
Shipping Height 37 Inches
Shipping Weight 675 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JMRH-10 range is designed to operate on either Natural Gas or Propane. Please specify your gas type when ordering.
For Natural Gas, a minimum of 5 Inches W.C. is required. For Propane Gas, a minimum of 10 Inches W.C. is required. The maximum allowed pressure is 14 Inches W.C.
Yes, the JMRH-10 range is supplied with a 3/4 inch gas pressure regulator, which must be installed for proper operation.
The JMRH-10 features a 14 gauge all-welded body construction with a stainless steel front, sides, and stub back. All internal gas tubing is also made of stainless steel.
Yes, the JMRH-10 is equipped with individual lift-off steel top grates, making them easy to remove for cleaning and maintenance.
