Jade Range (Middleby)

Titan 60-Inch Modular Solid Fuel Broiler with Steel Bar Grates

SKU: JMBR-LB60
$19,091.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Grills Jade Range (Middleby) New Arrivals Restaurant Equipment Wood/Charcoal Grills

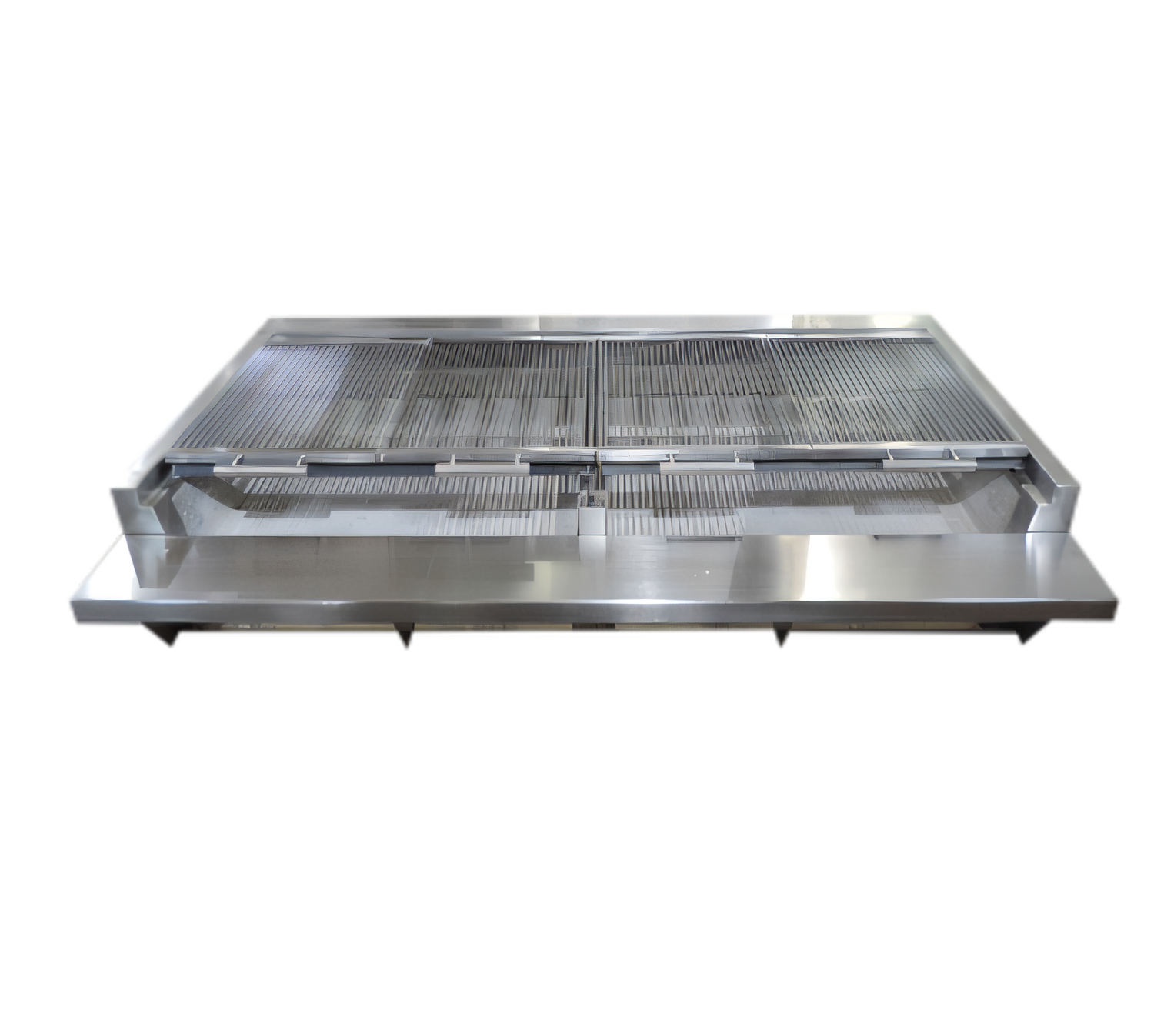

Titan 60-Inch Modular Solid Fuel Broiler with Steel Bar Grates

2-Inch Refractory Lining, Stainless Steel Exterior, Includes Tool Kit

Built for intense live-fire cooking, this 60-inch modular broiler combines a heat-retaining refractory liner with a durable stainless steel exterior and included operating tools.

  • 60-inch modular solid fuel broiler for high-heat charbroiling applications.
  • 2-inch thick high-temperature refractory lining helps retain and radiate heat.
  • 12-gauge steel interior box with 14-gauge stainless steel exterior for rugged durability.
  • Steel bar grates provide a dependable direct-heat cooking surface.
  • Includes copper brush, wood poker, and shovel.
  • Compatible with Jade refrigerated bases; optional shelves, base, and casters are available.
  • Standard two-year parts and labor warranty.

Overall Dimensions:

60.0"W x 38.0"D x 13.5"H

Product Weight:

1380.0 lb

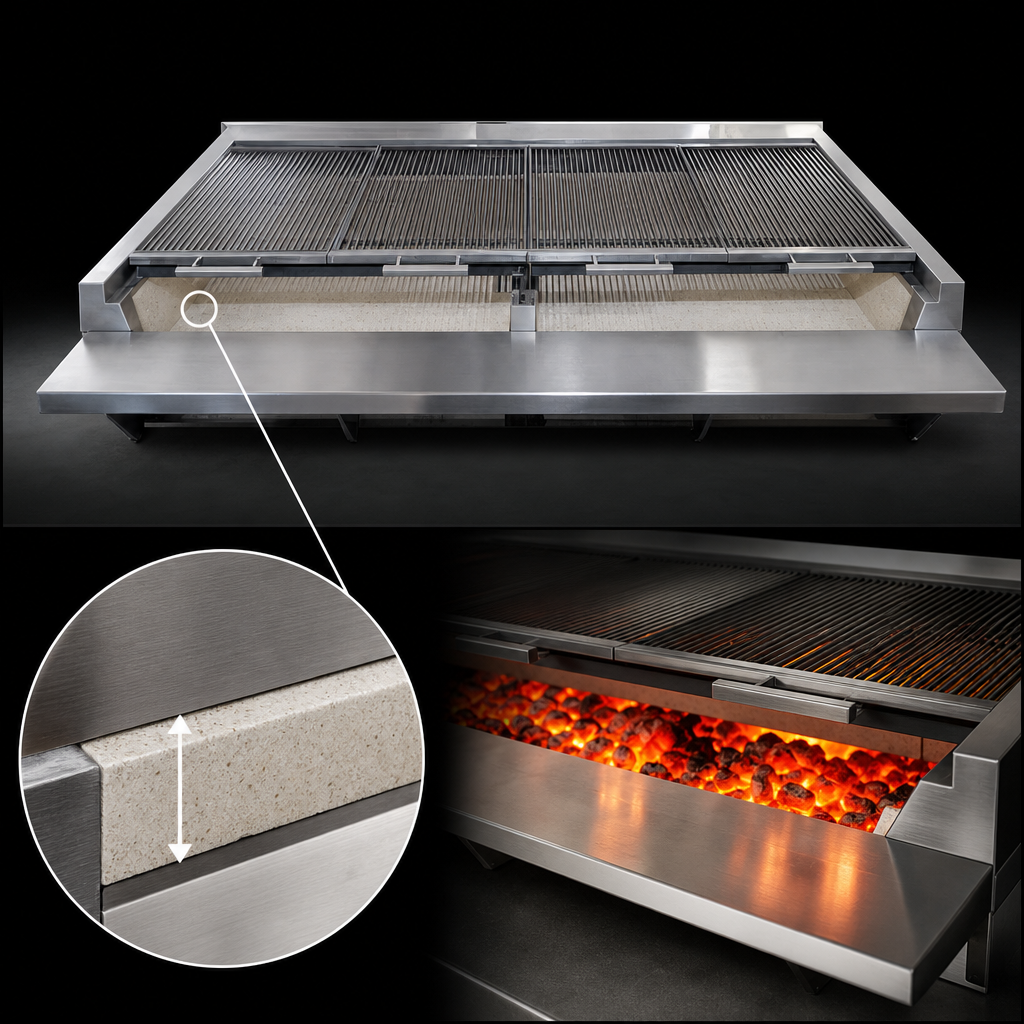

2-Inch High-Temperature Refractory Lining

Heavy-duty lining helps retain intense heat for solid fuel cooking.

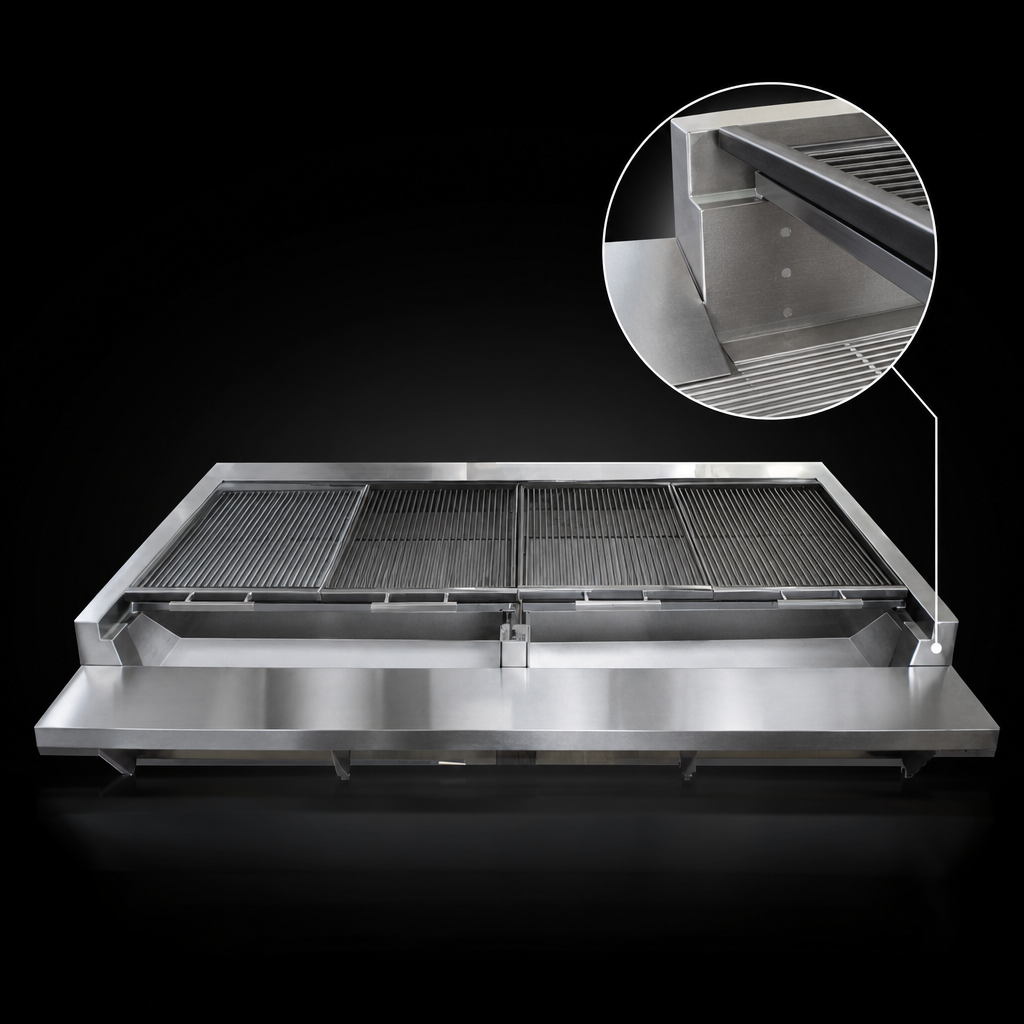

12-Gauge Steel Interior Box

Durable steel cooking chamber construction designed for commercial use.

14-Gauge Stainless Steel Exterior

Corrosion-resistant exterior with a professional stainless finish.

Steel Bar Grates

Rugged bar grates built for direct-heat grilling over solid fuel.

Included Tool Kit

Comes with a copper brush, wood poker, and shovel.

Modular Design

Designed to work with compatible Jade refrigerated bases and cabinet base options.

Type Solid Fuel Broiler
Style Modular
Installation Type Countertop
Material Stainless Steel
Interior Finish Steel
Finish Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 38 Inches
Shipping Height 14 Inches
Shipping Weight 1380 lb.

Warranty & Protection

2-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes a copper brush, wood poker, and shovel, along with steel bar grates.
No. The refrigerated base shown in the literature must be ordered separately.
Yes. It is compatible with Jade refrigerated bases, and a stainless steel cabinet base is also listed as an available option.
The product literature lists a standard two-year parts and labor warranty.
The broiler uses a 2-inch high-temperature refractory lining, a 12-gauge steel interior box, a 14-gauge stainless steel exterior, and steel bar grates.
The line is available in 24-inch, 36-inch, 48-inch, 60-inch, and 72-inch sizes.
