Jade Range (Middleby)

Jade Range Supreme JHP-848 48-Inch 8-Burner Countertop Gas Hot Plate

SKU: JHP-848
$5,249.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Hot Plates Commercial Ranges Hot Plates Jade Range (Middleby) New Arrivals Restaurant Equipment

Jade Range Supreme JHP-848 48-Inch 8-Burner Countertop Gas Hot Plate

Full-Size, Natural Gas or Propane, Standard Depth

Experience robust and precise cooking performance with the Jade Range Supreme JHP-848, a heavy-duty 48-inch gas hot plate designed for demanding commercial kitchens.

  • Equipped with eight powerful 27,500 BTU cast iron open burners for high-output cooking.
  • Features infinite manual gas valves at each burner for precise, individual heat control.
  • Durable 14 gauge stainless steel all-welded construction ensures longevity and easy cleaning.
  • Includes a high-capacity welded drip tray for convenient grease management.
  • Designed for countertop installation with 4-inch adjustable stainless steel legs.
  • CSA Certified for safety and NSF Listed for sanitation in commercial environments.

Overall Dimensions:

48.0"W x 27.0"D x 11.25"H

Product Weight:

290.0 lb

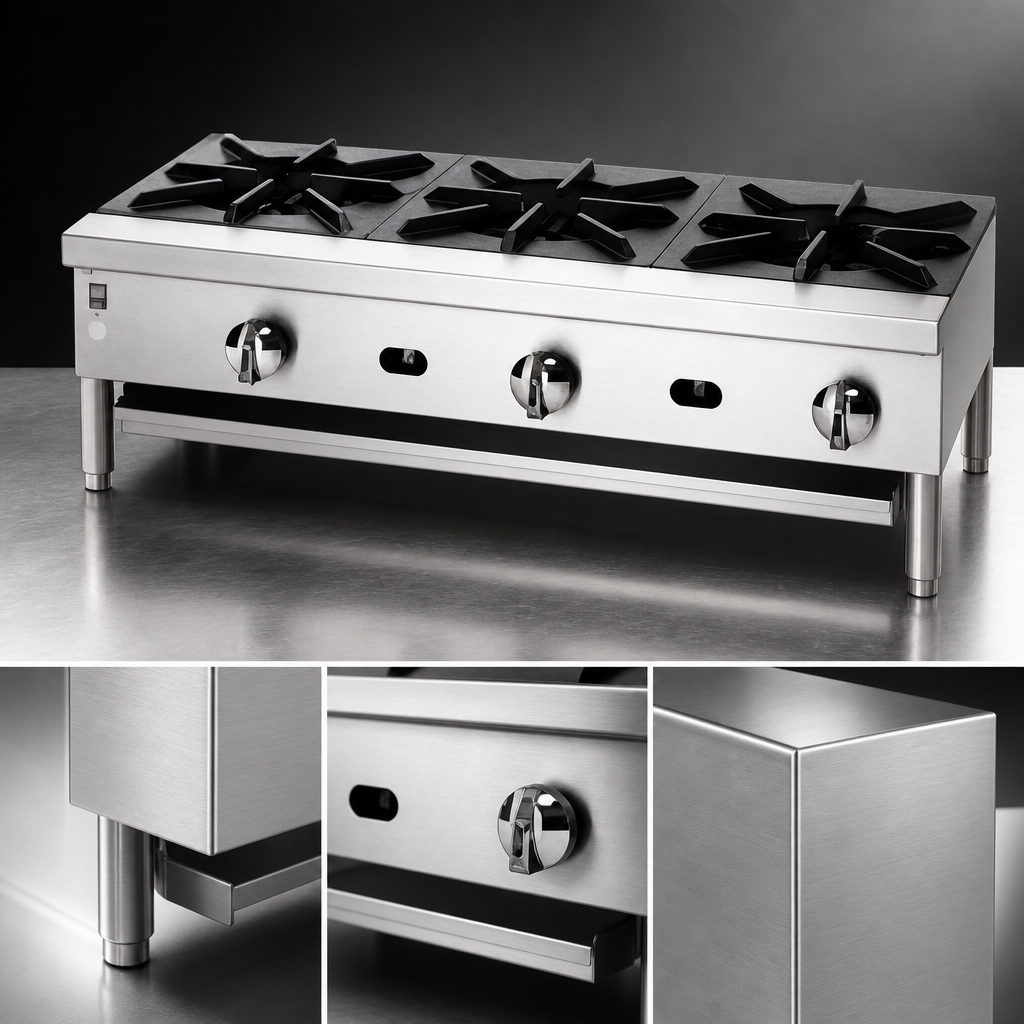

Stainless Steel Construction

Features stainless steel sides, front, and plate shelf for enhanced durability and easy maintenance.

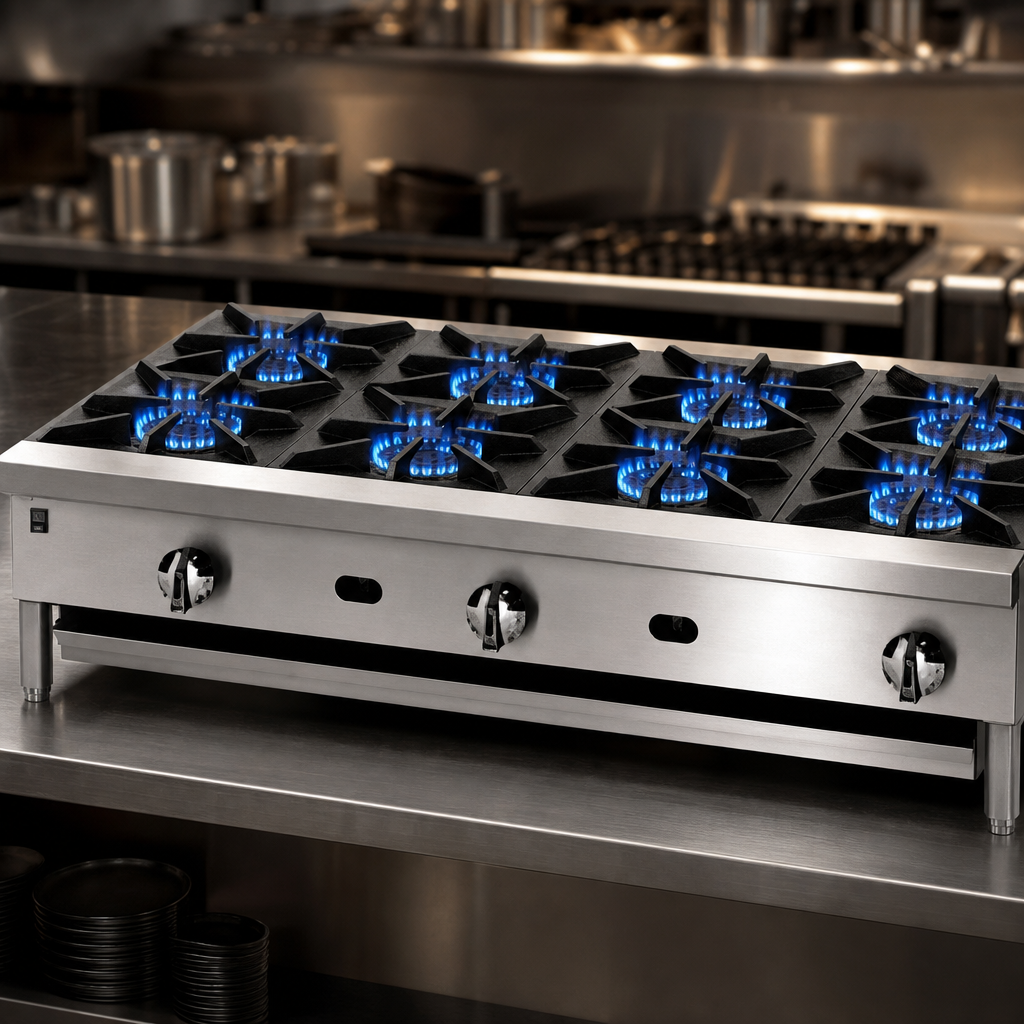

High-Performance Burners

Eight 27,500 BTU cast iron open burners provide powerful and even heat distribution for versatile cooking.

Lift-Off Cast Iron Grates

Equipped with 12-inch lift-off cast iron top grates, making cleaning and maintenance simple.

Infinite Manual Controls

Each burner is controlled by an infinite manual gas valve, allowing for precise temperature adjustments.

Welded Drip Tray

A 14 gauge welded drip tray offers high capacity for grease collection, simplifying cleanup.

Adjustable Stainless Steel Legs

Comes with 4-inch adjustable stainless steel legs welded into the frame for stability and leveling.

Corrosion-Resistant Components

Features stainless steel gas tubing throughout and stainless steel pilot tips to resist corrosion and ensure long-term reliability.

Gas Regulator Included

A 3/4-inch gas regulator is included with the unit for proper gas supply connection.

Type Hot Plate
Style Countertop
Installation Type Countertop (With Legs)
Burners 8
BTU 220,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. minimum
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. minimum
Gas Inlet Pressure (Maximum) 14 Inches W.C. maximum
Controls Infinite Manual
Material Stainless Steel
Exterior Finish Stainless Steel
Pan Capacity 4 Full-Size Pans
Cooking Surface Width 48 Inches
Cooking Surface Depth 27 Inches
Shipping Width 48 Inches
Shipping Depth 27 Inches
Shipping Height 12 Inches
Shipping Weight 290 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Jade Range Supreme JHP-848 hot plate can be configured to use either Natural Gas or Propane. Please specify your gas type when ordering.
The JHP-848 hot plate features eight 27,500 BTU cast iron open burners, totaling 220,000 BTU for robust cooking power.
The unit requires a 3/4-inch gas connection and comes with a 3/4-inch gas regulator.
For Natural Gas, a minimum operating pressure of 5 inches W.C. is required. For Propane Gas, the minimum operating pressure is 10 inches W.C. The maximum pressure for both is 14 inches W.C.
The JHP-848 is constructed with 14 gauge stainless steel for the all-welded frame, sides, front, and plate shelf, ensuring durability and corrosion resistance.
