Jade Range (Middleby)

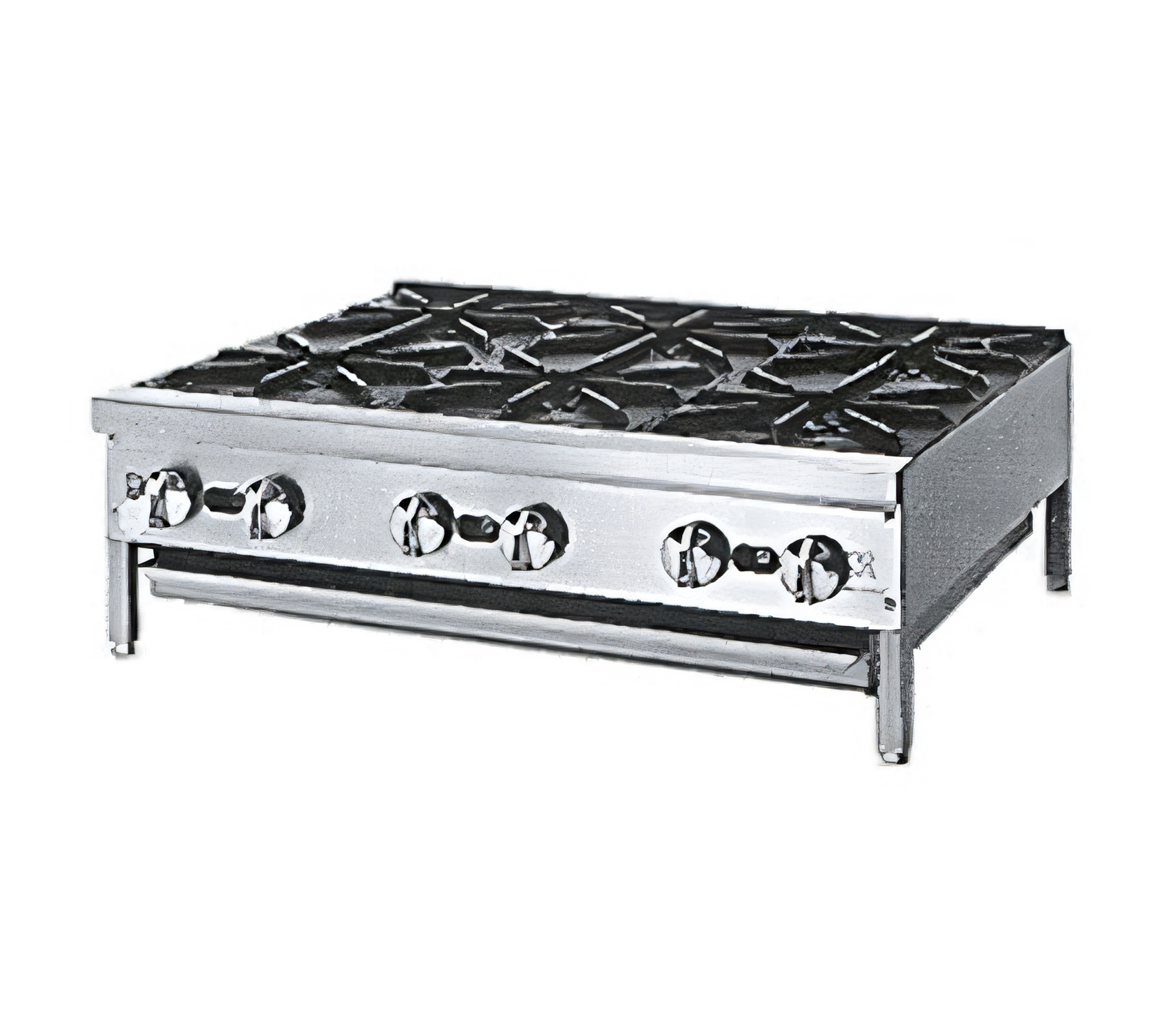

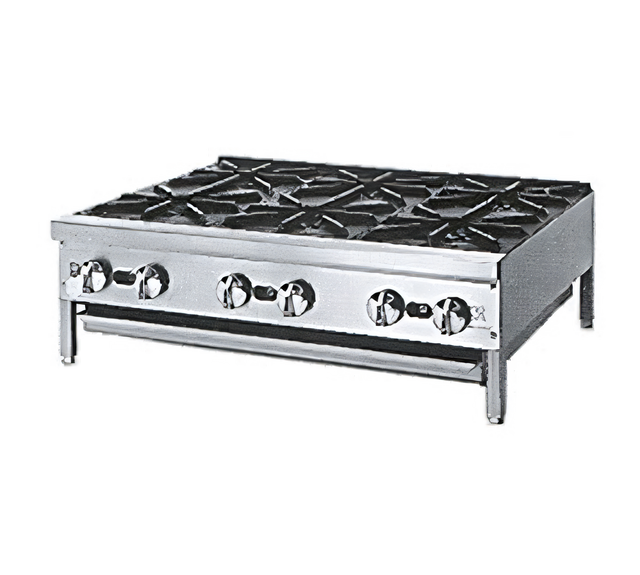

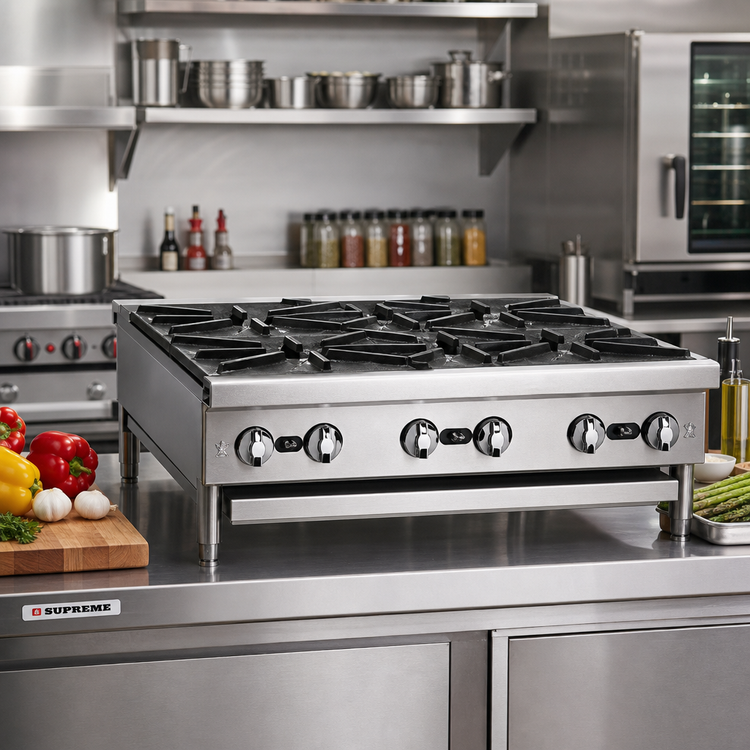

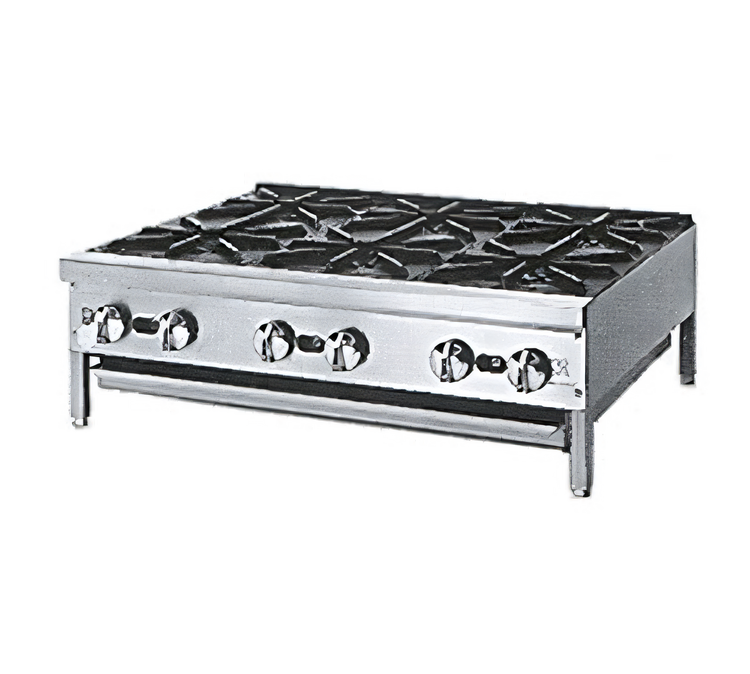

Supreme 36-Inch Commercial Countertop Gas Hot Plate with 6 Open Burners, 165,000 BTU

SKU: JHP-636
$3,875.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Hot Plates Commercial Ranges Hot Plates Jade Range (Middleby) New Arrivals Restaurant Equipment

Supreme 36-Inch Commercial Countertop Gas Hot Plate with 6 Open Burners, 165,000 BTU

Stainless Steel Sides, Front, and Plate Shelf; Infinite Manual Controls

Built for high-output line cooking, this 36-inch commercial gas hot plate delivers six independently controlled open burners and rugged stainless steel construction.

  • Six 27,500 BTU cast iron open burners deliver 165,000 BTU total for heavy-duty cooking power.
  • Infinite manual controls provide precise heat adjustment at each burner.
  • 14-gauge stainless steel construction with stainless steel sides, front, and plate shelf adds durability.
  • Lift-off cast iron top grates, stainless steel pilot tips, and a welded drip tray support easy service and cleanup.
  • 4-inch adjustable stainless steel legs and a supplied 3/4-inch gas regulator simplify installation.
  • NSF and CSAus listed for commercial kitchen use.

Overall Dimensions:

36.0"W x 27.0"D x 11.25"H

Product Weight:

220.0 lb

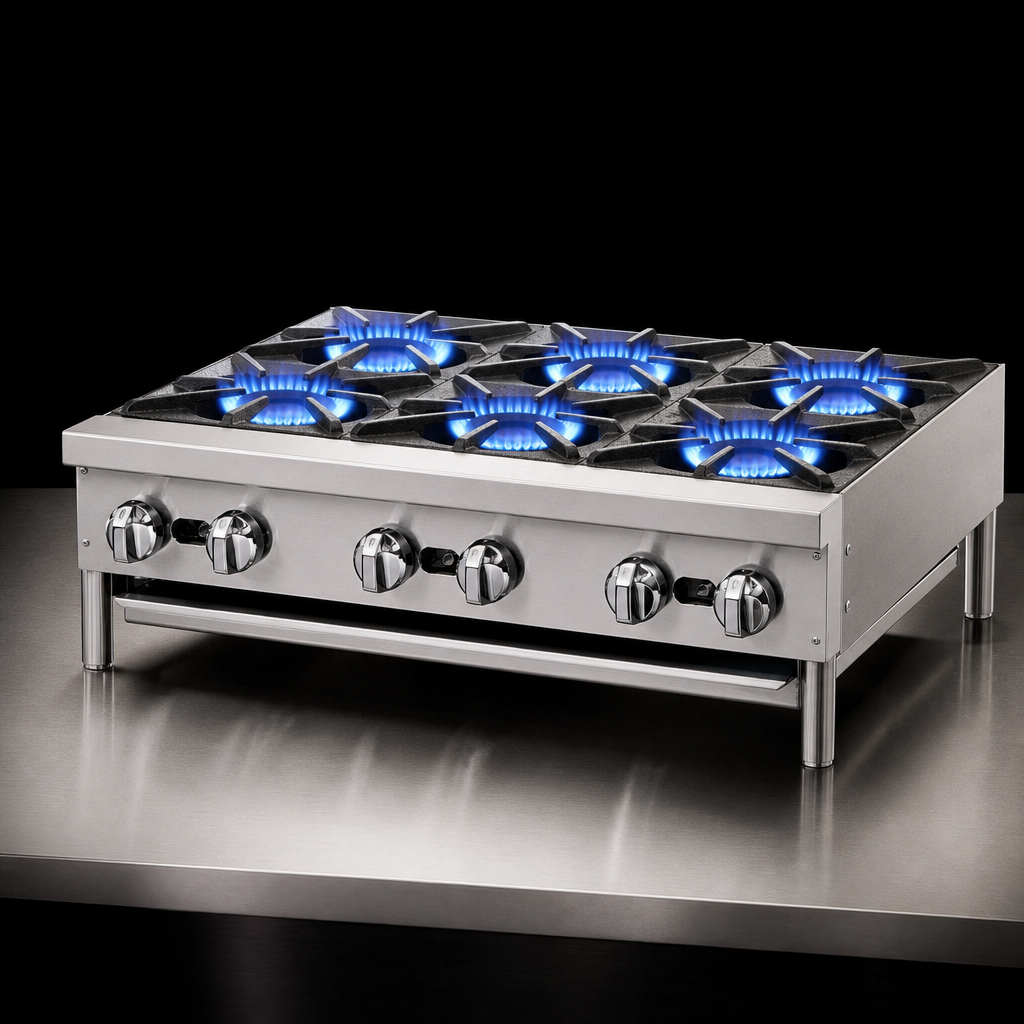

Six High-Output Open Burners

Six cast iron open burners deliver 27,500 BTU each for a 165,000 BTU total output.

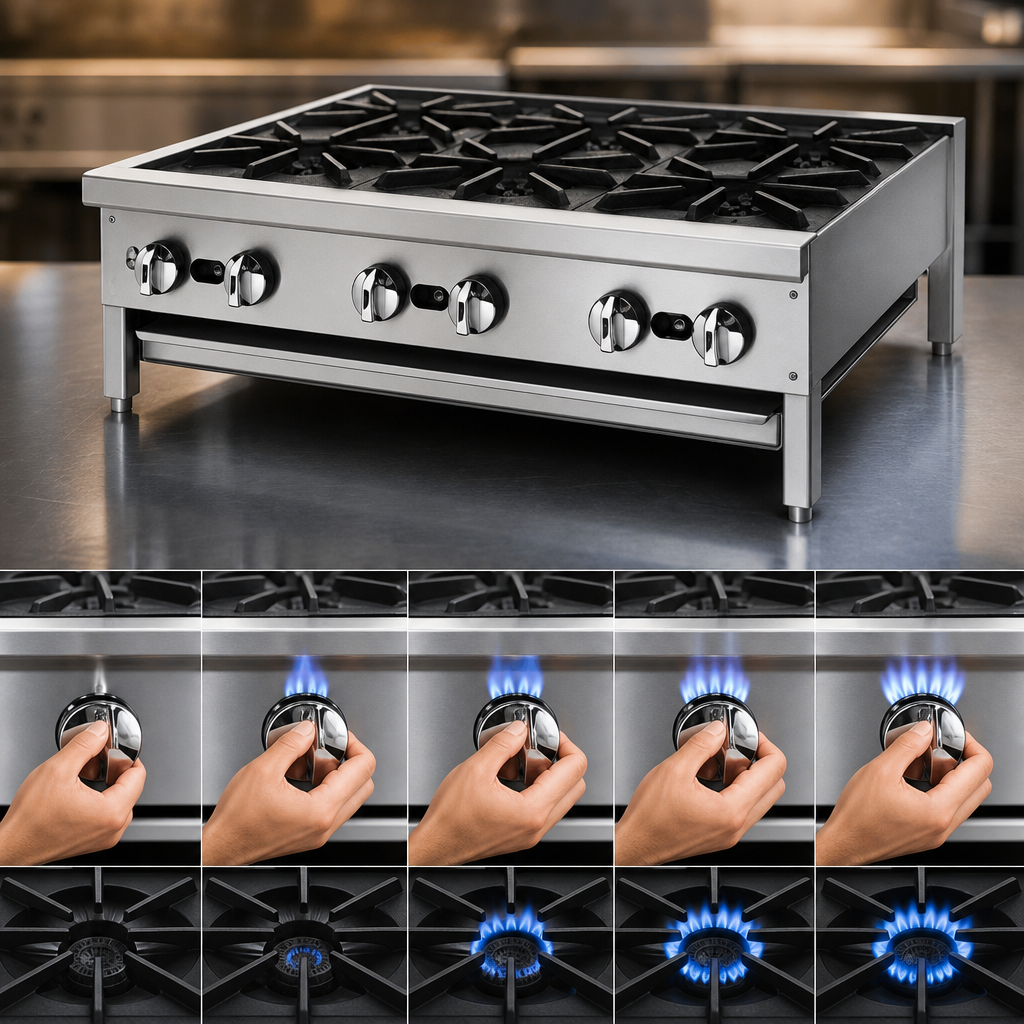

Infinite Manual Burner Controls

Each burner is controlled by an infinite manual gas valve for precise heat adjustment.

Stainless Steel Welded Construction

14-gauge all-welded stainless steel sides, front, and plate shelf are built for commercial durability.

Lift-Off Cast Iron Top Grates

Lift-off grates make the cooking surface easier to clean and maintain.

Corrosion-Resistant Pilot Tips

Stainless steel pilot tips and stainless steel gas tubing help resist corrosion.

High-Capacity Welded Drip Tray

A welded 14-gauge drip tray helps catch spills and supports easier cleanup.

Adjustable Stainless Steel Legs

4-inch adjustable stainless steel legs provide stable countertop support.

Gas Regulator Included

The unit ships with a 3/4-inch gas regulator.

NSF and CSAus Listed

Listed for use in commercial kitchen environments.

Type Hot Plate
Style Open Burner
Installation Type Countertop
Burners 6
Controls Infinite Manual
BTU 165,000 BTU
Material Stainless Steel
Finish Stainless Steel
Gas Connection Size 3/4 Inch
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 27 Inches
Shipping Height 12 Inches
Shipping Weight 220 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The standard JHP-636 is a countertop hot plate; floor models use the -F suffix.
It has six cast iron open burners.
The unit delivers 165,000 BTU total.
Specify natural gas or propane when ordering.
It requires a 3/4-inch gas connection. Natural gas requires 5 inches W.C. minimum; propane requires 10 inches W.C. minimum, with 14 inches W.C. maximum. The supplied regulator must be used.
