Jade Range (Middleby)

Supreme 24-Inch Countertop Gas Hot Plate with 4 Open Burners, 110,000 BTU

SKU: JHP-424
$2,785.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Hot Plates Commercial Ranges Hot Plates Jade Range (Middleby) New Arrivals Restaurant Equipment

Supreme 24-Inch Countertop Gas Hot Plate with 4 Open Burners, 110,000 BTU

Stainless Steel, Manual Controls, Standing Pilots

This compact 24-inch gas hot plate delivers four powerful open burners, precise manual heat control, and durable stainless steel construction for high-volume commercial cooking.

  • 24-inch countertop gas hot plate with 4 open burners.
  • 110,000 total BTU output, with 27,500 BTU per burner.
  • Infinite manual controls and standing pilots for reliable heat management.
  • Stainless steel sides, front, and plate shelf for durability and easy cleaning.
  • Includes lift-off cast iron top grates and a high-capacity welded drip tray.
  • 4-inch adjustable stainless steel legs help support stable countertop installation.
  • 3/4-inch gas connection with included regulator.

Overall Dimensions:

24.0"W x 27.0"D x 11.25"H

Product Weight:

150.0 lb

Four Open Burners

Equipped with four 27,500 BTU cast iron open burners for a total output of 110,000 BTU.

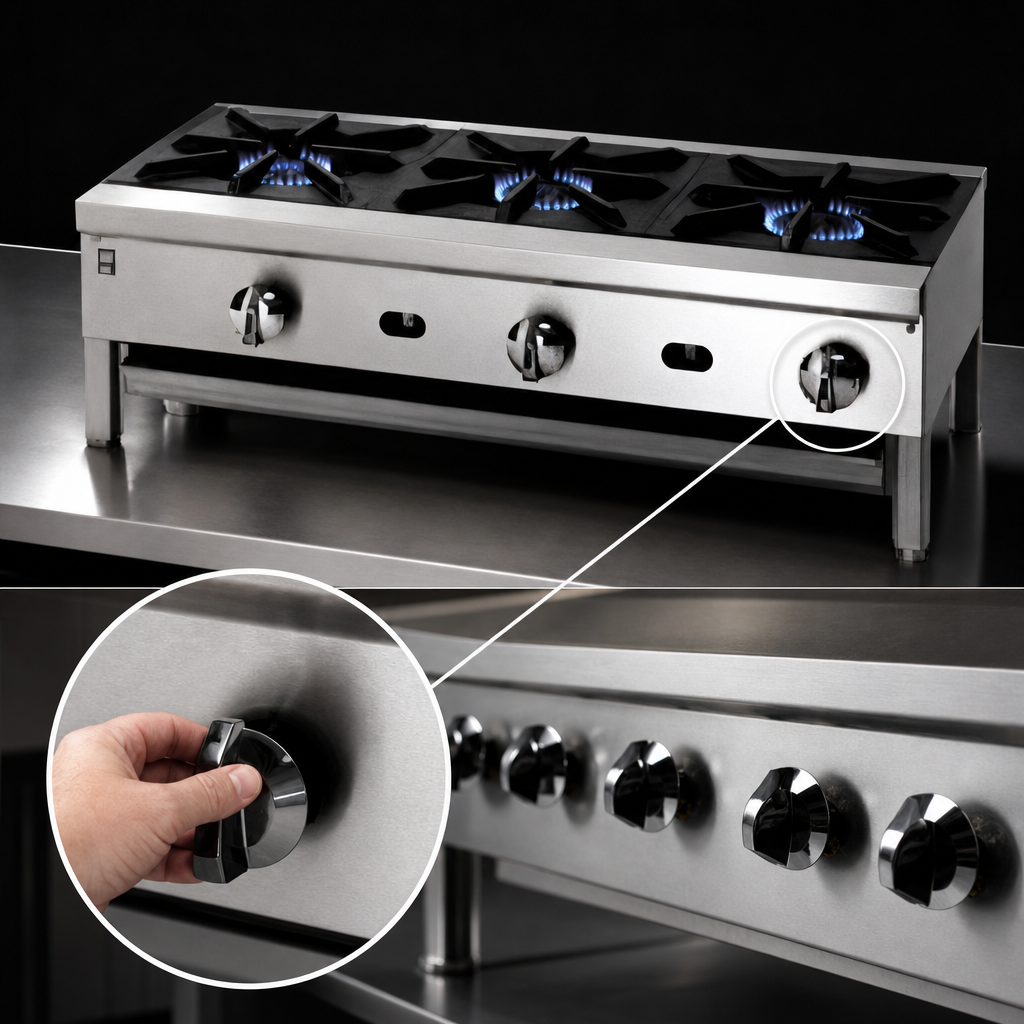

Infinite Manual Controls

Manual gas valves at each burner provide precise heat adjustment.

Standing Pilots

Standing pilot system helps provide dependable burner ignition and operation.

Stainless Steel Construction

Features stainless steel sides, front, plate shelf, and gas tubing throughout for durability.

Lift-Off Cast Iron Top Grates

12-inch lift-off cast iron grates make cleaning and maintenance easier.

Welded Drip Tray

High-capacity 14-gauge welded drip tray helps capture spills and drips.

Adjustable Stainless Steel Legs

4-inch adjustable stainless steel legs support stable installation.

Gas Regulator Included

Supplied with a 3/4-inch gas regulator for proper connection.

Type Hot Plate
Style Open Burner
Installation Type Countertop
Controls Manual
Burners 4
BTU 110,000 BTU
Material Stainless Steel
Gas Connection Size 3/4 Inch
Gas Inlet Pressure 5 Inches W.C. Minimum (Natural Gas) / 10 Inches W.C. Minimum (Propane), 14 Inches W.C. Maximum
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 27 Inches
Shipping Height 12 Inches
Shipping Weight 150 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This JHP-424 is a countertop model. Floor models use a "-F" suffix on the model number.
It has 4 open burners.
The unit has a total output of 110,000 BTU.
It uses a 3/4-inch gas connection. Natural gas requires 5 inches W.C. minimum, while propane requires 10 inches W.C. minimum; maximum pressure is 14 inches W.C.
Yes. A 3/4-inch gas regulator is included, and the unit must be connected with the supplied regulator.
