Supreme JHP-424-F 24-Inch 4-Burner Gas Floor Model Open Burner Hot Plate

110,000 BTU Total, Stainless Steel Construction, With Undershelf

Built for high-output commercial cooking, this 24-inch floor-model hot plate delivers four 27,500 BTU open burners with precise manual control and durable stainless steel construction.

  • Four cast iron open burners deliver 110,000 BTU total for demanding kitchen production.
  • Infinite manual gas valves provide precise heat control at each burner.
  • Stainless steel sides, front, plate shelf, tubing, and legs support durability and easy cleanup.
  • Standing pilots and lift-off cast iron grates help simplify ignition and maintenance.
  • Floor model includes 25-inch legs and an open undershelf for a stable freestanding setup.
  • 3/4-inch gas connection and supplied regulator support installation; gas type is specified when ordering.

Overall Dimensions:

24.0"W x 27.0"D x 36.0"H

Product Weight:

150.0 lb

Four 27,500 BTU Burners

Delivers 110,000 BTU total with four cast iron open burners for high-volume cooking.

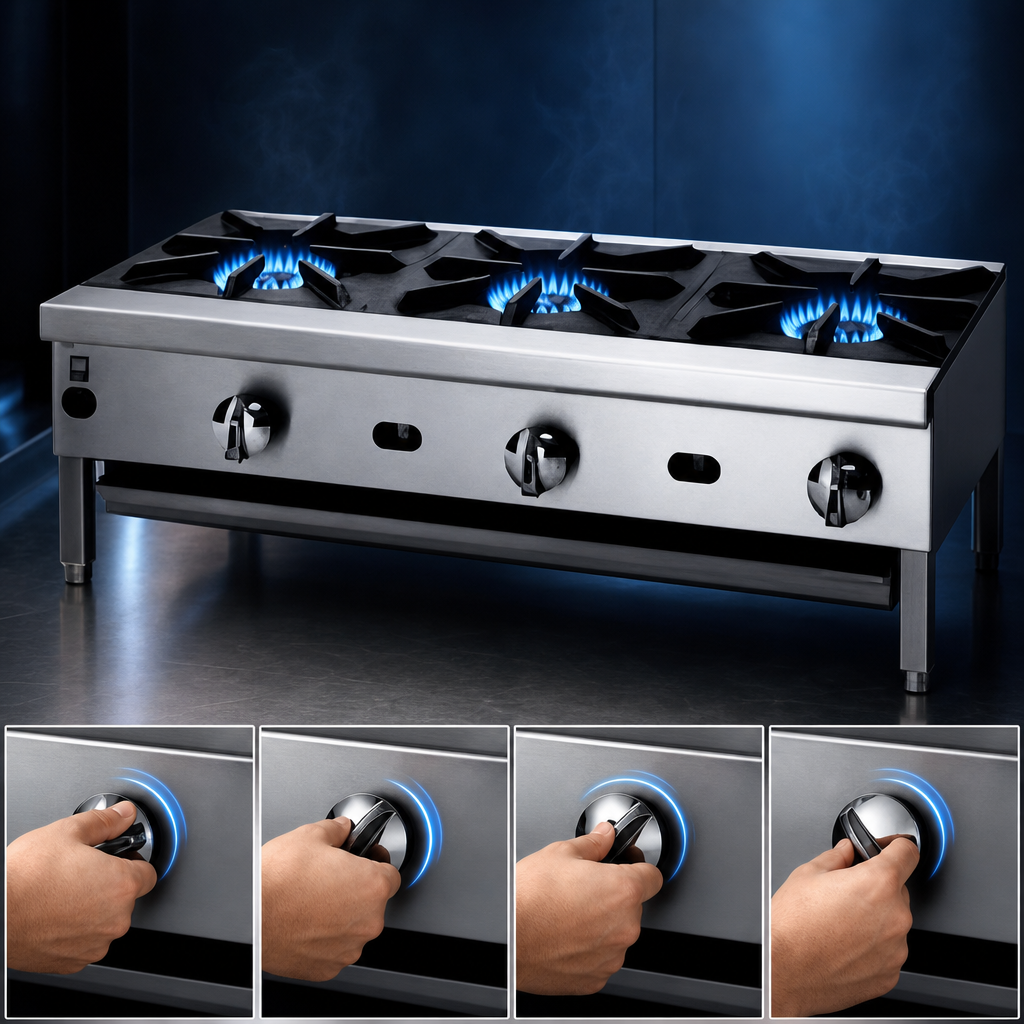

Infinite Manual Controls

Individual gas valves provide precise, responsive heat adjustment at each burner.

Stainless Steel Construction

Stainless steel sides, front, plate shelf, gas tubing, and legs help resist wear and simplify cleanup.

Standing Pilots

Each burner includes a stainless steel pilot tip for reliable ignition and corrosion resistance.

Lift-Off Cast Iron Grates

12-inch lift-off grates make access, cleaning, and maintenance easier.

Welded Drip Tray

A high-capacity 14-gauge welded drip tray helps catch spills during service.

Floor Model Base

25-inch legs and an open undershelf provide a sturdy freestanding setup.

Gas Connection

Supplied with a 3/4-inch gas regulator; gas type must be specified when ordering.

Type Hot Plate
Style Open Burner
Installation Type Floor Model
Burner Quantity 4
Burner BTU 27,500 BTU Each
BTU 110,000 BTU
Controls Infinite Manual
Material Stainless Steel
Gas Connection Size 3/4 Inch
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 27 Inches
Shipping Height 36 Inches
Shipping Weight 150 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has four cast iron open burners, each rated at 27,500 BTU.
This unit is a floor model; the "-F" suffix indicates floor model construction.
Specify natural gas or propane when ordering.
It uses a 3/4-inch gas connection. Required operating pressure is 5 inches W.C. minimum for natural gas, 10 inches W.C. minimum for propane, and 14 inches W.C. maximum.
Standard features include stainless steel construction, standing pilots, lift-off cast iron grates, a welded drip tray, and a 3/4-inch gas regulator.
