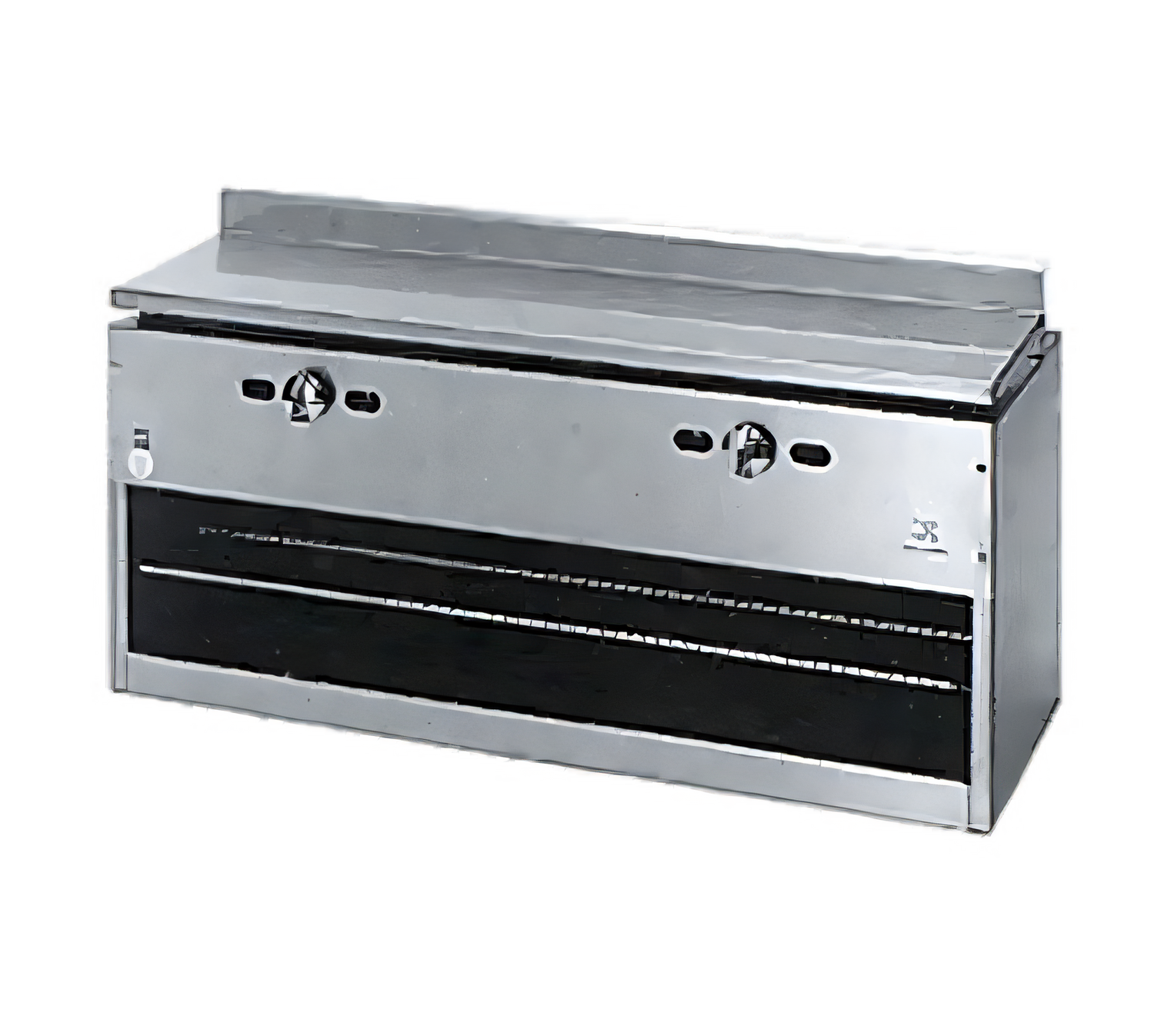

Titan JCM-36 36" Gas Infrared Wall Mount Cheesemelter

36-Inch Width, Infrared Heat, Manual Controls, Standing Pilot

Deliver perfectly melted cheese and sauces with the powerful and versatile Titan JCM-36 gas infrared cheesemelter, designed for efficient wall-mounted operation.

  • 36-inch wide cooking area ideal for various melting and warming tasks.
  • High-power infrared burner provides fast and efficient heating.
  • Durable 14 gauge all-welded stainless steel construction ensures longevity in commercial settings.
  • Heavy-duty wall mount brackets save valuable counter space.
  • Features a 3-position rack guide for flexible cooking options.
  • Equipped with infinite manual controls for precise temperature adjustment.
  • Includes a 3/4 inch gas regulator (shipped loose) for proper and safe operation.

Overall Dimensions:

36.0"W x 17.5"D x 22.25"H

Product Weight:

160.0 lb

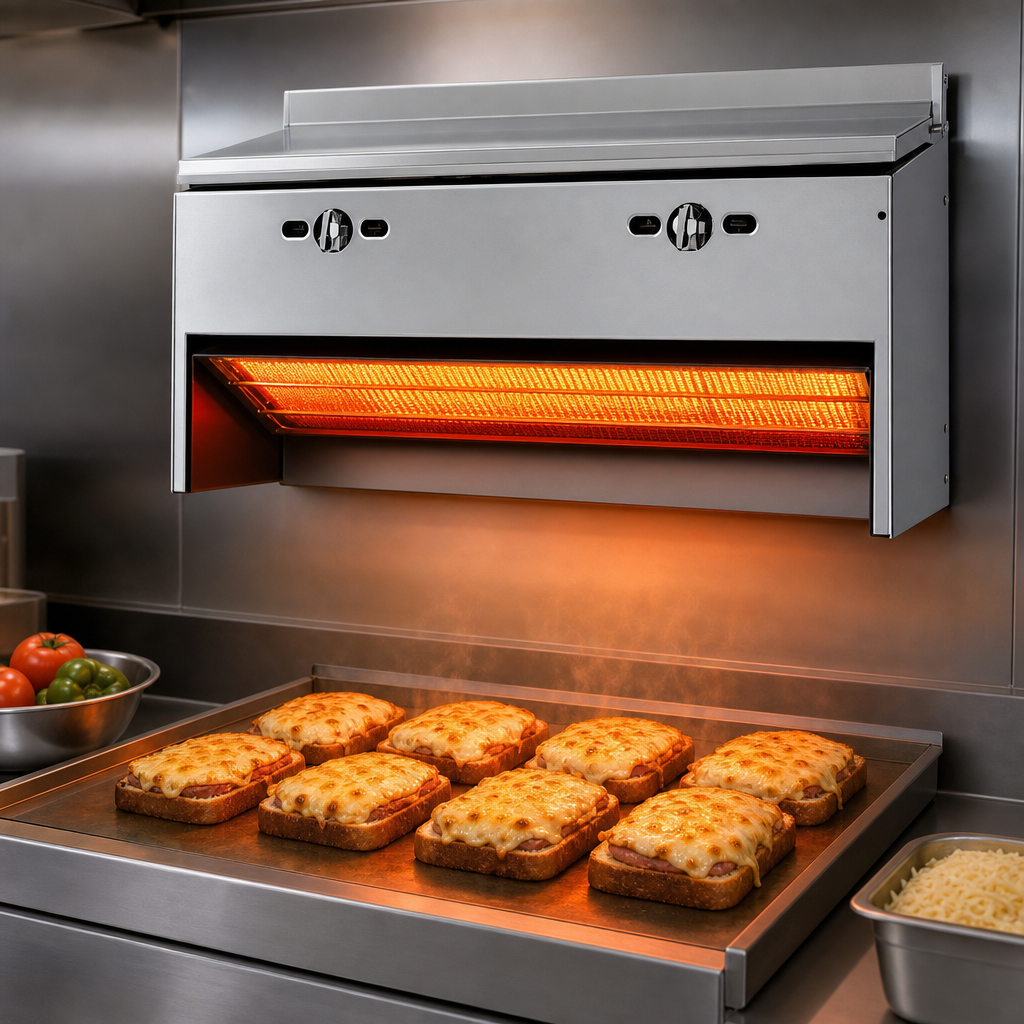

High Power Infrared Burner

Utilizes a single high-power infrared burner to ensure quick and even heating for consistent results across the entire cooking surface.

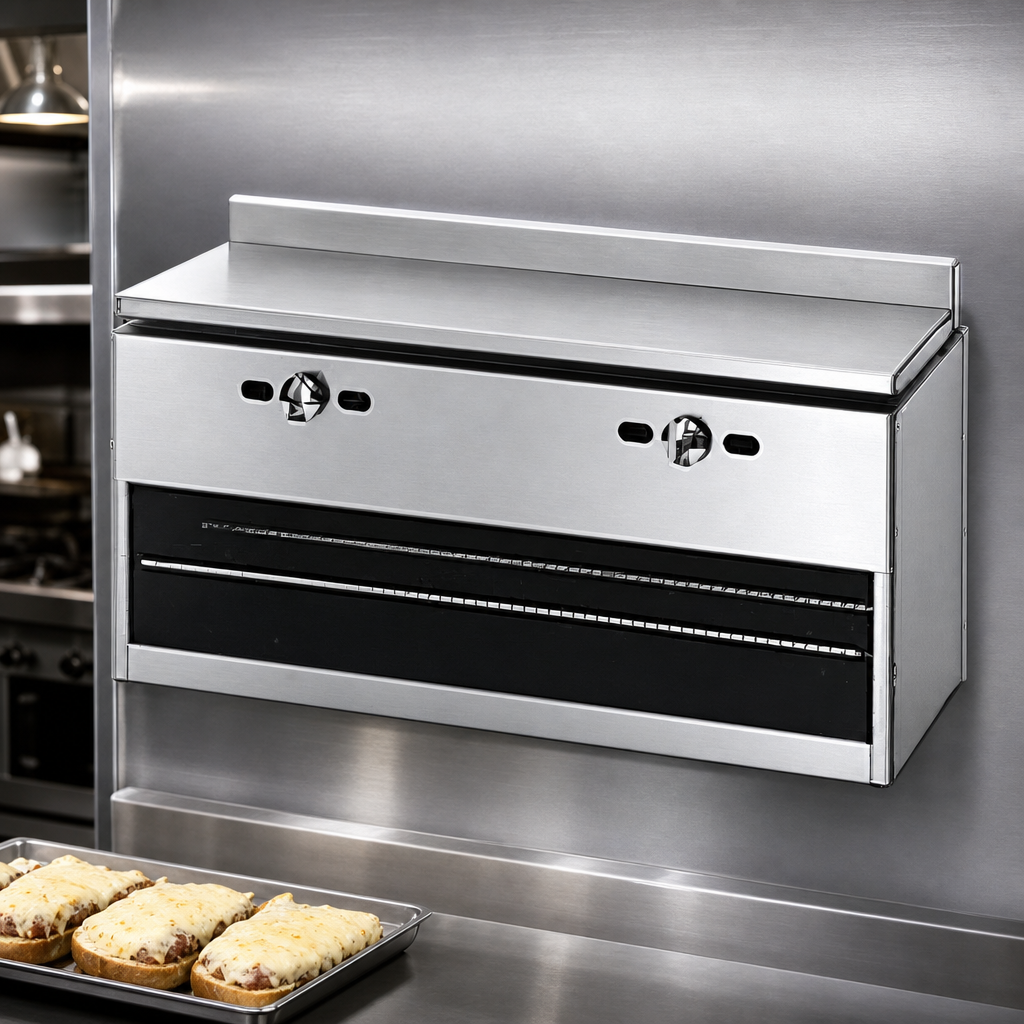

Durable Stainless Steel Construction

Built with 14 gauge all-welded stainless steel for the front, sides, top, and bottom, offering exceptional durability and easy cleaning.

Insulated Bottom Shelf

A 2-inch thick insulated bottom shelf helps maintain internal temperatures and improve overall energy efficiency.

Heavy Gauge Wall Mount Brackets

Supplied with robust, heavy gauge wall mount brackets, allowing for secure installation and freeing up valuable counter space.

3-Position Rack Guide

Offers flexibility to adjust the rack height to one of three positions, accommodating various melting, warming, and finishing applications.

Infinite Manual Controls

Provides operators with precise, infinite manual control over the burner, allowing for fine-tuning of heat levels.

Standing Pilot

Features a reliable standing pilot system, ensuring quick and easy ignition of the burner whenever needed.

Gas Regulator Included

A 3/4 inch gas regulator is shipped loose with the unit and must be installed for proper and safe operation, connecting to a 3/4 inch NPT gas connection.

Type Cheesemelter
Style Infrared
Installation Type Wall Mounted
Width 36 Inches
Depth 17.5 Inches
Height 22.25 Inches
Weight 160 lb.
Shipping Width 36 Inches
Shipping Depth 18 Inches
Shipping Height 23 Inches
Shipping Weight 160 lb.
BTU 30,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. Minimum
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. Minimum
Gas Inlet Pressure (Maximum) 14 Inches W.C.
Burners 1
Controls Infinite Manual
Rack Positions 3
Material Stainless Steel
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JCM-36 cheesemelter can operate on either Natural Gas or Propane. The specific gas type must be specified when ordering to ensure the correct setup.
The required operating pressure is a minimum of 5 inches W.C. for Natural Gas and 10 inches W.C. for Propane Gas. The maximum allowable pressure for both is 14 inches W.C.
Yes, a 3/4 inch gas regulator is supplied with the unit. It is shipped loose and must be installed for proper and safe operation.
The JCM-36 cheesemelter is equipped with a 3-position rack guide, allowing for flexible adjustment of the rack height for different applications.
Yes, the JCM-36 has an optional 'RM' configuration for range mounting. When range mounting on Titan™ equipment, a separate riser must also be ordered.
The JCM-36 is constructed from durable 14 gauge all-welded stainless steel for the front, sides, top, and bottom, with stainless steel gas tubing throughout.
