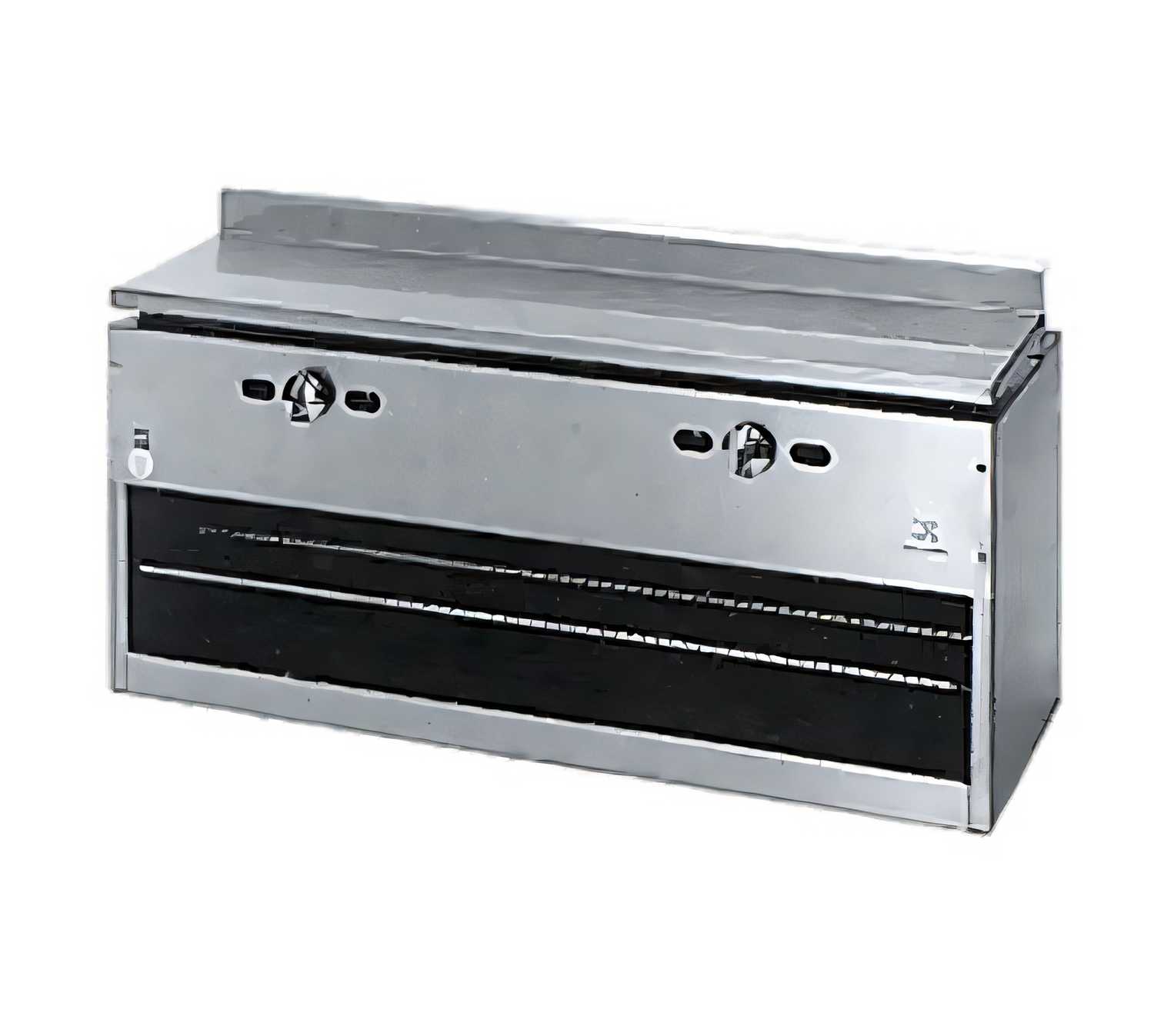

Titan™ JCM-36 36" Gas Range Mount Cheesemelter with Infrared Burners

36 Inch, Natural Gas Ready, Infrared Burners, 3-Position Rack

The Titan™ JCM-36 gas cheesemelter provides powerful infrared heating and versatile range-mount installation for efficient finishing and melting in commercial kitchens.

  • Efficient 30,000 BTU infrared burner for quick melting, broiling, and finishing of food.
  • Durable 14 gauge all-welded stainless steel construction ensures commercial longevity.
  • Features a 3-position rack guide for precise control over cooking distance and temperature.
  • Specifically designed for range-mount installation, integrating seamlessly with existing kitchen setups.
  • Includes a riser for proper range-mount configuration and a 3/4" gas regulator for safe operation.

Overall Dimensions:

36.0"W x 17.5"D

Product Weight:

270.0 lb

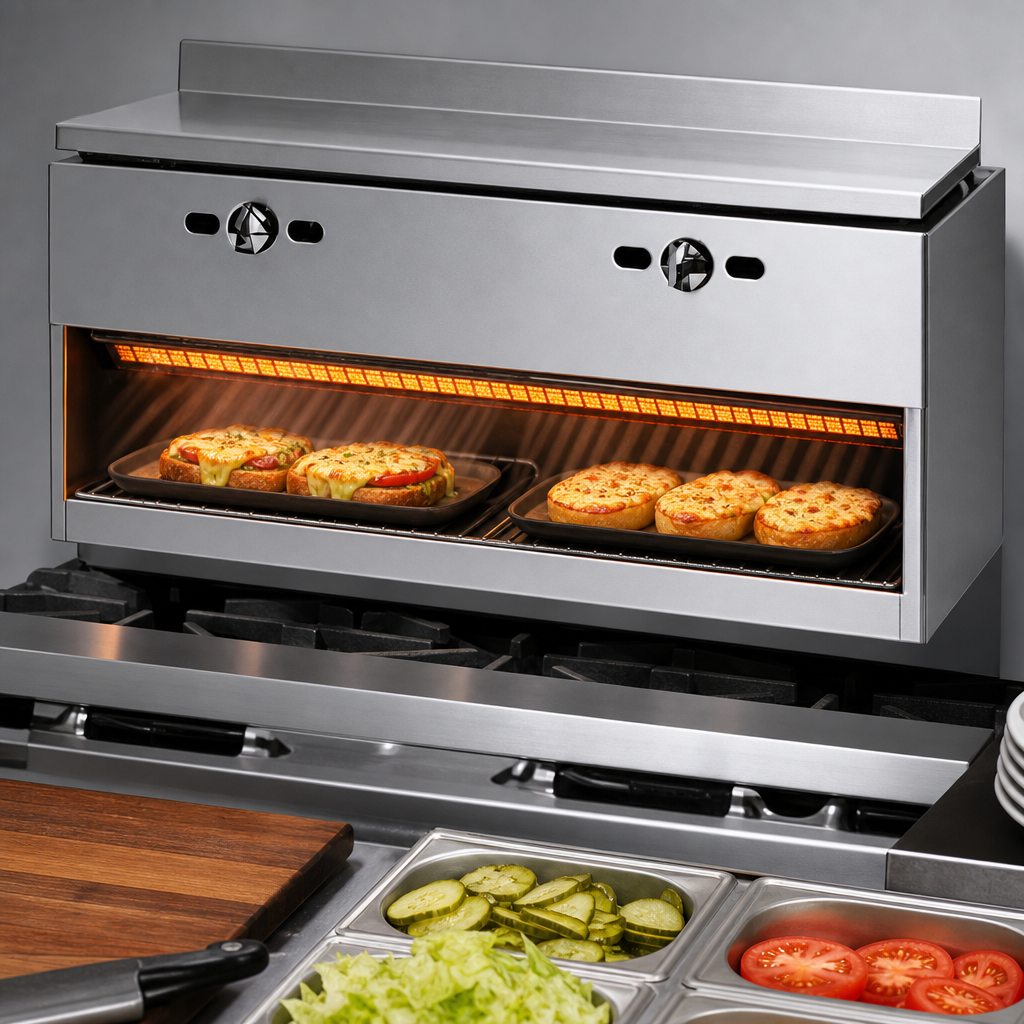

High Power Infrared Burners

Equipped with one high-power infrared burner and a stainless steel pilot, delivering intense, even heat for rapid melting, broiling, and warming of various food items.

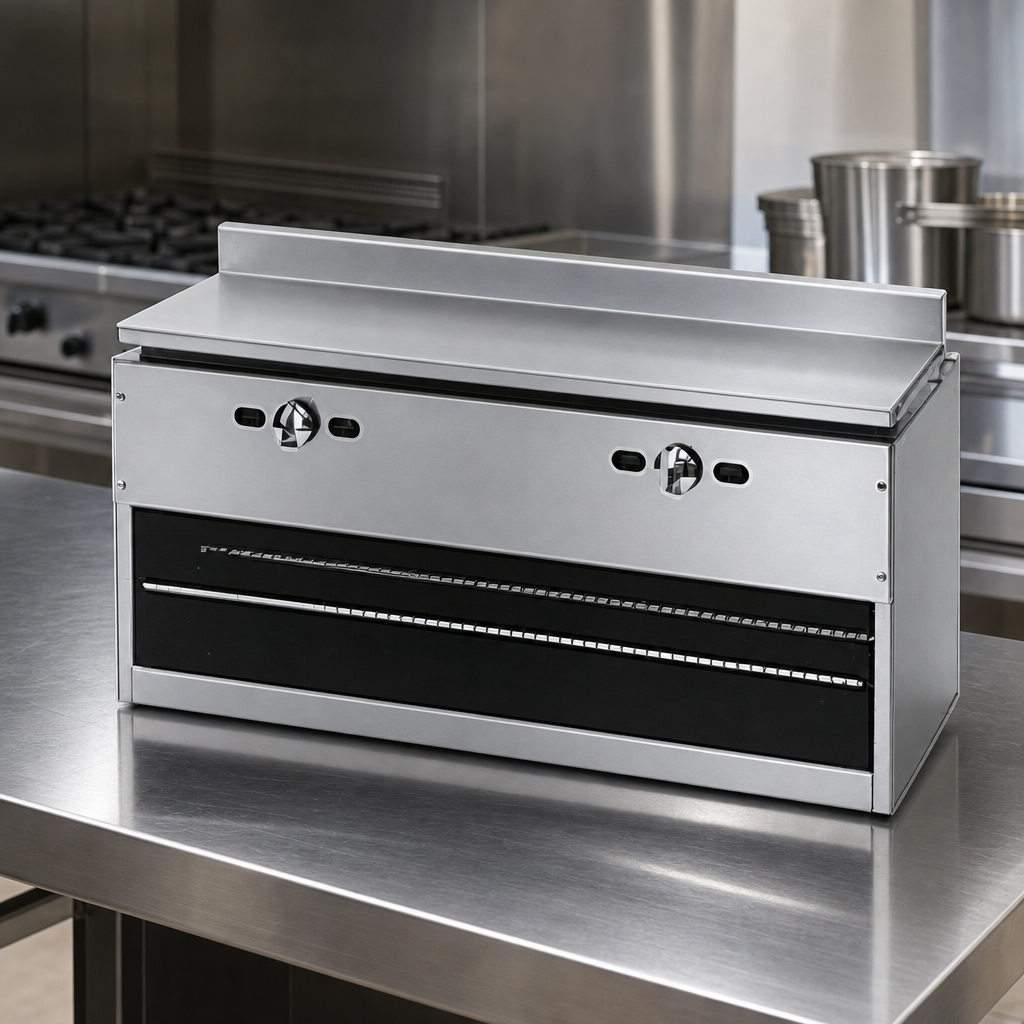

Durable Stainless Steel Construction

Built with 14 gauge all-welded construction, featuring a stainless steel front, sides, top, and bottom for superior durability, corrosion resistance, and easy cleaning in demanding commercial environments.

3-Position Rack Guide

Allows operators to adjust the rack height to three different positions, providing precise control over the distance from the heat source for optimal cooking results and flexibility.

Insulated Bottom Shelf

Includes a 2" thick insulated bottom shelf designed to help maintain temperature efficiency and protect surfaces below the unit from excessive heat.

Infinite Manual Controls

Features infinite manual controls, allowing chefs to finely tune the heat output for desired results, from delicate warming to aggressive broiling.

Range Mount Design with Riser

Designed specifically for range-mount installation, making it ideal for kitchens looking to save counter space. The unit includes a riser for proper integration with existing range equipment.

3/4" Gas Regulator Included

A 3/4" gas regulator is shipped loose with the unit and must be installed to ensure safe and proper operation according to gas pressure requirements.

Standing Pilot System

Utilizes a standing pilot system with one stainless steel pilot tip per burner, ensuring reliable and immediate ignition.

Type Cheesemelter
Installation Type Range Mount (With Riser)
Gas Type Natural Gas or Propane
BTU 30,000 BTU
Burners 1 Infrared
Controls Infinite Manual
Rack Positions 3
Gas Connection Size 3/4"
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. Minimum
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. Minimum
Gas Inlet Pressure (Maximum) 14 Inches W.C.
Material Stainless Steel
Interior Finish Stainless Steel (Optional)
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 18 Inches
Shipping Height 21.25 Inches
Shipping Weight 270 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer reserves the right to change materials and specifications without notice.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JCM-36 RMT cheesemelter is designed for use with either Natural Gas or Propane. Users must specify the type of gas when ordering to ensure proper configuration.
The required operating pressure for natural gas is 5 inches W.C. minimum, and for propane gas, it is 10 inches W.C. minimum. The maximum operating pressure for both gas types is 14 inches W.C.
Yes, a 3/4" gas regulator is supplied with the unit, shipped loose. It is crucial that this regulator is installed for the cheesemelter to operate safely and correctly.
The JCM-36 RMT is specifically designed for range-mount installation, which means it is intended to be placed on top of a commercial range. It includes a riser to facilitate proper mounting and integration.
Yes, if the installation location is above 2,000 feet, you must specify the altitude when ordering. This ensures the unit is configured appropriately for optimal performance at higher elevations.
The cheesemelter features 14 gauge all-welded construction with a stainless steel front, sides, top, and bottom, ensuring durability and ease of cleaning.
