Jade Range (Middleby)

Titan 24-Inch Wall-Mount Stainless Steel Gas Cheesemelter with Single Infrared Burner, 20,000 BTU

SKU: JCM-24
$4,700.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Broilers Charbroilers & Grills Cheese Melters Cheesemelters Jade Range (Middleby) New Arrivals Restaurant Equipment

Titan 24-Inch Wall-Mount Stainless Steel Gas Cheesemelter with Single Infrared Burner, 20,000 BTU

Infinite Manual Controls, Standing Pilot, 3-Position Rack Guide

A compact 24-inch wall-mounted cheesemelter that delivers 20,000 BTU of infrared heat in a rugged stainless steel build.

  • 24-inch wall-mount gas cheesemelter designed for fast melting and finishing.
  • High-power infrared burner delivers direct, focused heat.
  • Infinite manual controls and a standing pilot support simple operation.
  • 3-position rack guide helps adjust product placement for better results.
  • Durable stainless steel construction with heavy gauge wall brackets.
  • 2-inch insulated bottom shelf helps retain heat and protect the unit below.

Overall Dimensions:

24.0"W x 17.5"D x 22.25"H

Product Weight:

105.0 lb

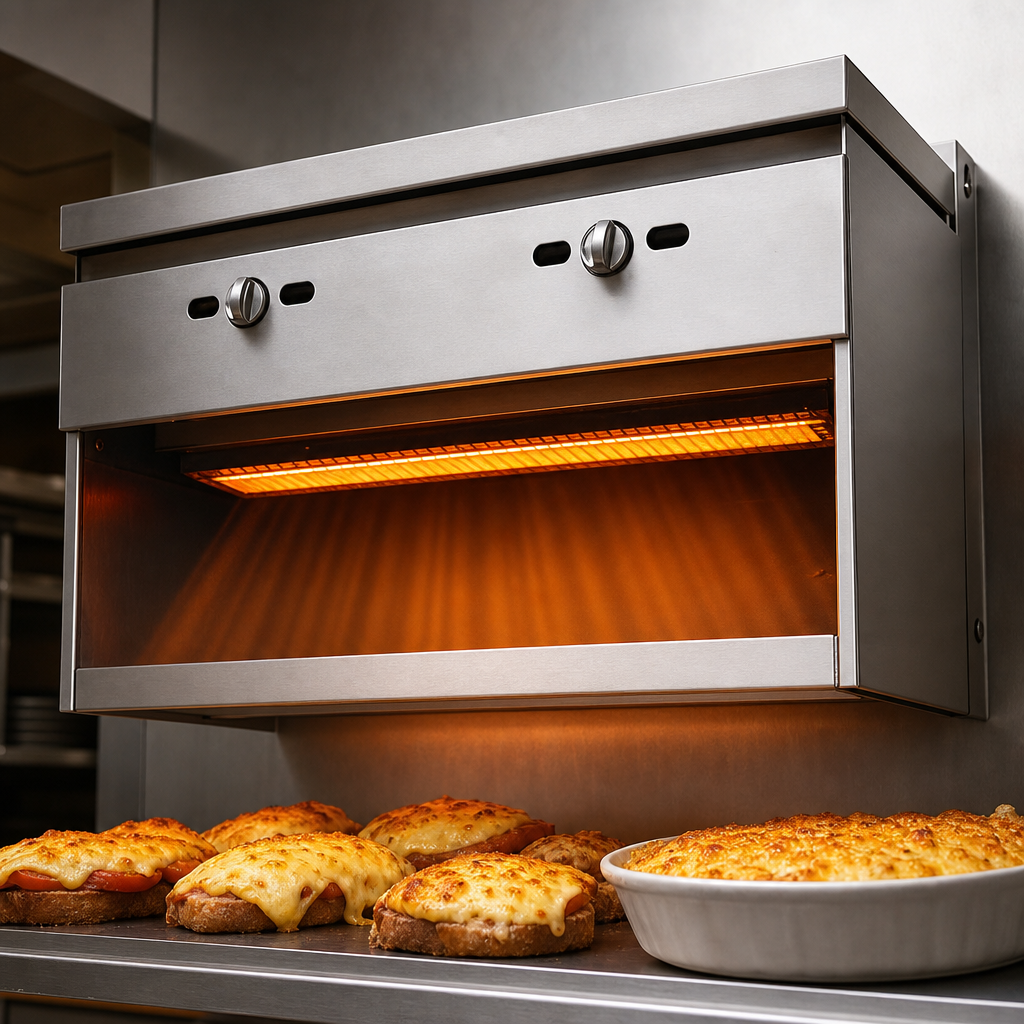

High-Power Infrared Burner

Delivers intense radiant heat for quick melting, browning, and finishing.

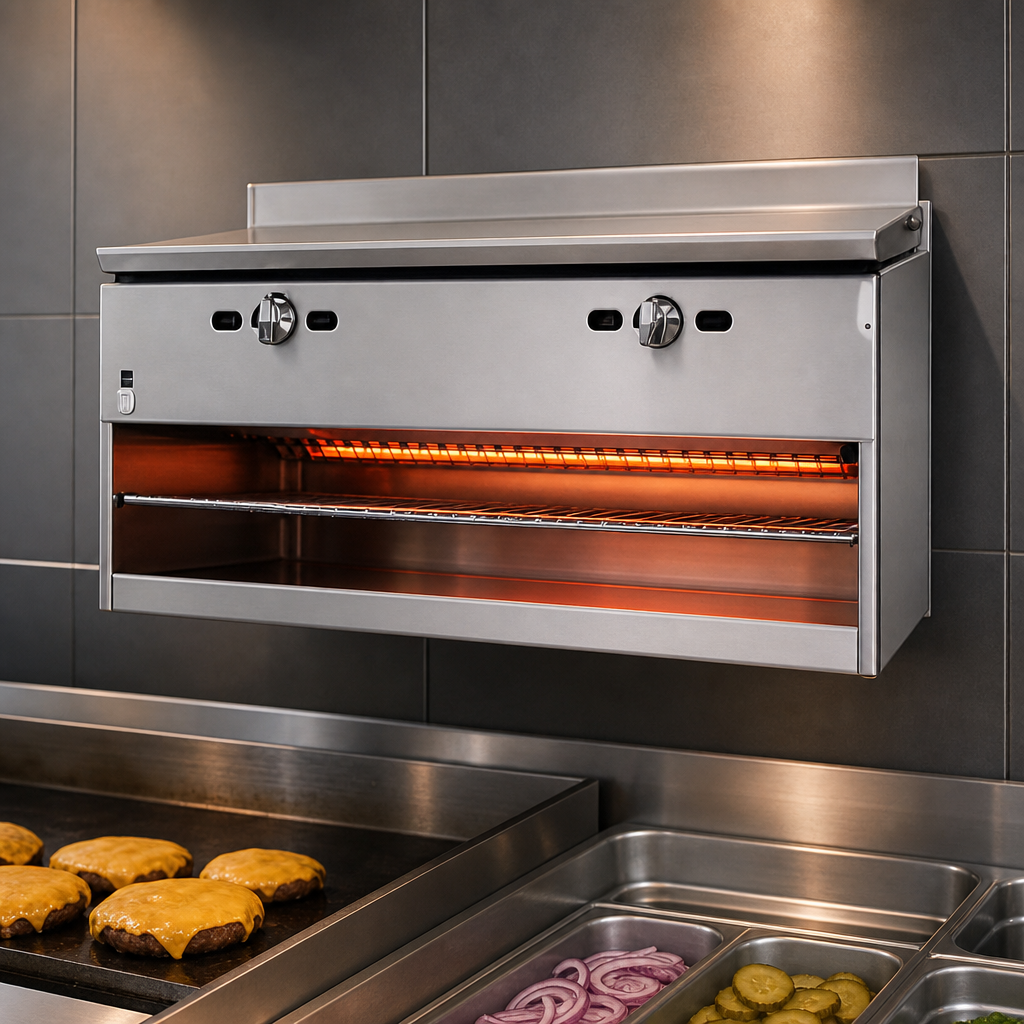

Standing Pilot

Keeps the unit ready for service and simplifies startup.

Infinite Manual Controls

Allows precise heat adjustment during operation.

3-Position Rack Guide

Provides adjustable rack placement for different product heights.

2-Inch Insulated Bottom Shelf

Helps retain heat and adds insulation beneath the cooking area.

Stainless Steel Construction

Front, sides, top, and bottom are stainless steel for durability and easy cleaning.

Heavy Gauge Wall Brackets

Supports secure wall-mounted installation.

Stainless Steel Gas Tubing Throughout

Durable gas routing throughout the unit.

3/4-Inch Gas Regulator

Supplied with the unit and must be installed for proper operation.

14-Gauge All-Welded Construction

Built for commercial durability and long-term use.

Type Cheesemelter
Style Infrared
Installation Type Wall Mounted
Controls Infinite Manual
Material Stainless Steel
BTU 20,000 BTU
Burners 1
Rack Positions 3
Gas Connection Size 3/4 Inch
Gas Inlet Pressure 5 Inches W.C. Minimum (Natural Gas); 10 Inches W.C. Minimum (Propane); 14 Inches W.C. Maximum
Shipping Width 24 Inches
Shipping Depth 18 Inches
Shipping Height 23 Inches
Shipping Weight 105 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. It is designed for wall-mounted installation and uses heavy gauge wall brackets.
Specify the gas type when ordering. The documentation lists both natural gas and propane options.
Natural gas requires 5 inches W.C. minimum, propane requires 10 inches W.C. minimum, and maximum operating pressure is 14 inches W.C.
It includes a 3-position rack guide.
Yes. A 3/4-inch gas regulator is supplied with the unit and must be installed for proper operation.
Yes. The documentation shows pass-through and range-mount options available by model suffix, and range mounting requires a riser.
