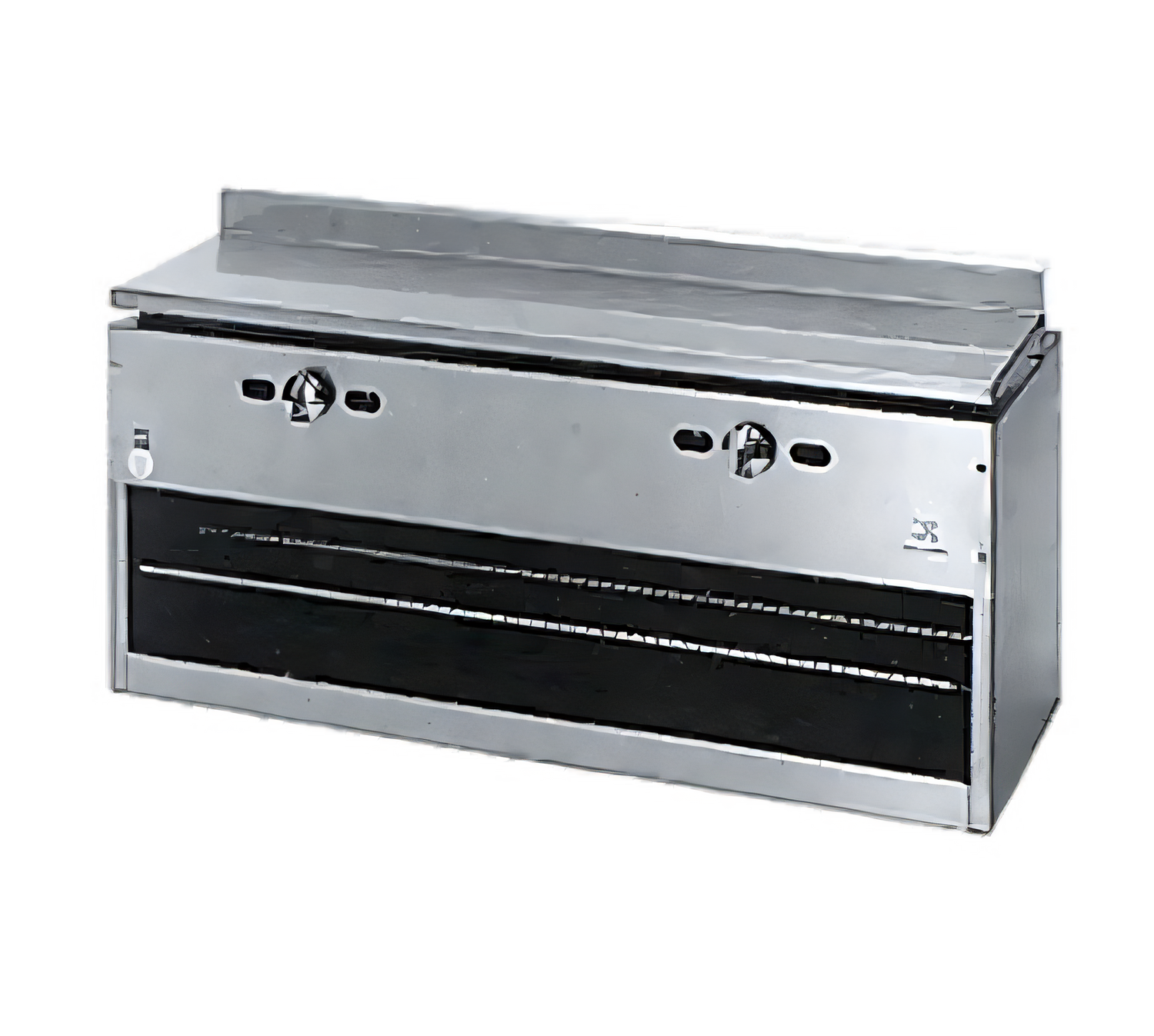

Titan JCM-120 120-Inch Gas Infrared Wall Mount Cheesemelter

120-Inch, Gas, Wall Mount, 5 Infrared Burners, 100,000 BTU

Ideal for high-volume commercial kitchens, the Titan JCM-120 cheesemelter provides powerful infrared heat and a spacious 120-inch width for consistent, efficient melting and finishing.

  • High-power infrared burners deliver rapid and even heat distribution for superior melting.
  • Durable 14 gauge all-welded stainless steel construction ensures longevity and easy cleaning.
  • Wall-mounted design saves valuable counter space in busy kitchen environments.
  • Features a 3-position rack guide for versatile cooking and holding options.
  • Insulated bottom shelf helps maintain temperature and energy efficiency.
  • Equipped with infinite manual controls and a standing pilot for reliable operation.

High Power Infrared Burners

Utilizes high-power infrared burners to ensure quick and consistent melting and browning.

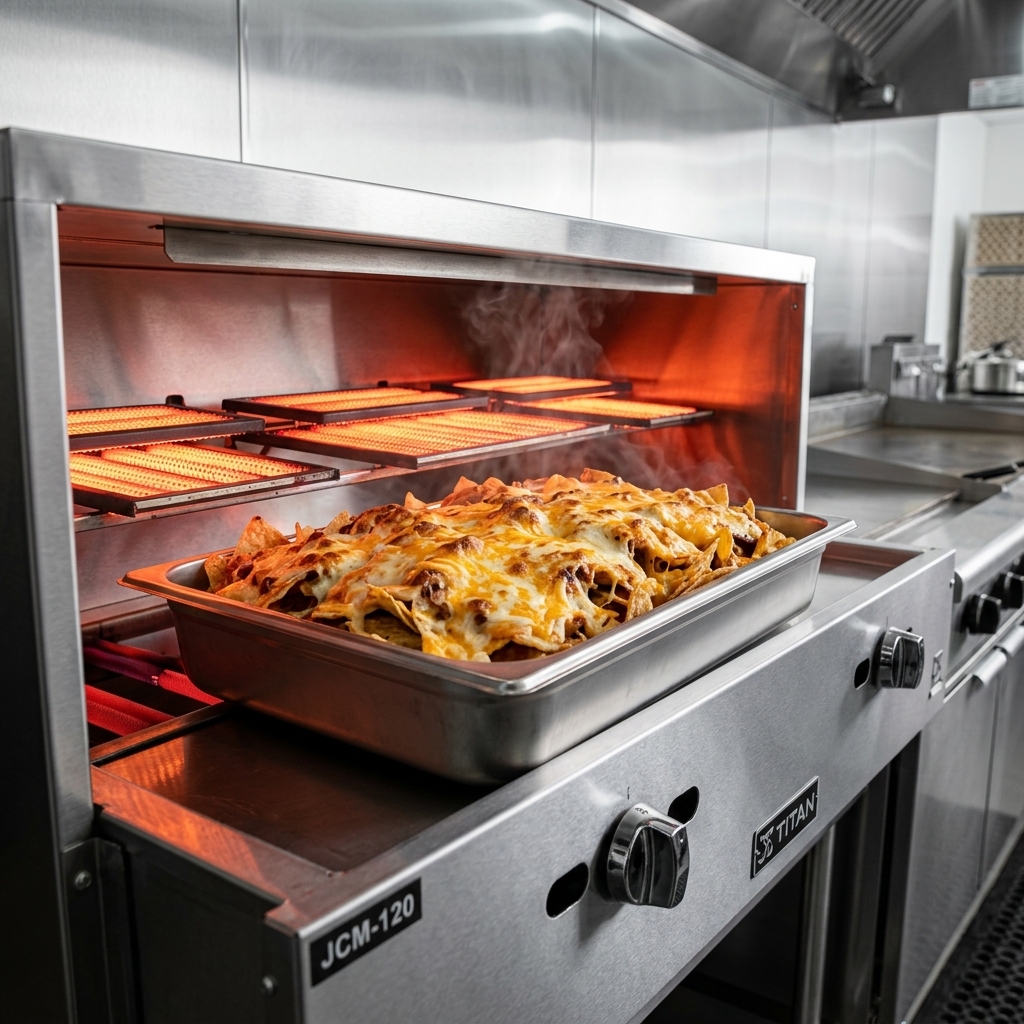

Experience rapid melting and consistent browning with the powerful infrared burners of this commercial cheesemelter.

Durable Stainless Steel Construction

Constructed from 14 gauge all-welded stainless steel on the front, sides, top, and bottom for exceptional durability and hygiene.

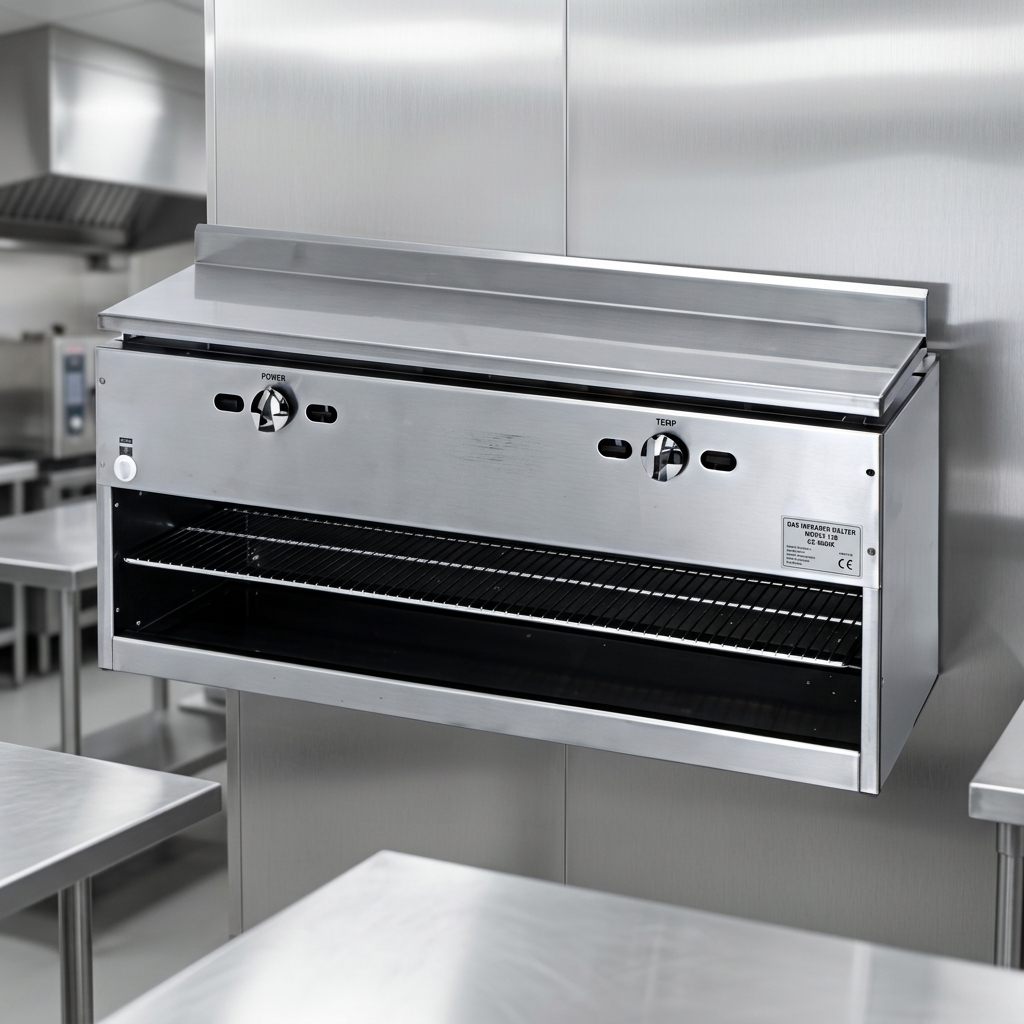

Observe the exceptional durability and hygiene of this 120-inch cheesemelter, meticulously crafted from 14-gauge all-welded stainless steel.

Insulated Bottom Shelf

Features a 2-inch thick insulated bottom shelf to improve heat retention and energy efficiency.

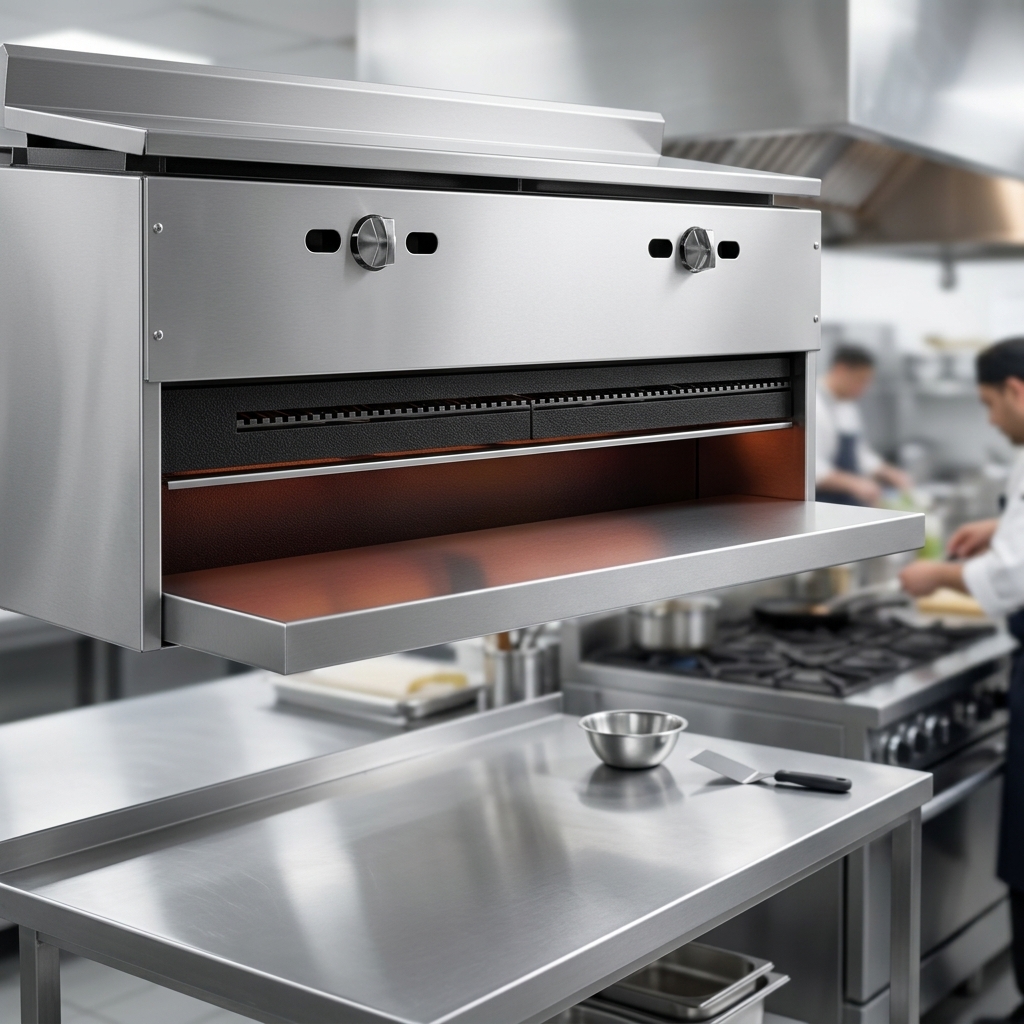

This image highlights the cheesemelter's 2-inch thick insulated bottom shelf, engineered for superior heat retention and energy efficiency.

Wall Mount Brackets

Comes with heavy gauge wall mount brackets for secure and space-saving installation.

3-Position Rack Guide

Includes a versatile 3-position rack guide, allowing for flexible height adjustments based on menu items.

Infinite Manual Controls

Equipped with infinite manual controls for precise and flexible temperature management.

Standing Pilot

Features a standing pilot ignition system for immediate and reliable burner activation.

Gas Regulator Included

A 3/4 inch gas regulator is supplied loose and must be installed for proper and safe operation.

Specifications

Type Cheesemelter
Style Infrared
Installation Type Wall Mounted
BTU 100,000 BTU
Gas Type Natural Gas or Propane (Specify when ordering)
Gas Connection Size 3/4 Inch
Gas Inlet Pressure 5 Inches W.C. (Natural Gas), 10 Inches W.C. (Propane)
Burners 5
Rack Positions 3
Controls Infinite Manual
Material Stainless Steel
Shipping Width 120 Inches
Shipping Depth 18 Inches
Shipping Height 23 Inches
Shipping Weight 560 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Overall Dimensions:

120.0"W x 17.5"D x 22.25"H

Product Weight:

560.0 lb
Manufacturer Jade Range (Middleby)
Brand name Titan
Certifications ["NSF", "CSAus"]
Height 22.25in
Width 120.0in
Depth 17.5in
Shipping Weight 560.0lbs
Heat type infrared
Exterior Finish all stainless steel exterior
Width (side - side) 109" - 120"
Mounting wall mounted
Rack Positions 3
Specifications Titan™ Cheesemelter, gas, wall mount, 120", infrared burners, infinite manual controls, standing pilot, 3-position rack guide, 2" thick insulated bottom shelf, heavy gauge wall brackets, stainless steel front, sides, top & bottom, 100,000 BTU, CSAus, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer reserves the right to change materials and specifications without notice.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Titan JCM-120 cheesemelter can operate on either Natural Gas or Propane. Please specify the desired gas type when placing your order.
Yes, a 3/4 inch gas regulator is shipped loose with the unit. It is crucial that this regulator be installed for the cheesemelter to operate properly and safely.
While the JCM-120 is primarily designed for wall mounting, an option for 'Range Mount' is listed. If range mounting on Titan™ equipment, a separate riser must be ordered, and an interconnect gas line may be necessary for a single gas connection.
For Natural Gas, a minimum of 5 inches W.C. operating pressure is required. For Propane Gas, a minimum of 10 inches W.C. operating pressure is required, with a maximum of 14 inches W.C. for both.
The JCM-120 is constructed with 14 gauge all-welded stainless steel for the front, sides, top, and bottom, ensuring durability and easy maintenance.
