Titan JCM-108 108" Gas Wall Mounted Cheesemelter with Infrared Burners

SKU: JCM-108
$18,970.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Broilers Charbroilers & Grills Cheese Melters Cheesemelters Jade Range (Middleby) New Arrivals Restaurant Equipment

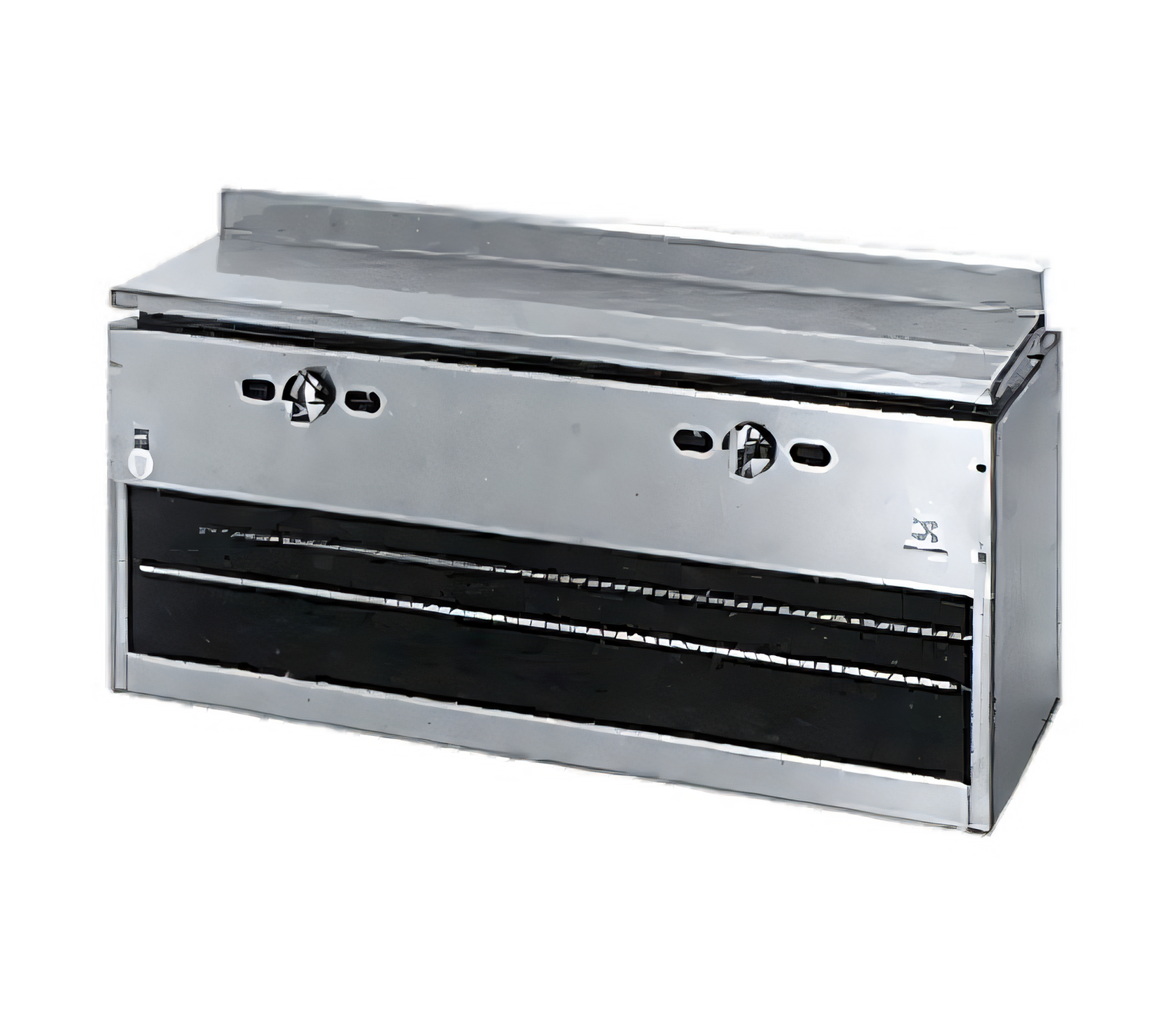

Titan JCM-108 108" Gas Wall Mounted Cheesemelter with Infrared Burners

Full-Size, Natural Gas or Propane, Standard Depth

This heavy-duty 108-inch Titan™ gas cheesemelter rapidly finishes dishes with powerful infrared heat and a convenient wall-mounted design, perfect for high-volume commercial kitchens.

  • Generous 108" wide design is ideal for large-scale operations and high-volume output.
  • Utilizes high-power infrared burners to deliver quick, intense, and efficient heating for melting, browning, and finishing.
  • Built with robust 14 gauge all-welded stainless steel construction for extreme durability and a long service life.
  • Features infinite manual controls, allowing for precise and customizable heat settings.
  • Comes with heavy-gauge wall mount brackets for secure installation, saving valuable counter space.
  • Equipped with a 2" thick insulated bottom shelf to enhance heat retention and operational efficiency.

Overall Dimensions:

108.0"W x 17.5"D x 22.5"H

Product Weight:

500.0 lb

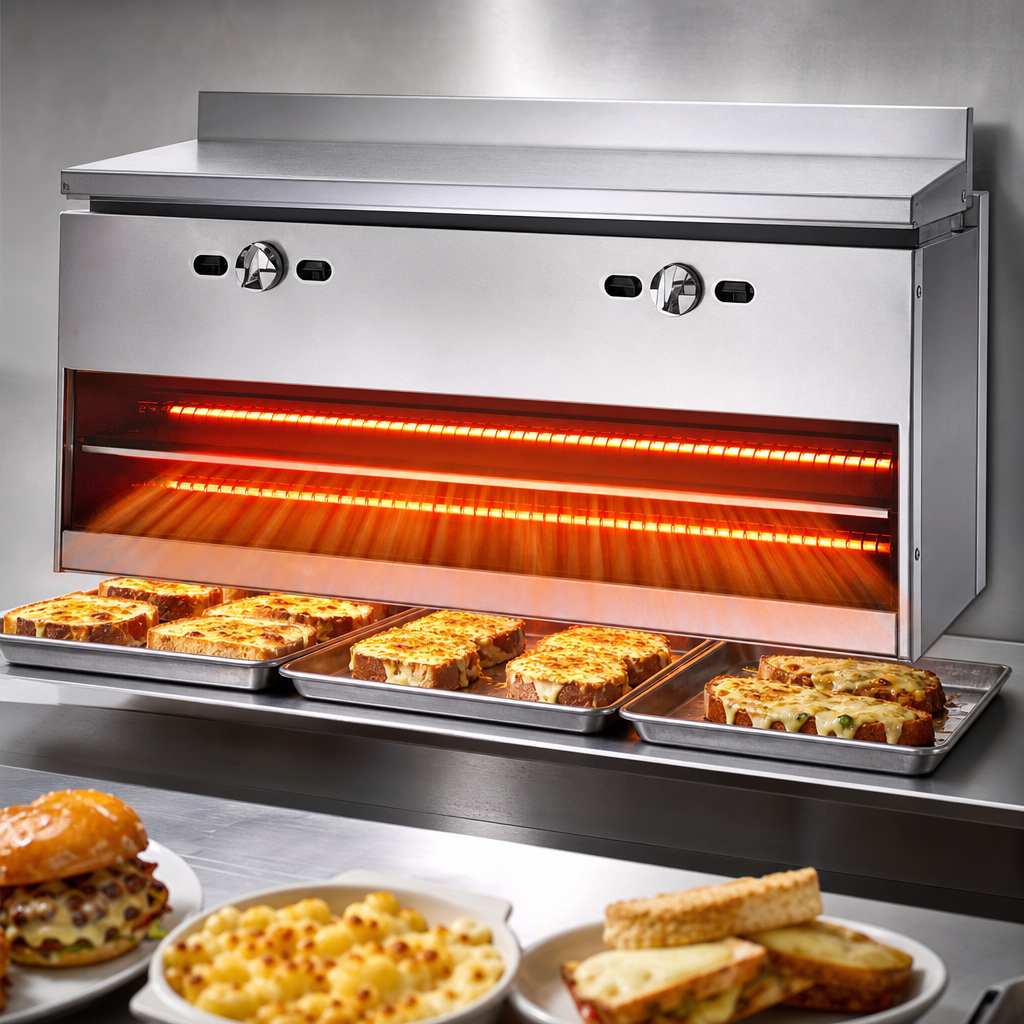

High Power Infrared Burners

Delivers intense, direct heat for rapid melting, browning, and finishing of various food items.

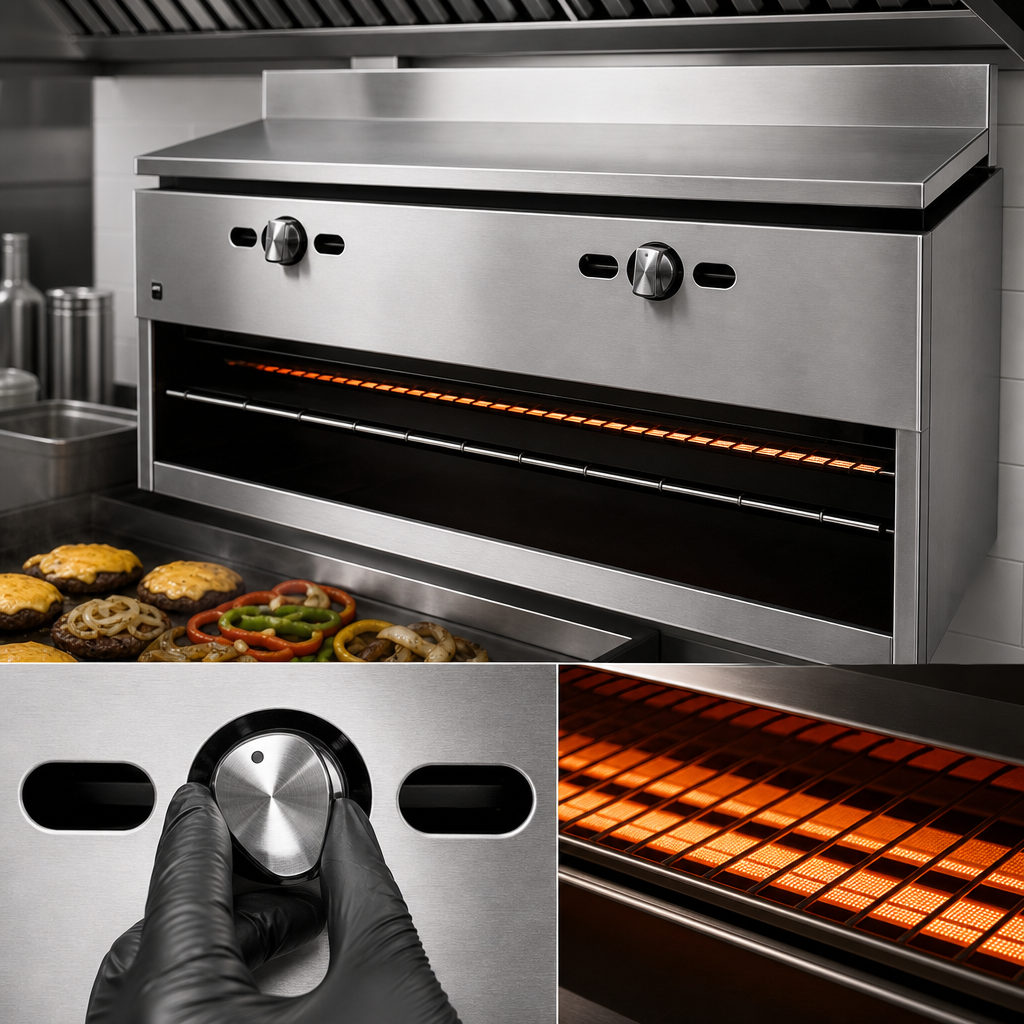

Infinite Manual Controls

Provides granular control over heat intensity to achieve optimal cooking and holding results.

Standing Pilot

Ensures instant ignition and maintains continuous readiness for immediate use.

3-Position Rack Guide

Offers versatility to position food items at different distances from the heat source for varied cooking requirements.

2" Thick Insulated Bottom Shelf

Enhances thermal efficiency and helps retain heat while providing protection to the mounting surface.

Heavy Gauge Wall Mount Brackets

Provides robust and secure wall mounting, maximizing kitchen workspace.

All Stainless Steel Exterior

Constructed with stainless steel front, sides, top, and bottom for superior durability, corrosion resistance, and a professional aesthetic.

14 Gauge All Welded Construction

Ensures an exceptionally sturdy and long-lasting unit capable of withstanding rigorous commercial use.

Stainless Steel Gas Tubing Throughout

Provides a durable and reliable system for gas delivery within the unit.

Stainless Steel Pilot Tip Per Burner

Guarantees reliable and consistent ignition for each infrared burner.

3/4" Gas Regulator

Supplied loose and must be installed for proper and safe operation, ensuring the correct gas pressure.

Type Cheesemelter
Style Infrared
Installation Type Wall Mounted (With Wall Brackets)
Material 14 Gauge Stainless Steel
Exterior Finish Stainless Steel
Interior Finish null
Burners 4
BTU 90,000 BTU
Controls Infinite Manual
Rack Positions 3
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch
Gas Inlet Pressure (Natural Gas Minimum) 5 Inches W.C.
Gas Inlet Pressure (Propane Gas Minimum) 10 Inches W.C.
Gas Inlet Pressure (Maximum) 14 Inches W.C.
Selling Unit Each
Units Per Case 1
Shipping Width 108 Inches
Shipping Depth 18 Inches
Shipping Height 23 Inches
Shipping Weight 500 lb.
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JCM-108 can operate on either Natural Gas or Propane. Please specify your gas type when ordering.
For Natural Gas, a minimum operating pressure of 5 inches W.C. is required. For Propane Gas, a minimum of 10 inches W.C. is needed. The maximum operating pressure for either gas type is 14 inches W.C.
Yes, a 3/4 inch gas regulator is supplied loose with the unit and MUST be installed for proper and safe operation.
The JCM-108 features 14 gauge all-welded construction with a stainless steel front, sides, top, and bottom. An optional stainless steel interior is also available.
The JCM-108 is designed for wall mounting and comes equipped with heavy gauge wall mount brackets for secure installation.
