Jade Range (Middleby)

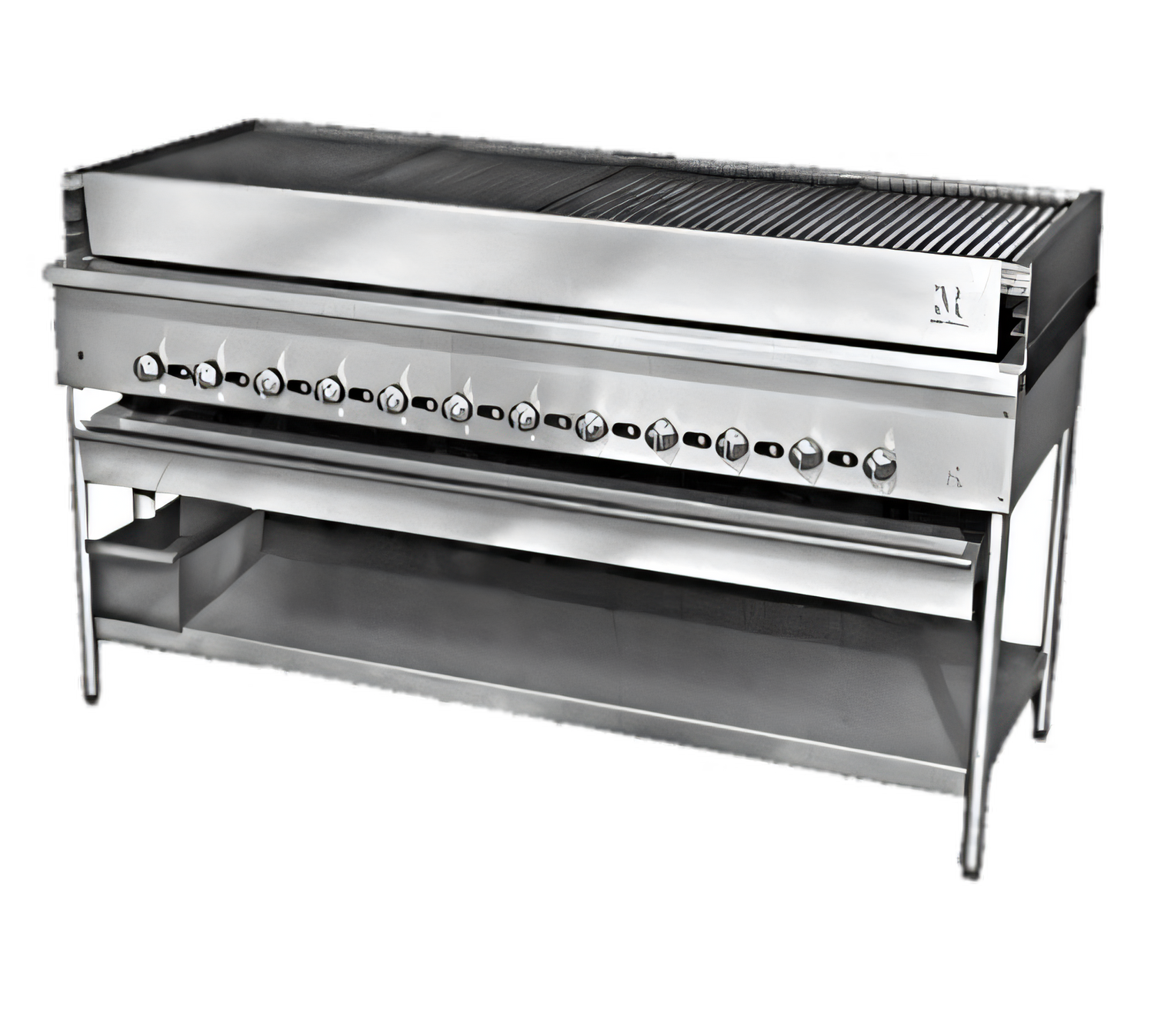

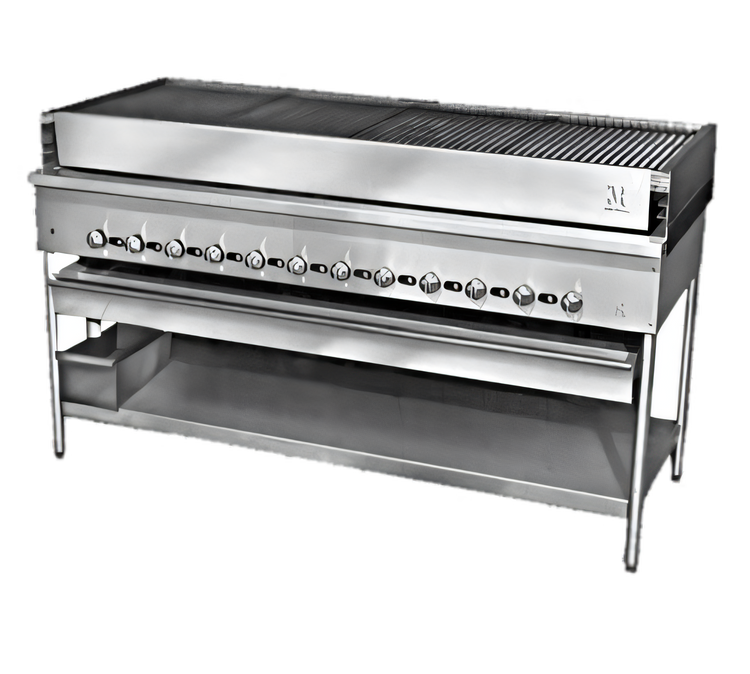

Titan JCB-72 72-Inch Floor Model Gas Chicken Broiler with 12 Burners

SKU: JCB-72
$22,001.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers & Grills Gas Charbroilers Jade Range (Middleby) Mexican Restaurant Cooking Equipment Mexican Restaurant Supplies New Arrivals

Titan JCB-72 72-Inch Floor Model Gas Chicken Broiler with 12 Burners

Full-Size, Natural Gas or Propane, Standard Depth

Experience superior cooking performance and precise control with the heavy-duty Titan JCB-72 chicken broiler, designed for high-volume commercial kitchens.

  • Heavy-duty 14 gauge all stainless steel welded body construction for lasting durability.
  • Features 12 independently controlled burners for precise temperature management across the 72-inch cooking surface.
  • Offers four levels of broiling for versatile cooking options and increased capacity.
  • Equipped with specially designed flame control grates for optimal cooking results.
  • Includes an extra-large, self-draining gutter for easy cleaning and grease management.
  • Floor model design with durable stainless steel legs and a convenient bottom shelf.

Welded Stainless Steel Construction

Built with a 14 gauge all stainless steel welded body and 12 gauge all welded firebox for exceptional durability and a long service life in demanding commercial environments.

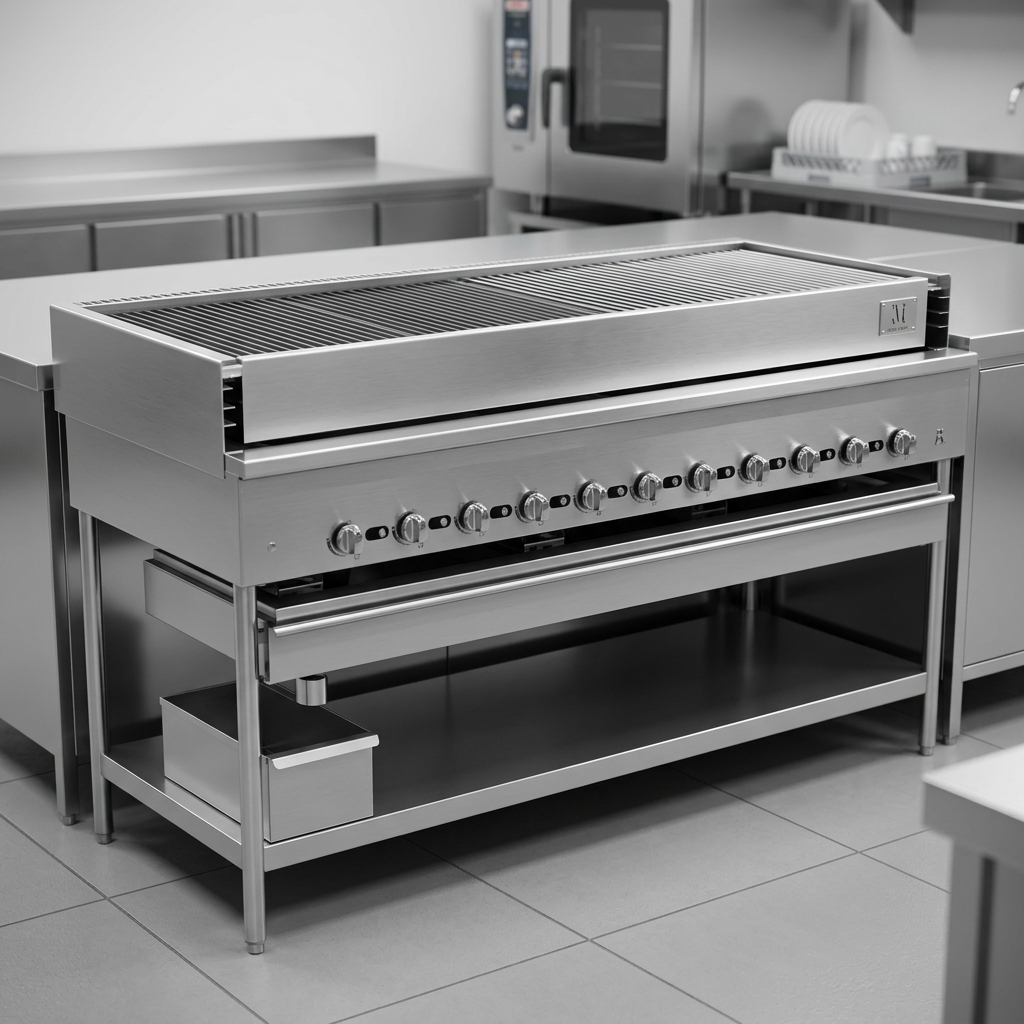

Built for exceptional durability, this chicken broiler features a robust 14-gauge all stainless steel welded body and a 12-gauge all welded firebox.

Independent Burner Control

Each of the 12 burners is independently controlled, allowing for precise heat zoning and versatile cooking across the entire 72-inch broiling surface.

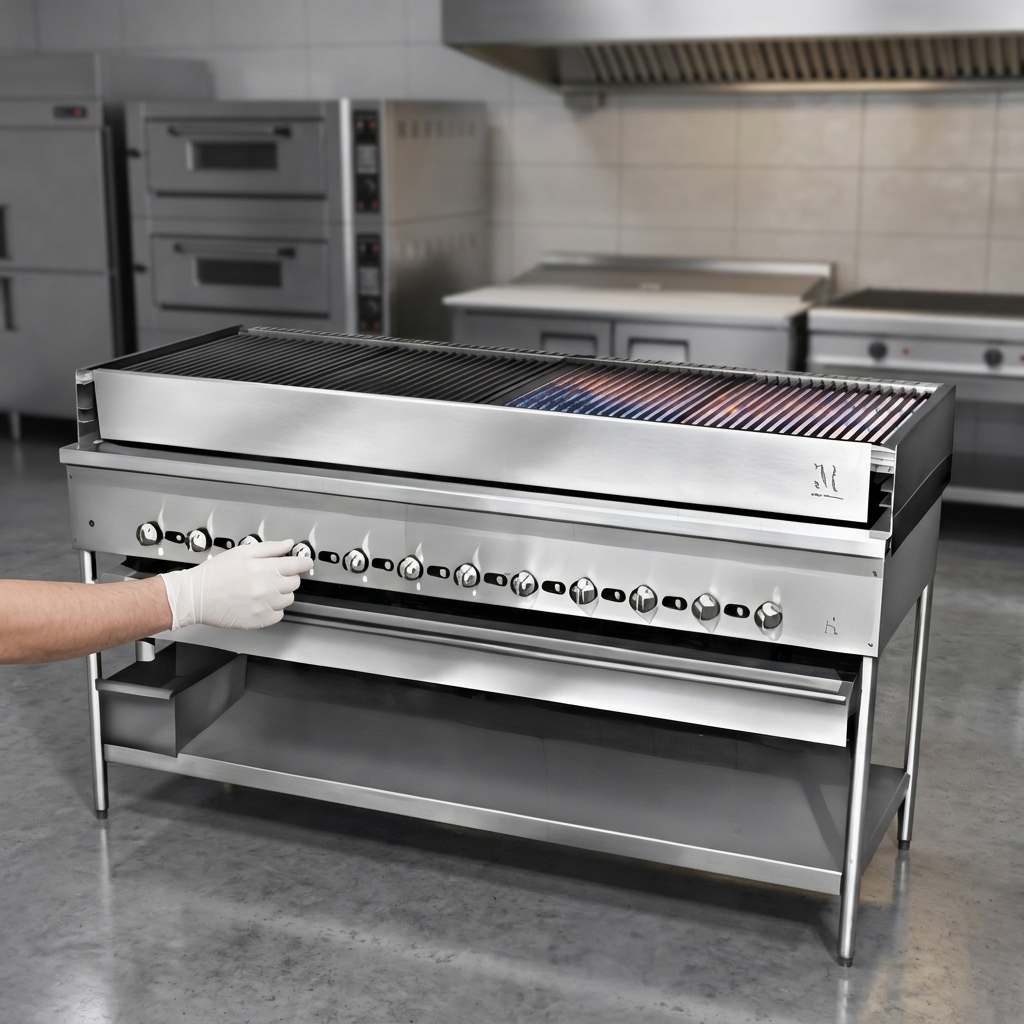

Experience versatile cooking with the Titan JCB-72 72-inch gas chicken broiler, featuring independent burner controls for precise heat zoning.

Four Broiling Levels

A removable stainless steel superstructure provides four distinct cooking levels, offering flexibility to cook various products simultaneously and maximizing cooking capacity.

Experience unparalleled cooking versatility with the Titan JCB-72's four distinct broiling levels, designed for maximum capacity.

Flame Control Grates

Specially designed flame control top grates ensure effective heat distribution and consistent broiling results.

Self-Draining Gutter

An extra-large, self-draining gutter simplifies grease collection and enhances the ease of cleaning.

Removable Superstructure

The stainless steel superstructure can be easily removed for thorough cleaning and maintenance, promoting hygiene and prolonging equipment life.

Integrated Plate Shelf

A convenient stainless steel plate shelf is included for staging prepared dishes or holding utensils.

Bottom Storage Shelf

Features a robust stainless steel bottom shelf for additional storage of essential kitchen items.

Gas Regulator Included

Supplied with a 3/4 inch gas appliance regulator to ensure proper and safe operation.

Specifications

Type Chicken Broiler
Style Floor Model
Installation Type Floor Model (With Open Stand)
Width 72 Inches
Depth 30.5 Inches
Height 42 Inches
Weight 930 lb.
Shipping Width 72 Inches
Shipping Depth 31 Inches
Shipping Height 42 Inches
Shipping Weight 930 lb.
Material Stainless Steel
Exterior Finish Stainless Steel Front and Sides
Interior Finish Stainless Steel
BTU 180,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure (Natural Gas) 5-14 Inches W.C.
Gas Inlet Pressure (Propane) 10-14 Inches W.C.
Compartments 1
Cooking Levels 4
Burners 12
Controls Individual Burner Controls
Selling Unit Each
Units Per Case 1
Country of Origin USA

Overall Dimensions:

72.0"W x 30.5"D x 42.0"H

Product Weight:

930.0 lb
Manufacturer Jade Range (Middleby)
Brand name Titan
Certifications ["NSF", "CSAus"]
Height 42.0in
Width 72.0in
Depth 30.5in
Shipping Weight 930.0lbs
Type floor model
Grid round rod
Width (side - side) OA 72"
Exterior Finish stainless steel front & sides
Base open stand
Depth (front - back) 31"
Heat burners with out radiants
Specifications Titanâ„¢ Chicken Broiler, gas, 72", (12) independently controlled burners, flame control top grates, 4 cooking levels, self-draining gutter, welded fire box, stainless steel superstructure, front, sides, plate shelf, bottom shelf & legs, 180,000 BTU, CSAus, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Titan JCB-72 broiler can be configured for either natural gas or propane. It is essential to specify your preferred gas type when placing an order.
The JCB-72 model is equipped with 12 burners, each offering independent control for precise heat management and the ability to create multiple cooking zones.
This broiler features a stainless steel superstructure that provides four distinct levels of broiling, allowing for versatile cooking methods and increased capacity across its 72-inch width. It also offers an additional 4 inches of cooking space at the rear.
For natural gas, a minimum operating pressure of 5 inches W.C. is required. For propane gas, a minimum operating pressure of 10 inches W.C. is required. The maximum inlet pressure for both gas types is 14 inches W.C.
Yes, the JCB-72 is designed with an extra-large, self-draining gutter for efficient grease collection and simplified cleaning. Additionally, its stainless steel superstructure is removable for thorough maintenance.
