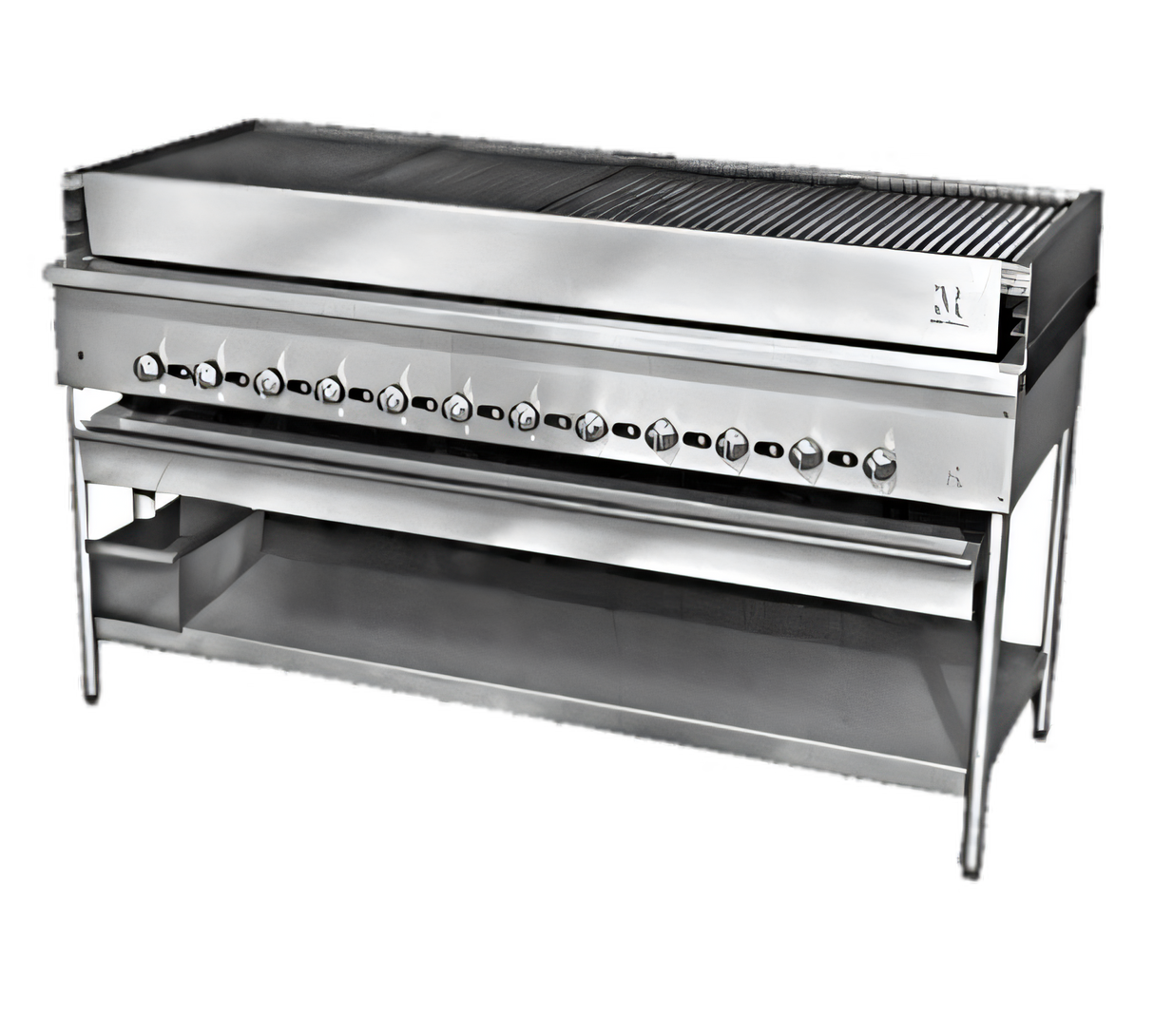

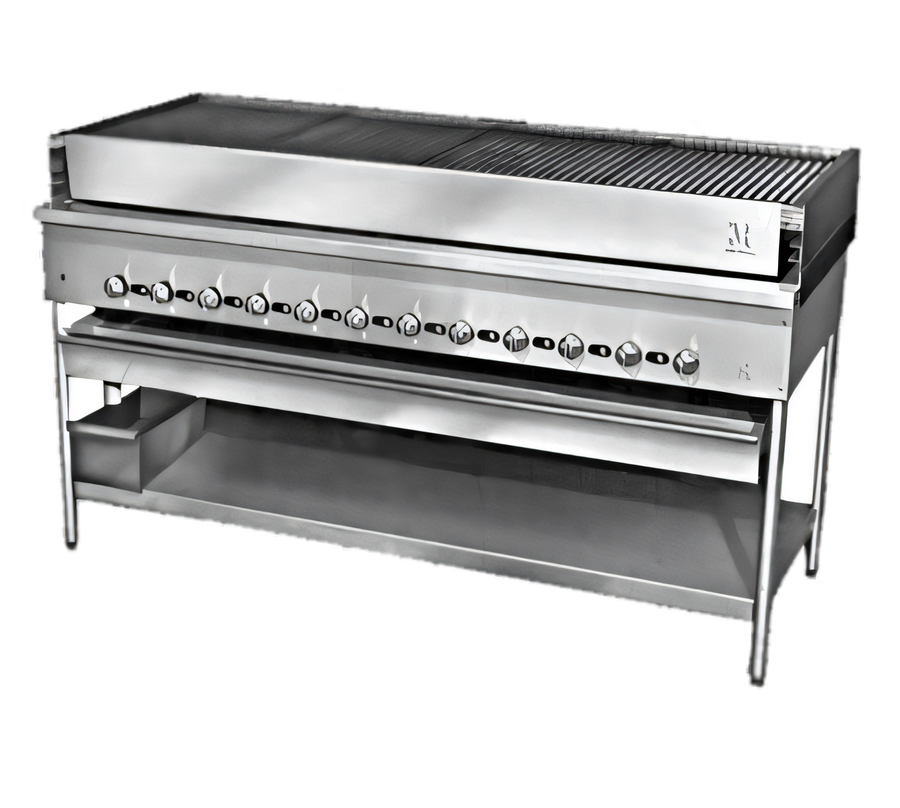

Titan JCB-48 48" Gas Floor Model Chicken Broiler with 8 Burners
Full-Size, Standard Depth, Stainless Steel Construction
Designed for high-volume chicken broiling, the Titan JCB-48 offers precise control and durable construction for demanding commercial kitchens.
- 48-inch wide gas chicken broiler equipped with 8 independently controlled burners for precise cooking.
- Durable 14 gauge all stainless steel welded body construction ensures longevity in commercial environments.
- Offers 4 levels of broiling and an additional 4 inches of cooking space at the rear for increased capacity.
- Features specially designed flame control grates and an extra-large, self-draining gutter for easy cleaning and maintenance.
- Comes with a removable stainless steel superstructure for convenient access and sanitation.
- Includes stainless steel front, sides, plate shelf, bottom shelf, and legs for a complete floor model setup.

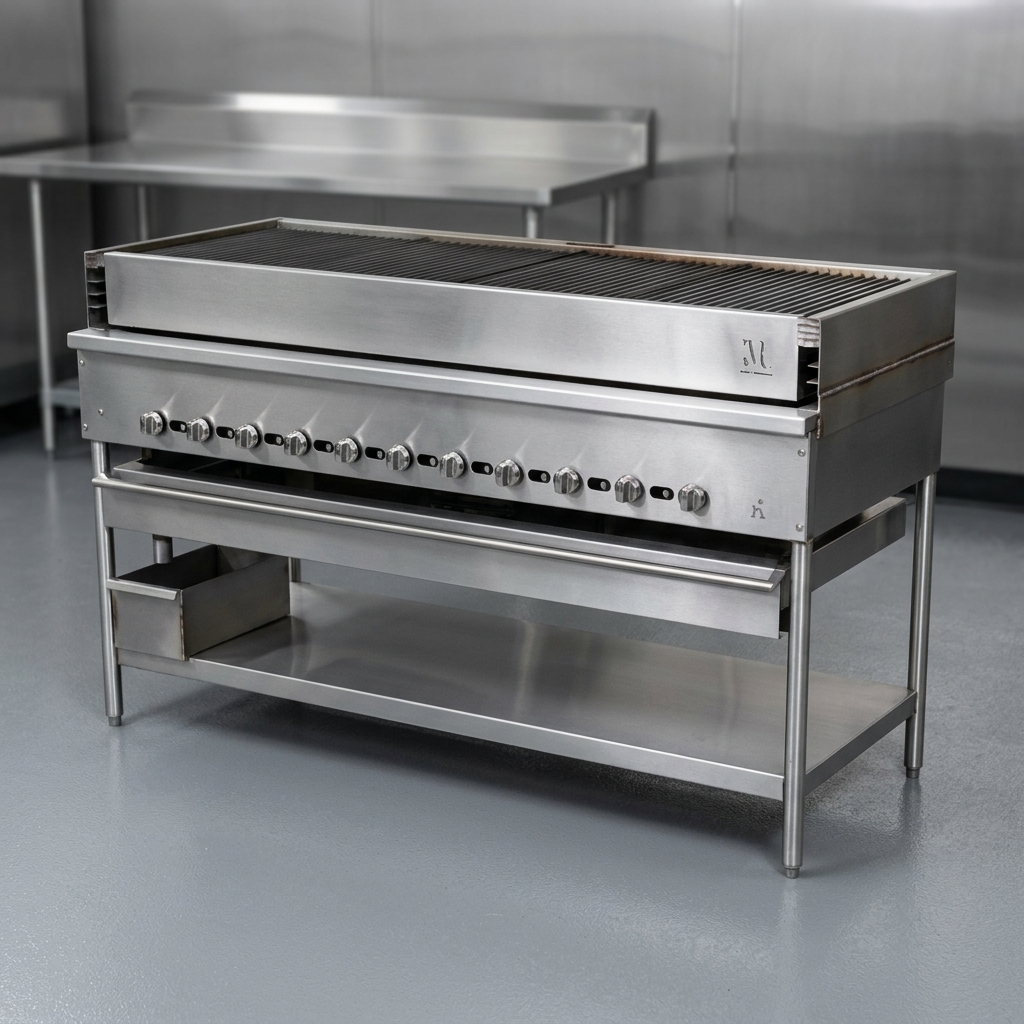

Heavy-Duty Stainless Steel Construction
Constructed with a 14 gauge all stainless steel welded body and a 12 gauge all welded firebox for exceptional durability and commercial longevity.

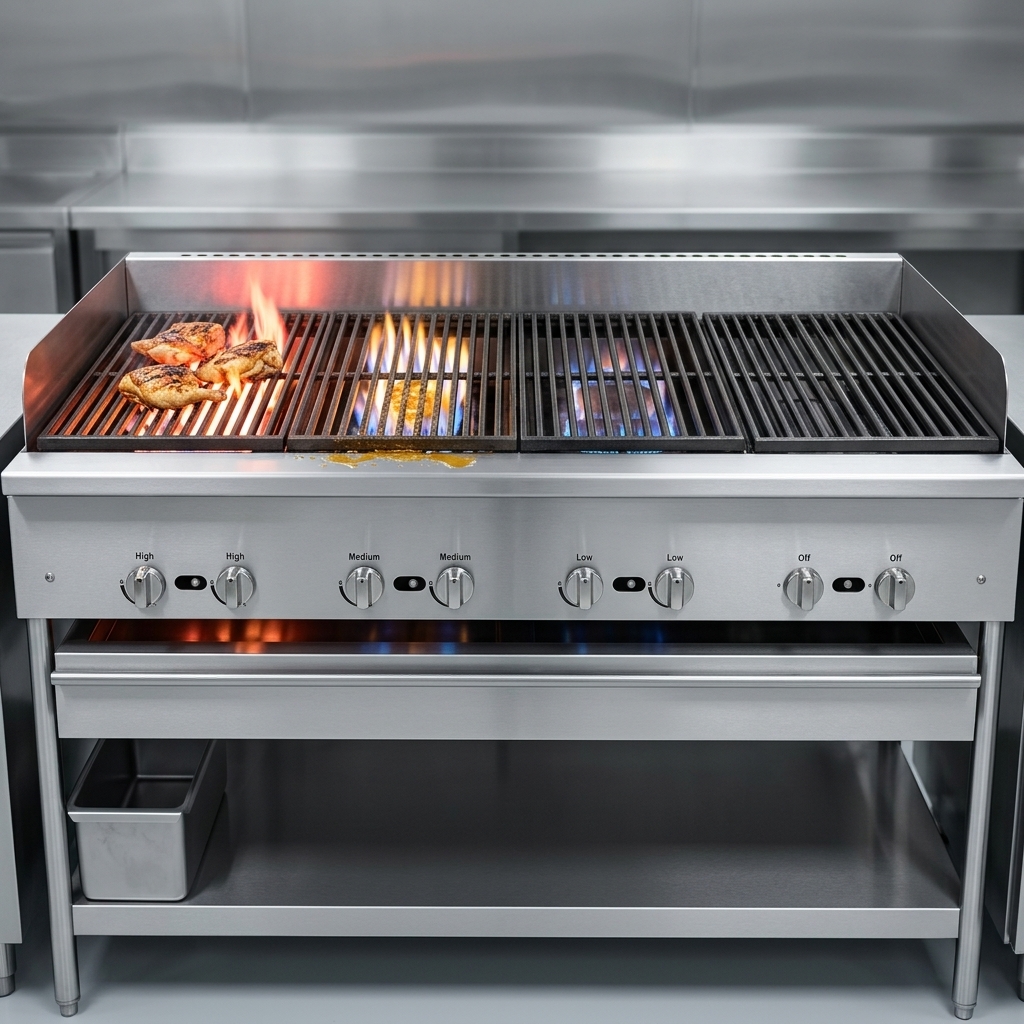

Independent Burner Control
Each of the 8 burners can be controlled individually, allowing for precise temperature management and versatile cooking.

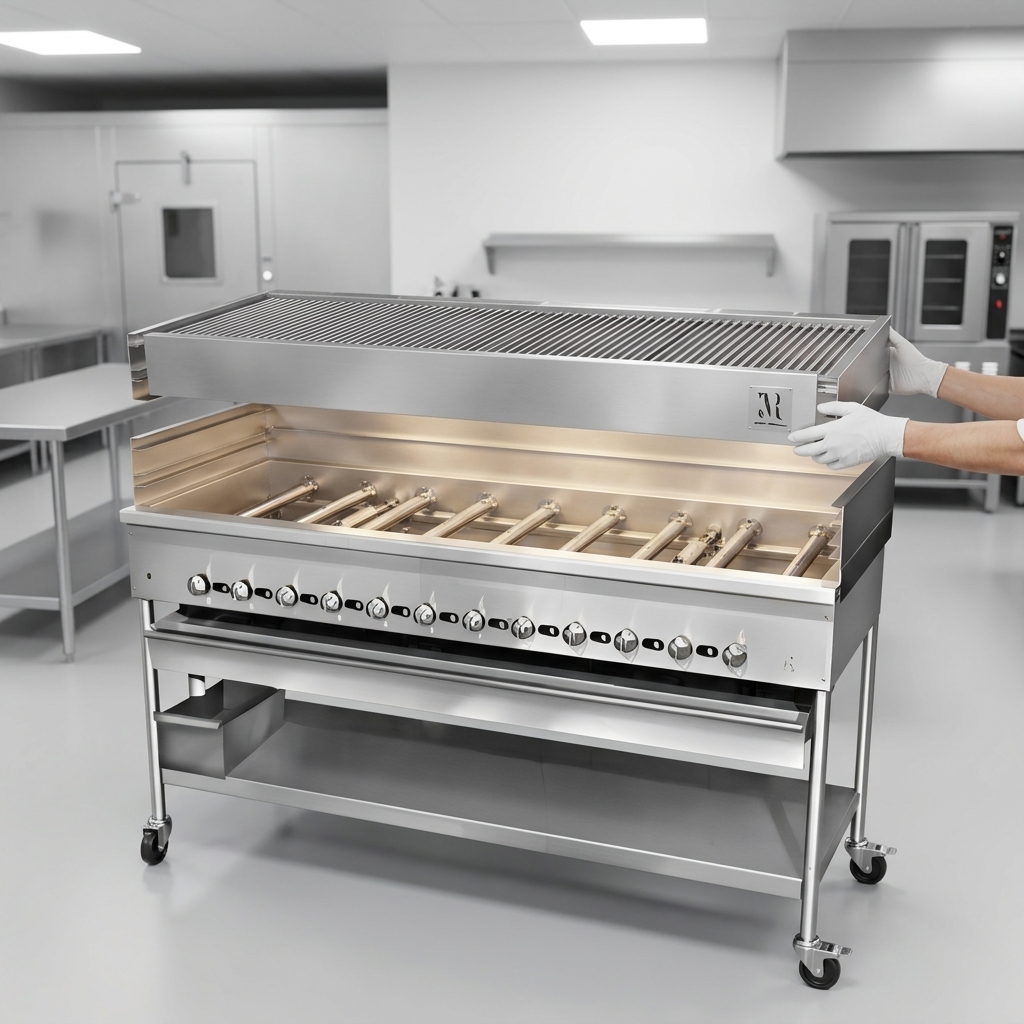

Removable Stainless Steel Superstructure
The superstructure is easily removable for thorough cleaning, and provides 4 levels of broiling plus an additional 4 inches of cooking space at the rear.
Four Cooking Levels
Offers four distinct cooking levels within the broiler, providing flexibility for different products and cooking preferences.
Self-Draining Gutter
Equipped with an extra-large, self-draining gutter that collects drippings, simplifying cleanup and maintaining hygiene.
Flame Control Grates
Specially designed grates help manage flames, ensuring even cooking and reducing flare-ups.
Included Gas Regulator
A 3/4-inch gas regulator is supplied with the unit to ensure proper gas pressure for safe and efficient operation.
Stainless Steel Exterior with Plate Shelf
The front and sides are made of stainless steel, complemented by a convenient plate shelf for staging plates or ingredients.
Stainless Steel Legs and Storage Shelf
Includes durable stainless steel legs and a bottom shelf, providing a sturdy base and extra storage space.
Stainless Steel Drip Deflector and Grease Drawer
Available as an option, these components further enhance grease management and simplify cleaning.
Specifications
| Type | Chicken Broiler |
|---|---|
| Style | Floor Model |
| Installation Type | Floor Model (With Stand) |
| Material | Stainless Steel |
| Exterior Finish | Stainless Steel Front and Sides |
| Pan Capacity | 4 Cooking Levels |
| Burners | 8 |
| Controls | Independent Manual Knobs |
| BTU | 120,000 BTU |
| Gas Type | Natural Gas or Propane |
| Gas Connection Size | 3/4 Inch NPT |
| Gas Inlet Pressure (Natural Gas) | 5 Inches W.C. minimum |
| Gas Inlet Pressure (Propane) | 10 Inches W.C. minimum |
| Country of Origin | USA |
| Selling Unit | Each |
| Units Per Case | 1 |
| Shipping Width | 48 Inches |
| Shipping Depth | 31 Inches |
| Shipping Height | 42 Inches |
| Shipping Weight | 620 lb. |
Overall Dimensions:
48.0"W x 30.5"D x 42.0"HProduct Weight:
620.0 lbCertifications & Compliance
