Key specifications

BTU
35,000 BTU
Gas Type
Natural Gas / Propane
Dimensions
36.0"W × 18.0"D × 20.75"H
Type
Salamander Broiler
Installation Type
Wall Mounted
Material
Stainless Steel
Spec sheet
Jade Range SKU: JBR-JB36-WM

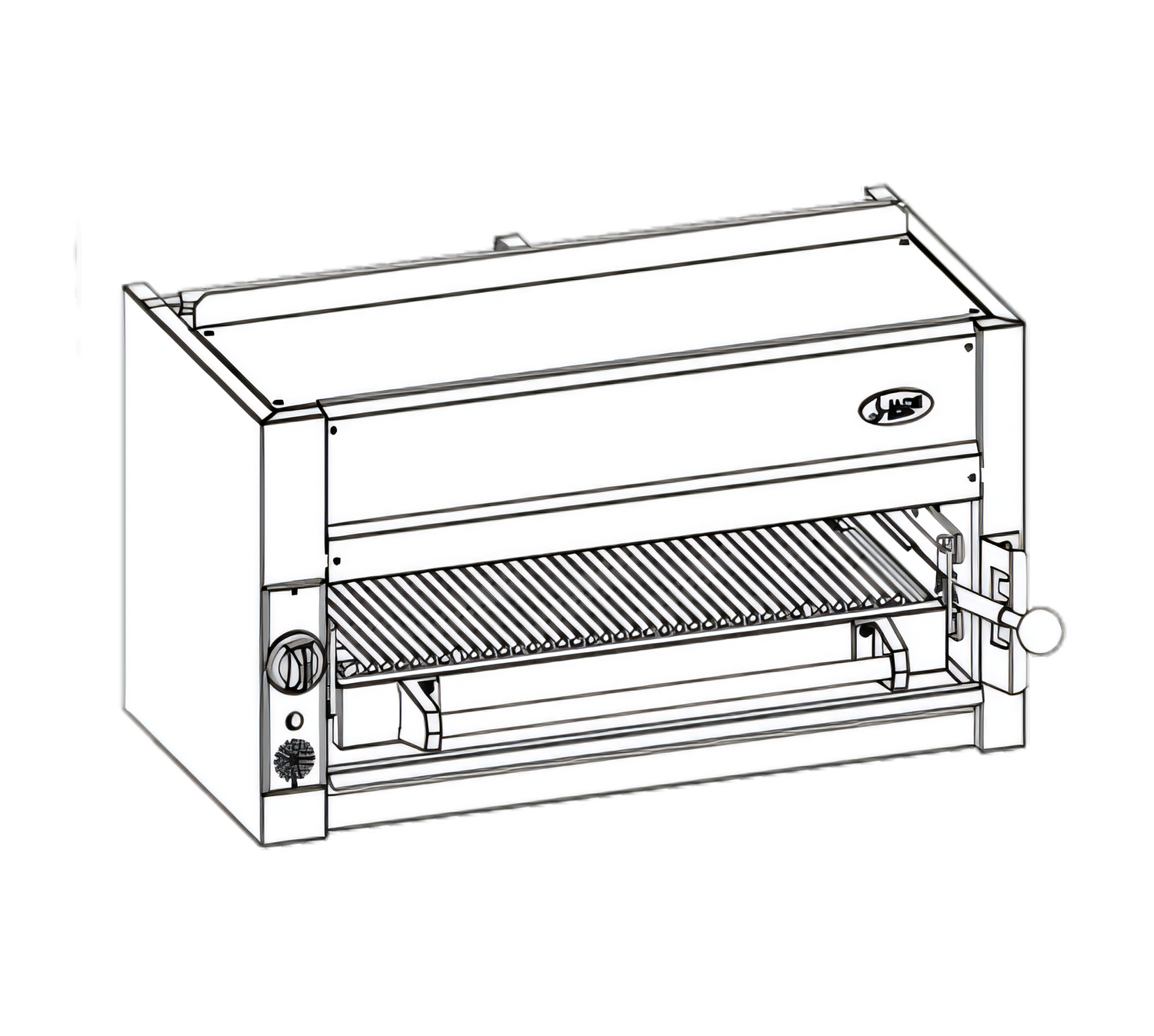

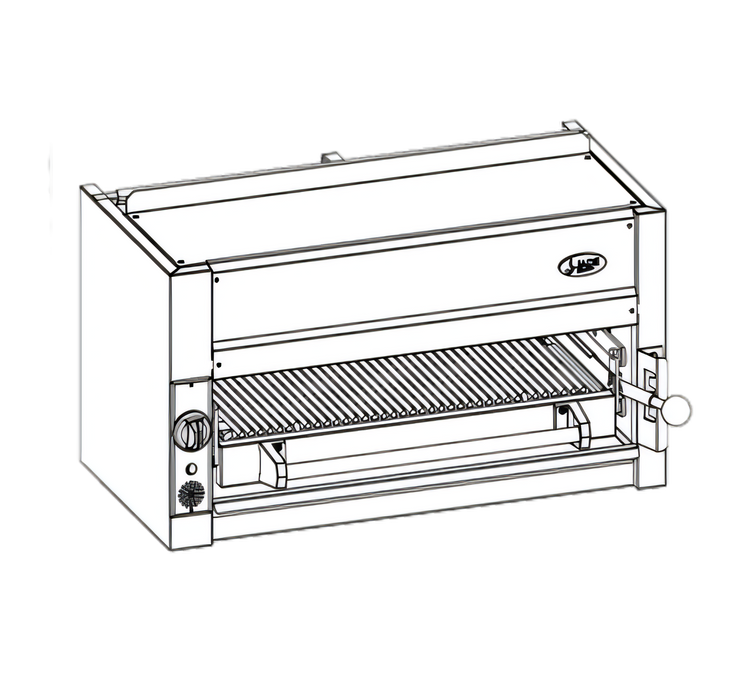

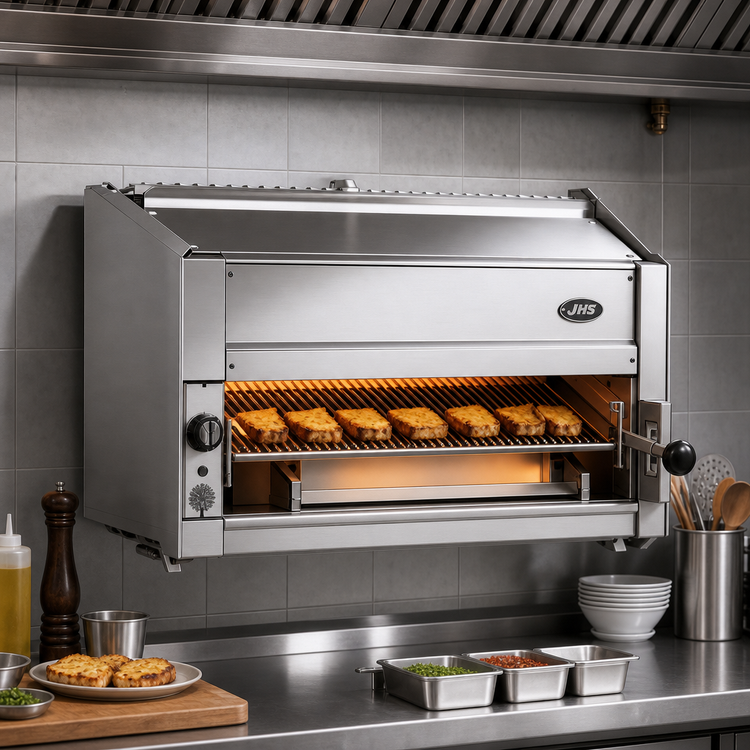

Jade Range Bistro JBR-JB36-WM 36-Inch Wall-Mount Salamander

$7,450.00
/each
Estimated to ship in 16–19 business days
Mounting
Gas typeRequired
Gas Connector
Included: Jade Range warranty One year of parts and labor under Jade Range's commercial warranty for all other new Jade Range products

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $689/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Salamander Broiler
Installation Type Wall Mounted
Material Stainless Steel
Interior Finish Stainless Steel
Width 36 Inches
Burner Type Infrared
BTU 35,000 BTU
Gas Type Natural Gas / Propane
Construction Gauge 14 Gauge
Grid Size 12 x 26-1/2 Inches
Locking Positions 4

Description

The Jade Range Bistro JBR-JB36-WM is a wall-mounted gas salamander broiler with a 35,000 BTU/hr. ceramic tile infrared burner.

Its 14-gauge stainless steel construction includes the front, sides, bottom, and top. The counterbalanced roll-out grid carriage glides on roller bearings and locks into four cook positions.

  • 12 x 26-1/2-inch lift-out chrome-plated broiler grid
  • Wall mounting bracket for the JBR-JB36-WM
  • Grease deflector that guides grease into pans at the bottom of the broiler

Overall Dimensions:

36.0"W x 18.0"D x 20.75"H

Product Weight:

240.0 lb

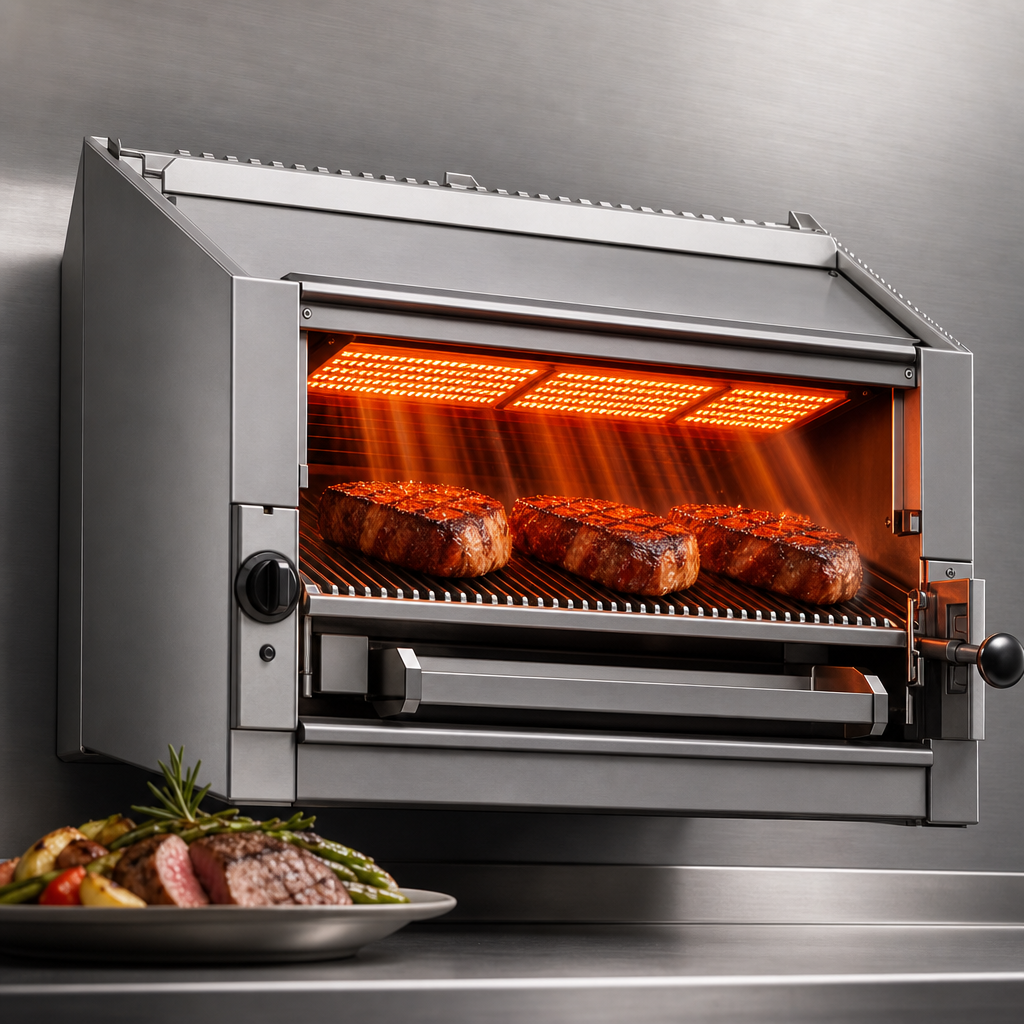

Infrared Burner

A 35,000 BTU/hr. ceramic tile infrared burner is specified.

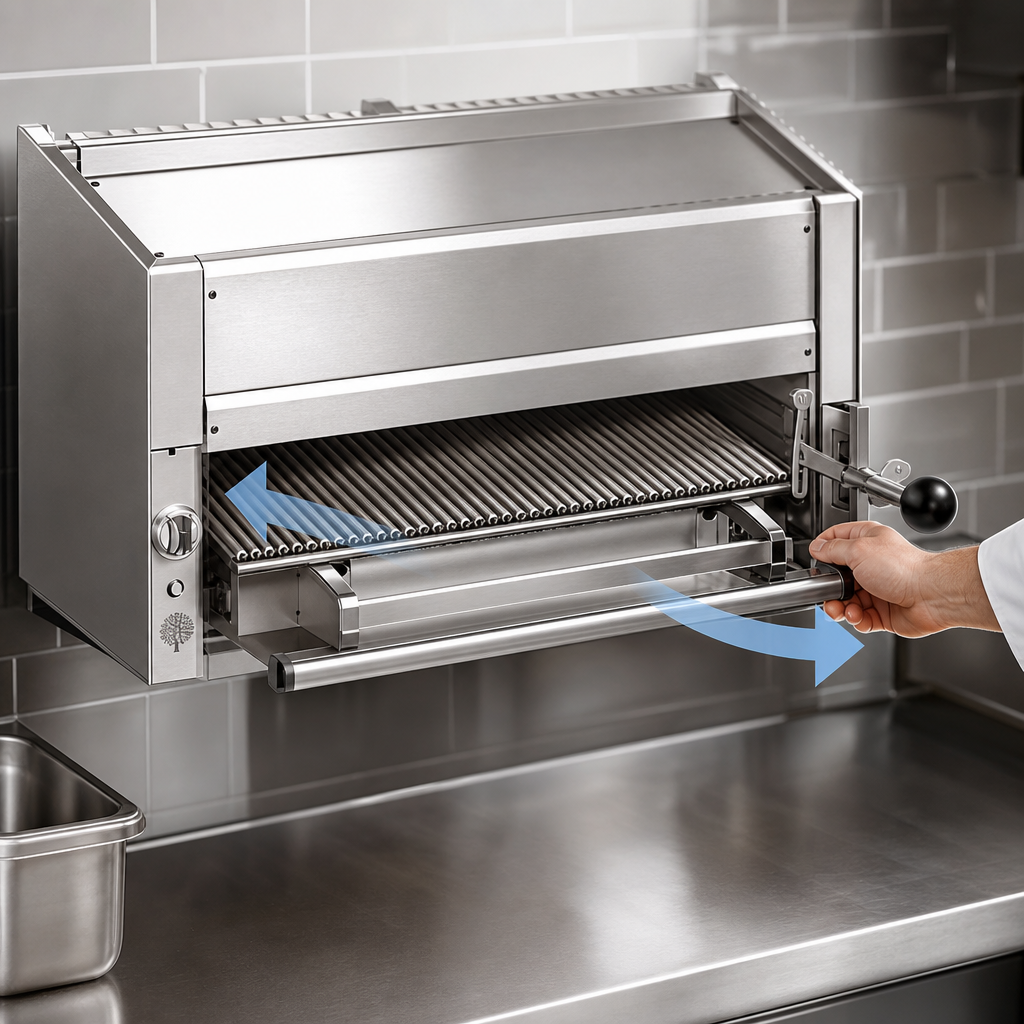

Counterbalanced Grid Carriage

The carriage glides on roller bearings and has four locking cook positions.

Lift-Out Broiler Grid

The chrome-plated grid measures 12 x 26-1/2 inches.

Stainless Steel Construction

14-gauge stainless steel construction covers the front, sides, bottom, and top.

Wall Mounting Bracket

A wall mounting bracket is specified for the JBR-JB36-WM wall-mount model.

Grease Deflector

The deflector guides grease into pans at the bottom of the broiler.

Gas Pressure Regulator

A 3/4-inch gas pressure regulator is specified for the unit.

Frequently Asked Questions

Yes. The JBR-JB36-WM is specified for wall mounting and has a wall mounting bracket.
It uses a 35,000 BTU/hr. ceramic tile infrared burner.
The cut sheet specifies natural gas or propane and says to specify the gas type when ordering.
The counterbalanced grid carriage has four locking cook positions.
Yes. The broiler grid is a 12 x 26-1/2-inch lift-out chrome-plated grid.
The listed product dimensions are 36 inches wide, 18 inches deep, and 20.75 inches high. The listed weight is 240 pounds.
