Jade Range (Middleby)

Bistro 72-Inch Wall-Mount Gas Cheesemelter with Infrared Burners, Stainless Steel, 60,000 BTU

SKU: JBR-CM72-WM
$11,288.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Broilers Charbroilers & Grills Cheese Melters Cheesemelters Jade Range (Middleby) New Arrivals Restaurant Equipment

Bistro 72-Inch Wall-Mount Gas Cheesemelter with Infrared Burners, Stainless Steel, 60,000 BTU

Heavy-Duty 14-Gauge Construction, One Rack Position, Standing Pilot

Designed for fast finishing and browning, this 72-inch wall-mount cheesemelter delivers infrared heat, all-stainless construction, and 60,000 BTU of output in a compact footprint.

  • 72-inch wall-mount cheesemelter sized for high-volume finishing.
  • Three infrared burners deliver 60,000 BTU of total heat.
  • Stainless steel front, sides, top, and bottom for durability and cleanup.
  • One rack position with a 2-inch insulated bottom shelf.
  • Infinite manual controls and standing pilot for simple operation.
  • Heavy-gauge wall brackets and a loose 3/4-inch gas regulator are included.

Overall Dimensions:

72.0"W x 17.5"D x 20.25"H

Product Weight:

320.0 lb

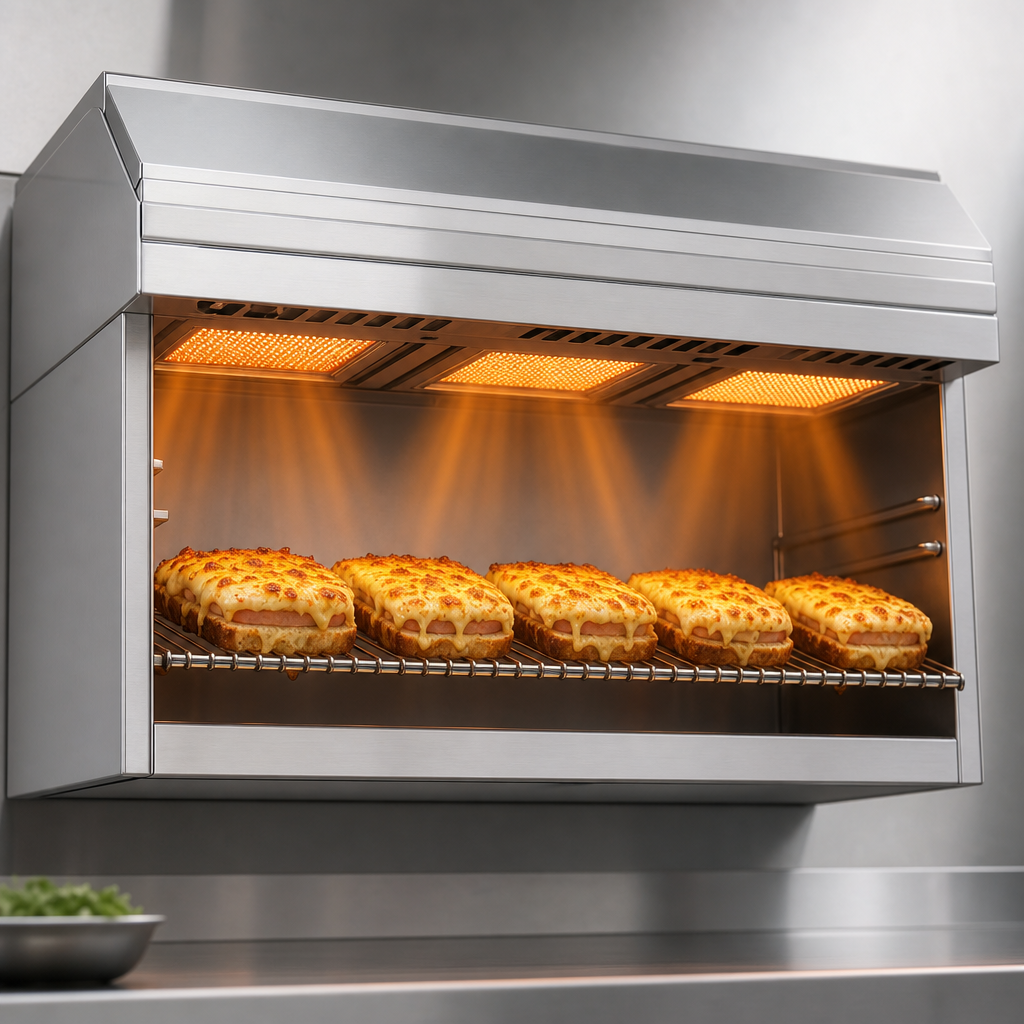

High-Power Infrared Burners

Three infrared burners deliver intense top heat for melting, browning, and finishing.

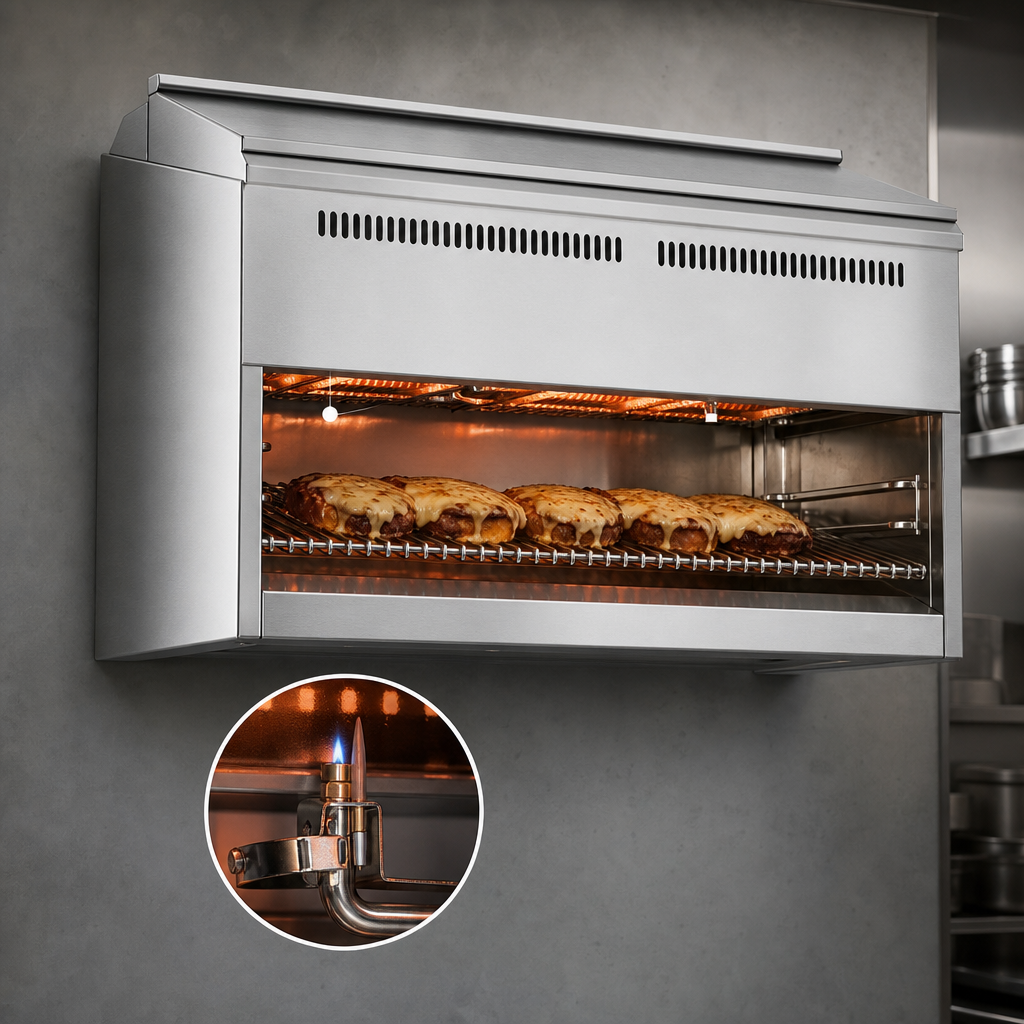

Standing Pilot

Pilot stays lit for quick startup and dependable operation.

Infinite Manual Controls

Allows fine adjustment of heat output during service.

All Stainless Steel Exterior

Stainless steel front, sides, top, and bottom support durability and easy cleaning.

2-Inch Insulated Bottom Shelf

Helps retain heat and improve thermal efficiency.

14-Gauge All-Welded Construction

Heavy-duty welded build designed for demanding commercial kitchens.

Heavy-Gauge Wall Mount Brackets

Supports secure wall installation.

Stainless Steel Gas Tubing Throughout

Durable gas routing throughout the unit.

3/4-Inch Gas Regulator

Ships loose and must be installed for proper operation.

One Rack Position

Single rack position suited to cheesemelting applications.

Type Cheesemelter
Style Wall-Mount
Installation Type Wall Mounted
Heat Type Infrared
BTU 60,000 BTU
Controls Infinite Manual
Material Stainless Steel
Finish Stainless Steel
Gas Connection Size 3/4 Inch
Gas Inlet Pressure Natural Gas: 5 Inches W.C. Minimum; Propane: 10 Inches W.C. Minimum; 14 Inches W.C. Maximum
Rack Positions 1
Burners 3
Selling Unit Each
Units Per Case 1
Shipping Width 72 Inches
Shipping Depth 18 Inches
Shipping Height 21 Inches
Shipping Weight 320 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. It includes heavy-gauge wall mount brackets and is designed as a wall-mounted unit.
This model has three infrared burners and a total output of 60,000 BTU.
The unit uses a 3/4-inch gas connection and ships with a 3/4-inch gas regulator.
Required operating pressure is 5 inches W.C. minimum for natural gas or 10 inches W.C. minimum for propane, with 14 inches W.C. maximum.
It has one rack position.
Yes. The 3/4-inch gas regulator ships loose and must be installed for proper operation.
