Jade Range (Middleby)

Bistro 36-Inch Gas Range-Mount Cheesemelter with Infrared Burners

SKU: JBR-CM36-RM
$7,119.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Broilers Charbroilers & Grills Cheese Melters Cheesemelters Jade Range (Middleby) New Arrivals Restaurant Equipment

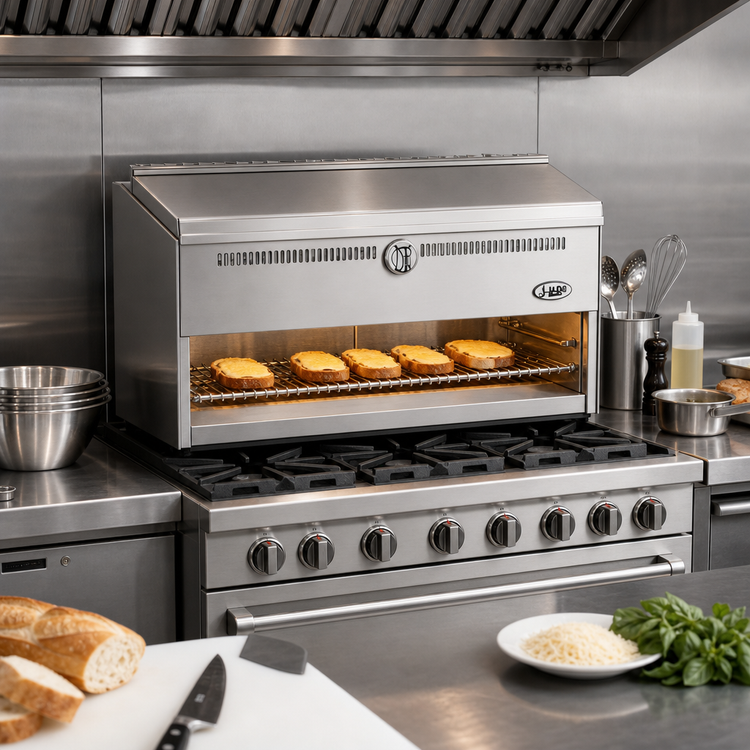

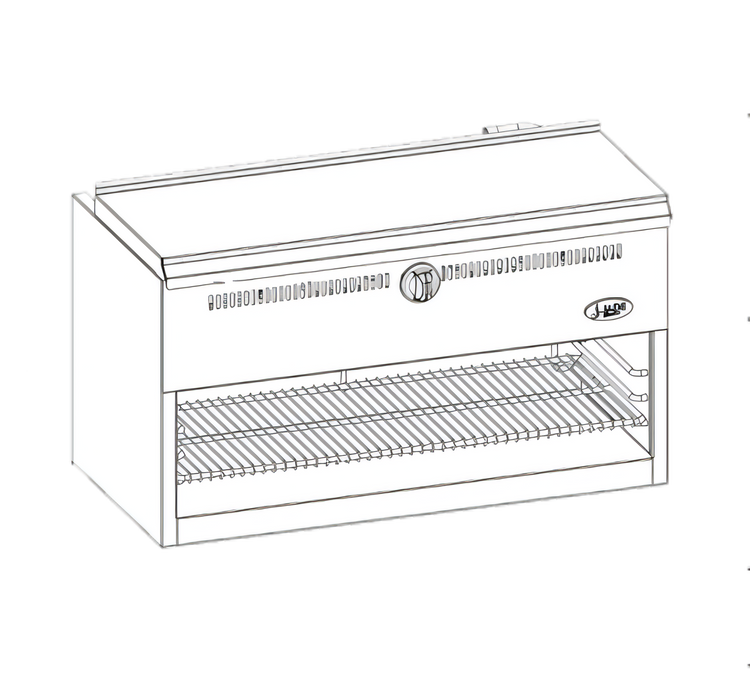

Bistro 36-Inch Gas Range-Mount Cheesemelter with Infrared Burners

Single Rack Position, Stainless Steel, Infinite Manual Controls

This 36-inch range-mount cheesemelter delivers powerful infrared heat and durable stainless steel construction for fast, controlled finishing over the line.

  • 36-inch gas cheesemelter designed for range mounting on Bistro equipment
  • High-power infrared burners provide quick, even top heat for melting and browning
  • Infinite manual controls and a standing pilot support straightforward operation
  • Stainless steel front, sides, top, and bottom with a 2-inch insulated bottom shelf
  • One rack position for precise product placement
  • 30,000 BTU output with a 3/4-inch gas connection and supplied regulator

Overall Dimensions:

36.0"W x 17.5"D x 20.25"H

Product Weight:

270.0 lb

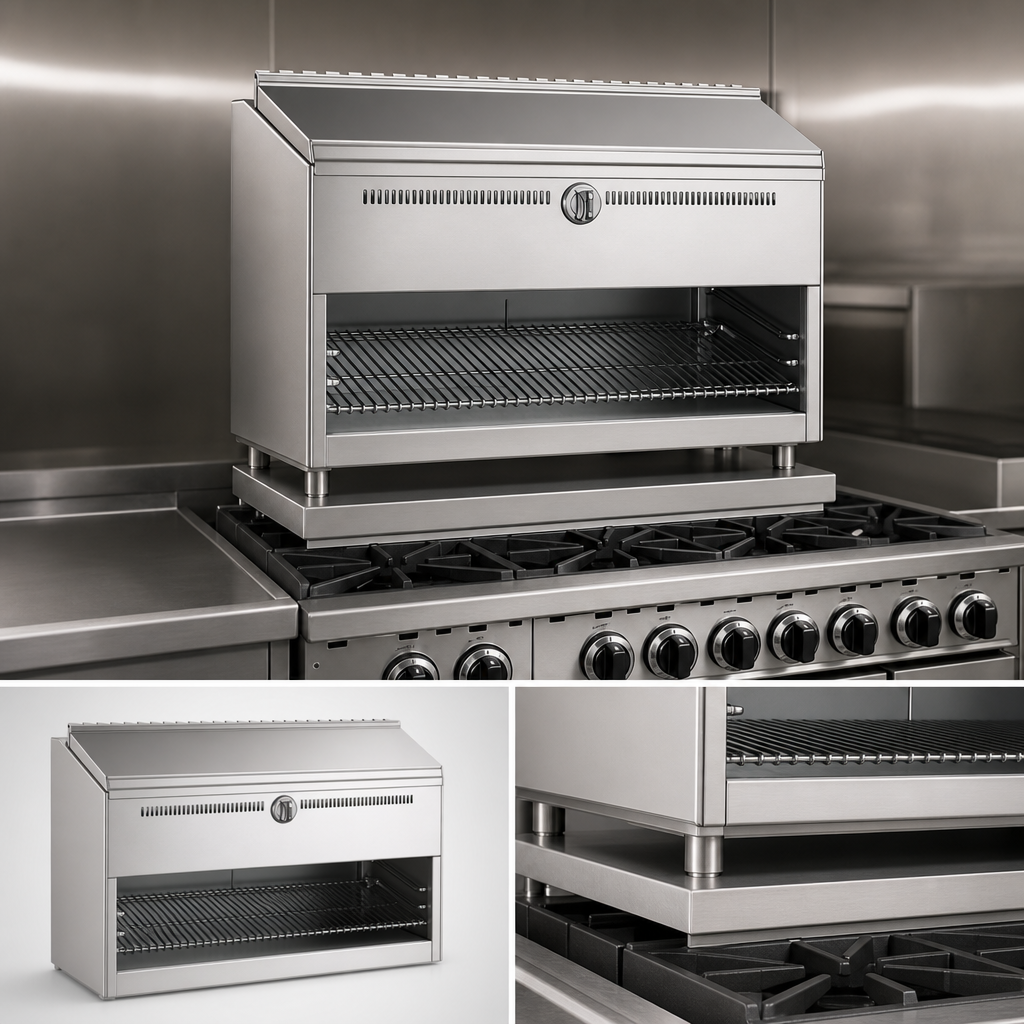

Range-Mount Design

Built for mounting on Bistro range equipment; a riser must also be ordered and the receiving unit must be specified.

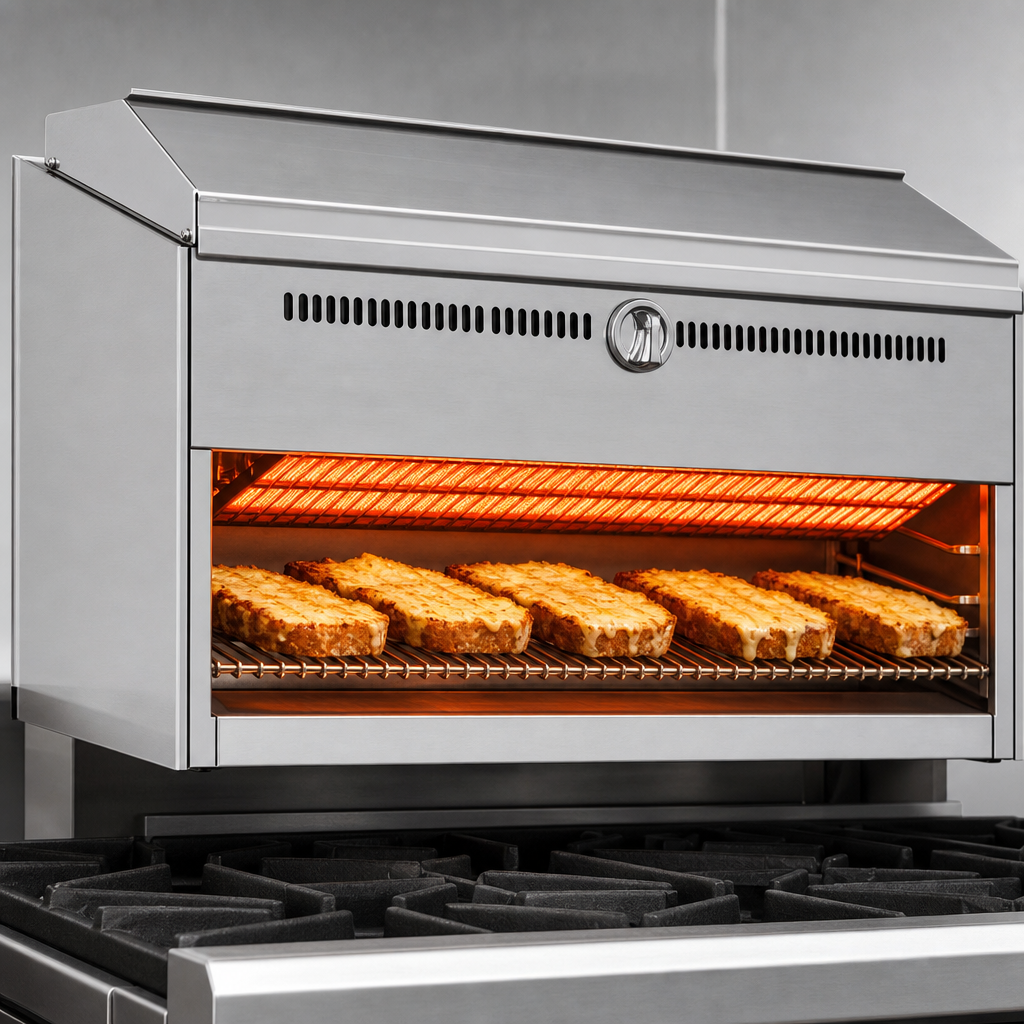

High-Power Infrared Burners

Infrared burner design delivers intense heat for melting, finishing, and browning.

Stainless Steel Construction

Stainless steel front, sides, top, and bottom support durability and easier cleaning.

2-Inch Insulated Bottom Shelf

Insulated bottom shelf helps retain heat and improve performance.

Infinite Manual Controls

Simple manual control allows the operator to adjust heat as needed.

Standing Pilot

Standing pilot keeps the unit ready for use.

Single Rack Position

One rack position provides a controlled area for product placement.

3/4-Inch Gas Regulator

Regulator ships loose and must be installed for proper operation.

Stainless Steel Gas Tubing Throughout

Durable stainless steel gas tubing is used throughout the unit.

Type Cheesemelter
Style Range Mount
Heat Type Infrared
Controls Infinite Manual
Rack Positions 1
BTU 30,000 BTU
Gas Connection Size 3/4 Inch
Material Stainless Steel
Finish Stainless Steel
Shipping Width 36 Inches
Shipping Depth 18 Inches
Shipping Height 21 Inches
Shipping Weight 270 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is the range-mount version. When range mounting on Bistro equipment, a riser must also be ordered and you must specify the unit it will mount to.
Natural gas requires 5 inches W.C. minimum. Propane requires 10 inches W.C. minimum and 14 inches W.C. maximum.
It has one rack position.
The unit is rated at 30,000 BTU and uses infrared burners.
Yes. A 3/4-inch gas regulator is supplied loose and must be installed for proper operation.
Yes. Available options include a stainless steel outer back panel for range mount units, an interconnect gas line for a single gas connection, and a stainless steel interior.
