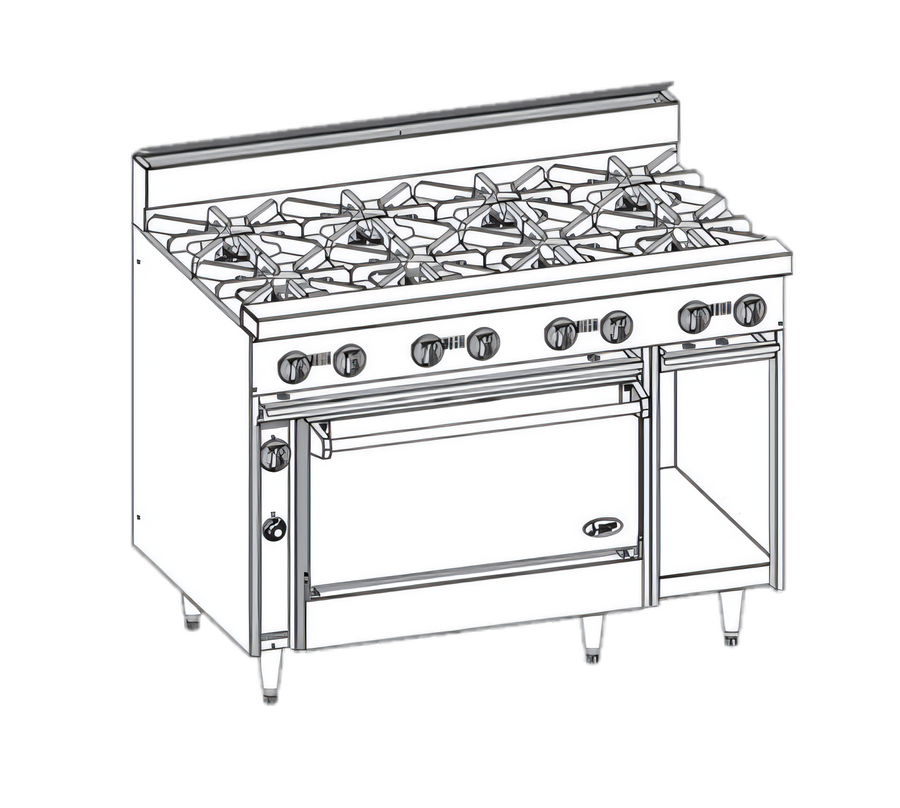

Jade Bistro 48-Inch Shallow-Depth Heavy-Duty Gas Range with 8 Open Burners and Cabinet Base

Stainless Steel Front and Sides, Stub Back, 240,000 BTU

A compact 48-inch floor range with eight powerful burners and a durable cabinet base for high-volume cooking in a shallow-depth footprint.

  • Eight 30,000 BTU cast iron open burners deliver strong, even top heat across the cooking surface.
  • Cabinet base design provides a durable open storage section in a floor-mounted range.
  • Stainless steel front, sides, tray bed, and stub back help the unit stand up to daily commercial use.
  • 14-gauge all-welded construction adds strength for demanding kitchen environments.
  • 6-inch adjustable legs make leveling easier on uneven floors.
  • Supplied gas regulators and 3/4-inch gas connections support installation.

Overall Dimensions:

48.0"W x 31.0"D x 36.0"H

Product Weight:

445.0 lb

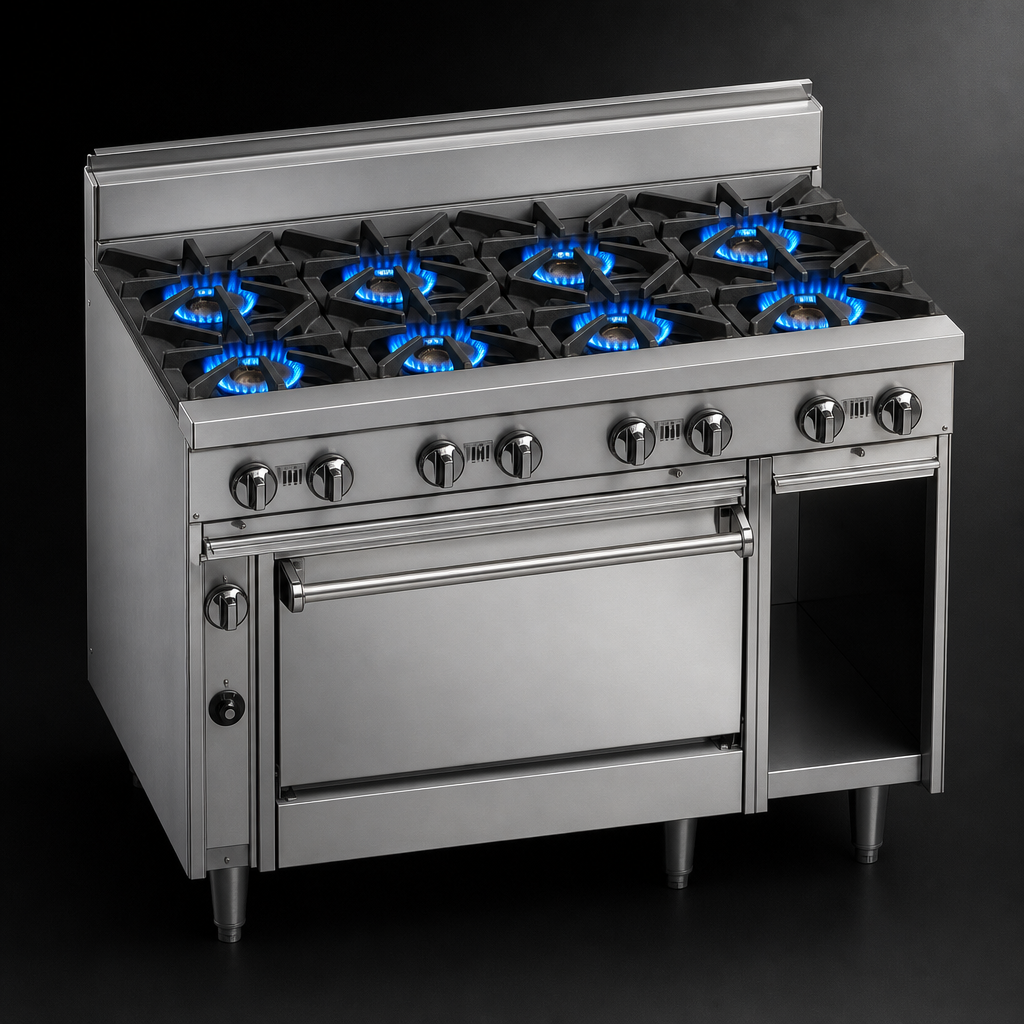

Eight 30,000 BTU Open Burners

Easy-clean cast iron burners provide high-output heat for busy line cooking.

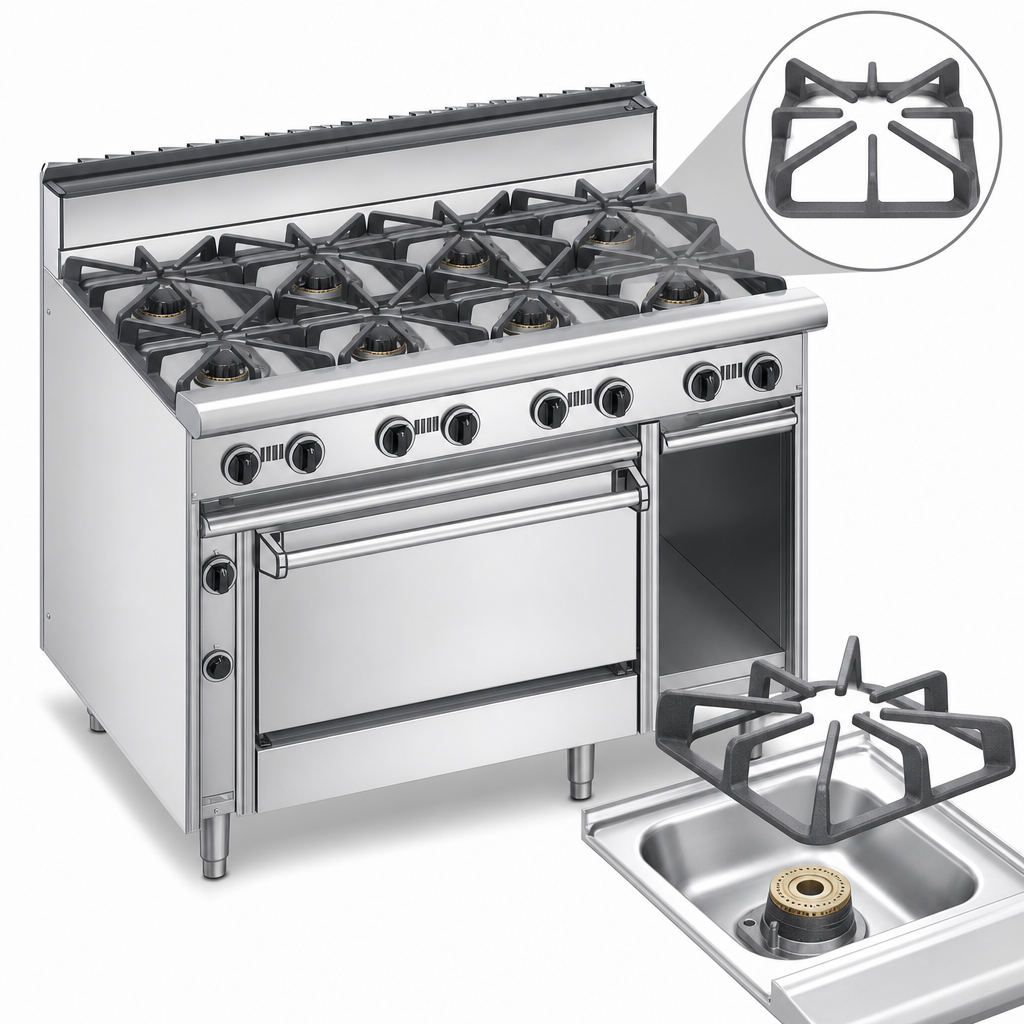

12 x 12 Lift-Off Steel Grates

Heavy-duty steel grates support cookware and remove easily for cleaning.

240,000 BTU Total Output

High combined burner output supports heavy-duty restaurant cooking.

Stainless Steel Exterior Package

Stainless steel front, sides, tray bed, and stub back improve durability and cleaning.

14-Gauge All-Welded Construction

Robust welded build is designed for commercial kitchen use.

Cabinet Base

Open cabinet base is constructed of 14-gauge welded steel for added storage space.

Gas Utility Package

Includes stainless steel gas tubing, stainless steel pilot tips, and (2) 3/4-inch gas regulators.

Adjustable Legs

6-inch adjustable legs help level the range during installation.

Type Restaurant Range
Style Open Burner
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
BTU 240,000 BTU
Gas Connection Size 3/4 Inch
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 31 Inches
Shipping Height 36 Inches
Shipping Weight 445 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. The JBR-8 is the cabinet base version with open burners. Oven-base versions in the family are the JBR-8-36 and JBR-8-36C.
It has (8) open burners.
Each burner is rated at 30,000 BTU, for 240,000 BTU total.
The unit uses (2) 3/4-inch gas connections and must be connected with the supplied regulators.
Natural gas requires 5 inches W.C. minimum, propane requires 10 inches W.C. minimum, and maximum pressure is 14 inches W.C.
The range features 14-gauge all-welded construction with stainless steel front, sides, tray bed, and stub back.
