Jade Range (Middleby)

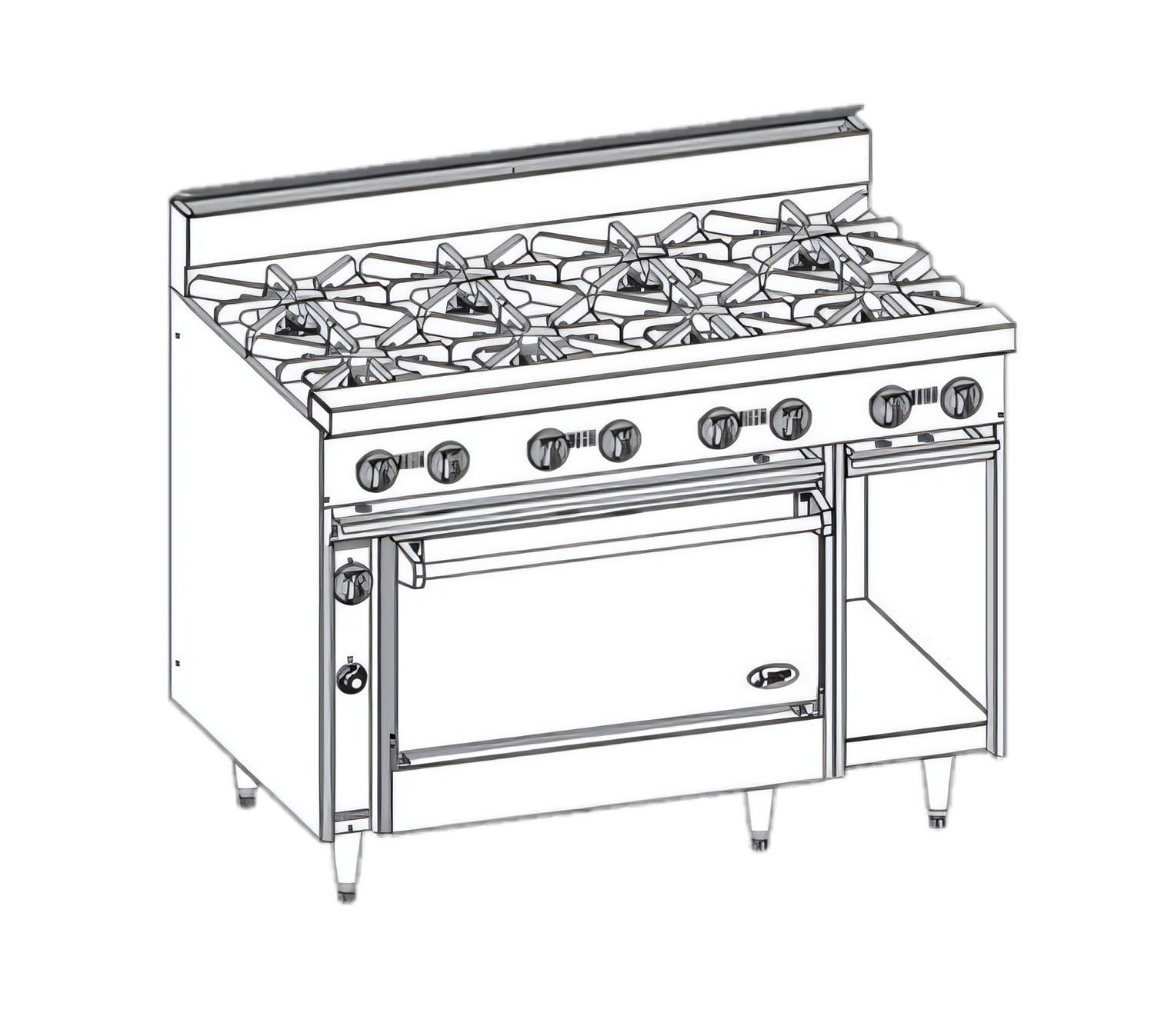

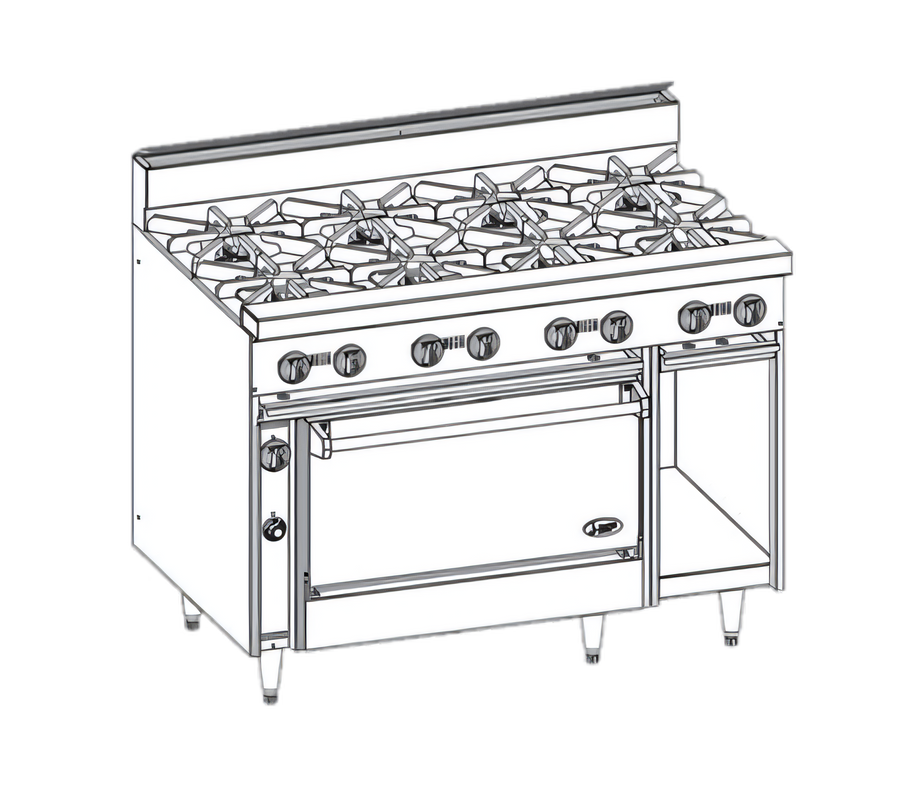

Bistro 48-Inch Shallow-Depth Heavy-Duty Gas Restaurant Range with 8 Open Burners and Convection Oven

SKU: JBR-8-36C
$16,910.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Bistro 48-Inch Shallow-Depth Heavy-Duty Gas Restaurant Range with 8 Open Burners and Convection Oven

Stainless Steel Front and Sides, 270,000 BTU, 115V Convection Blower

Built for high-volume kitchens, this 48-inch range combines eight powerful open burners with a convection oven in a durable stainless steel body.

  • 48-inch shallow-depth heavy-duty gas range with 8 open burners and a convection oven.
  • Cast iron burners deliver 30,000 BTU each with infinite controls for responsive heat management.
  • Convection oven includes a chrome-plated rack, 14-gauge stainless steel interior, and 1/4 HP blower motor.
  • Stainless steel front, sides, tray bed, and stub back are built for demanding kitchen use.
  • 115V/60/1 electrical service, 4.0 amps, and 270,000 BTU total output.
  • 6-inch adjustable legs and supplied 3/4-inch gas regulators support installation.

Overall Dimensions:

48.0"W x 31.0"D x 36.0"H

Product Weight:

635.0 lb

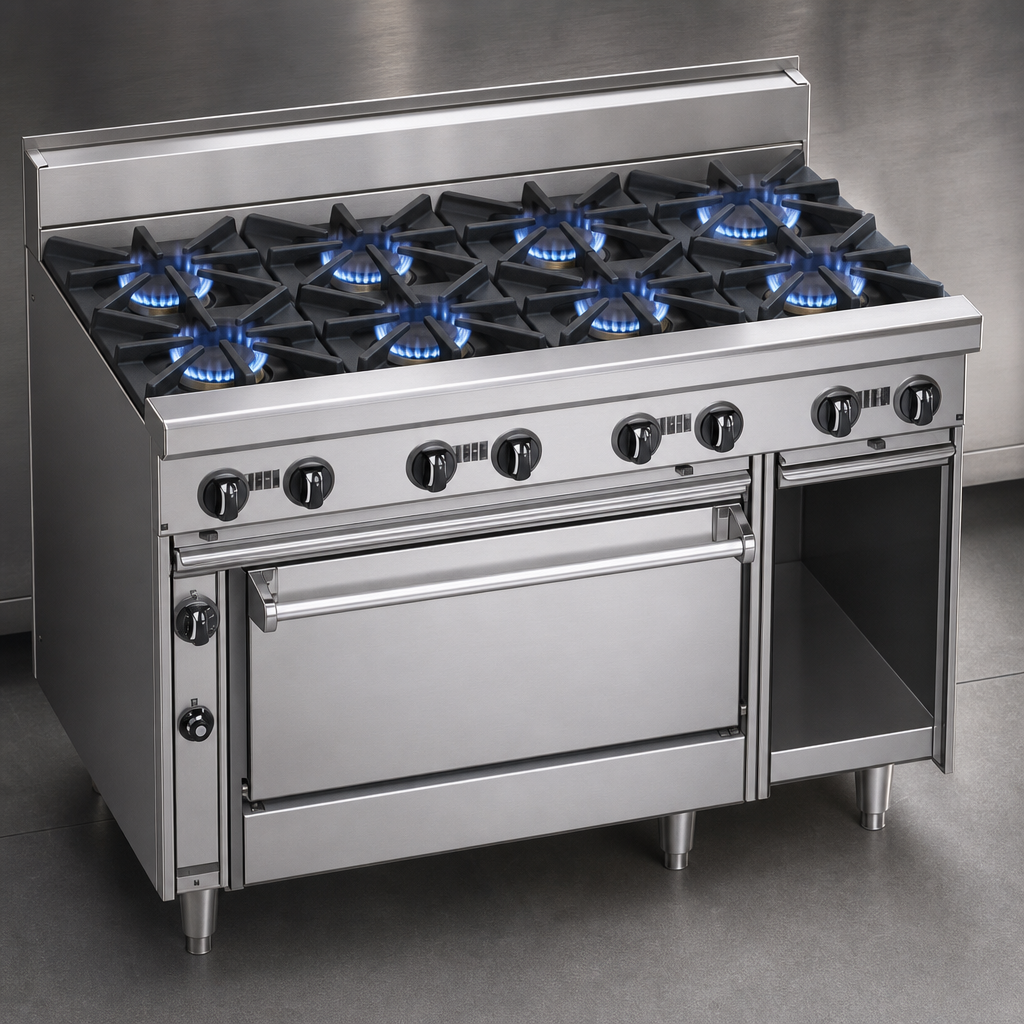

Eight Open Burners

Eight cast iron open burners deliver 30,000 BTU each for high-output cooking.

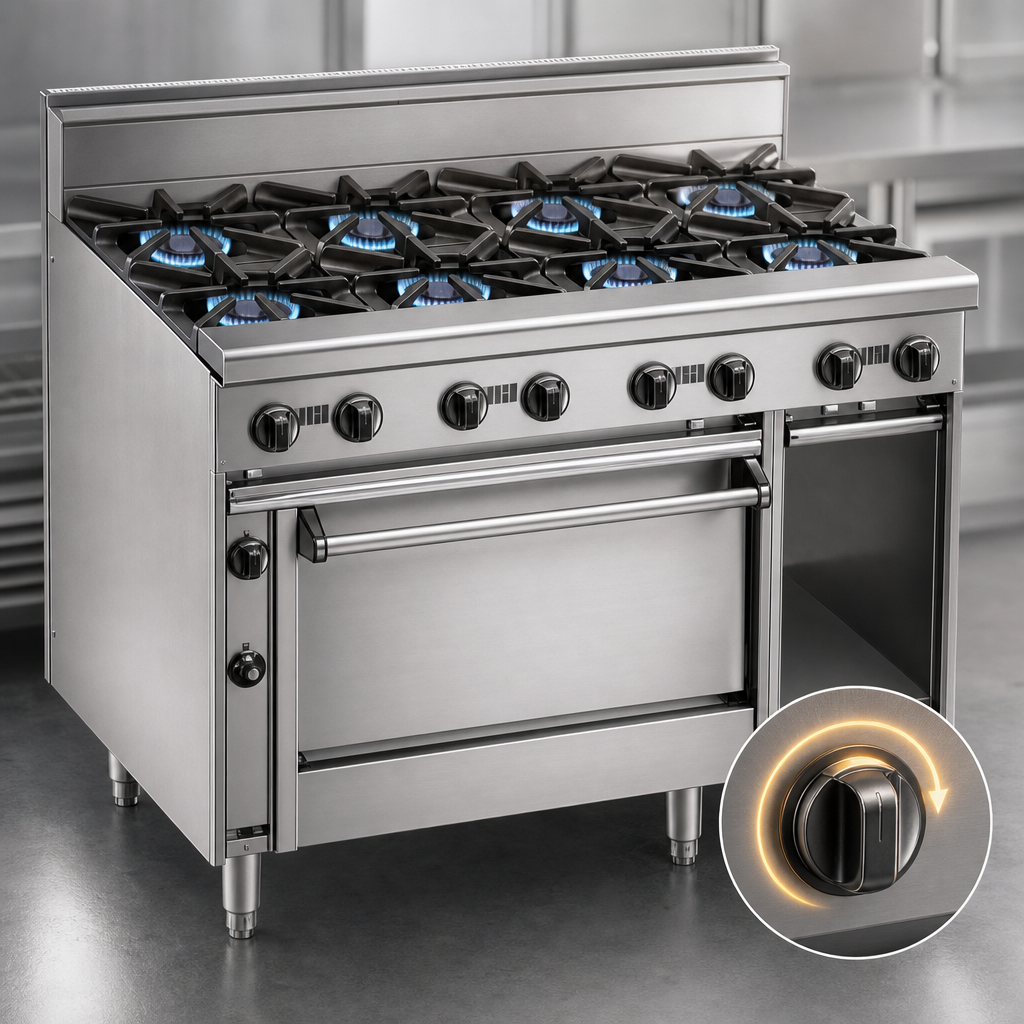

Infinite Controls

Infinite burner controls provide precise heat adjustment across the top sections.

Convection Oven Base

Gas convection oven includes a 14-gauge stainless steel interior and a 1/4 HP blower motor.

Stainless Steel Construction

Front, sides, tray bed, and stub back are stainless steel for durability and easy cleaning.

Chrome-Plated Oven Rack

Includes one chrome-plated oven rack with curled wires and no sharp ends.

Removable Oven Interior

Stainless steel removable oven interior supports easier cleaning and service access.

Gas Regulators Supplied

Unit is provided with two 3/4-inch gas regulators and stainless steel gas tubing.

Adjustable Legs

6-inch adjustable legs help level the range on uneven floors.

Type Restaurant Range
Style Shallow Depth
Installation Type Floor Model
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
BTU 270,000 BTU
Voltage 115 Volts
Amps 4.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type 3-Prong Plug
Controls Infinite
Temperature Range 150°F to 500°F
Gas Connection Size 2 x 3/4-Inch Connections
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes eight 30,000 BTU open burners and one convection oven base.
Specify natural gas or propane when ordering. Required operating pressure is 5 inches W.C. minimum for natural gas, 10 inches W.C. minimum for propane, and 14 inches W.C. maximum.
The convection oven uses 115V/60/1 power, draws 4.0 amps, and includes a 1/4 HP blower motor with a 6-foot cord and 3-prong plug.
The oven thermostat adjusts from 150°F to 500°F.
Available accessories include 6-inch casters with front locking wheels, 36-inch or 48-inch flex hoses with quick disconnect and restraining device, an additional oven rack, a stainless steel high shelf, and a stainless steel high riser.
