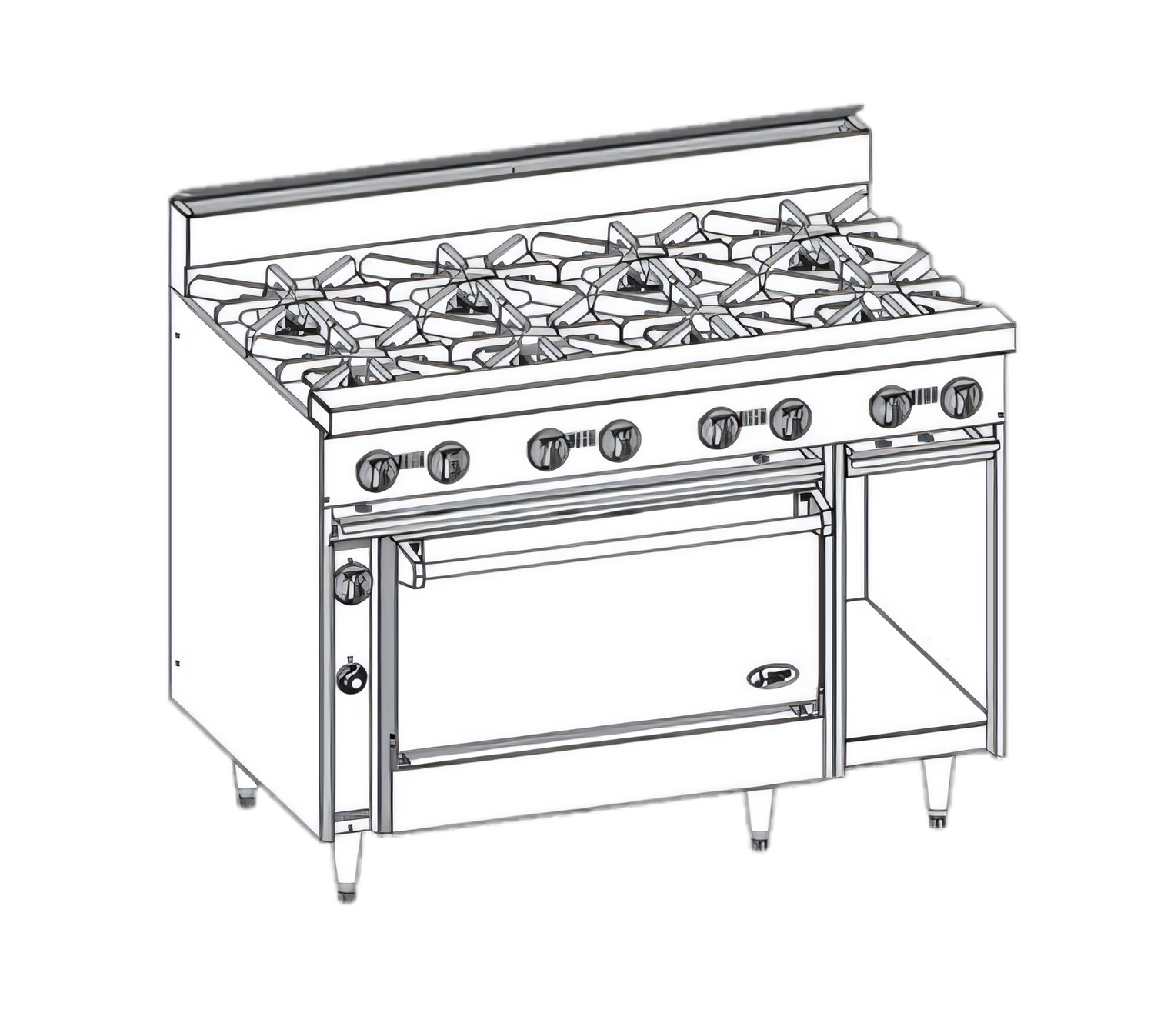

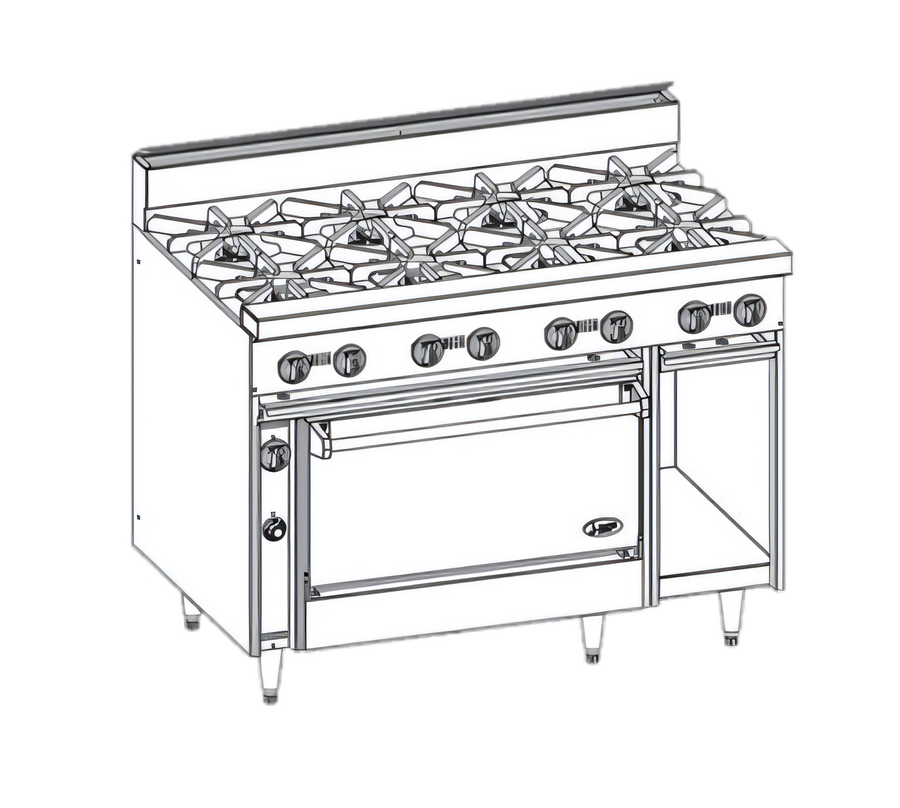

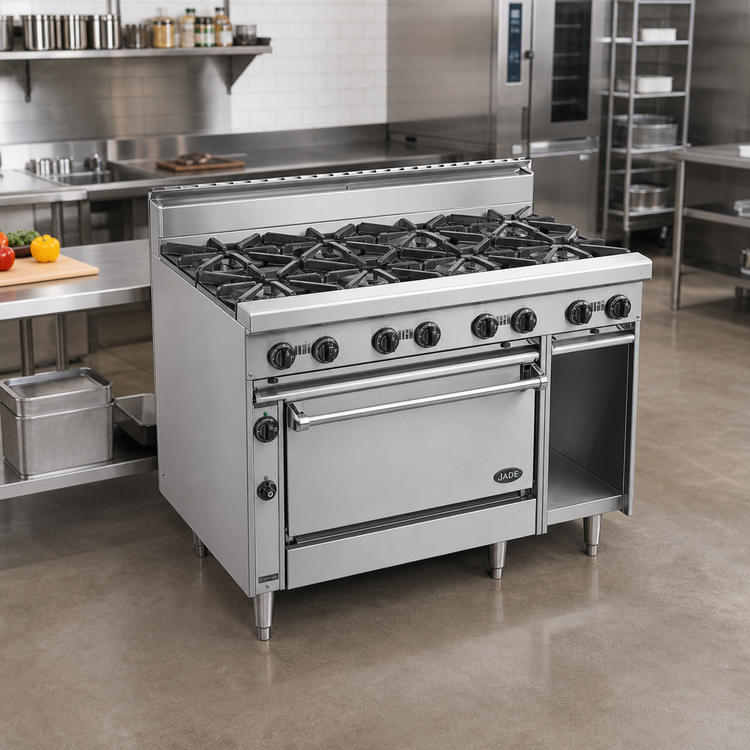

Jade Bistro 48-Inch Shallow-Depth Heavy-Duty Gas Restaurant Range with 8 Open Burners and Standard Oven

Stainless Steel, 270,000 BTU, 6-Inch Adjustable Legs

A heavy-duty shallow-depth range that combines eight 30,000 BTU open burners with a standard oven in a durable stainless steel build.

  • Eight cast iron open burners deliver 30,000 BTU each for high-output cooking.
  • Standard oven base includes a chrome-plated rack and a 150°F to 500°F thermostat.
  • 14-gauge all-welded stainless steel construction is built for daily commercial use.
  • Stainless steel front, sides, tray bed, and stub back help protect high-wear surfaces.
  • 48-inch shallow-depth footprint with 6-inch adjustable legs fits many kitchen layouts.
  • Two 3/4-inch gas regulators are supplied for installation.

Overall Dimensions:

48.0"W x 31.0"D x 36.0"H

Product Weight:

630.0 lb

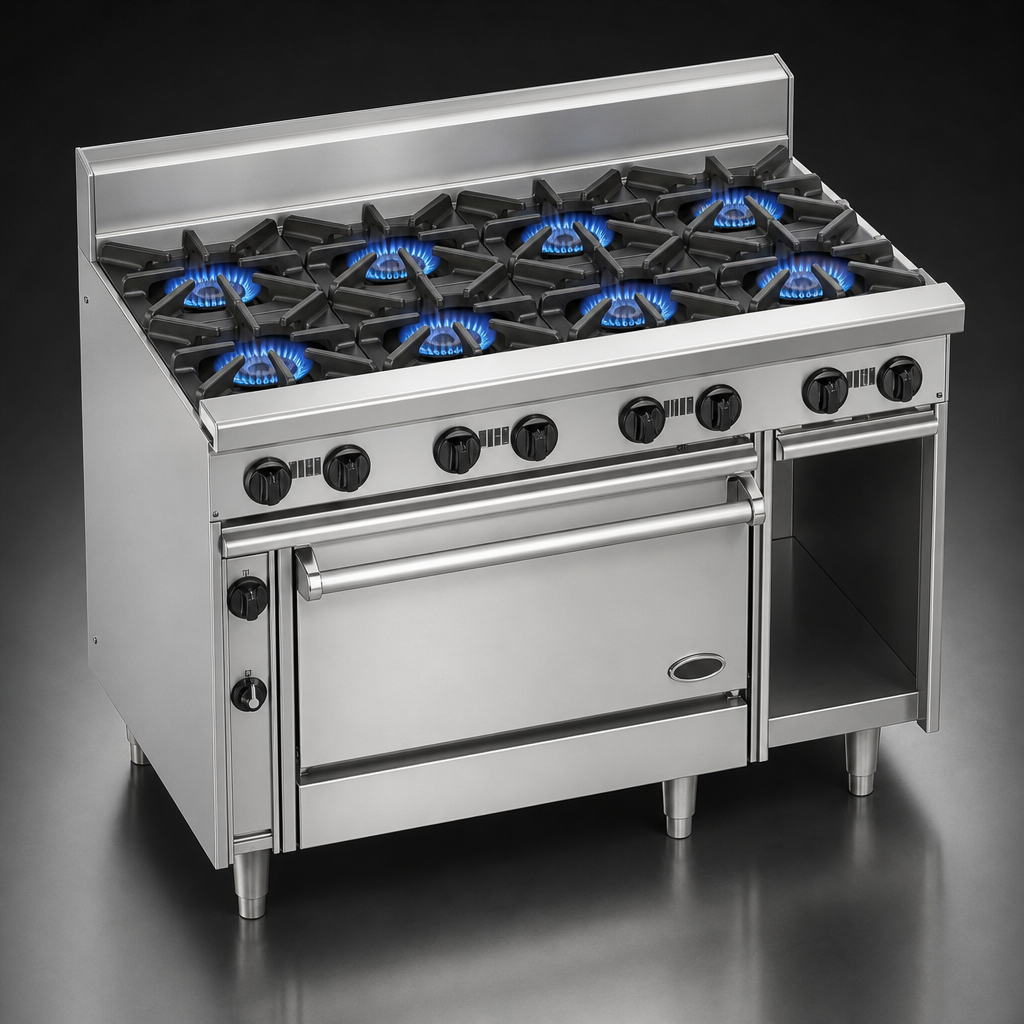

Eight Open Burners

Cast iron open burners are rated at 30,000 BTU each and use 12 x 12 Inch lift-off steel grates.

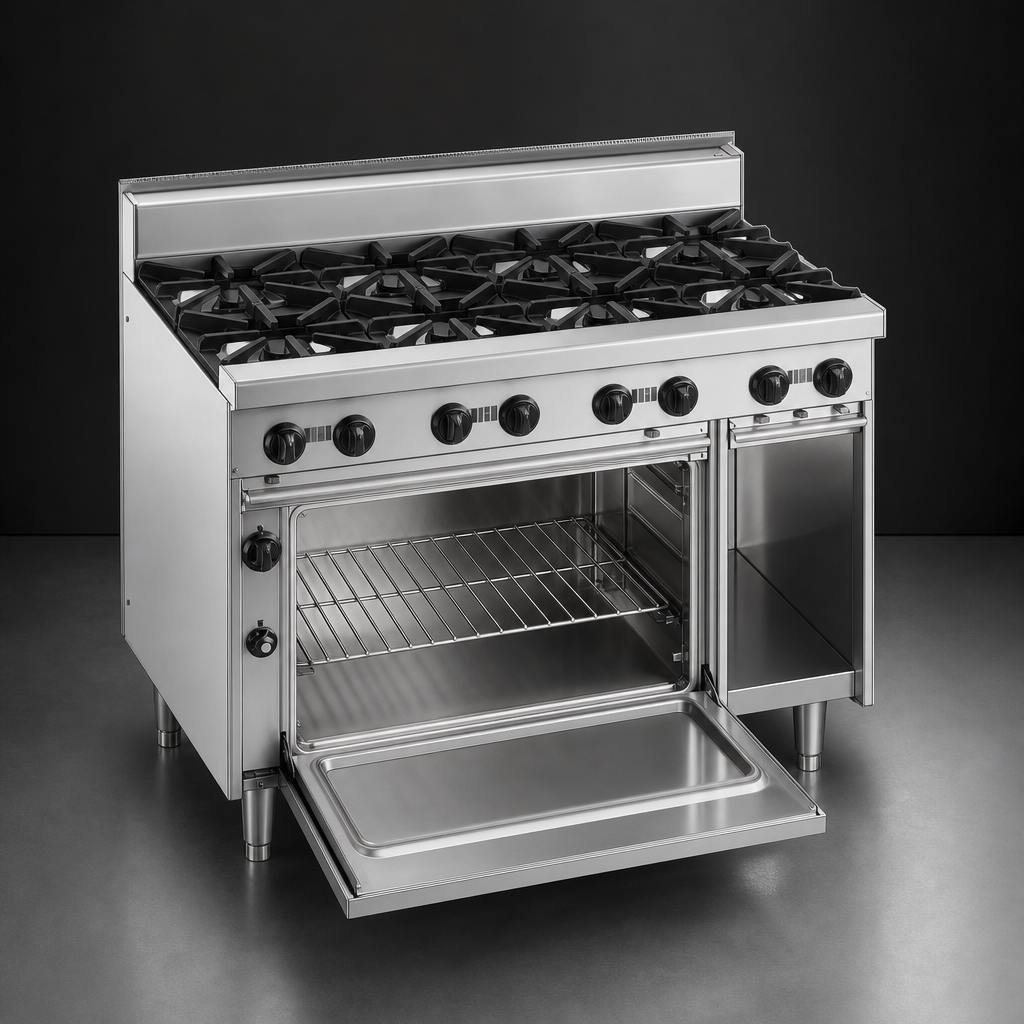

Standard Oven Base

Conventional oven includes stainless steel lining, removable sides and bottom, and one chrome-plated rack.

Wide Oven Temperature Range

Thermostat adjusts from 150°F to 500°F for flexible baking and roasting.

Heavy-Duty Stainless Steel Construction

Built with 14-gauge all-welded construction and stainless steel front, sides, tray bed, and stub back.

Cool-Zone Oven Control

Oven control is positioned in a cooler area for improved operator comfort.

Commercial Gas Components

Stainless steel gas tubing, stainless steel pilot tips, and two 3/4-inch gas regulators are included.

Adjustable Support Legs

6-inch adjustable legs help level the range on uneven floors.

Type Restaurant Range
Style Open Burner
Installation Type Freestanding
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Controls Infinite
BTU 270,000 BTU
Gas Connection Size 2 x 3/4 Inch
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 31 Inches
Shipping Height 36 Inches
Shipping Weight 630 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has eight cast iron open burners rated at 30,000 BTU each with 12 x 12 Inch steel grates.
The unit includes a standard oven with stainless steel lining, removable sides and bottom, one chrome-plated rack, and a 150°F to 500°F thermostat.
The range uses two 3/4 Inch gas connections and must be connected with the supplied regulators.
Natural gas requires 5 Inches W.C. minimum; propane requires 10 Inches W.C. minimum; maximum operating pressure is 14 Inches W.C.
Available accessories include a stainless steel high shelf, stainless steel high riser, 6-inch casters with front locking wheels, 36-inch or 48-inch flex hoses with quick disconnect and restraining device, and an additional oven rack.
Yes. The documentation says to specify the type of gas when ordering and the altitude when above 2,000 ft.
