Jade Range (Middleby)

Jade Bistro 36-Inch Heavy-Duty Gas Restaurant Range with 6 Open Burners and Cabinet Base

SKU: JBR-6
$7,699.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Jade Bistro 36-Inch Heavy-Duty Gas Restaurant Range with 6 Open Burners and Cabinet Base

Shallow Depth, Stainless Steel Front and Sides, Infinite Controls

A compact 36-inch gas range built for busy kitchens, delivering six 30,000 BTU burners in a durable stainless steel cabinet-base design.

  • Six 30,000 BTU cast iron open burners provide fast, responsive heat.
  • Shallow-depth 36-inch footprint helps maximize line space.
  • Stainless steel front, sides, tray bed, and stub back support durability and easy cleaning.
  • Open cabinet base adds storage below the cooktop.
  • Infinite burner controls let cooks fine-tune flame output.
  • Includes 6-inch adjustable legs and a 3/4-inch gas regulator.

Overall Dimensions:

36.0"W x 31.0"D x 36.0"H

Product Weight:

310.0 lb

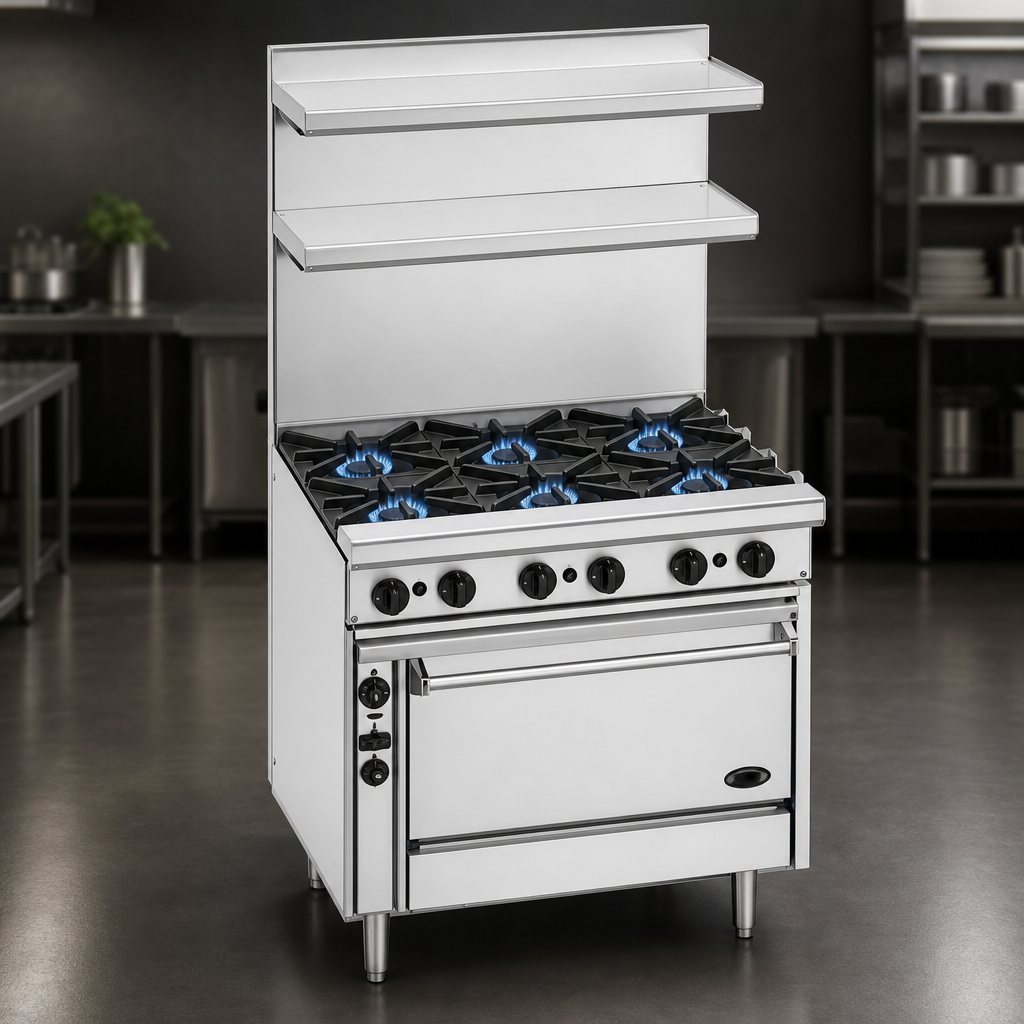

6 Open Burners

Six cast iron open burners deliver 30,000 BTU each for a total output of 180,000 BTU.

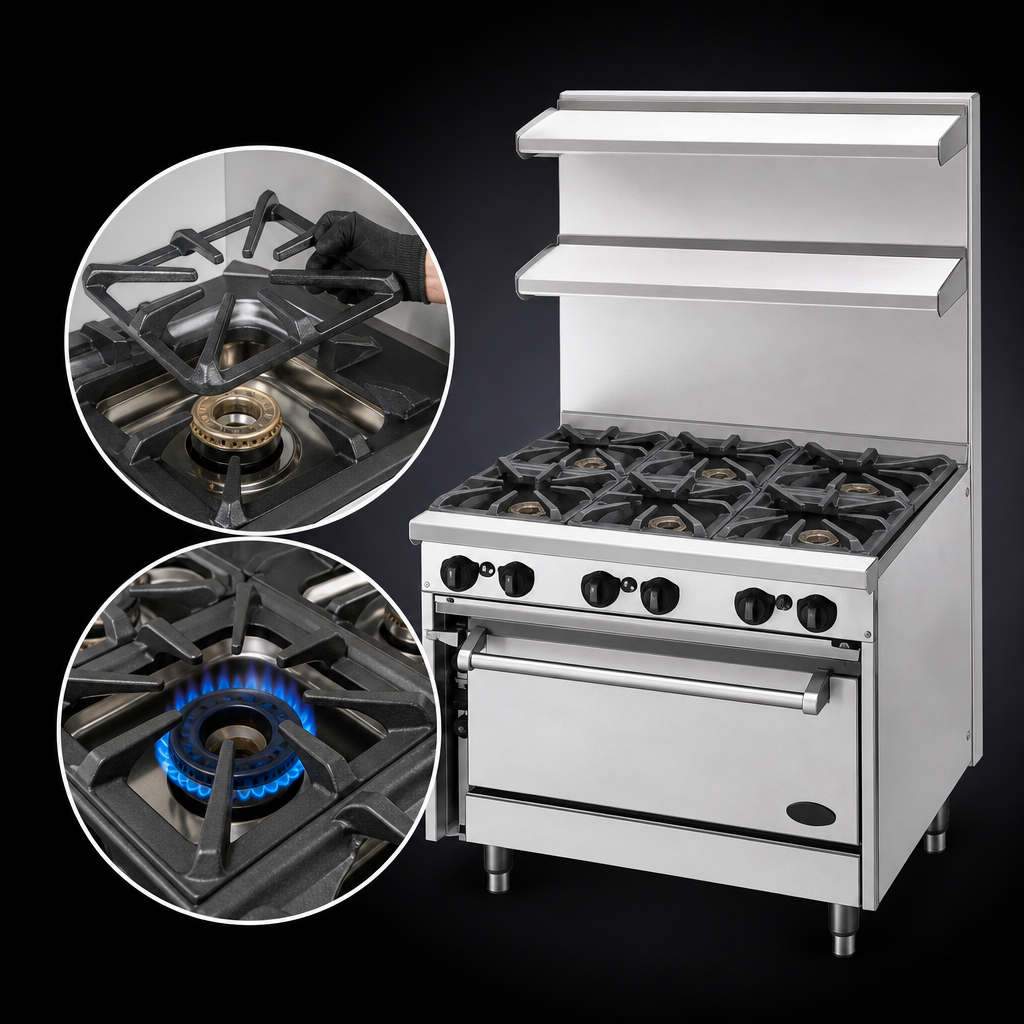

12" x 12" Steel Grates

Lift-off steel grates sit over each burner for serviceability and easier cleaning.

Infinite Burner Controls

Individual infinite controls provide precise flame adjustment for each burner.

Stainless Steel Exterior

Stainless steel front, sides, tray bed, and stub back help protect high-wear surfaces and simplify cleanup.

14-Gauge All-Welded Construction

Heavy-duty welded construction is built for demanding commercial kitchen use.

Open Cabinet Base

The cabinet base is constructed of 14-gauge all-welded steel and provides enclosed undercounter storage.

Gas Utility Setup

Supplied with a 3/4-inch gas regulator and stainless steel gas tubing throughout.

Adjustable Legs

6-inch adjustable legs help level the range during installation.

Type Open Burner Range
Style Shallow Depth
Installation Type Floor Model
Controls Infinite
Material Stainless Steel
Finish Stainless Steel
BTU 180,000 BTU
Gas Connection Size 3/4 Inch
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 31 Inches
Shipping Height 36 Inches
Shipping Weight 310 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has six cast iron open burners, each rated at 30,000 BTU.
No. The JBR-6 model is configured with a cabinet base.
Specify the gas type when ordering. Natural gas requires 5" W.C. minimum pressure, propane requires 10" W.C. minimum pressure, and maximum pressure is 14" W.C.
The unit requires a 3/4" gas connection and must be connected with the supplied gas appliance regulator.
Available accessories include 6" casters with front two locking, plus 36" and 48" flex hoses with quick disconnect and restraining device.
