Jade Range Bistro JBR-36G-M 36" Modular Gas Griddle

SKU: JBR-36G-M
$8,708.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

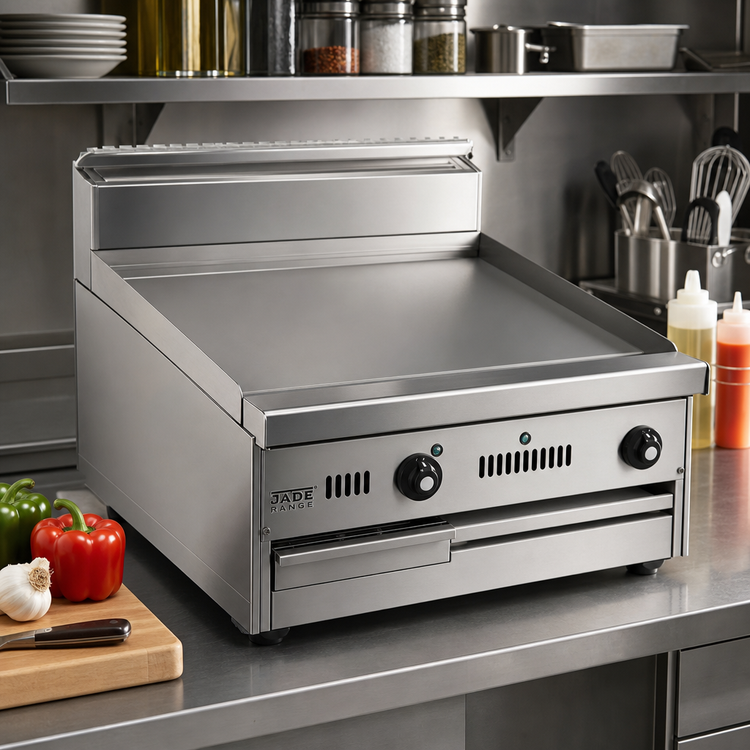

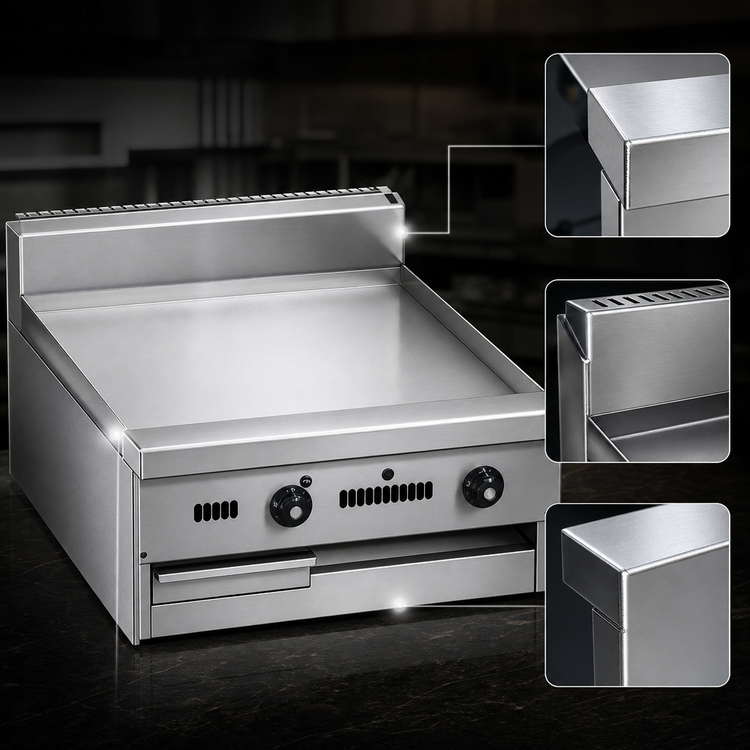

Jade Range Bistro JBR-36G-M 36" Modular Gas Griddle

36 Inches Wide, 1" Polished Steel Plate, Manual Controls, Natural Gas Ready

Engineered for robust commercial kitchens, the Jade Range Bistro JBR-36G-M delivers consistent high-performance griddle cooking in a versatile modular design.

  • Heavy-duty stainless steel construction ensures lasting durability for demanding restaurant environments.
  • Features a 1" thick polished steel griddle plate for excellent heat retention and even cooking.
  • Equipped with 24,000 BTU burners every 12 inches, providing powerful and responsive heat across the cooking surface.
  • Designed with a stainless steel stub back and crumb tray for easy cleaning and maintenance.
  • Modular base allows for flexible installation on a countertop or with various optional bases like legs or refrigeration units.
  • Backed by a standard four-year parts and labor warranty for peace of mind.

Overall Dimensions:

36.0"W x 31.0"D x 12.0"H

Product Weight:

530.0 lb

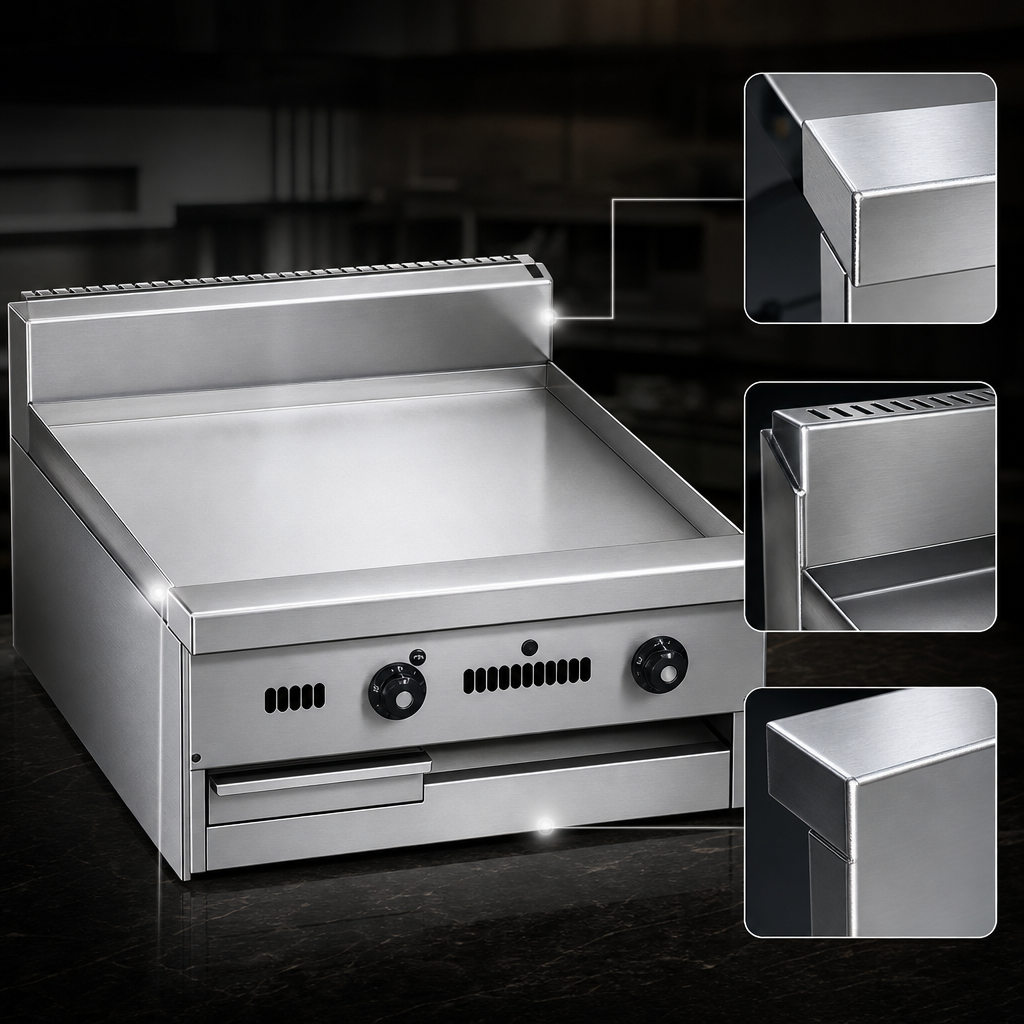

Heavy Duty Construction

Welded stainless steel frame provides exceptional strength and longevity.

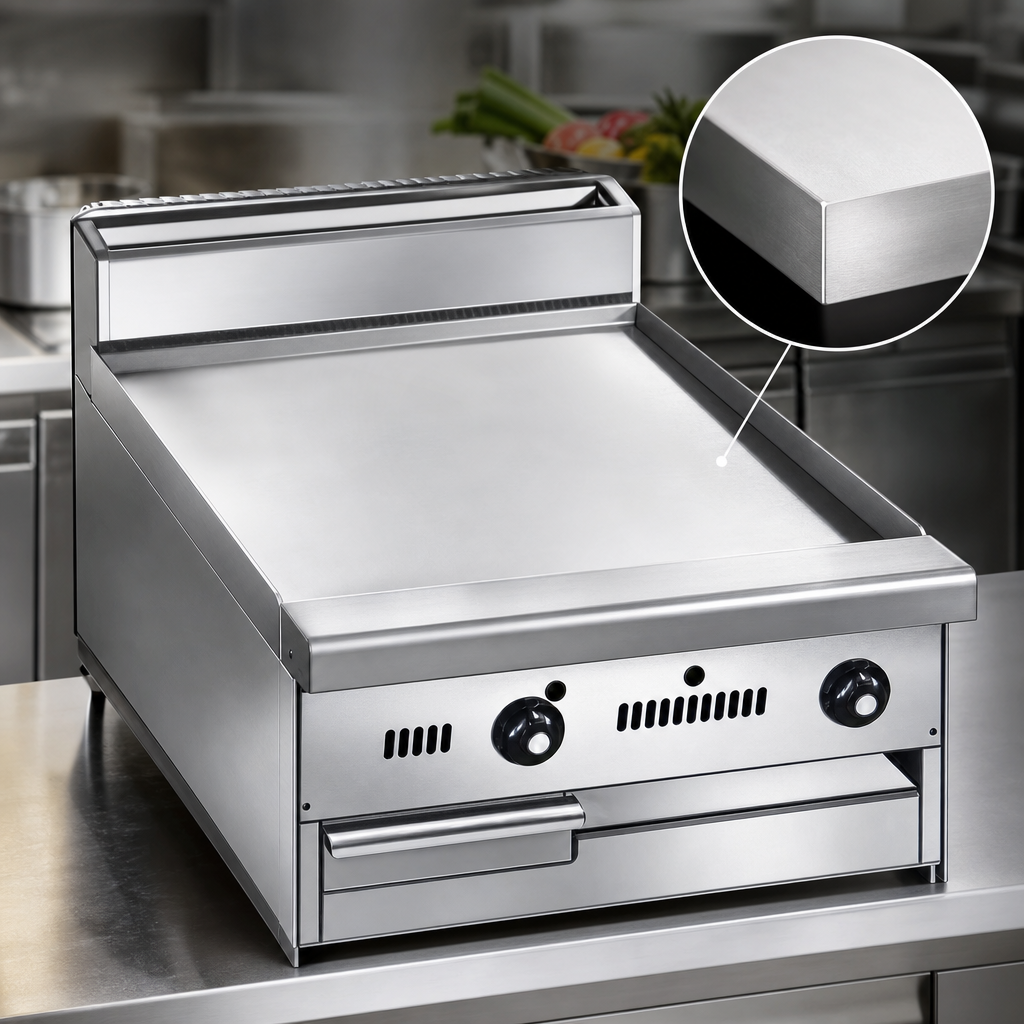

1" Polished Steel Griddle Plate

Thick polished steel cooking surface offers superior heat retention and even temperature distribution, ideal for high-volume cooking.

High-Efficiency Burners

Each 12-inch section is heated by a robust 24,000 BTU burner, totaling 72,000 BTU for the 36-inch griddle, ensuring rapid heat-up and recovery.

Stainless Steel Components

Features stainless steel pilot tips, burner box, crumb tray, solid 4" plate shelf landing, and 6" high stub back for durability and easy cleaning.

Cast Iron Easy Lift-Off Burners

Designed for simple removal and maintenance of the burners.

Manual Controls

Provides precise manual flame control for versatile cooking without a temperature thermostat.

Gas Connection and Regulator

Includes one 3/4" rear gas connection and a supplied 3/4" gas regulator for convenient installation.

Type Griddle
Style Modular
Installation Type Countertop / Floor Model (Requires Base)
BTU 72,000 BTU
Gas Type Natural Gas (Field Convertible to Propane)
Gas Connection Size 3/4" NPT
Gas Inlet Pressure Natural Gas: 5 Inches W.C., Propane Gas: 5 Inches W.C.
Griddle Plate Thickness 1 Inch
Griddle Plate Material Polished Steel
Controls Manual
Material Stainless Steel
Finish Stainless Steel
Cooking Surface Width 36 Inches
Cooking Surface Depth 31 Inches
Shipping Width 36 Inches
Shipping Depth 31 Inches
Shipping Height 12 Inches
Shipping Weight 530 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

4-year parts and labor warranty

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JBR-36G-M operates on Natural Gas, and it is field convertible to Propane. A 3/4" gas regulator is supplied with the unit.
No, the standard JBR-36G-M model features manual controls for precise flame adjustment. Thermostat controls are available as an optional accessory.
The unit requires a 3/4" NPT gas connection. The required operating pressure is 5 Inches W.C. for both Natural Gas and Propane Gas.
This griddle comes with a standard four-year parts and labor warranty.
The JBR-36G-M has a width of 36 inches, a depth of 31 inches, and a height of 12 inches. It weighs approximately 530 lb.
