Jade Range (Middleby)

Jade Bistro 36-Inch Shallow-Depth Gas Restaurant Range with 36-Inch Griddle and Standard Oven

SKU: JBR-36G-36
$10,655.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Jade Bistro 36-Inch Shallow-Depth Gas Restaurant Range with 36-Inch Griddle and Standard Oven

Manual Griddle Controls, 1" Polished Steel Plate, Stainless Steel Construction

This shallow-depth range combines a 36-inch griddle and standard oven in one rugged stainless steel unit for flexible, high-volume cooking.

  • 36-inch griddle surface with a 1" polished steel plate and manual controls
  • Standard oven base includes one chrome-plated rack and a stainless steel interior
  • 102,000 BTU total output supports demanding commercial service
  • Stainless steel front, sides, tray bed, and stub back for durability
  • 3/4-inch gas connection with supplied regulator for installation
  • 6-inch adjustable legs help with leveling and placement

Overall Dimensions:

36.0"W x 31.0"D x 36.0"H

Product Weight:

600.0 lb

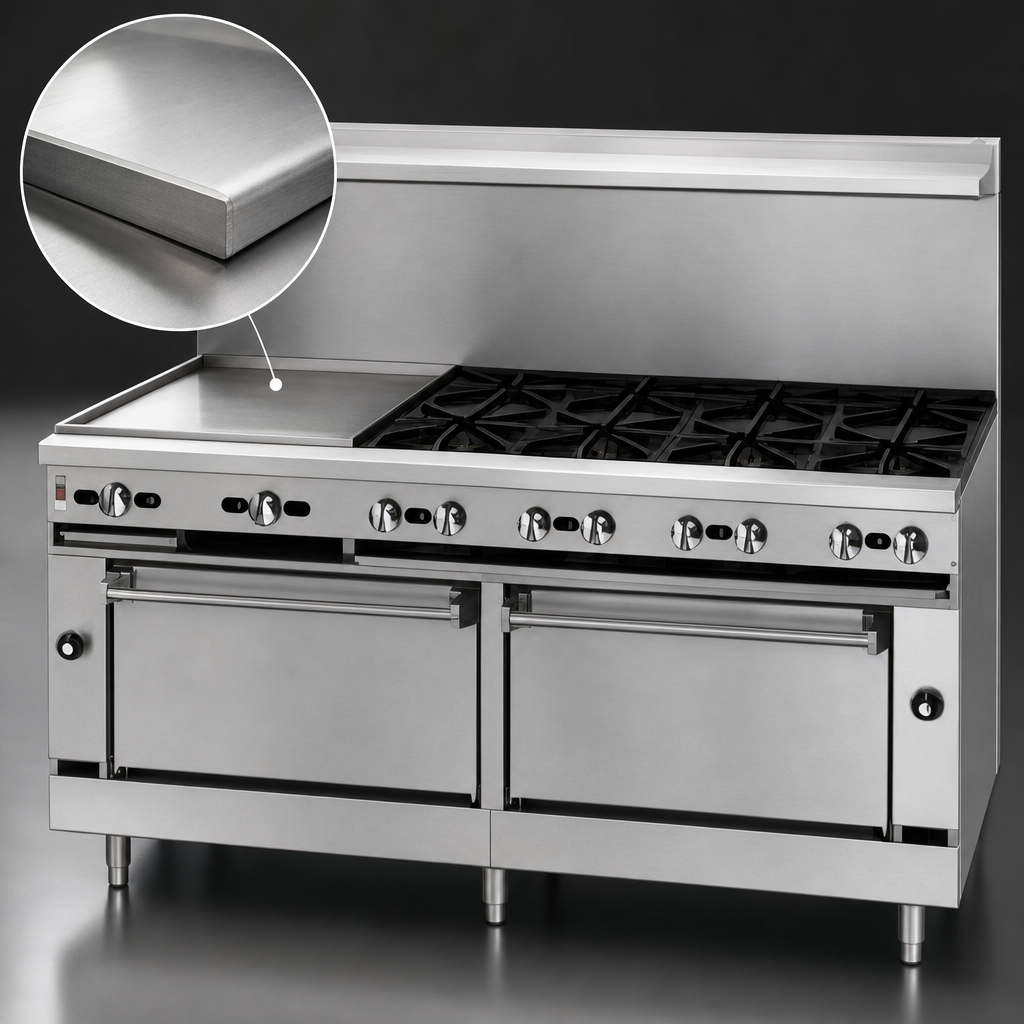

1-Inch Polished Steel Griddle Plate

Heavy-duty griddle surface designed for even heat transfer and long service life.

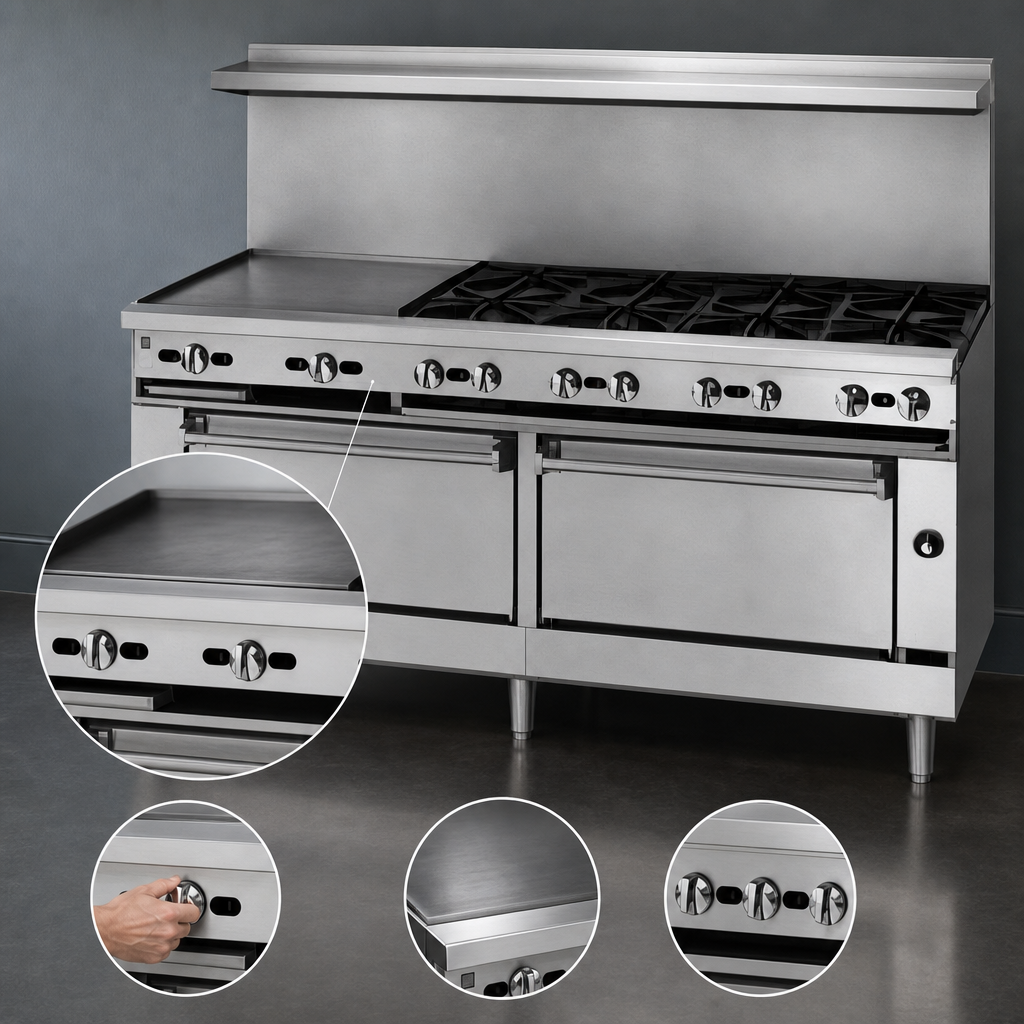

Manual Griddle Controls

Simple manual control setup with no temperature thermostat on the griddle section.

Even-Heat Griddle Burners

24,000 BTU burner spacing every 12 inches helps distribute heat across the 36-inch griddle.

Standard Oven Base

Conventional oven base with a thermostat adjustable from 150°F to 500°F and a 30,000 BTU burner.

Tool-Free Removable Oven Interior

Oven sides and bottom remove without tools to simplify cleaning and maintenance.

Chrome-Plated Oven Rack

One chrome-plated rack is included, with curled and welded wires for a safer finish.

14-Gauge Stainless Steel Construction

Built with stainless steel front, sides, tray bed, stub back, gas tubing, and pilot tips.

Supplied Gas Regulator

Includes a 3/4-inch gas regulator and requires connection to the supplied regulator.

6-Inch Adjustable Legs

Adjustable legs help with leveling and installation on uneven floors.

Type Commercial Gas Range
Style Griddle with Standard Oven
Installation Type Floor Model
Controls Manual
Temperature Range 150°F to 500°F
BTU 102,000 BTU
Gas Connection Size 3/4 Inch
Material Stainless Steel
Interior Finish Stainless Steel
Shipping Width 36 Inches
Shipping Depth 31 Inches
Shipping Height 36 Inches
Shipping Weight 600 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. The griddle uses manual controls and does not include a temperature thermostat.
The standard oven thermostat adjusts from 150°F to 500°F.
Natural gas requires 5" W.C. minimum, propane requires 10" W.C. minimum, and maximum pressure is 14" W.C.
The oven interior measures 28" W x 14" H x 24" D.
One chrome-plated oven rack is included with the standard oven.
