Jade Bistro 48-Inch Shallow Depth Gas Restaurant Range with Left 36-Inch Griddle, Right 2 Open Burners, and Cabinet Base
Jade Bistro 48-Inch Shallow Depth Gas Restaurant Range with Left 36-Inch Griddle, Right 2 Open Burners, and Cabinet Base
Manual controls, 132,000 BTU, stainless steel, stub back
A compact, heavy-duty gas range that combines a 36-inch griddle with two open burners in a shallow-depth 48-inch footprint.
- 36-inch polished steel griddle on the left with two powerful open burners on the right.
- Manual controls with no temperature thermostat for straightforward operation.
- 31-inch shallow-depth design helps conserve valuable kitchen space.
- Stainless steel front, sides, tray bed, and stub back with all-welded construction.
- Open cabinet base provides underrange storage.
- 6-inch adjustable legs help level the unit during installation.
- Total output of 132,000 BTU with dual 3/4-inch gas regulators.
Overall Dimensions:
48.0"W x 31.0"D x 36.0"HProduct Weight:

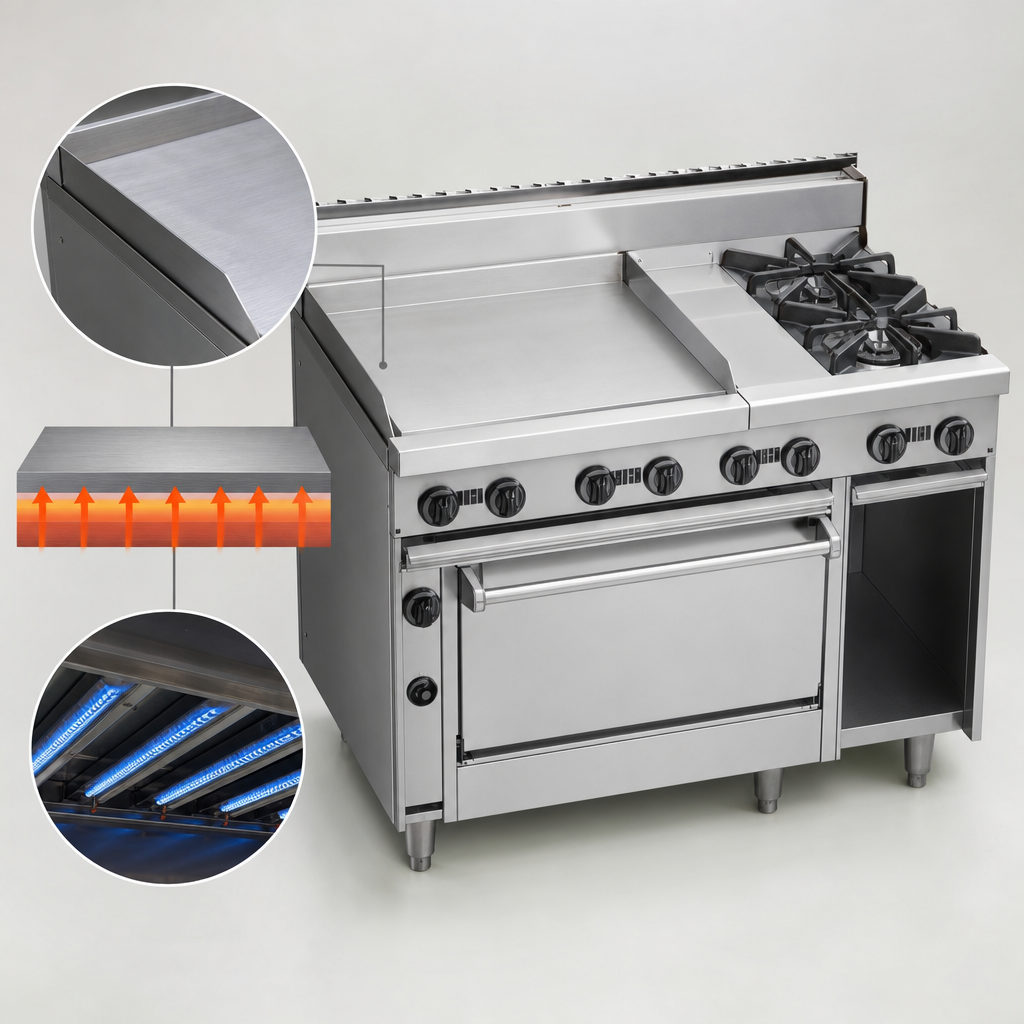

535.0 lbLeft-Side 36-Inch Griddle
1-inch highly polished steel plate with a 24,000 BTU burner every 12 inches for even griddle heat.

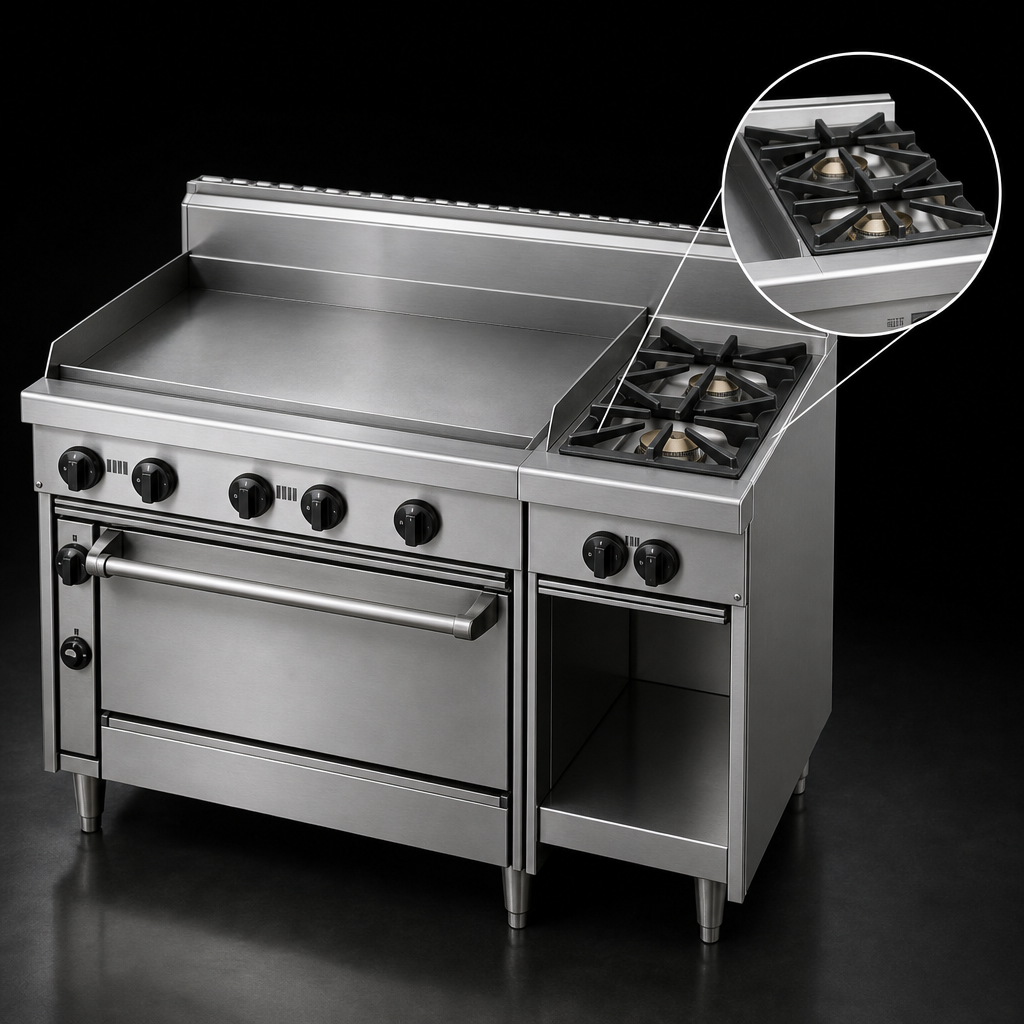

Right-Side Open Burners
Two cast iron open burners rated at 30,000 BTU each with 12 x 12 lift-off steel grates.
Manual Griddle Controls
No temperature thermostat is included, giving the operator simple direct heat control.
Heavy-Duty Stainless Construction
Stainless steel front, sides, tray bed, and stub back with 14-gauge all-welded construction.
Cabinet Base
Open 14-gauge welded steel cabinet base provides storage beneath the cooking top.
Adjustable Leveling Legs
6-inch adjustable legs help the range sit level on uneven floors.
Gas Utility Package
Supplied with two 3/4-inch gas regulators and 3/4-inch gas connections.
Shallow-Depth Footprint
31-inch depth offers a more compact footprint for tighter kitchen layouts.
