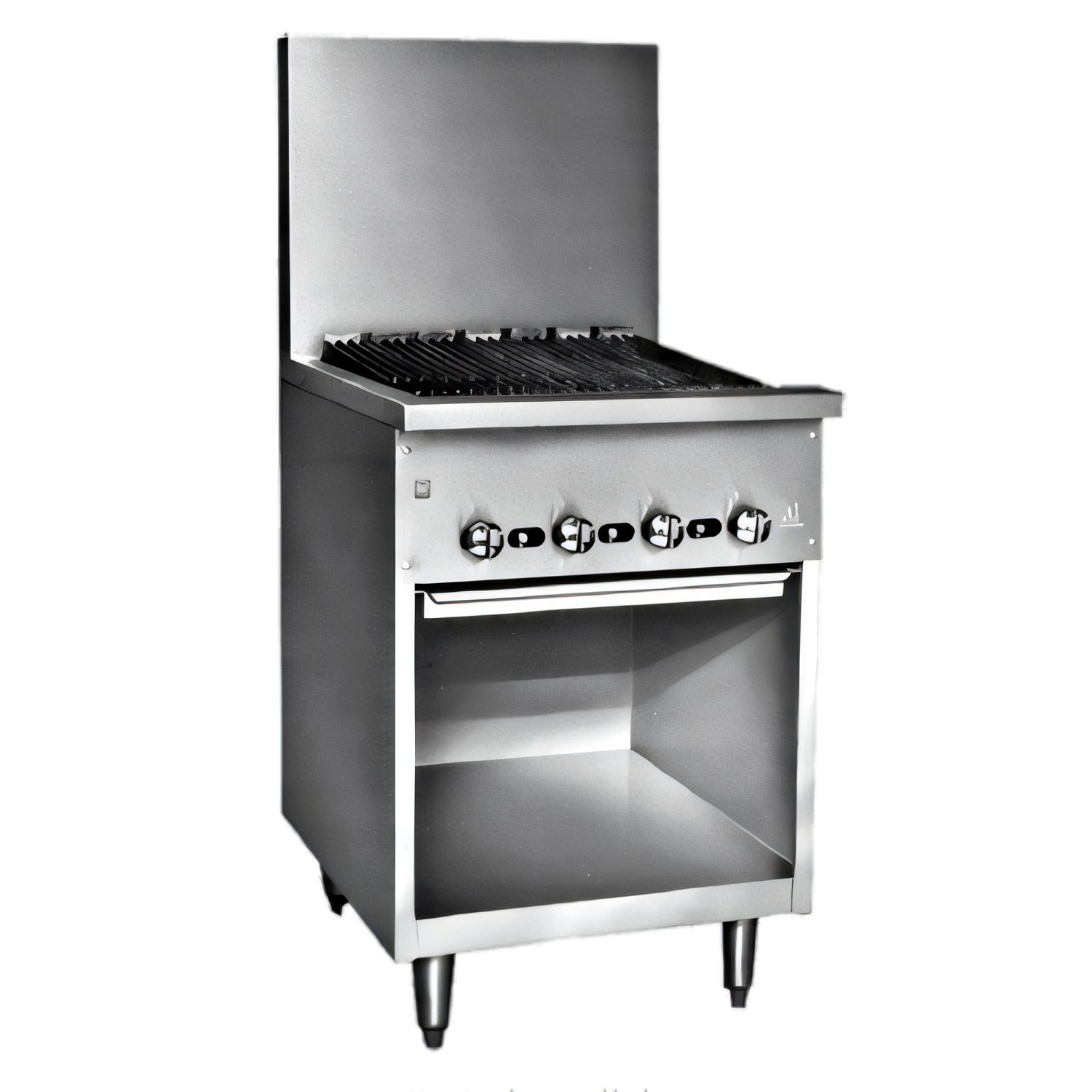

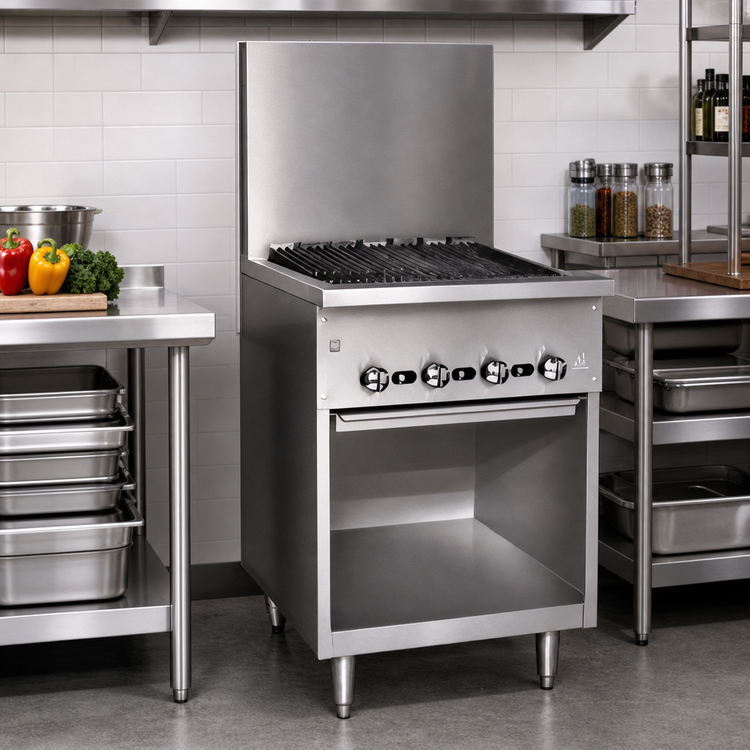

Jade Range Bistro JBR-24B 24" Gas Charbroiler with Open Cabinet Base

24-Inch, 60,000 BTU, Natural Gas, Floor Model

Deliver consistent, high-performance grilling with the durable Jade Range Bistro JBR-24B charbroiler, featuring precise control and robust stainless steel construction.

  • Heavy-duty 14 gauge stainless steel construction ensures lasting durability for commercial kitchens.
  • Achieve precise cooking with four 15,000 BTU/hr burners, each with infinite manual control.
  • Features heavy-duty cast iron top grates with built-in grease guides to minimize flare-ups and simplify cleaning.
  • Equipped with two separate 14 gauge steel drip pans for efficient grease management.
  • Open cabinet base provides convenient storage while maintaining a compact footprint.
  • Includes 6" stainless steel adjustable legs for optimal working height and stability.

Overall Dimensions:

24.0"W x 31.0"D x 36.0"H

Product Weight:

300.0 lb

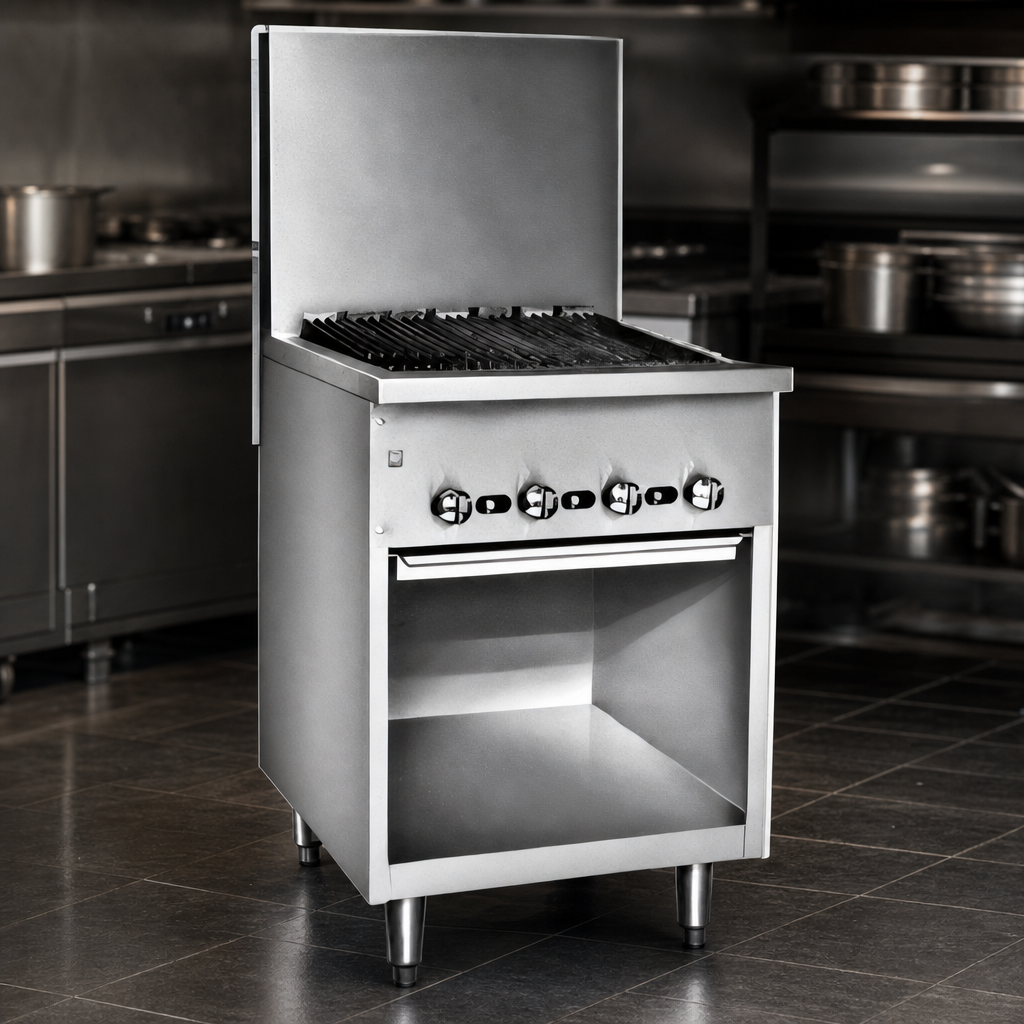

Heavy Duty Construction

Constructed with 14 gauge stainless steel all-welded body, front, and sides for superior durability and longevity in demanding commercial environments.

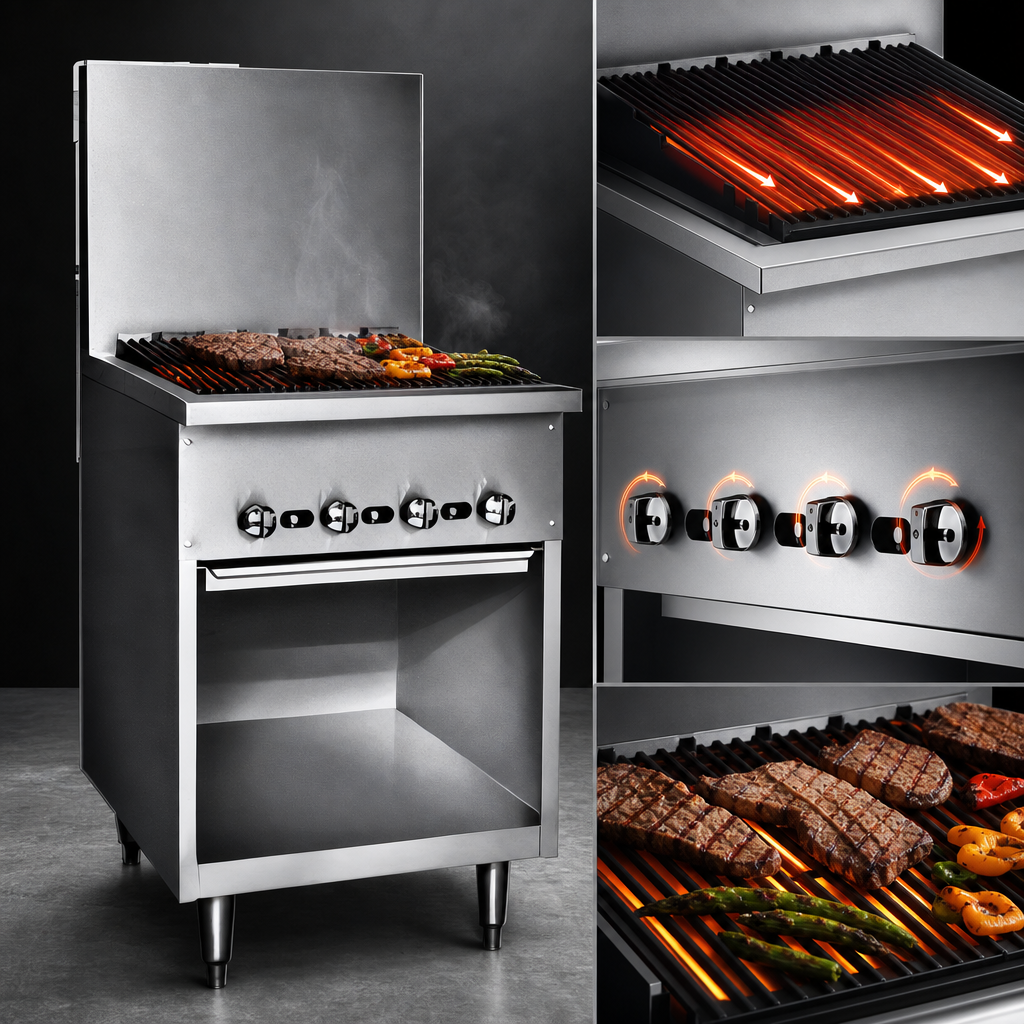

Precision Broiling

Features four 15,000 BTU/hr cast iron burner radiants, each with an infinite control manual gas valve, allowing for precise heat management across the 24-inch cooking surface.

Grease Management System

Heavy-duty cast iron top grates include built-in grease guides to channel away excess fat and reduce uncomfortable flaring, paired with two separate 14 gauge steel drip pans for easy cleanup.

Open Cabinet Base

An integrated open cabinet base offers convenient storage for utensils or ingredients, with a durable interior featuring heat-resistant Silvertone paint.

Adjustable Legs

Comes standard with 6" stainless steel adjustable legs, allowing for proper leveling and optimal working height.

Gas Regulator Included

Supplied with a 3/4" gas pressure regulator for immediate and safe operation.

Type Charbroiler with Open Cabinet Base
Installation Type Floor Model (With 6" Adjustable Legs)
Cooking Surface Width 24 Inches
BTU 60,000 BTU/hr
Gas Type Natural Gas (Convertible to Propane)
Gas Connection Size 3/4"
Gas Inlet Pressure (Natural Gas) 5" W.C. Minimum, 7" W.C. Maximum
Gas Inlet Pressure (Propane Gas) 10" W.C. Minimum, 14" W.C. Maximum
Controls Infinite Manual
Material 14 Gauge Stainless Steel, Cast Iron Grates
Interior Finish Heat Resistant Silvertone Paint (Cabinet Base)
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 31 Inches
Shipping Height 36 Inches
Shipping Weight 300 lb.
Country of Origin USA

Warranty & Protection

Manufacturer's warranty is not specified in the provided documents.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JBR-24B comes configured for Natural Gas but can be converted to Propane Gas. Please specify your gas type when ordering.
The Jade Range Bistro JBR-24B charbroiler has a total output of 60,000 BTU/hr, with individual 15,000 BTU/hr burners every 6 inches.
Yes, the charbroiler is supplied with a 3/4" gas pressure regulator, which must be connected for operation.
The JBR-24B features a 14 gauge stainless steel all-welded body construction, including the front and sides, with heavy-duty cast iron top grates and burner radiants.
For Natural Gas, the required operating pressure is 5" W.C. minimum to 7" W.C. maximum. For Propane Gas, it is 10" W.C. minimum to 14" W.C. maximum.
Yes, the JBR-24B is designed with an open cabinet base, which has an interior finish of heat resistant Silvertone paint.
