Jade Range (Middleby)

Jade Range Bistro JBR-236CC 36-Inch Double Deck Full-Size Gas Convection Oven

SKU: JBR-236CC
$20,618.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

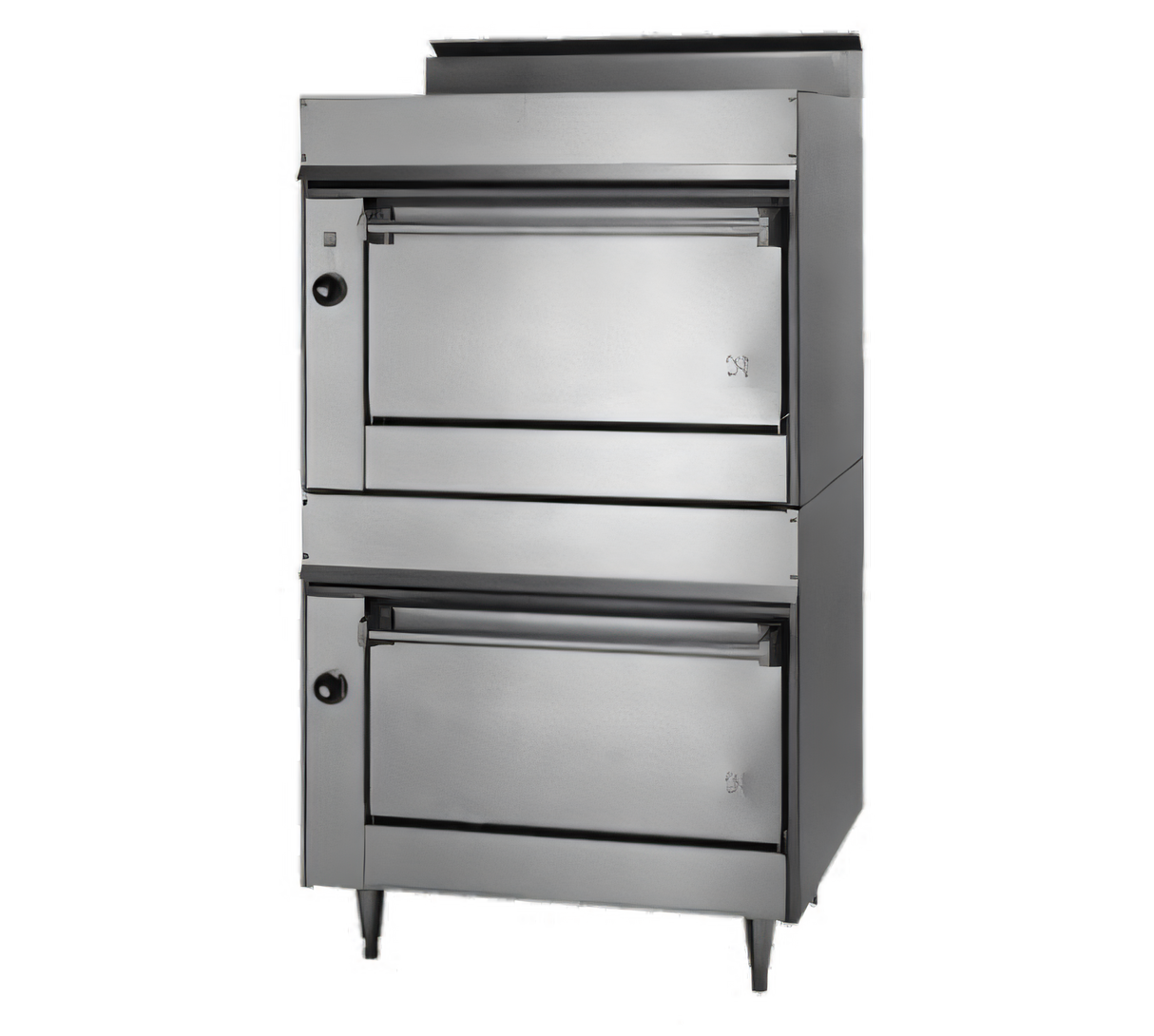

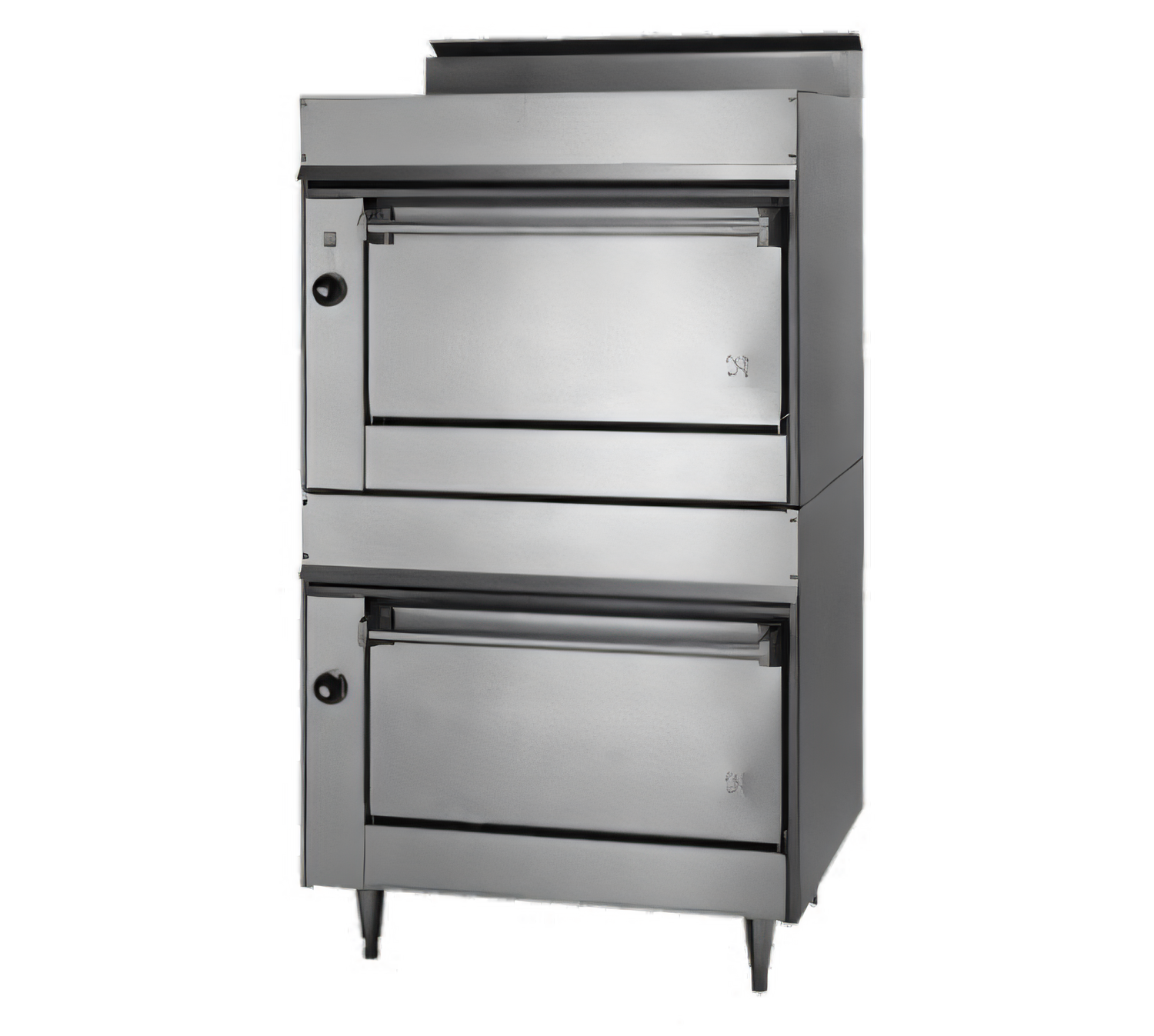

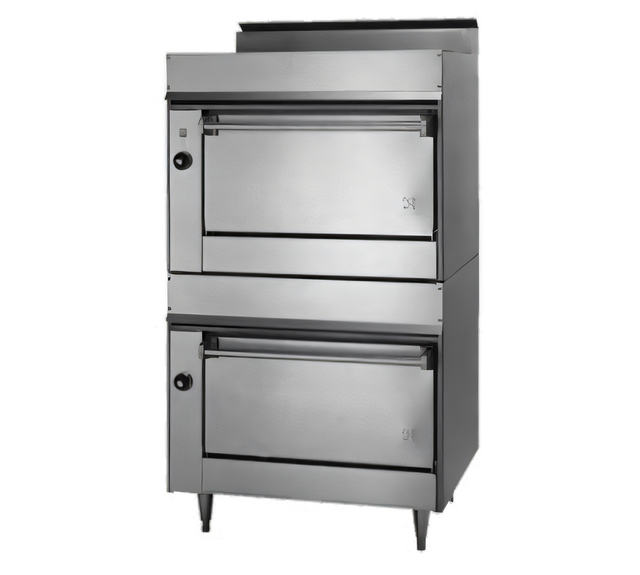

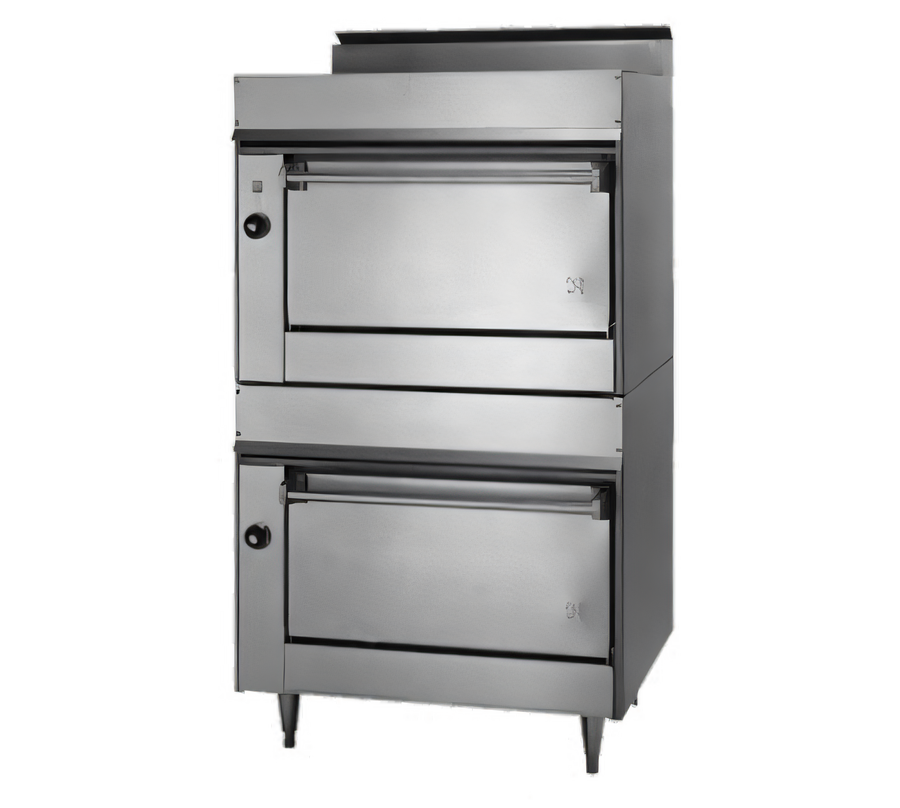

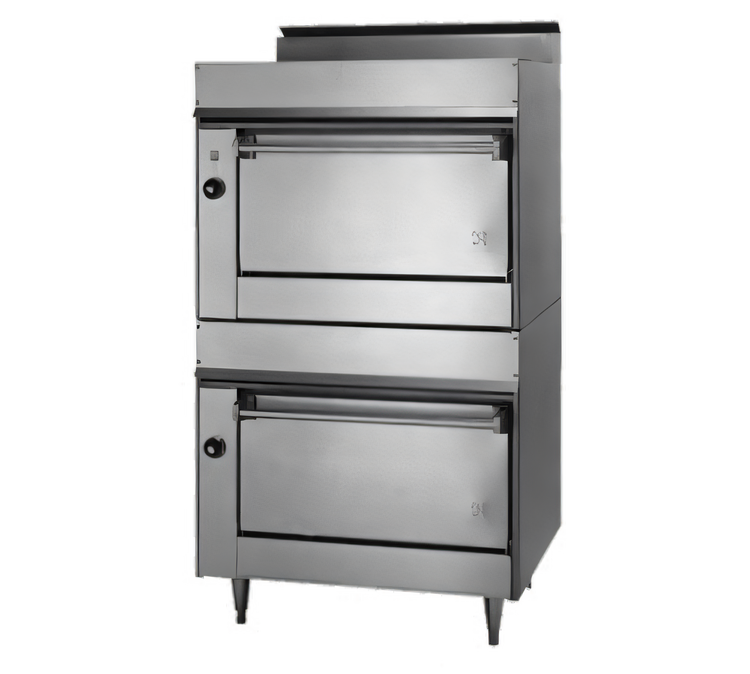

Jade Range Bistro JBR-236CC 36-Inch Double Deck Full-Size Gas Convection Oven

Double Convection Oven, Natural Gas, 36-Inch Width

Experience superior baking and roasting performance with the Jade Range Bistro JBR-236CC double convection oven, designed for high-volume commercial kitchens.

  • Durable 14 gauge all-welded stainless steel construction for lasting performance.
  • Features two convection oven bases for high-capacity cooking.
  • Offers a versatile temperature range from 150°F to 500°F.
  • Each oven is equipped with a powerful 30,000 BTU/hr burner for efficient heating.
  • Includes one chrome-plated oven rack per oven, designed for durability and safety.
  • Integrated 1/3 HP blower motor in each oven ensures consistent heat distribution.

Overall Dimensions:

36.0"W x 34.0"D x 65.38"H

Product Weight:

500.0 lb

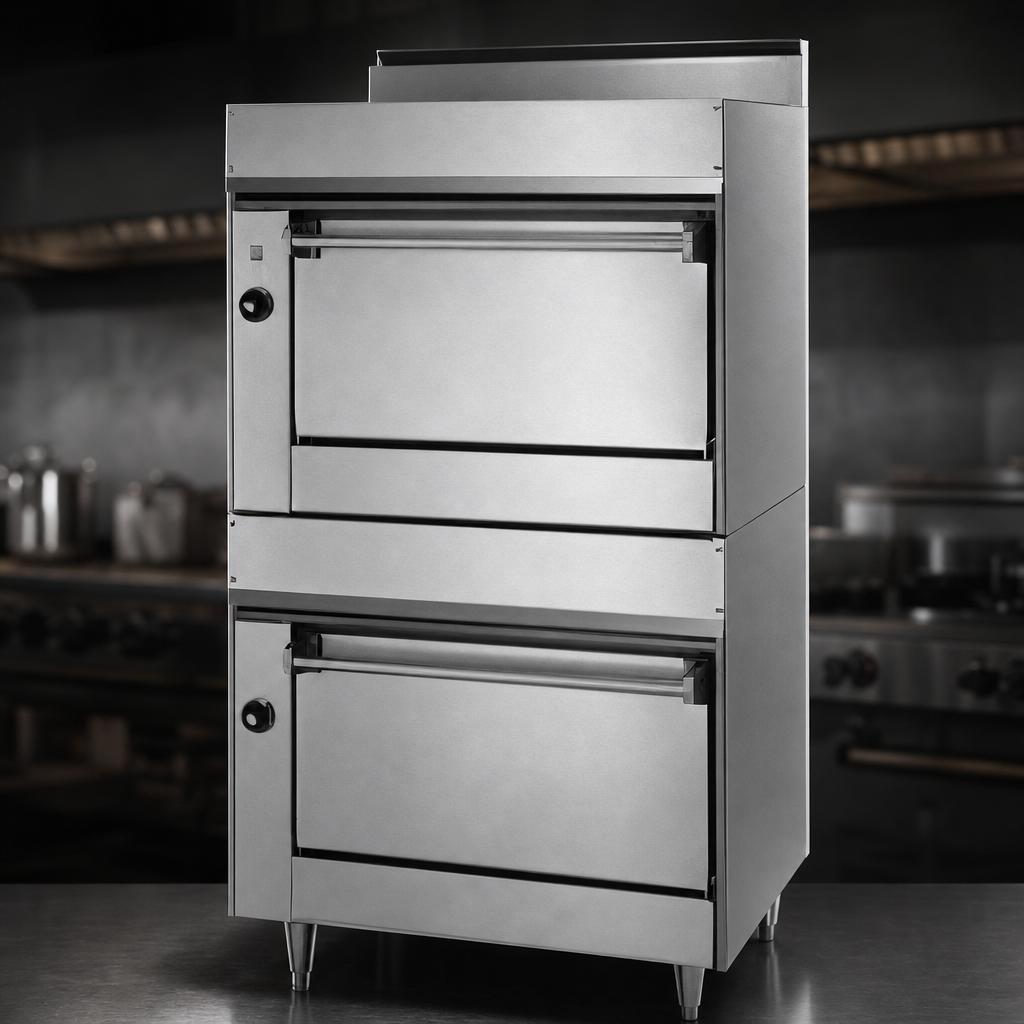

Heavy-Duty Construction

Built with 14 gauge all-welded stainless steel front, sides, and top, providing robust durability and support for counter equipment.

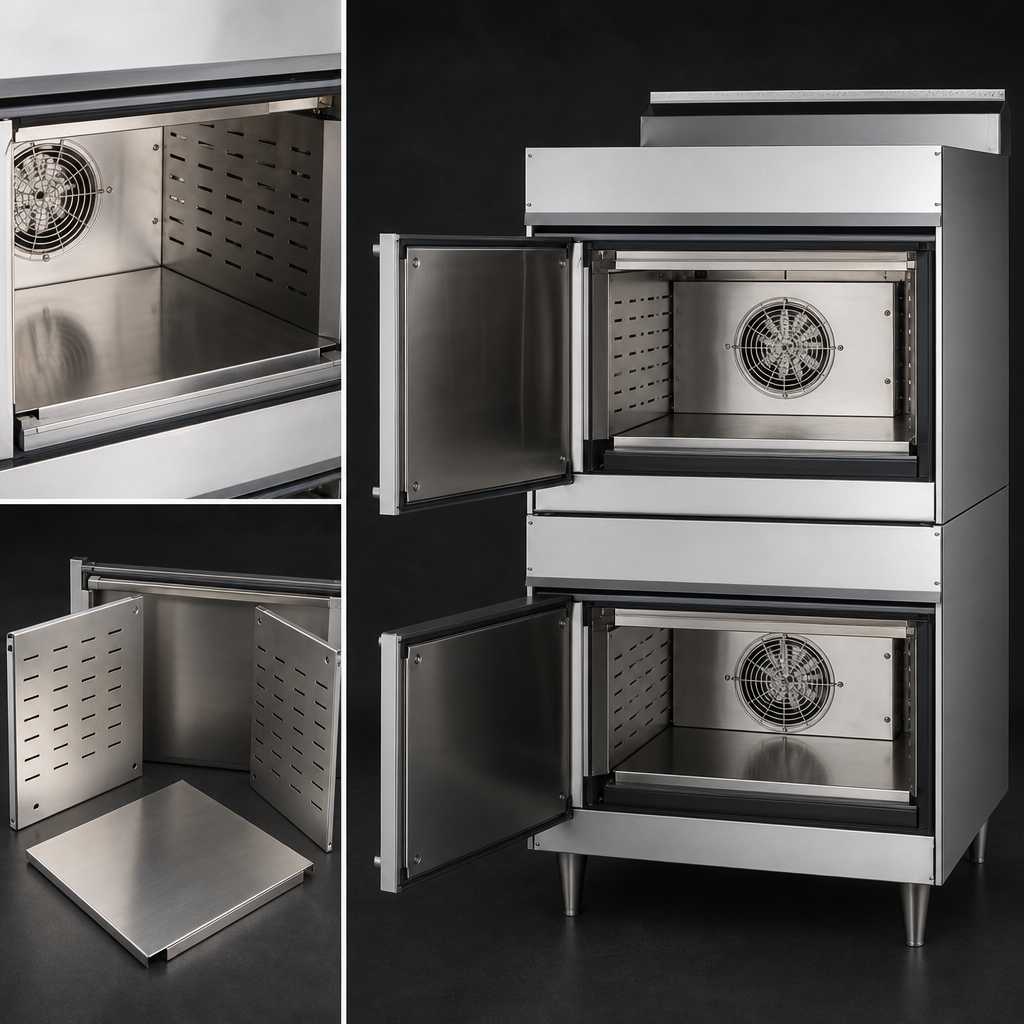

Stainless Steel Oven Interior

Each oven cavity features a 14 gauge stainless steel interior, with removable bottom and sides for easy cleaning without tools.

Chrome Plated Oven Racks

Comes with one chrome-plated oven rack per oven, designed with wires curled and welded around the main frame for no sharp ends, ensuring safety and longevity.

Efficient Gas System

Equipped with stainless steel gas tubing throughout and a 3/4 inch gas regulator, ensuring reliable and safe gas operation. Each oven features a pilot safety mechanism.

Precision Temperature Control

Thermostatic controls allow for a wide temperature range from 150°F to 500°F, suitable for various baking and roasting applications.

Advanced Convection Features

Includes a 1/3 HP 115/60/1 blower motor per oven for optimal air circulation, an electronic spark ignitor activated by a power switch, and a three-position fan switch for normal operation, quick cool-down, or off.

User-Friendly Design

Oven controls are conveniently located in a cool zone, and the unit stands on 6 inch adjustable stainless steel legs for leveling and mobility.

Type Bake & Roast Oven
Style Double Convection Oven
Installation Type Floor Model (With 6 Inches Adjustable Legs)
Gas Type Natural Gas
BTU 60,000 BTU
Gas Connection Size 3/4 Inch
Gas Inlet Pressure Natural Gas: 5 Inches W.C. Minimum; Propane Gas: 10 Inches W.C. Minimum
Voltage 115 Volts Per Oven
Amps 4.0 Amps Per Oven
Watts 460 Watts Per Oven
Hertz 60 Hz
Phase 1-Phase
Cord Length 6 Foot
Plug Type 3-Prong
Temperature Range 150°F to 500°F
Pan Capacity 1 Rack Per Oven
Compartments 2
Controls Thermostatic with Fan Switch and Spark Ignitor
Material Stainless Steel
Exterior Finish Stainless Steel
Interior Finish Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 34 Inches
Shipping Height 66 Inches
Shipping Weight 500.0 lb.

Frequently Asked Questions

The oven features a wide temperature range, allowing adjustment from 150°F to 500°F for versatile cooking applications.
Each convection oven base requires 115 Volts, 60 Hz, 1-Phase, drawing 4.0 Amps. The unit comes with a 6-foot cord with a 3-prong plug for each oven.
Yes, each oven is supplied with one chrome-plated oven rack. The oven interior features removable stainless steel bottom and sides, making them easy to clean without tools.
The oven is configured for Natural Gas as standard, but can be specified for Propane. It requires a 3/4 inch gas connection and comes with a gas appliance regulator. Required operating pressure is 5 inches W.C. minimum for Natural Gas and 10 inches W.C. minimum for Propane Gas.
Each convection oven interior measures 27-3/4 inches Wide x 13-1/2 inches High x 20-1/2 inches Deep.
